Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component |
Component Location |

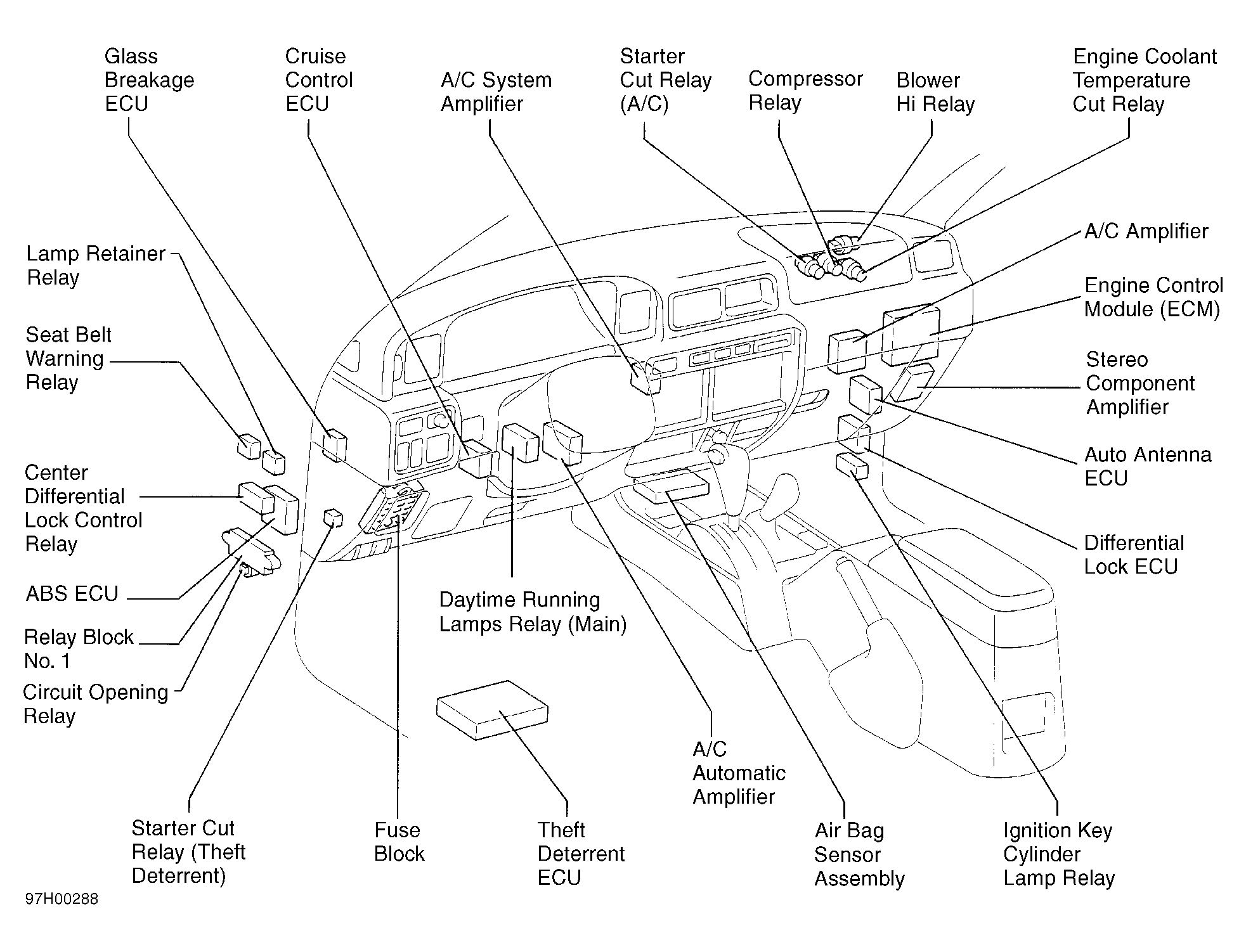

| Fuse Block |
Under left instrument panel lower trim panel. See Figure. |
| Fuse/Relay Block No. 2 |
On left front inner fender panel. |

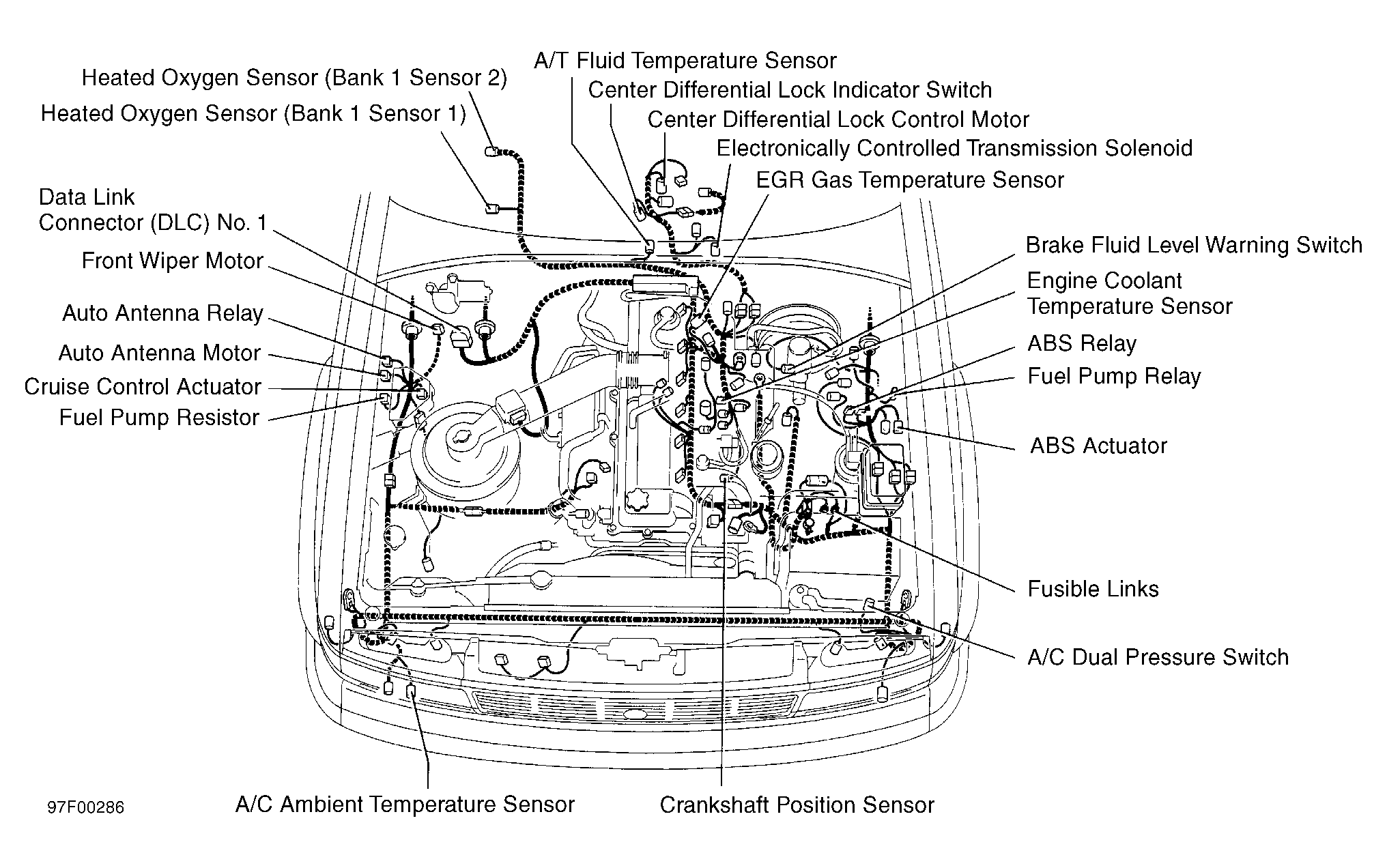

| Fusible Links (3) |
Near battery positive terminal. See Figure. |
| Relay Block No. 1 |
Behind left kick panel. See Figure. |
