Electrical Component Locator: Grounds

GROUNDS

Component Component Location

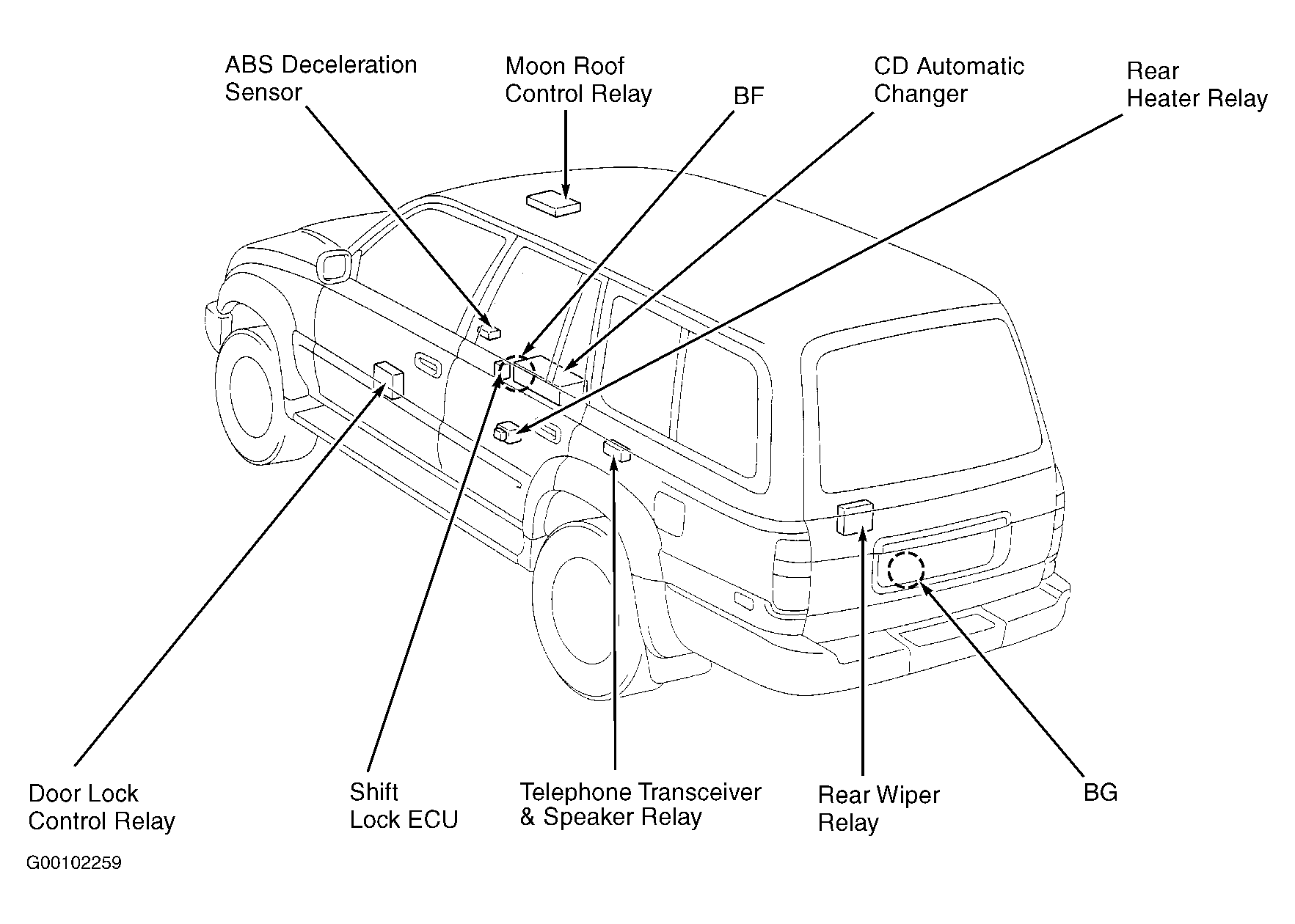

BF Under center console. See Figure.
BG At lower center of tailgate. See Figure.

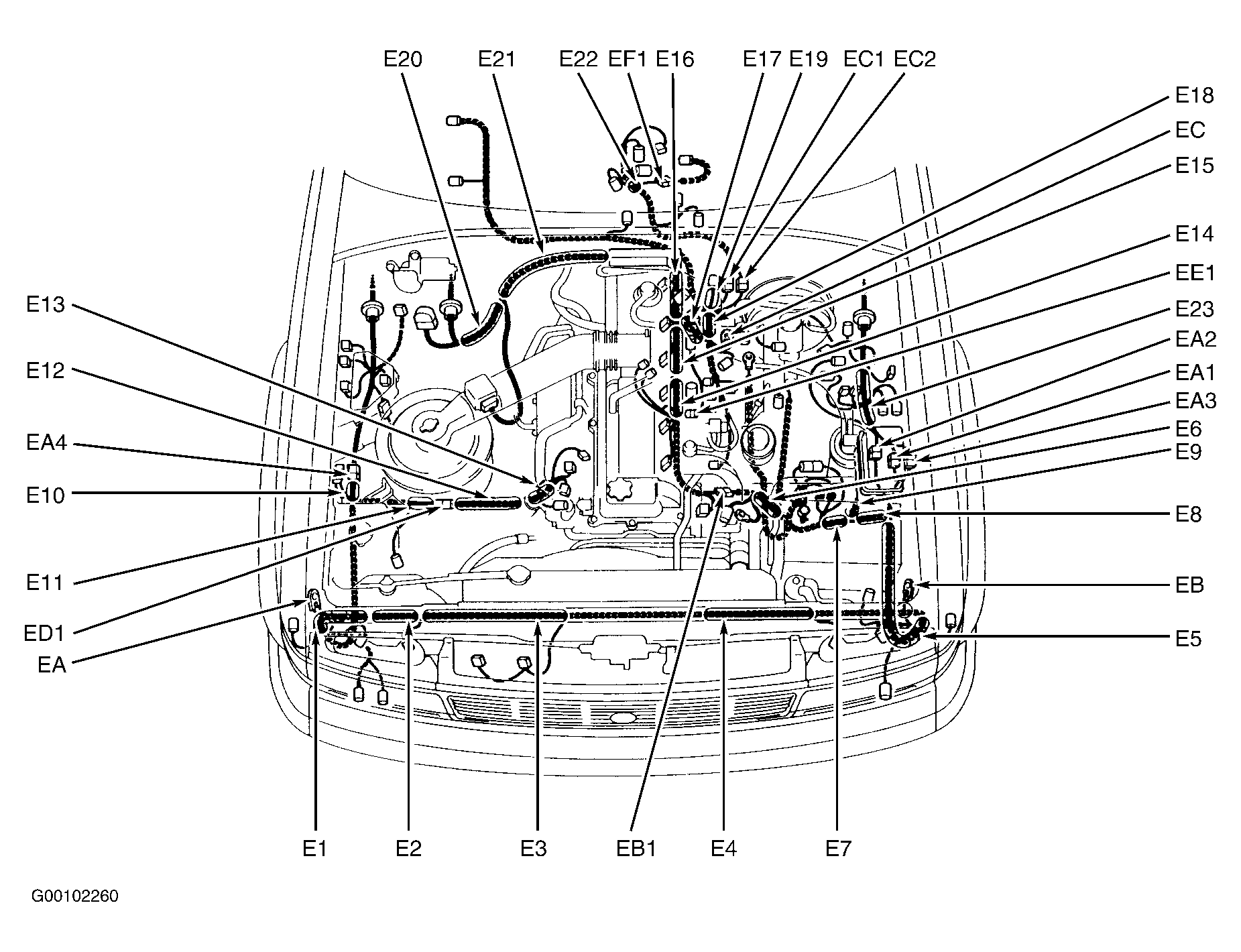

EA At front side of right fender. See Figure.
EB At front side of left fender. See Figure.
EC At intake manifold. See Figure.

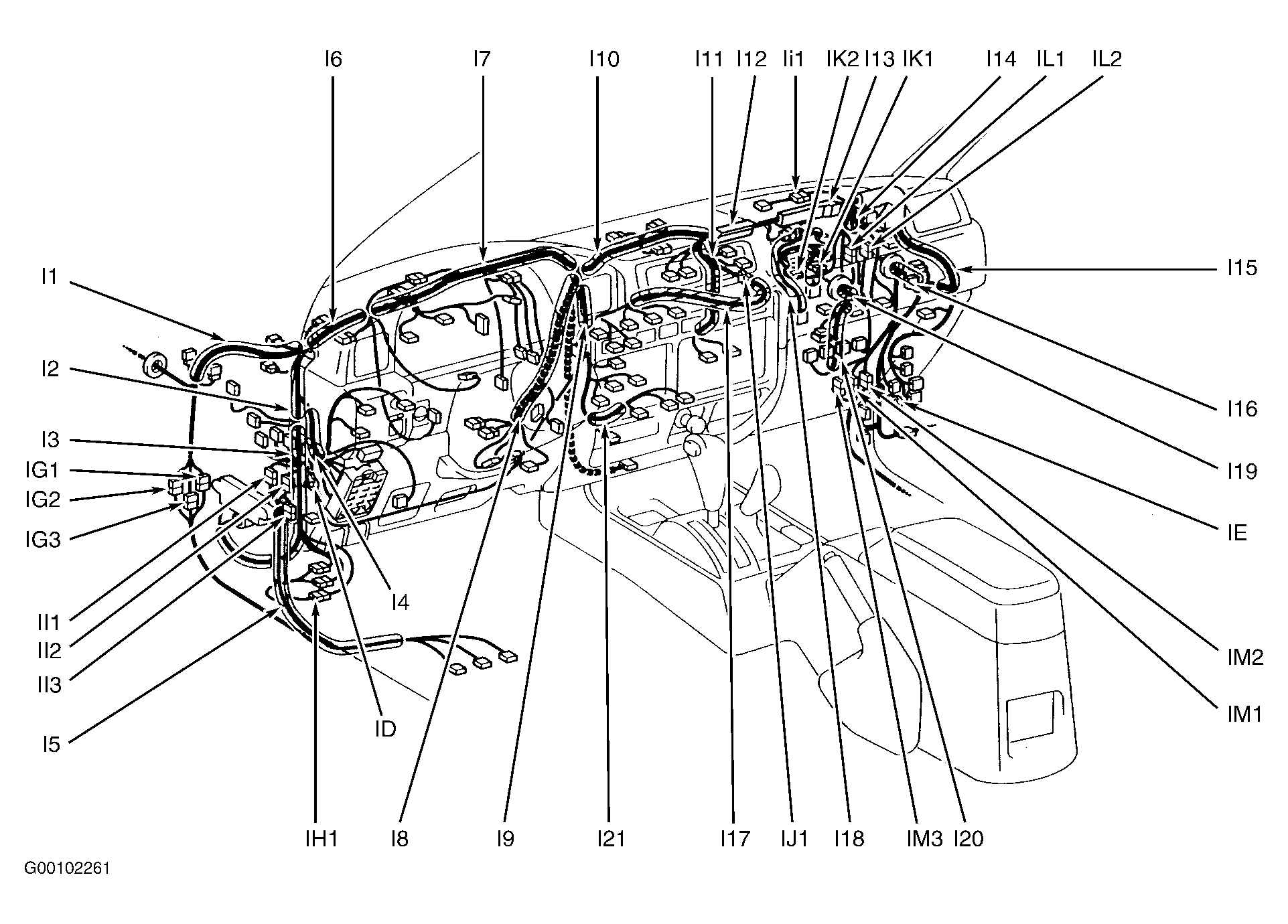

ID At left kick panel. See Figure.
IE At right kick panel. See Figure.
