Electrical Component Locator: Miscellaneous

MISCELLANEOUS

Component Component Location
A/C Amplifier On right front side of evaporator housing. See Figure.

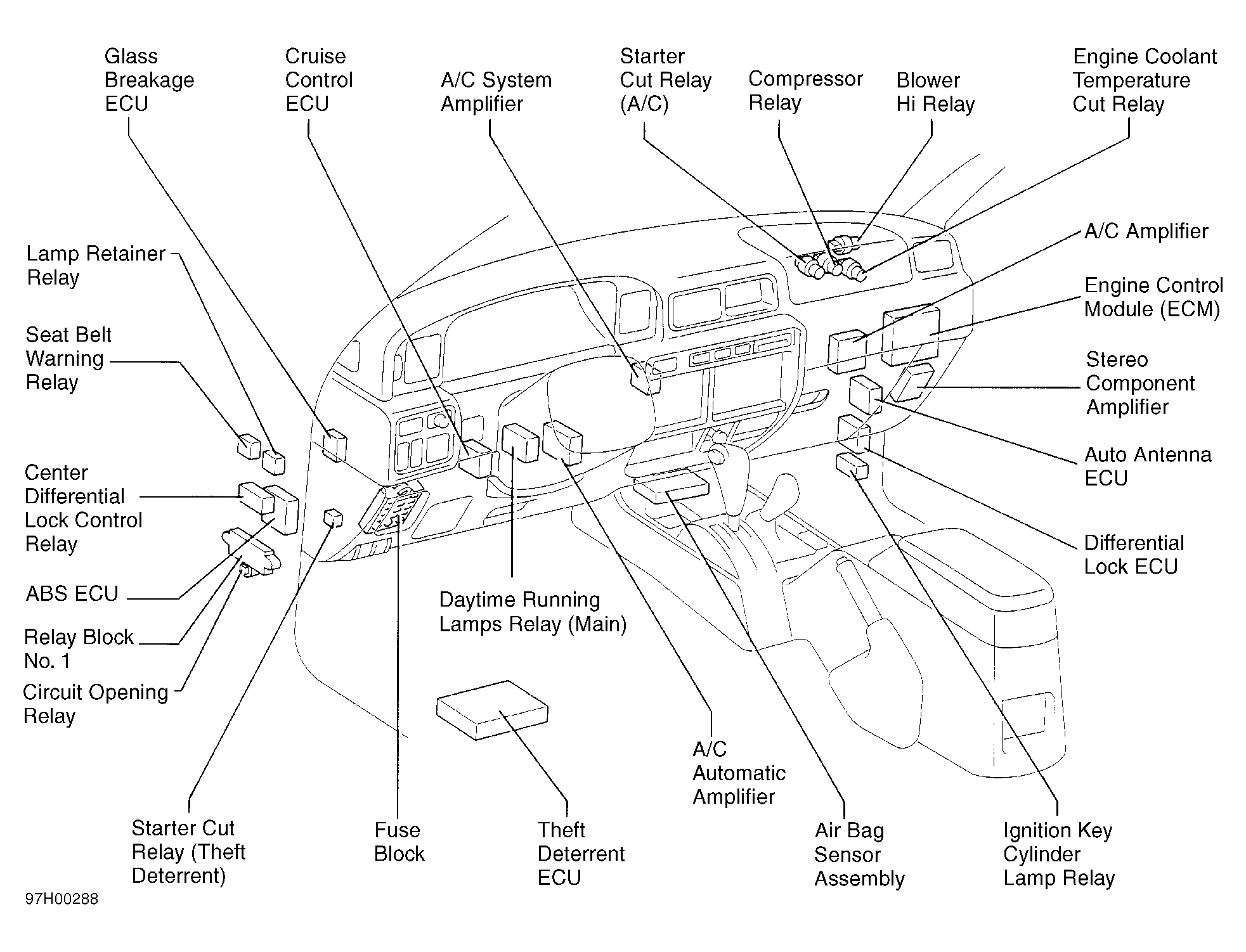

A/C Automatic Amplifier Behind left side of instrument panel, right of cluster. See Figure.
A/C Power Transistor Under right side of dash, behind glove box.
A/C System Amplifier Behind center of dash. See Figure.
A/C Thermistor Under right side of dash, below glove box.
Blower Resistor On evaporator housing, near A/C amplifier.
Blower Resistor Under right side of dash, below glove box.
CD Automatic Changer Under center console, behind gearshift lever. See Figure.

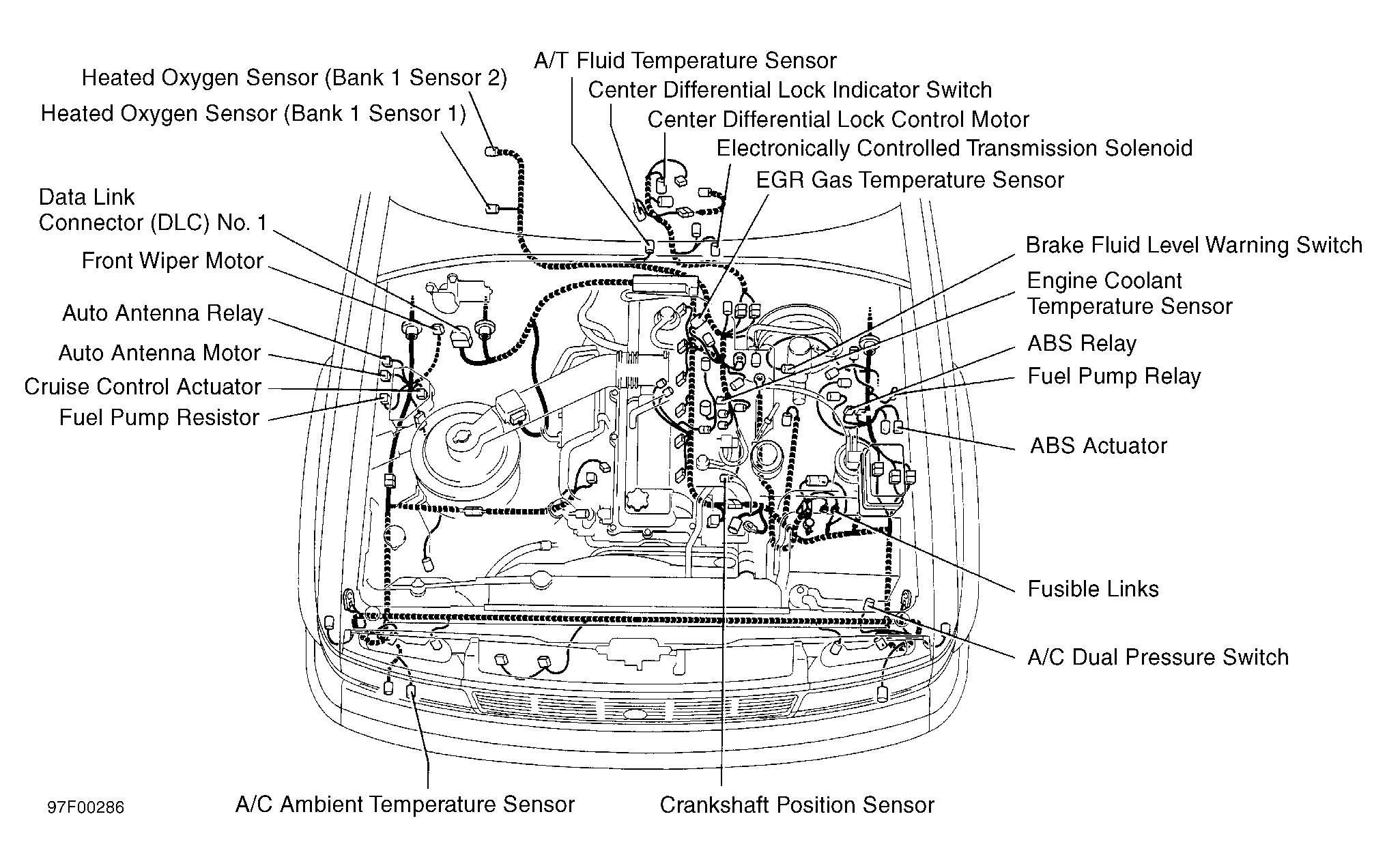

Data Link Connector (DLC) No. 1 On right side of firewall, near wiper motor. See Figure.
Data Link Connector (DLC) No. 3 Above fuse block on left side of dash.
Fuel Pump Resistor On right front inner fender panel. See Figure.
Rear Heater At rear of center console.
Stereo Component Amplifier Behind right side of dash, under engine control module. See Figure.
