Steering Gear: Notes

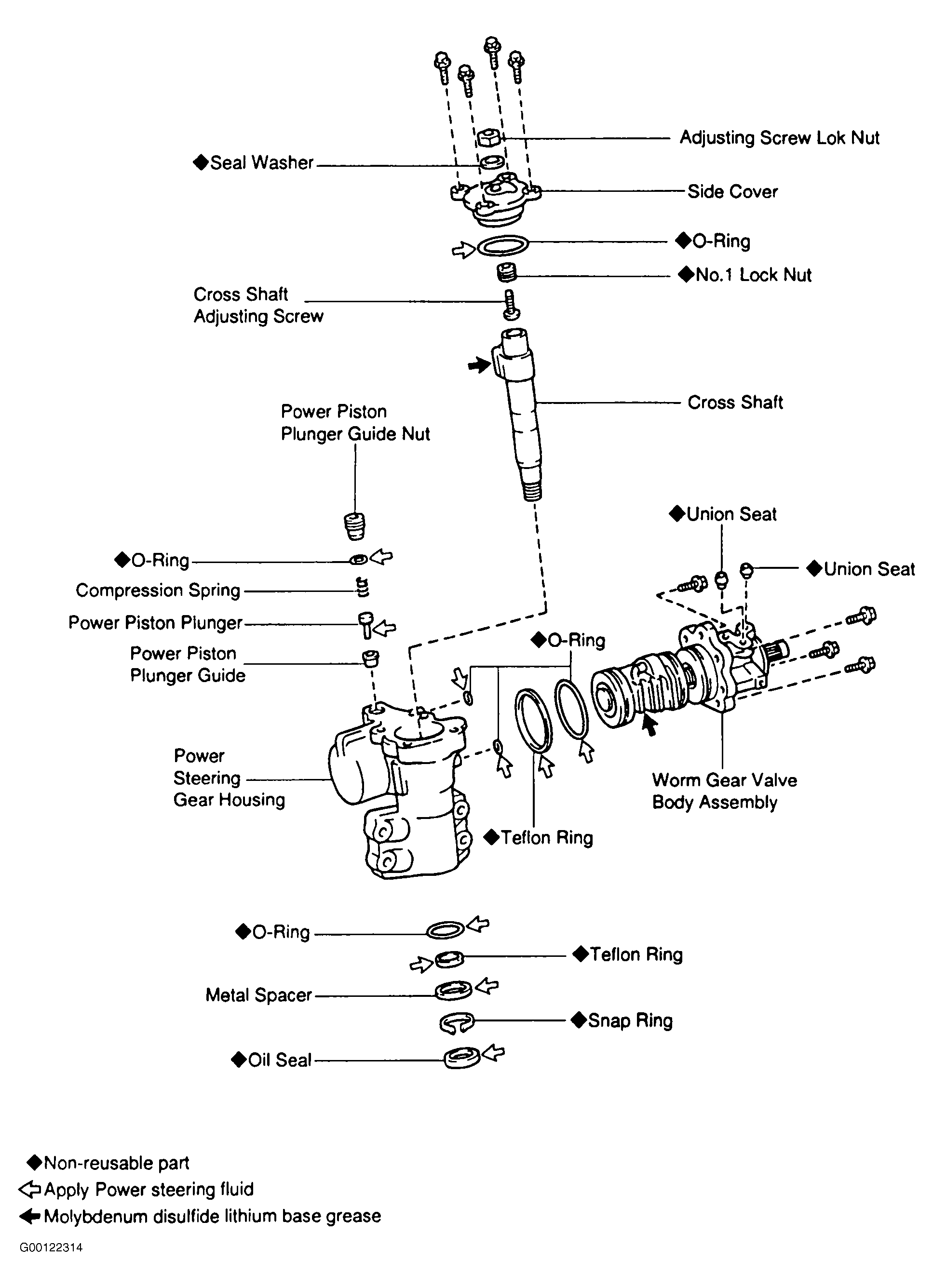

Fig 1: Exploded View Of Power Steering Gear
G00122314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
