Special Tools

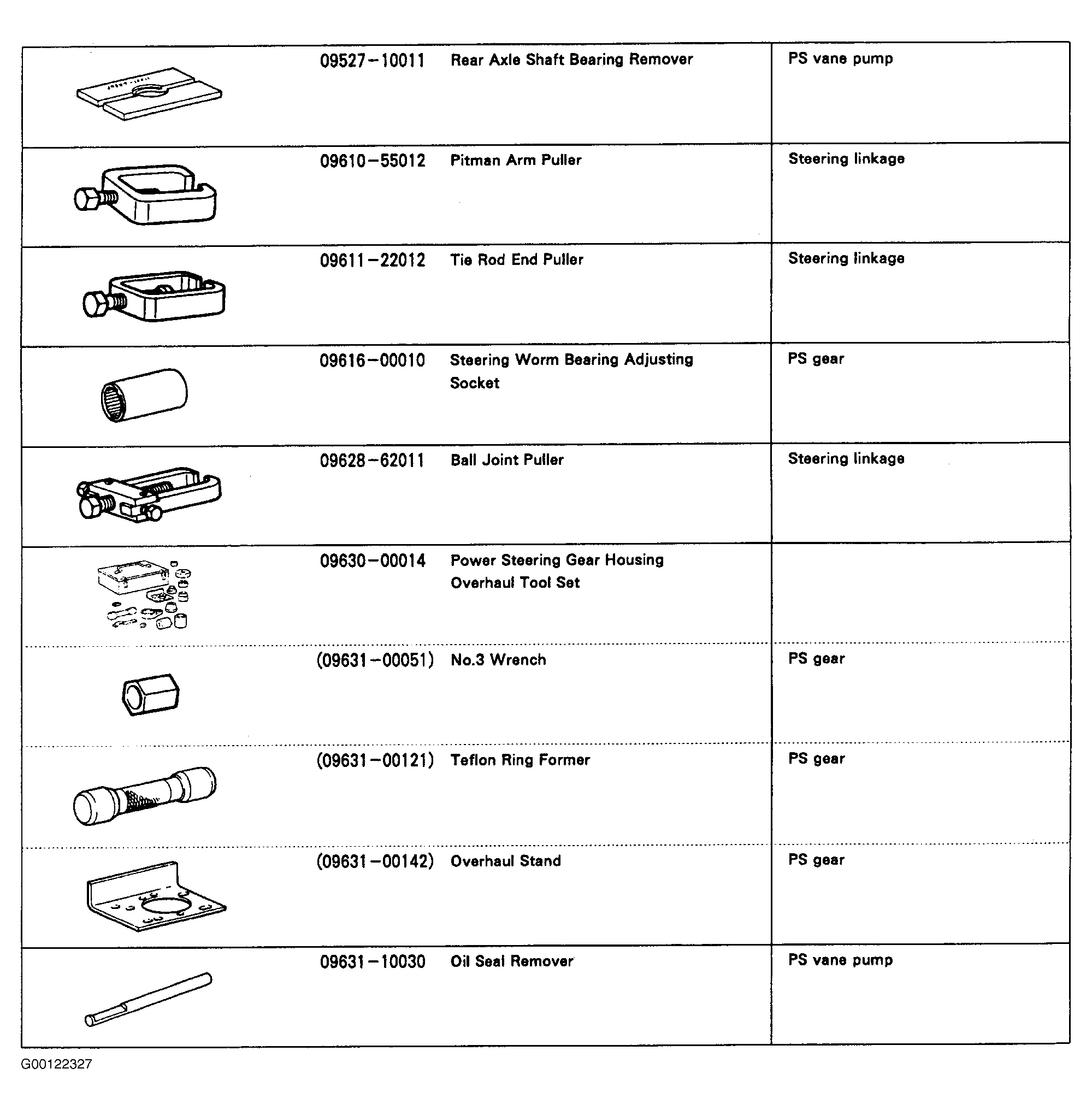

Fig 1: Identifying Special Service Tools (SST) 1 Of 3
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

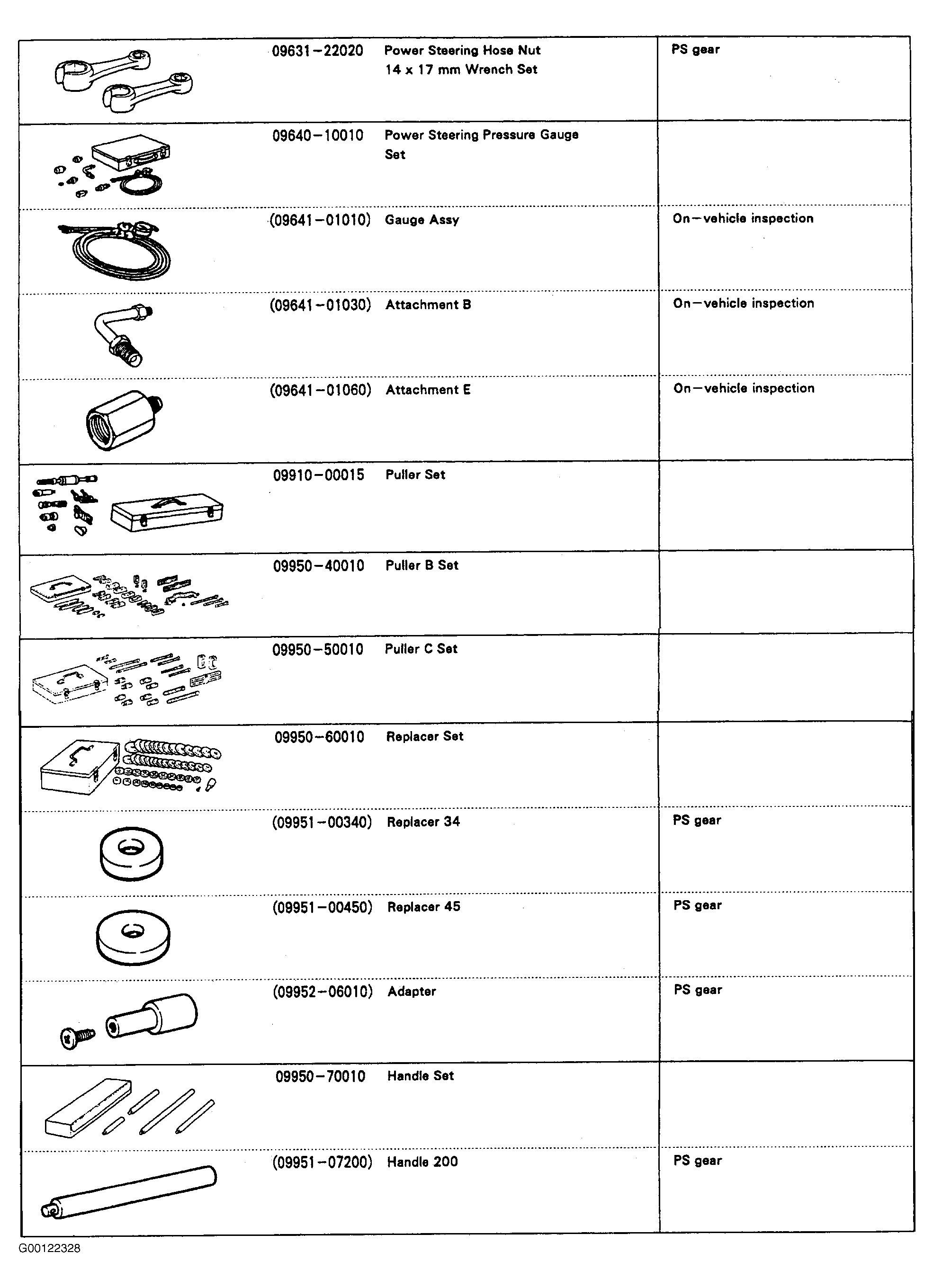

Fig 2: Identifying Special Service Tools (SST) 2 Of 3
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

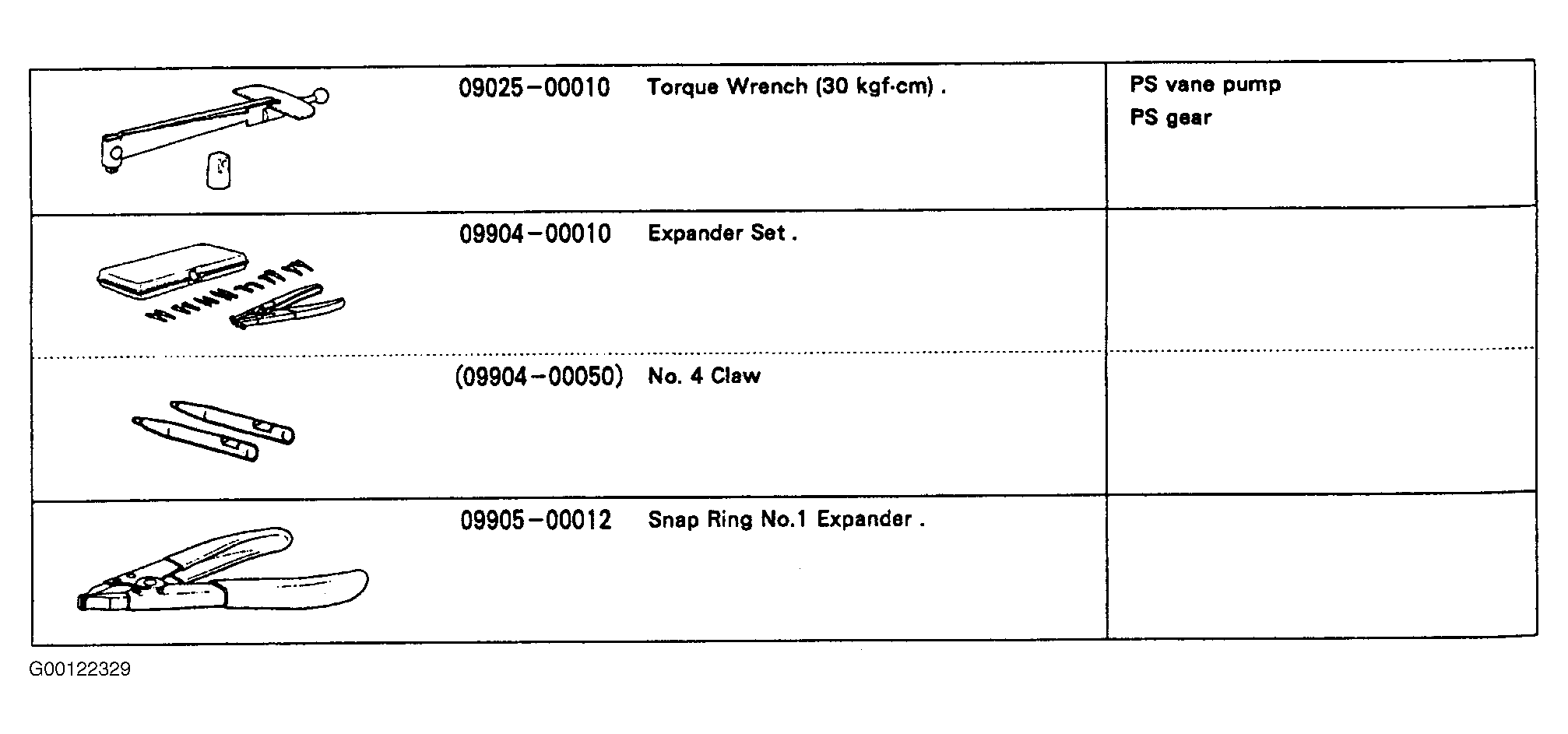

Fig 3: Identifying Special Service Tools (SST) 3 Of 3
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
