Wheel Angle

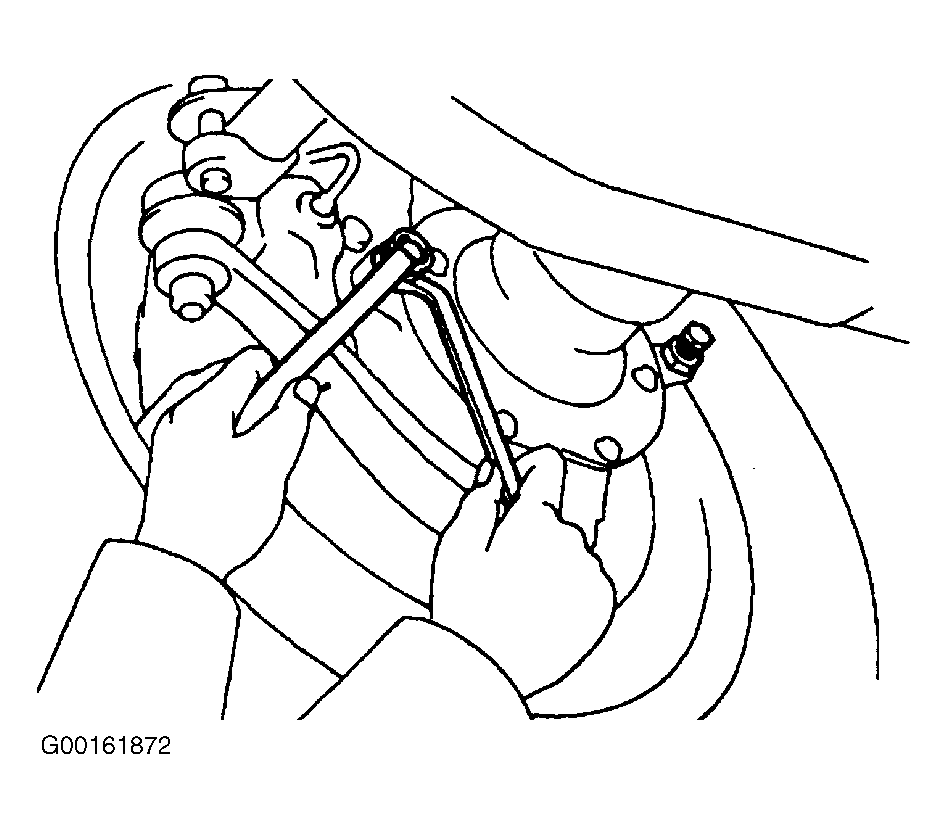

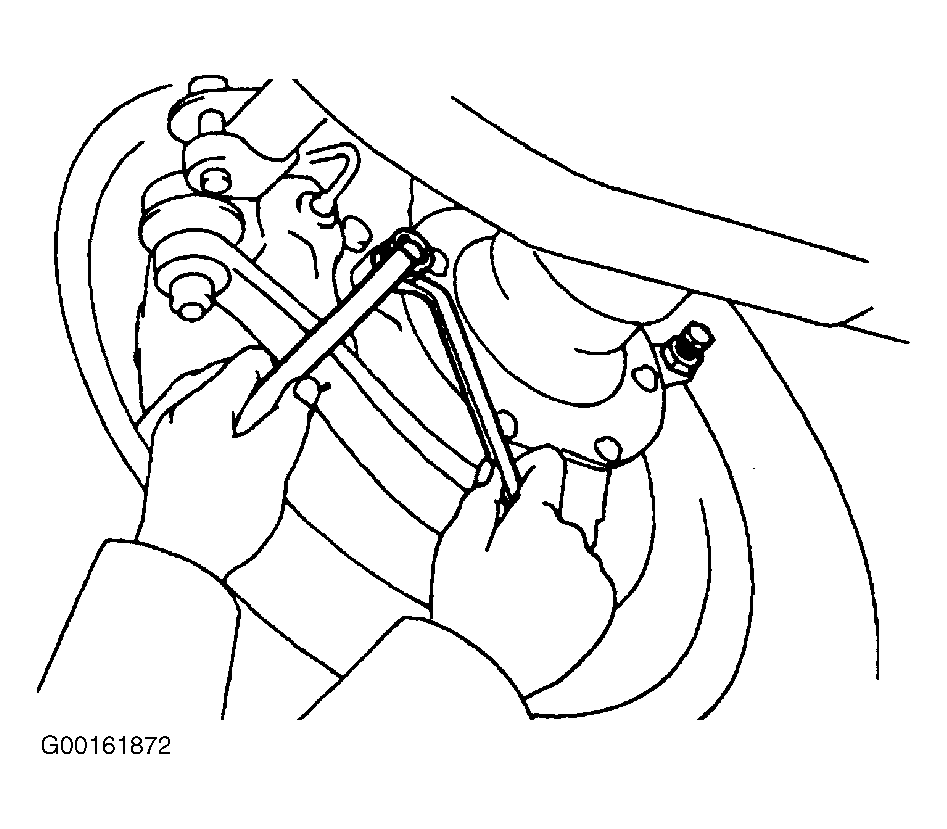

- Remove the caps of the knuckle stopper bolts and check the steering angles. See Fig 1.

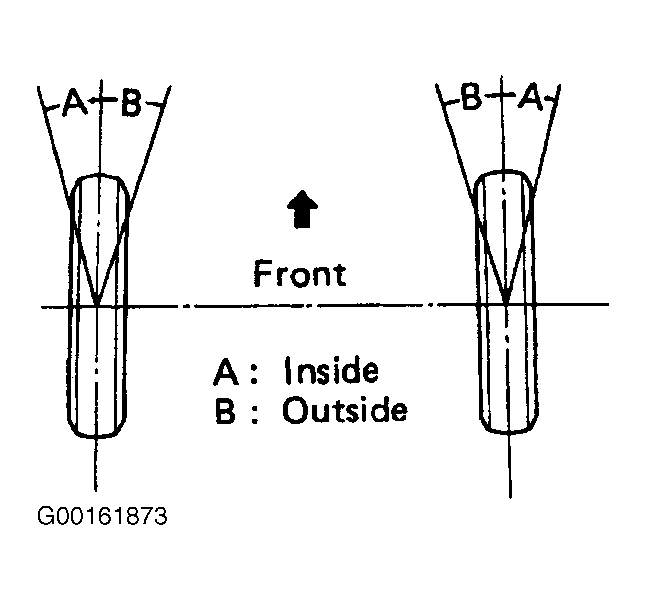

- Turn the steering wheel fully, and measure the turning angle. See Fig 2 and Figure. If maximum steering angles differ from the standard value, adjust the wheel angle with the knuckle stopper bolts. If the wheel angle still cannot be adjusted within limits, inspect and replace damaged or worn steering parts.
NOTE:
When the steering wheel is fully turned, make sure that the wheel is not touching the body or brake flexible hose.
