Odometer & Trip Meter Switch

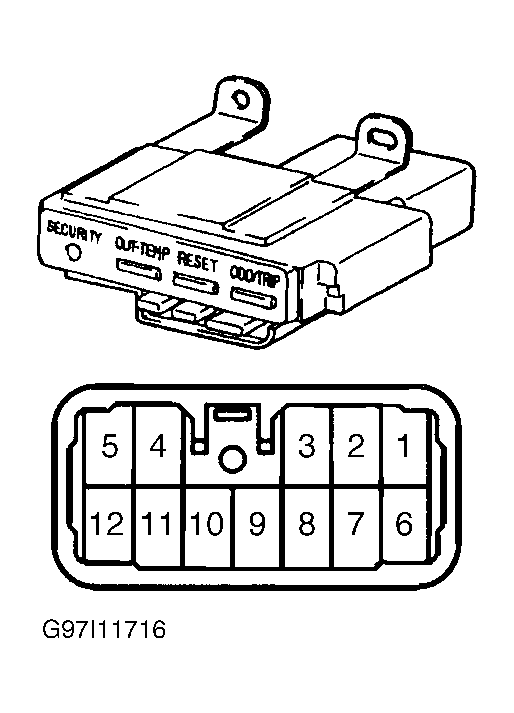

Remove odometer and trip meter switch. See Fig 1. If continuity is not as follows, replace switch. See ODOMETER & TWIN TRIP CONTINUITY SWITCH TEST table.
ODOMETER & TWIN TRIP CONTINUITY SWITCH TEST
| Terminals No. | Switch Position | Value |
|---|---|---|
| 2-4 | RESET | Continuity |
| 1-4 | A/B | Continuity |
| 3-4 | SECURITY | Continuity |
| 9-12 | SET | Continuity |
| 8-12 | HOUR | Continuity |
| 7-12 | MINUTE | Continuity |
| 4-5 | MODE/RESET | Continuity |
