Air Flow Meter/Sensor: Service and Repair

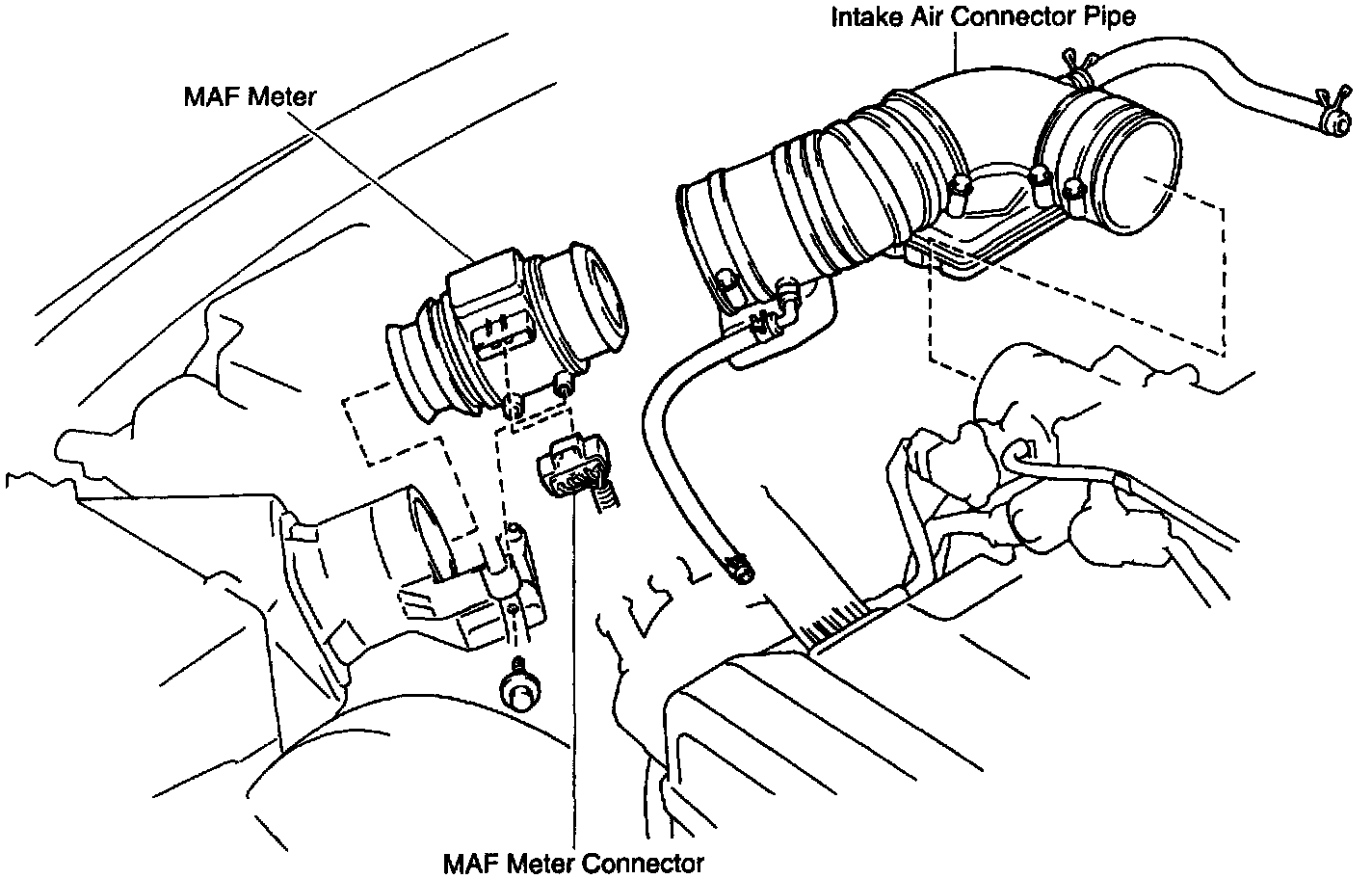

COMPONENTS FOR REMOVAL AND INSTALLATION

MAF METER REMOVAL

1. REMOVE INTAKE AIR CONNECTOR PIPE

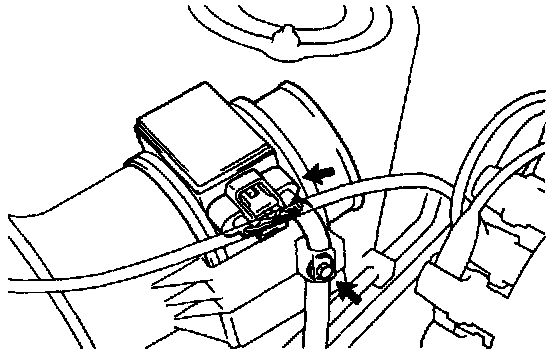

2. REMOVE MAF METER
(a) Disconnect the MAF meter connector.
(b) Remove the bolt and MAF meter.

MAF METER INSTALLATION

INSTALLATION HINT: Installation is in the reverse order of removal.
