Key Unlock Warning Switch Circuit

CIRCUIT DESCRIPTION
When the key is inserted in the ignition key cylinder the key unlock warning switch comes ON and when the key is not inserted switch is OFF.

When the key unlock warning switch is ON, the ECU operates the key confinement prevention function.

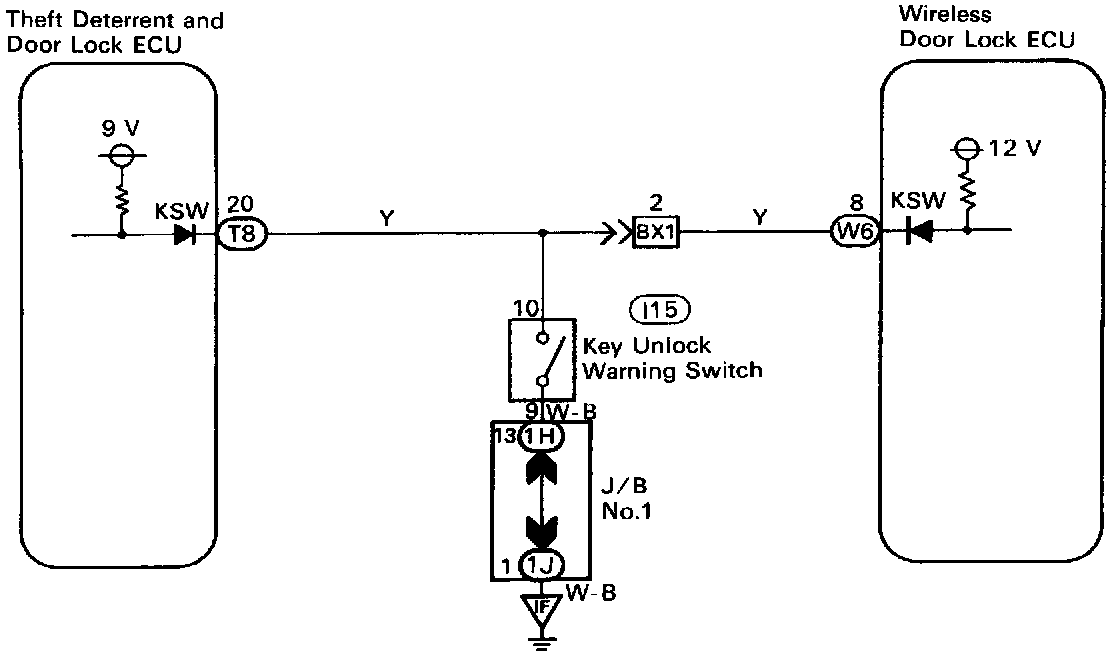

WIRING DIAGRAM

INSPECTION PROCEDURE
