Cellular Phone





MICROPHONE (Hands Free)
COMPONENTS

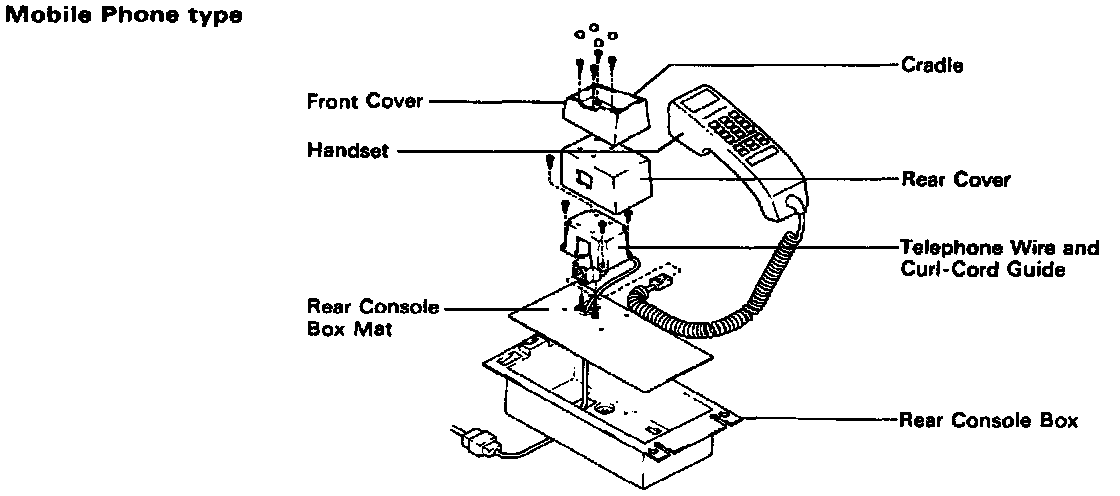

CELLULAR PHONE (Handset)
COMPONENTS

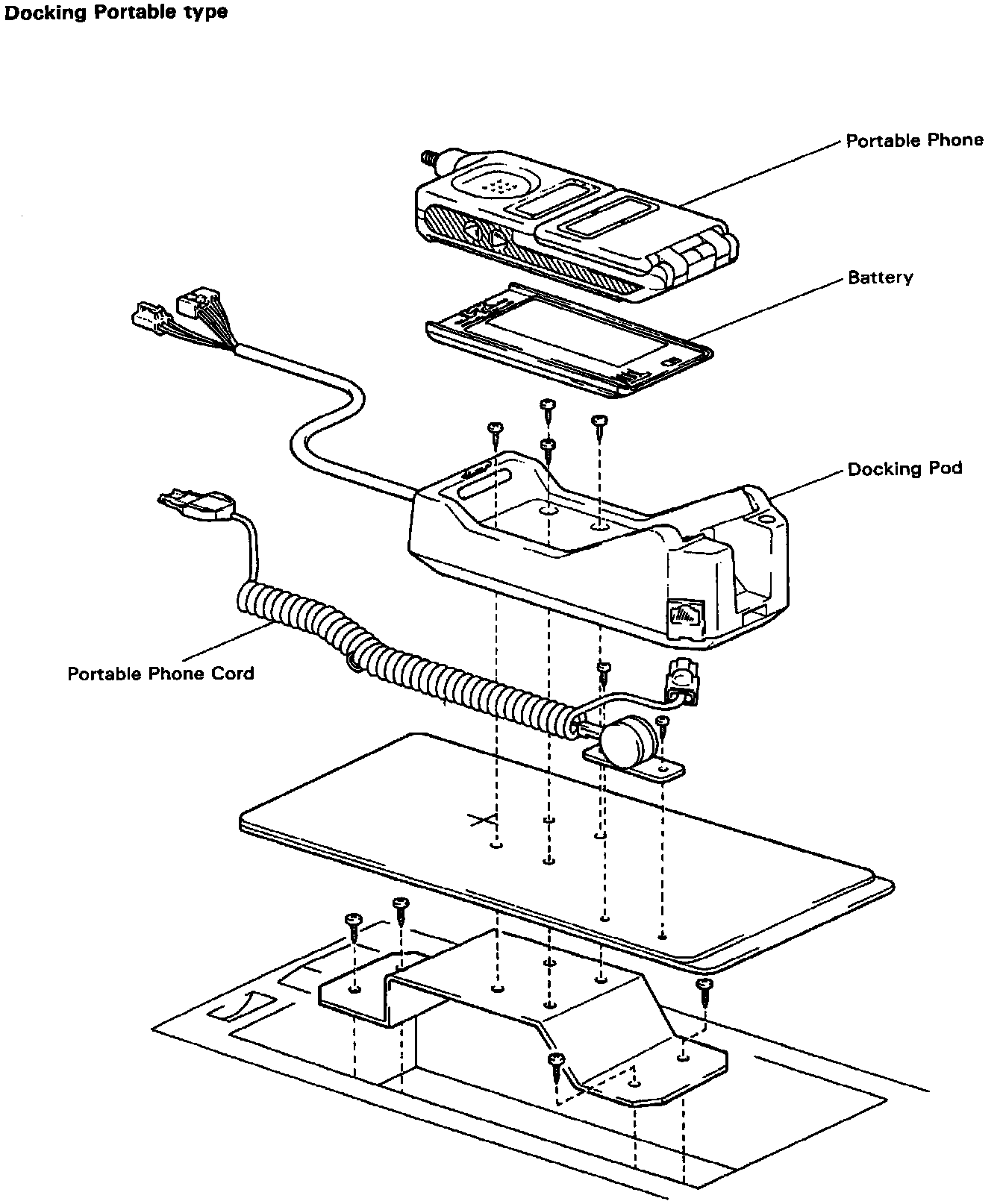

DOCKING PORTABLE TYPE

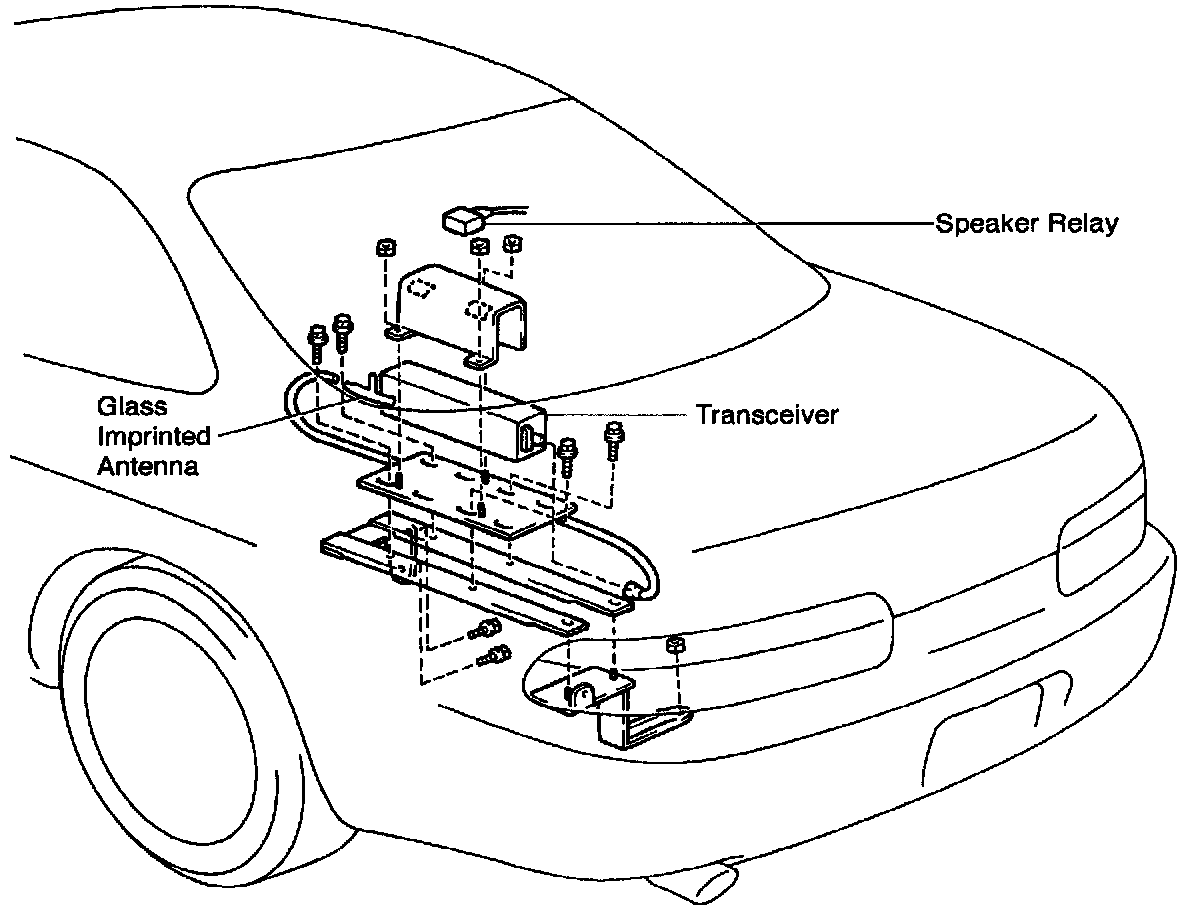

ANTENNA, TRANSCEIVER AND SPEAKER RELAY
