Shift Interlock Control Module: Testing and Inspection

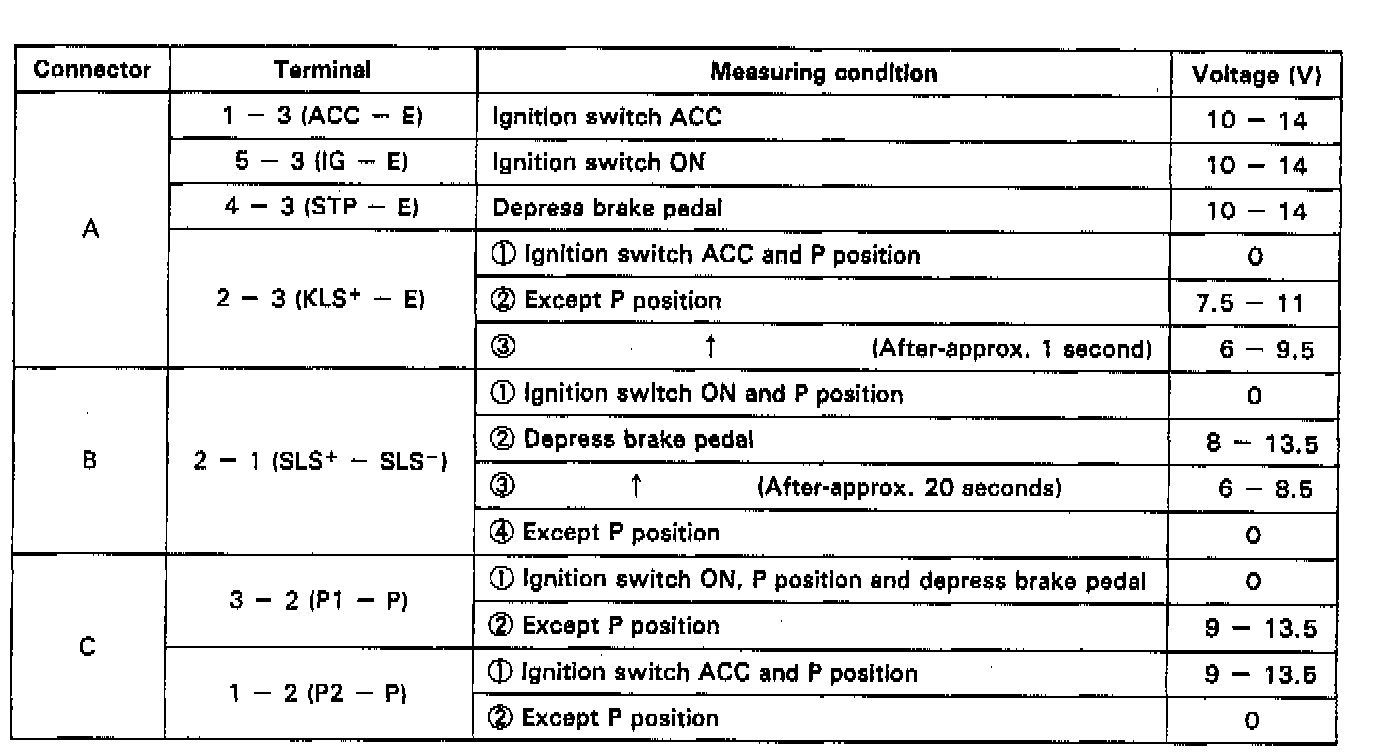

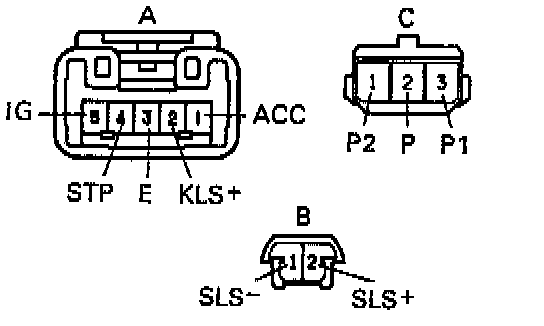

1. Inspect shift lock control Electronic Control Module (ECM). Using a voltmeter, measure the voltage at each terminal.

NOTE: Do not disconnect the ECU connector.
