Power Source (Current Flow Chart)

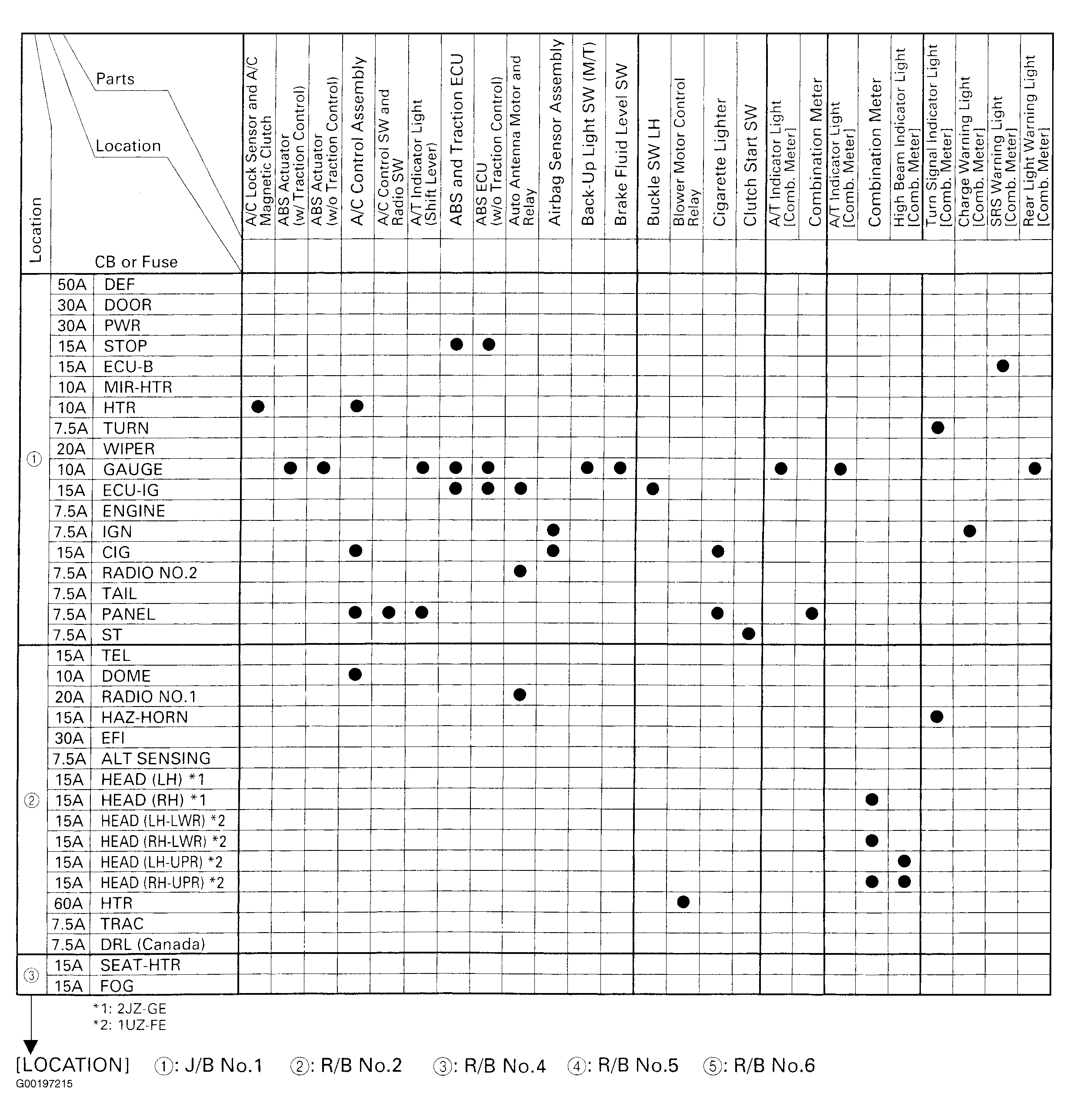

Fig 1: Power Source Legend (1 Of 8)

G00197215

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

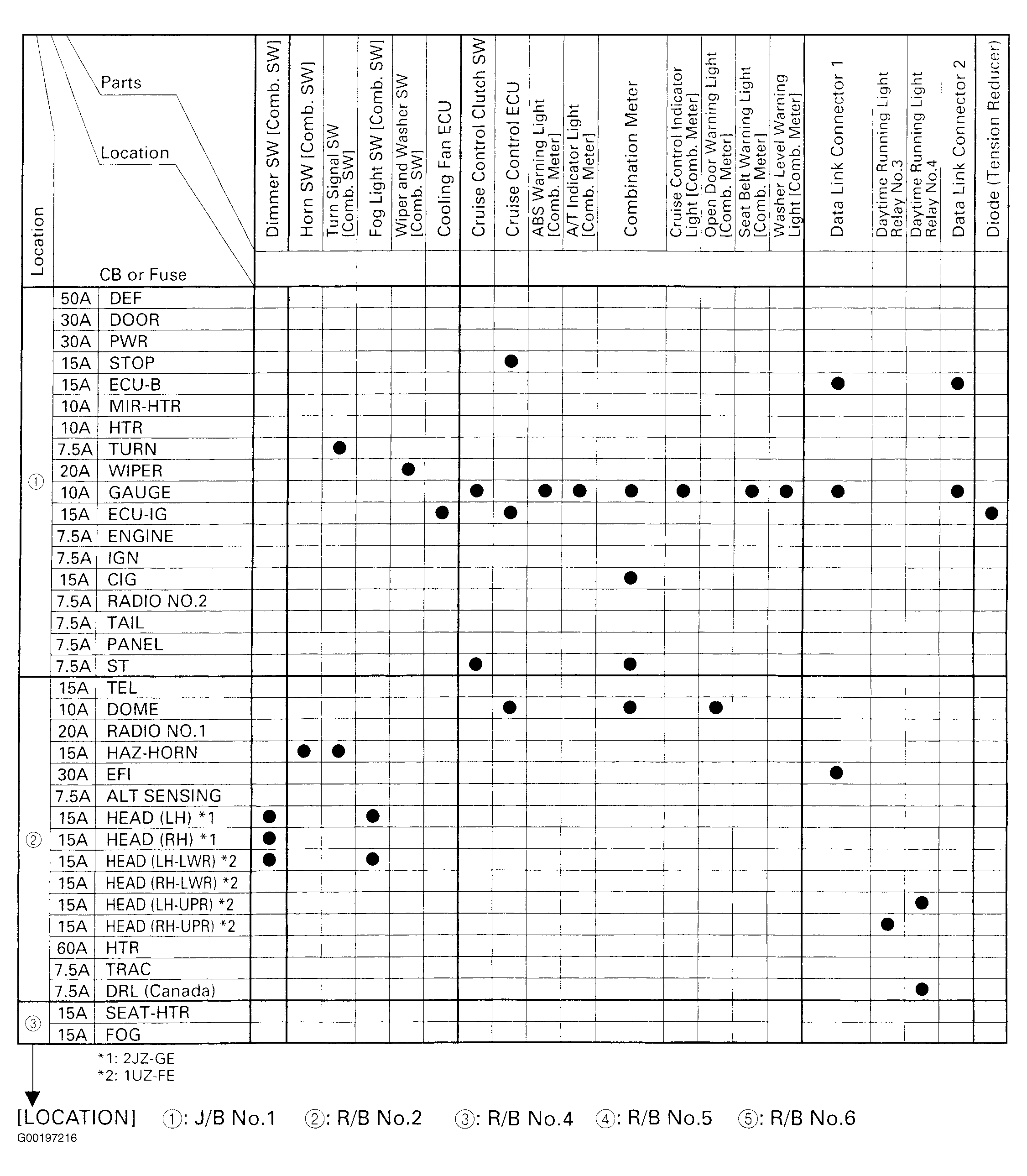

Fig 2: Power Source Legend (2 Of 8)

G00197216

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

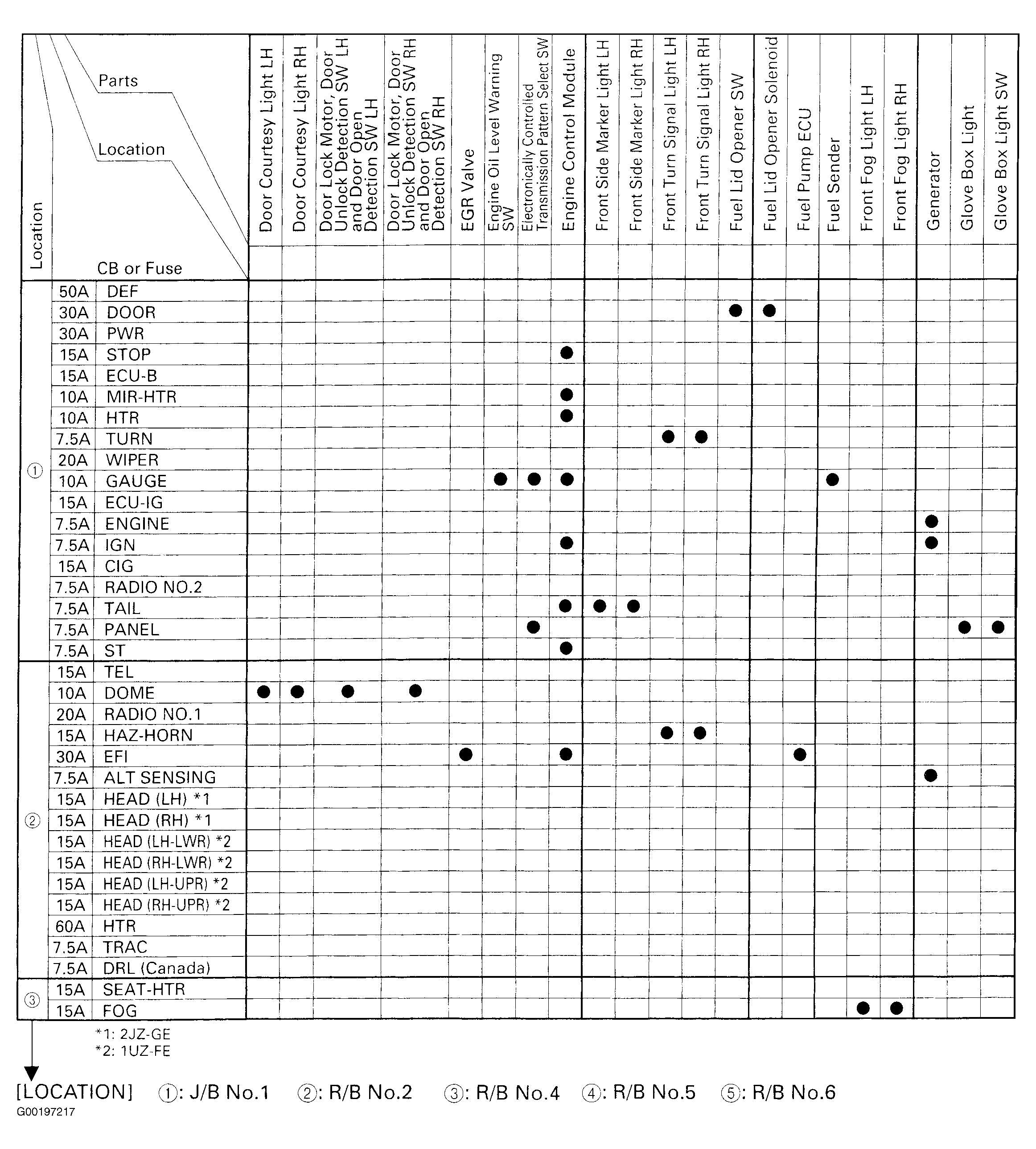

Fig 3: Power Source Legend (3 Of 8)

G00197217

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

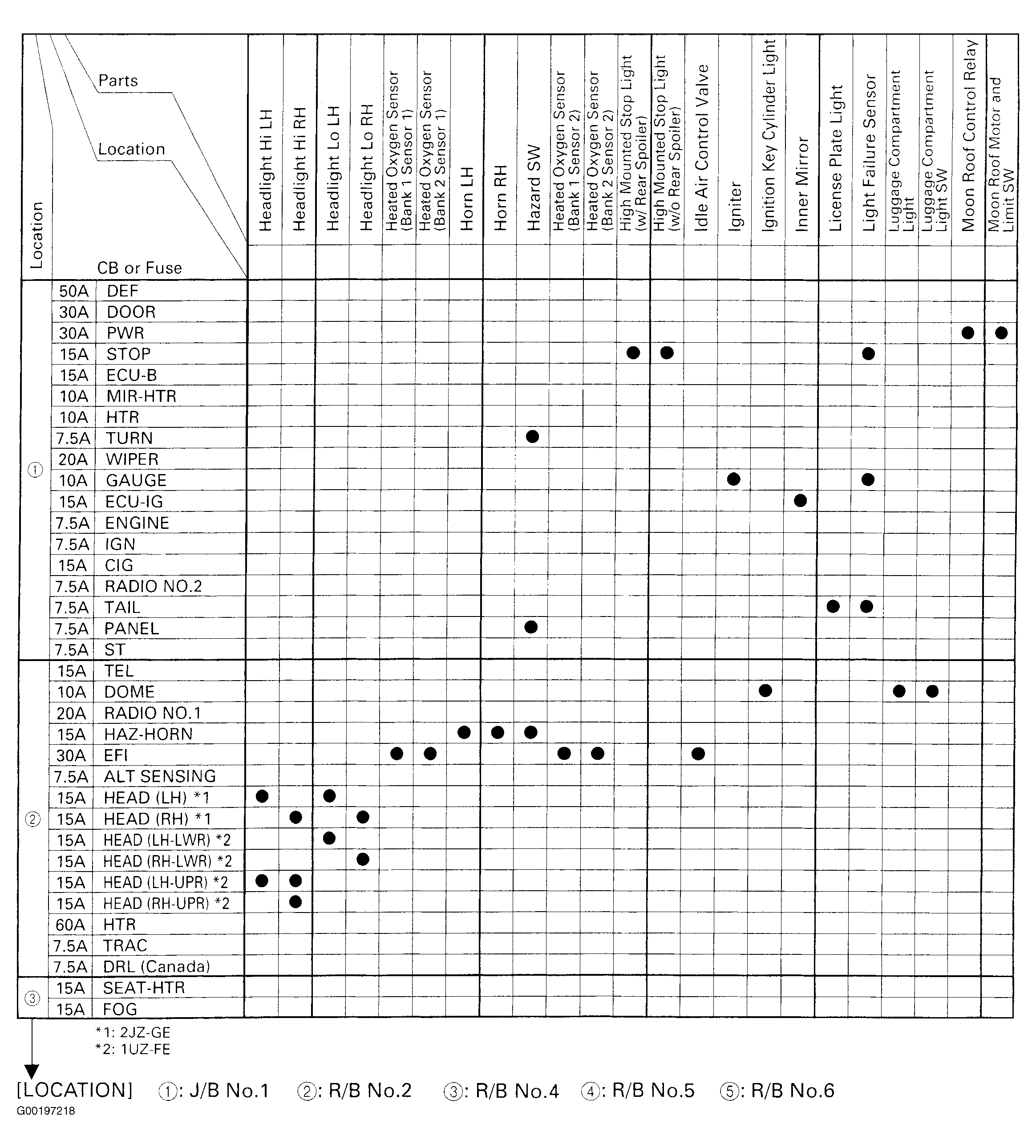

Fig 4: Power Source Legend (4 Of 8)

G00197218

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

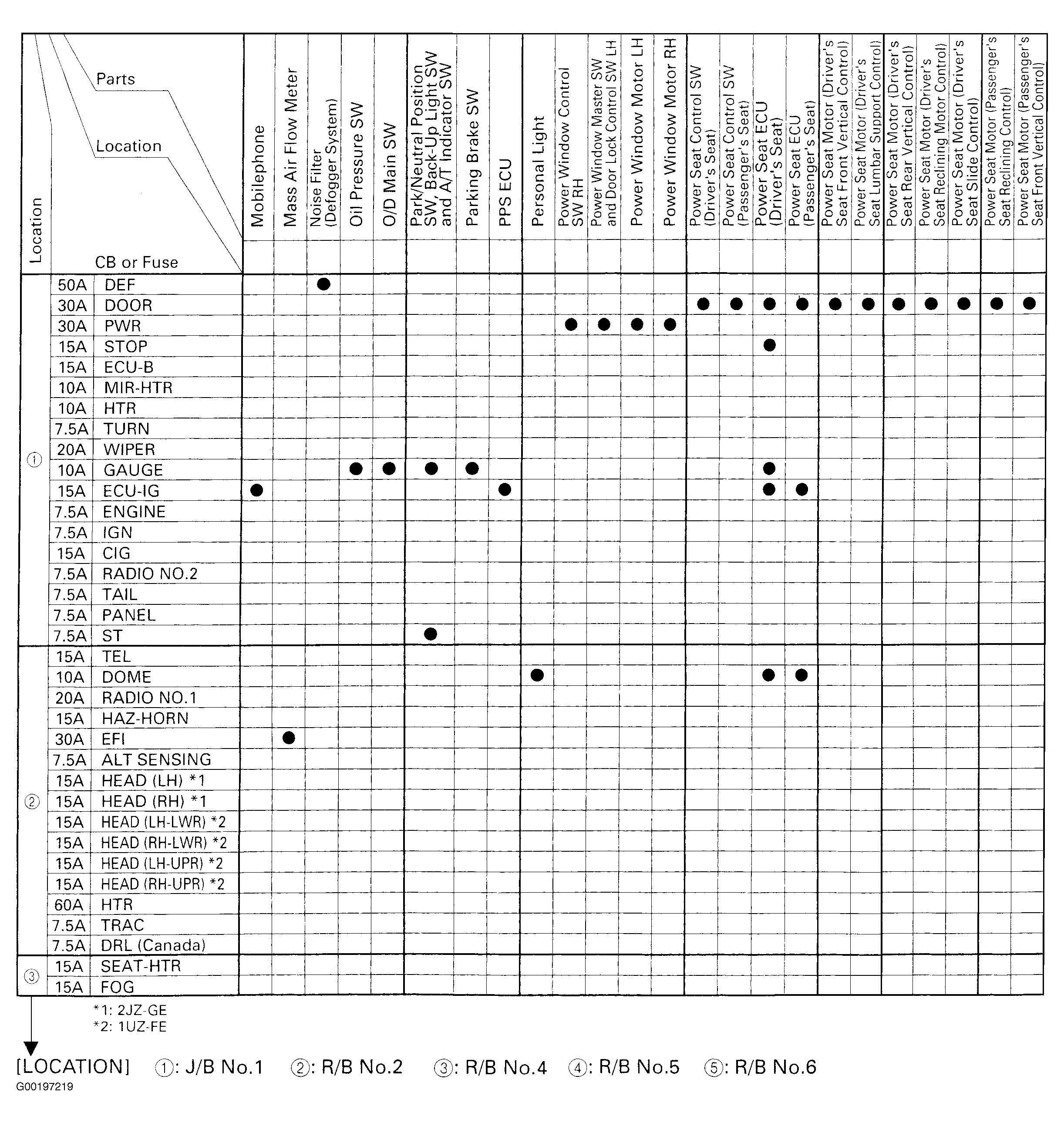

Fig 5: Power Source Legend (5 Of 8)

G00197219

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

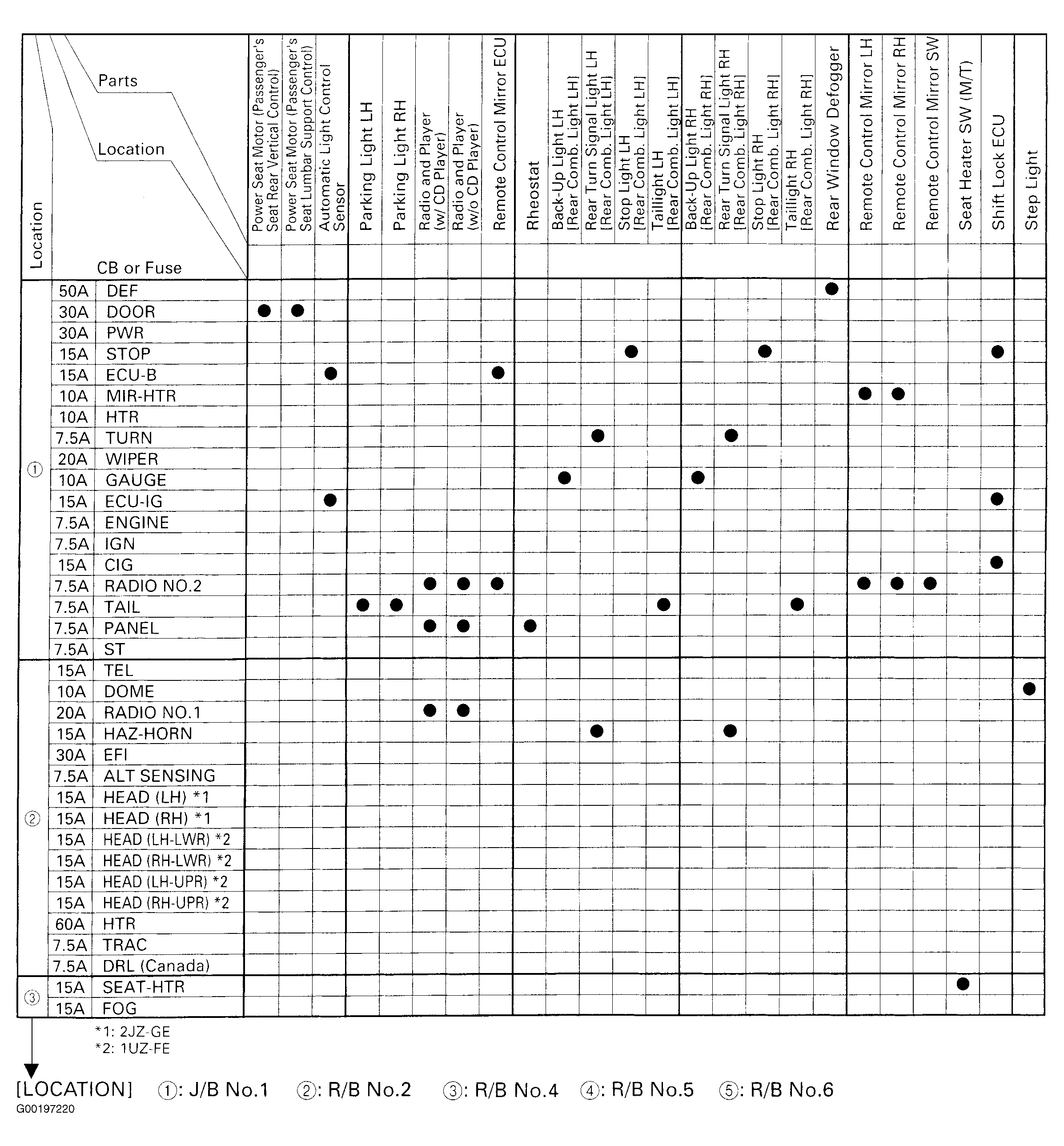

Fig 6: Power Source Legend (6 Of 8)

G00197220

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Power Source Legend (7 Of 8)

G00197221

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

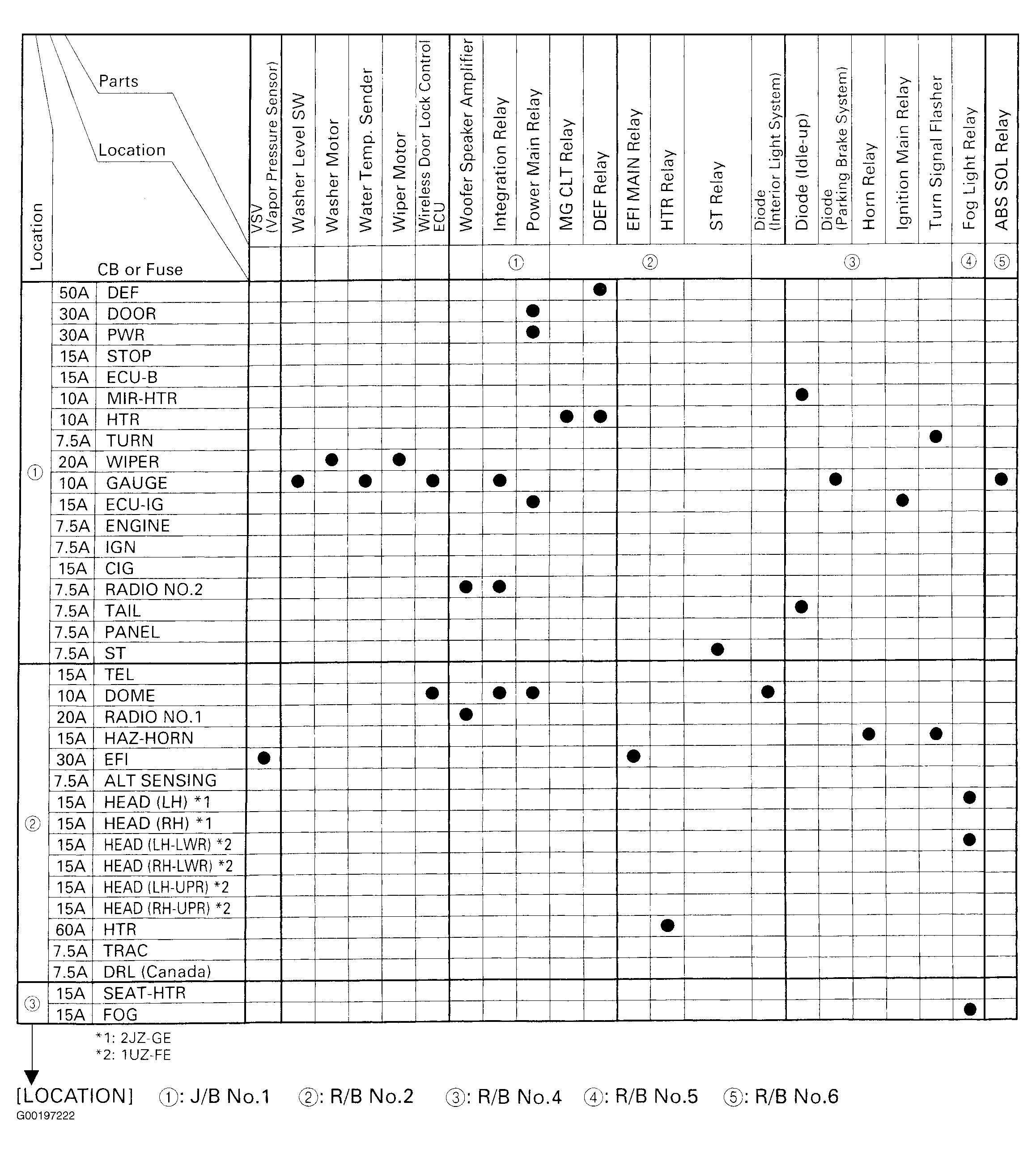

Fig 8: Power Source Legend (8 Of 8)

G00197222

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
