Instrument Panel Circuit Tests

NOTE: Unless specified otherwise, use a DVOM with a minimum input impedance of 10-megohms during testing.

Disconnect instrument cluster connectors "A", "B" and "D". See Fig 1. Using DVOM, test each circuit from the harness side of appropriate connector under the condition listed. See Fig 2- Fig 3 . If specification value is not as specified, repair wiring as necessary. See appropriate wiring diagram in WIRING DIAGRAMS .

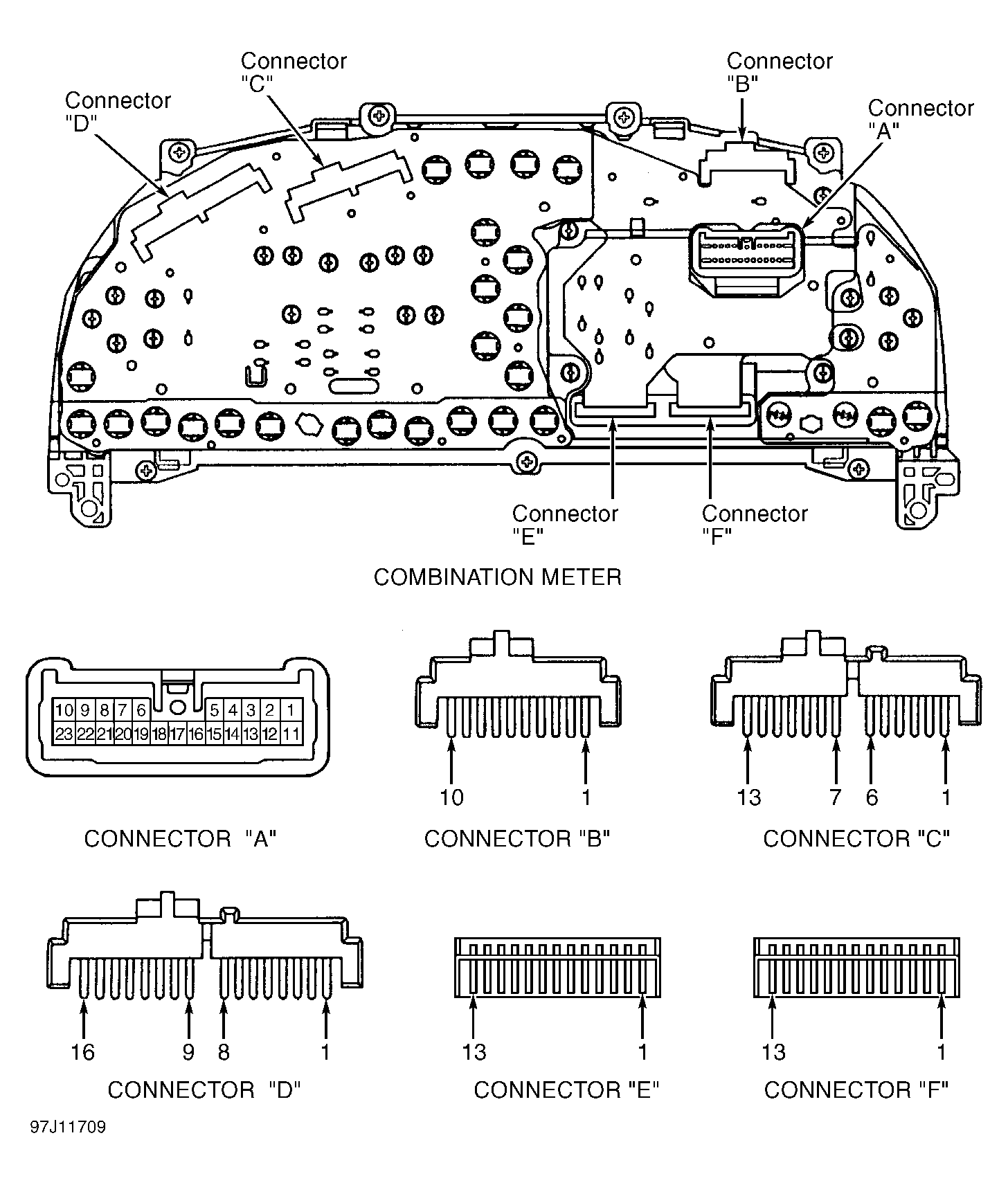

Fig 1: Harness Connectors & Gauge Terminals On Back Of Instrument Panel Id

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

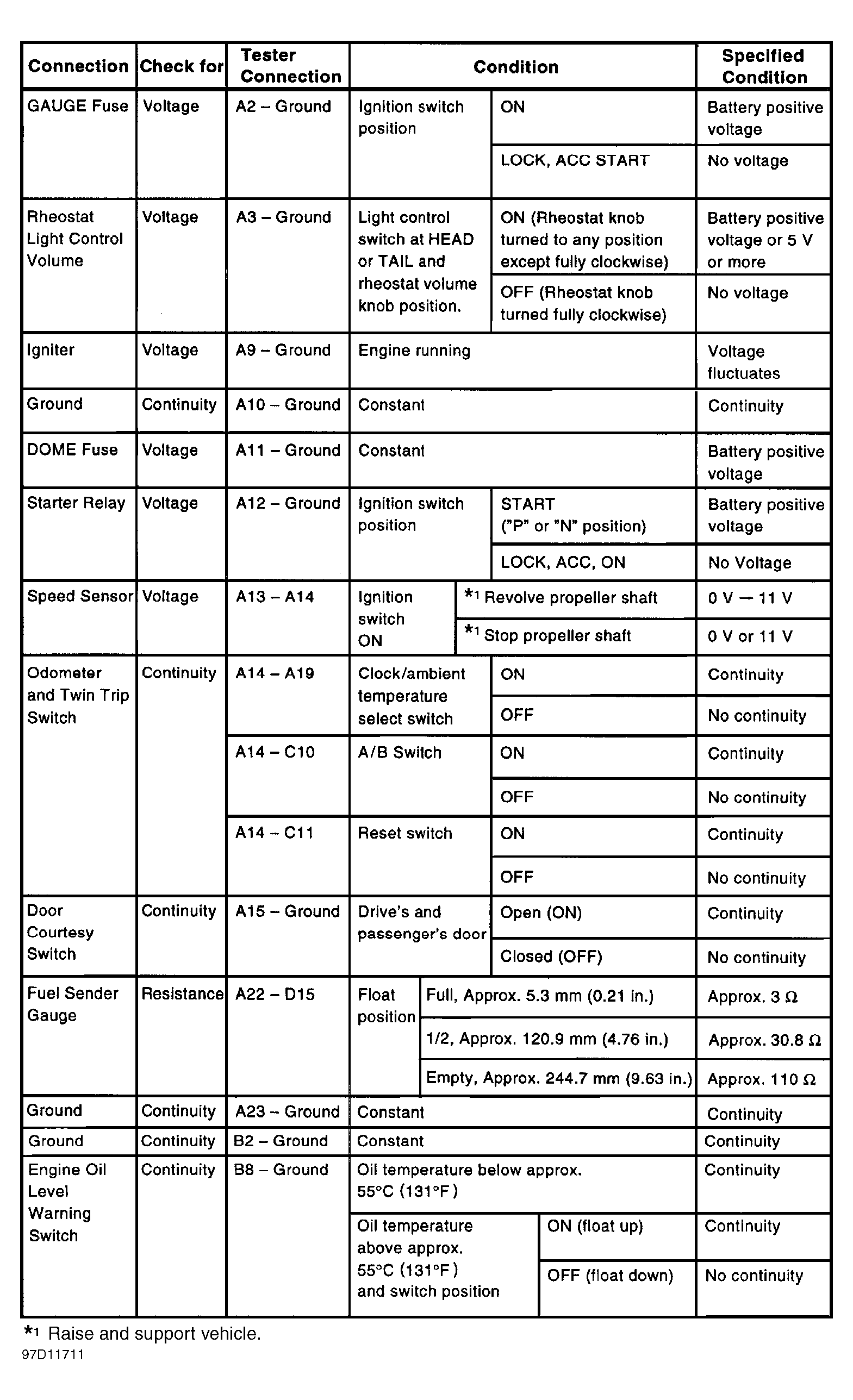

Fig 2: Testing Instrument Panel Circuits (1 Of 2)

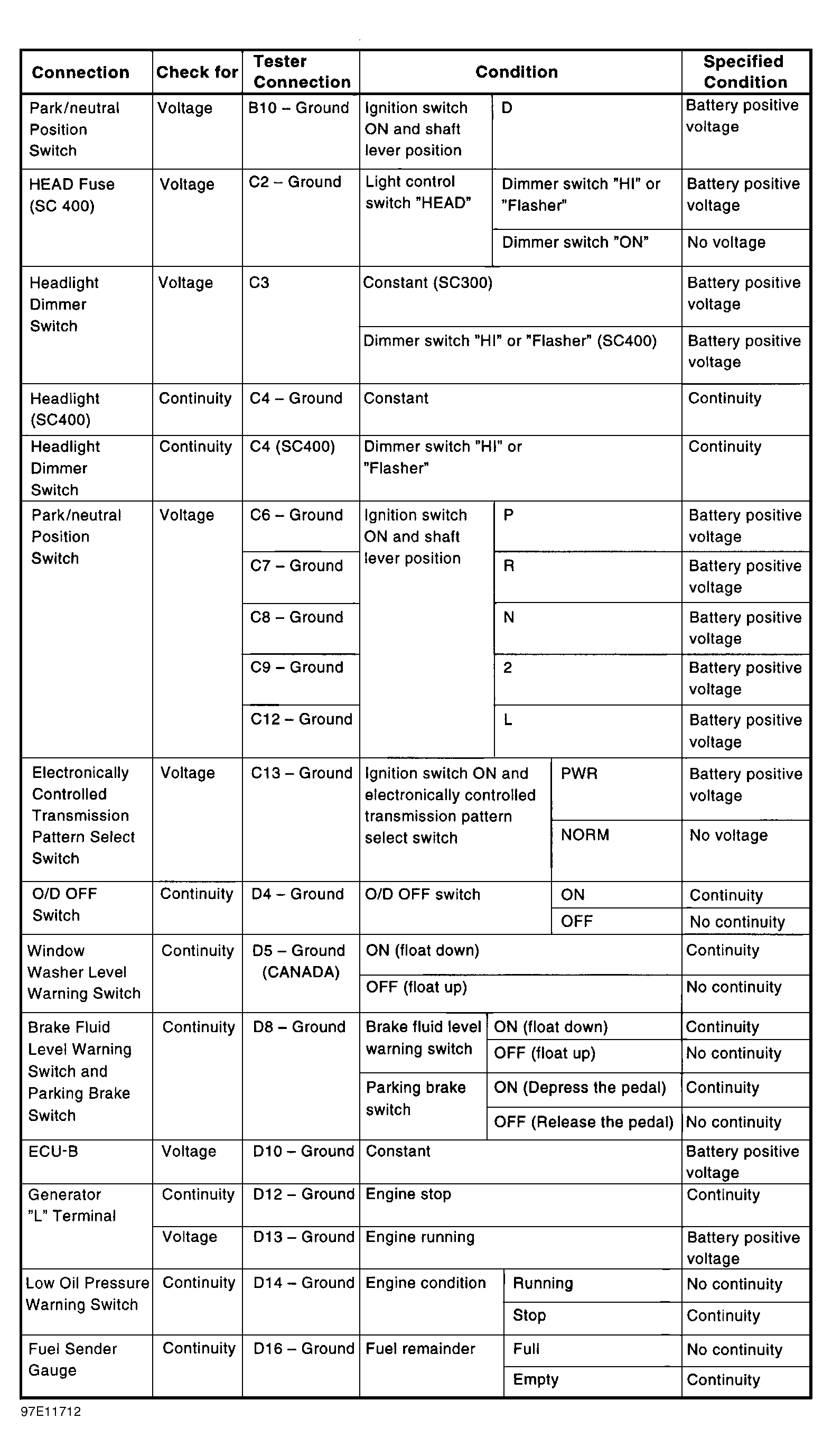

Fig 3: Testing Instrument Panel Circuits (2 Of 2)
