Engine Control Module

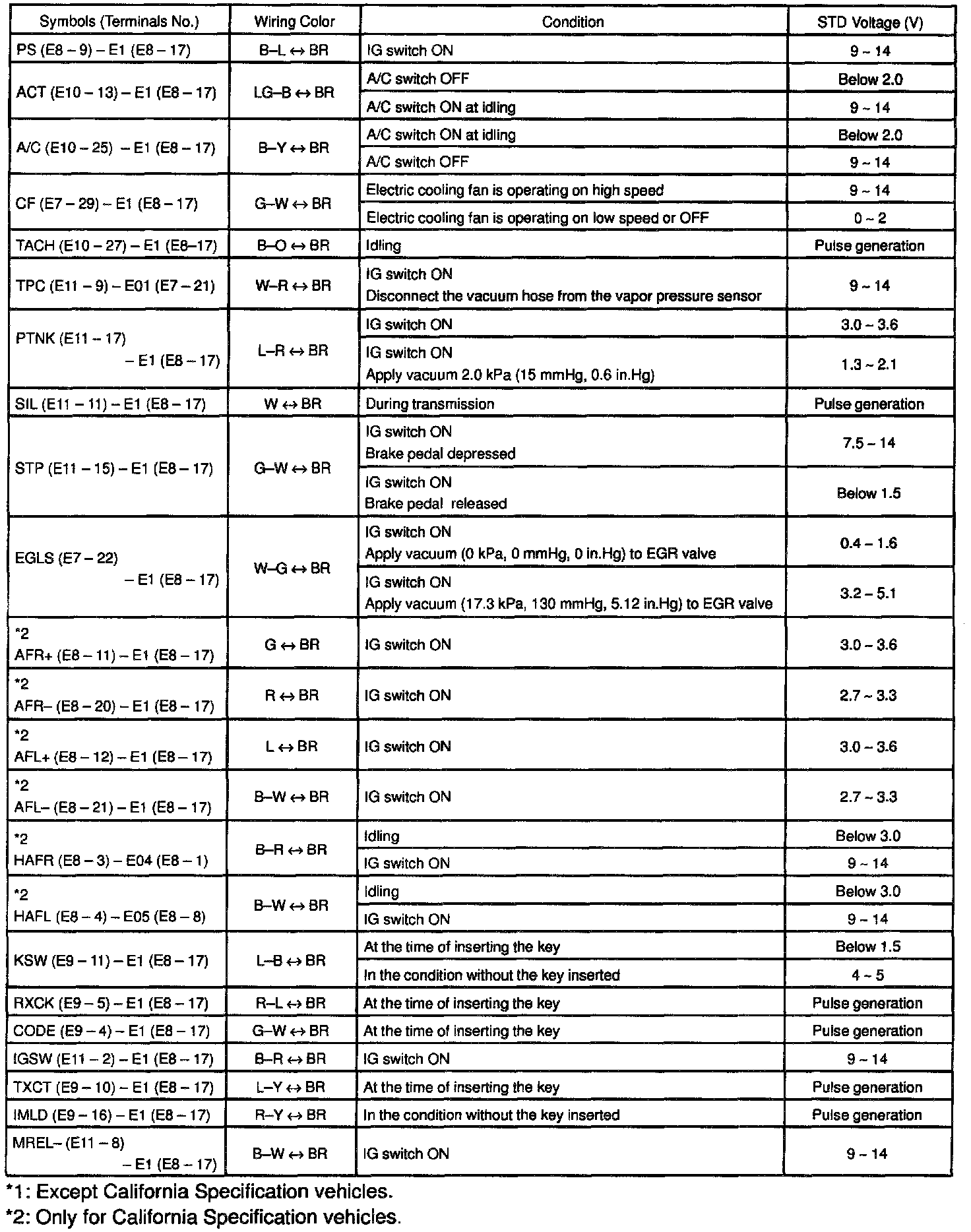

ECM Pinout Values Chart 1 Of 3:

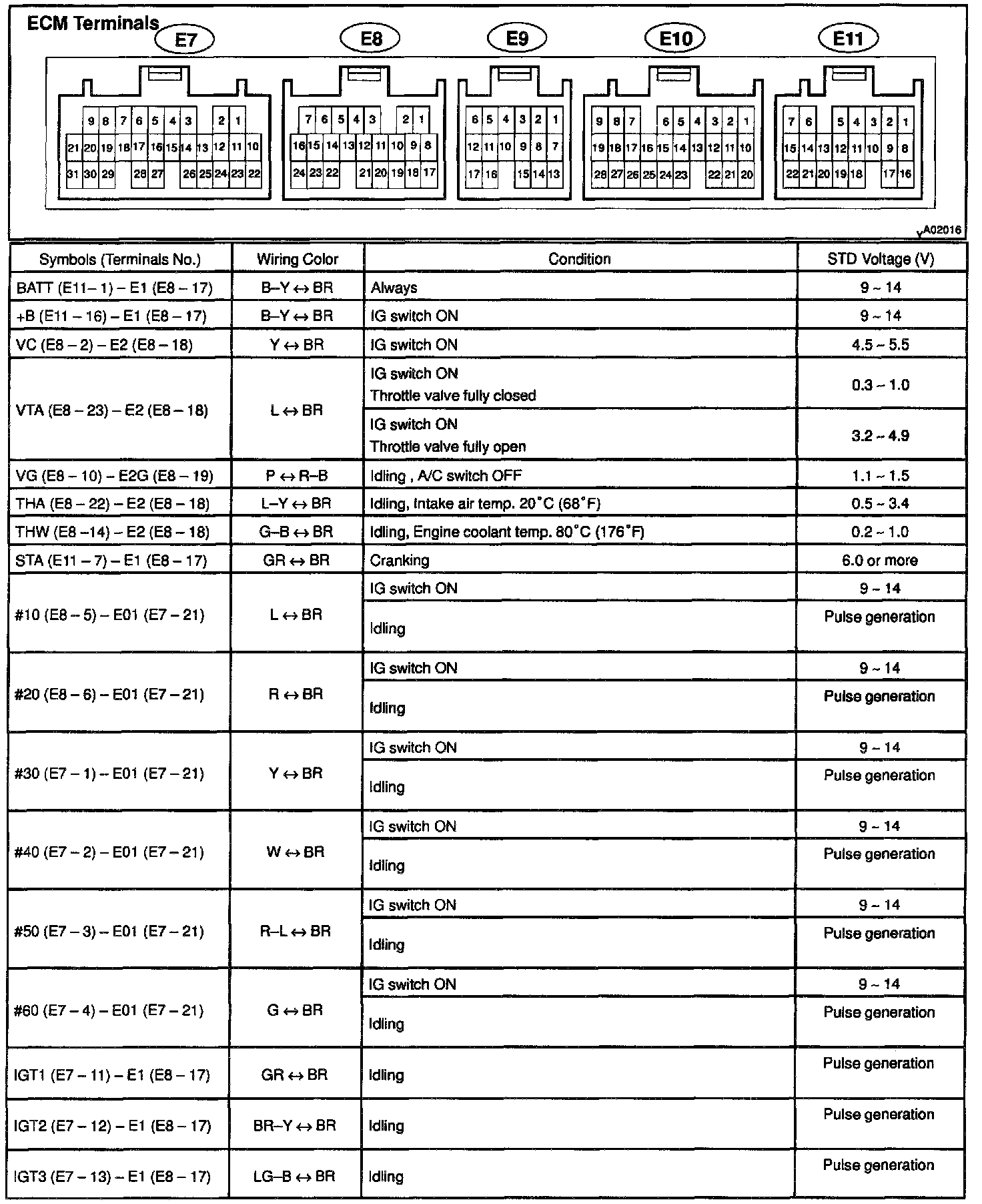

ECM Pinout Values Chart 2 Of 3:

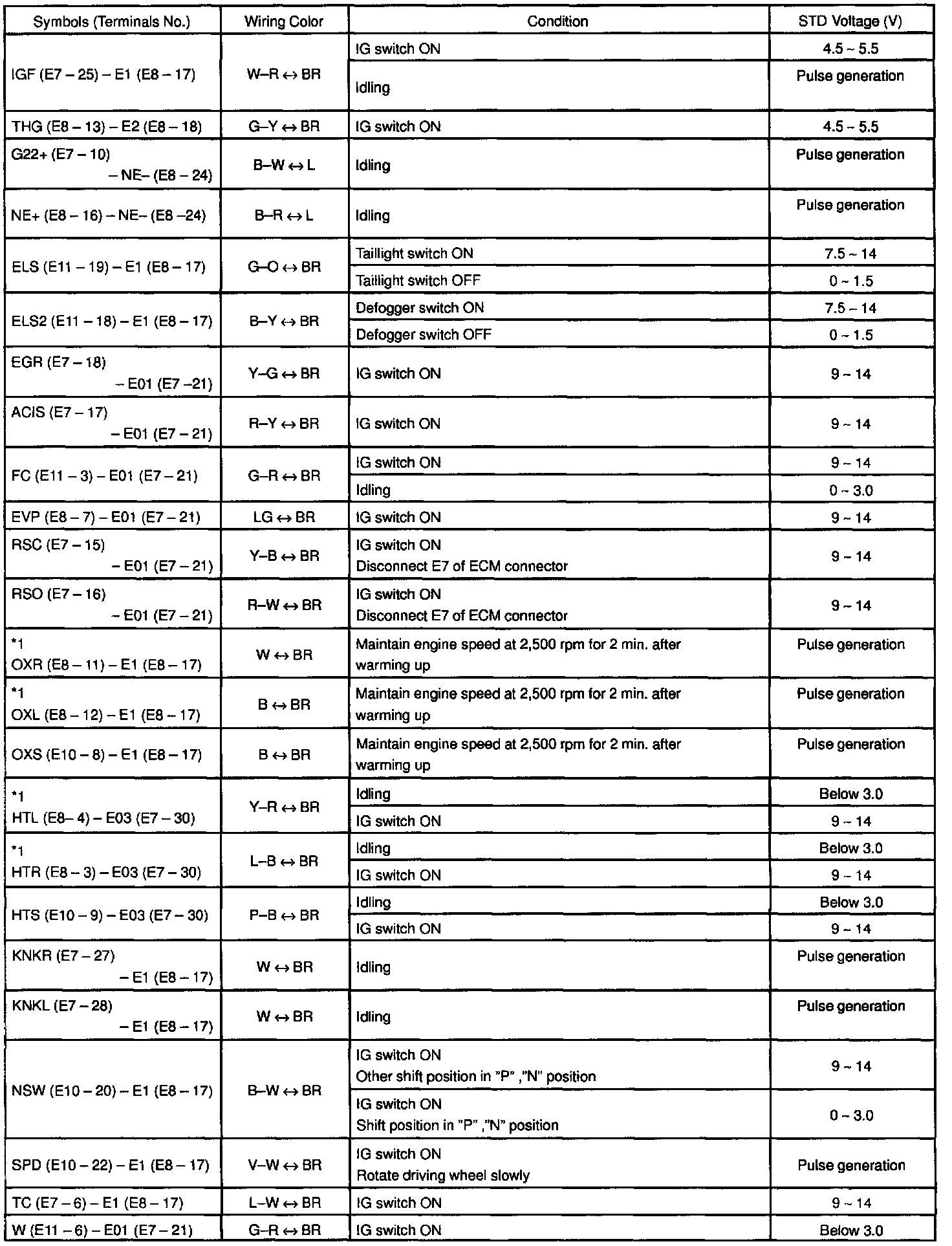

ECM Pinout Values Chart 3 Of 3:
