Throttle Position Sensor: Testing and Inspection

INSPECTION

INSPECT THROTTLE POSITION SENSOR
(a) Apply vacuum to the throttle opener.
(b) Disconnect the sensor connector.

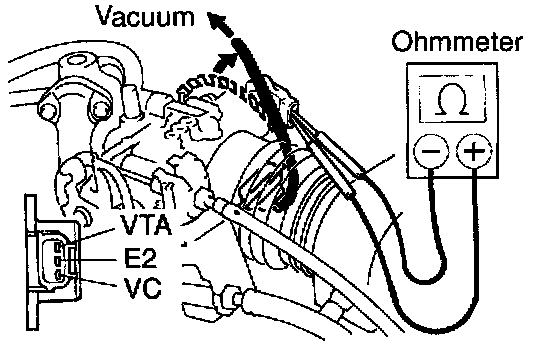

Ohmmeter Connection:

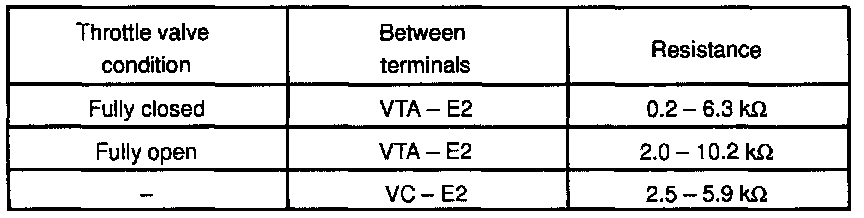

Reference:

(c) Using an ohmmeter, measure the resistance between each terminal.
(d) Reconnect the sensor connector.
