Power Source (Current Flow Chart)

Fig 1: Power Source Legend (1 Of 9)
G00197204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

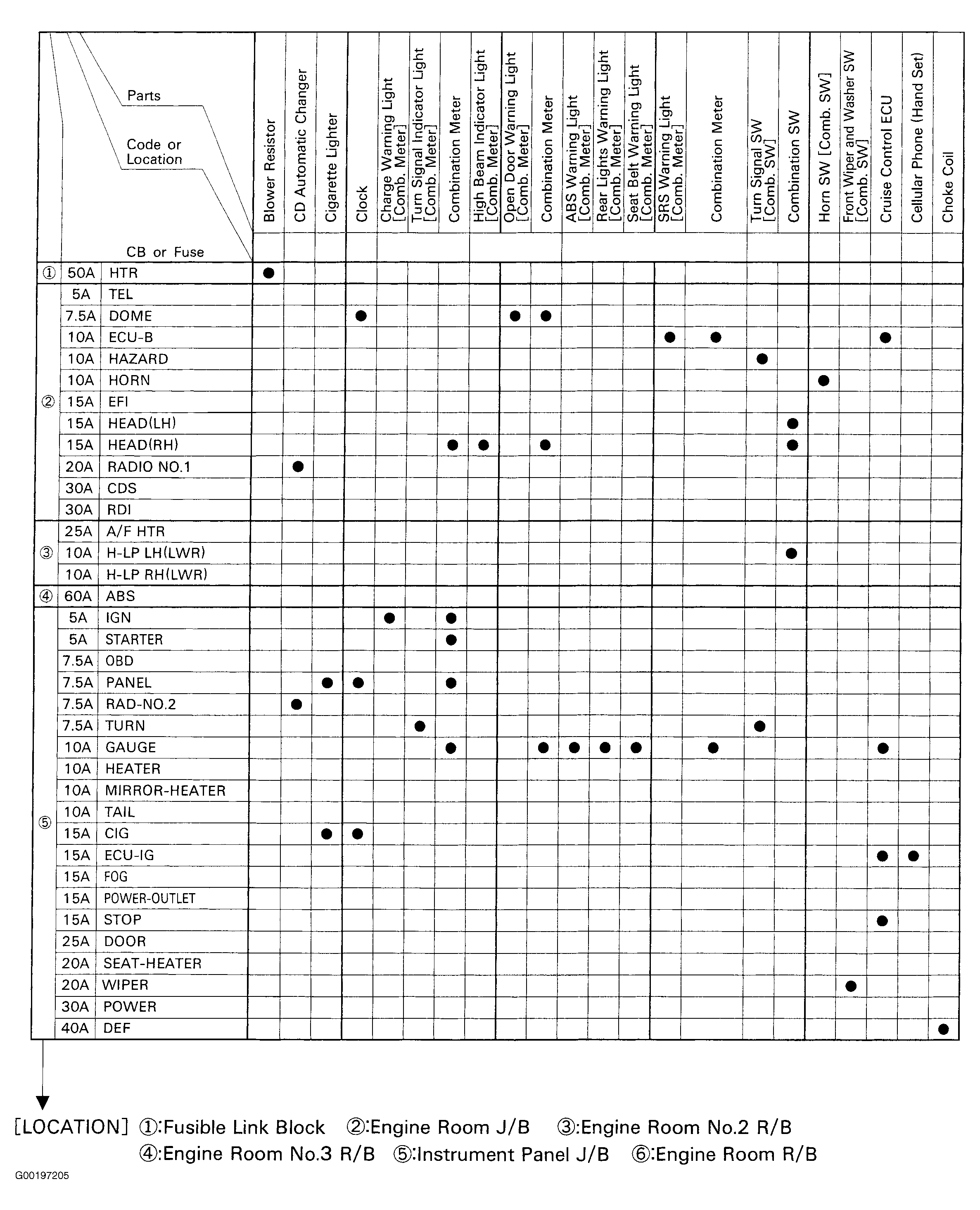

Fig 2: Power Source Legend (2 Of 9)
G00197205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

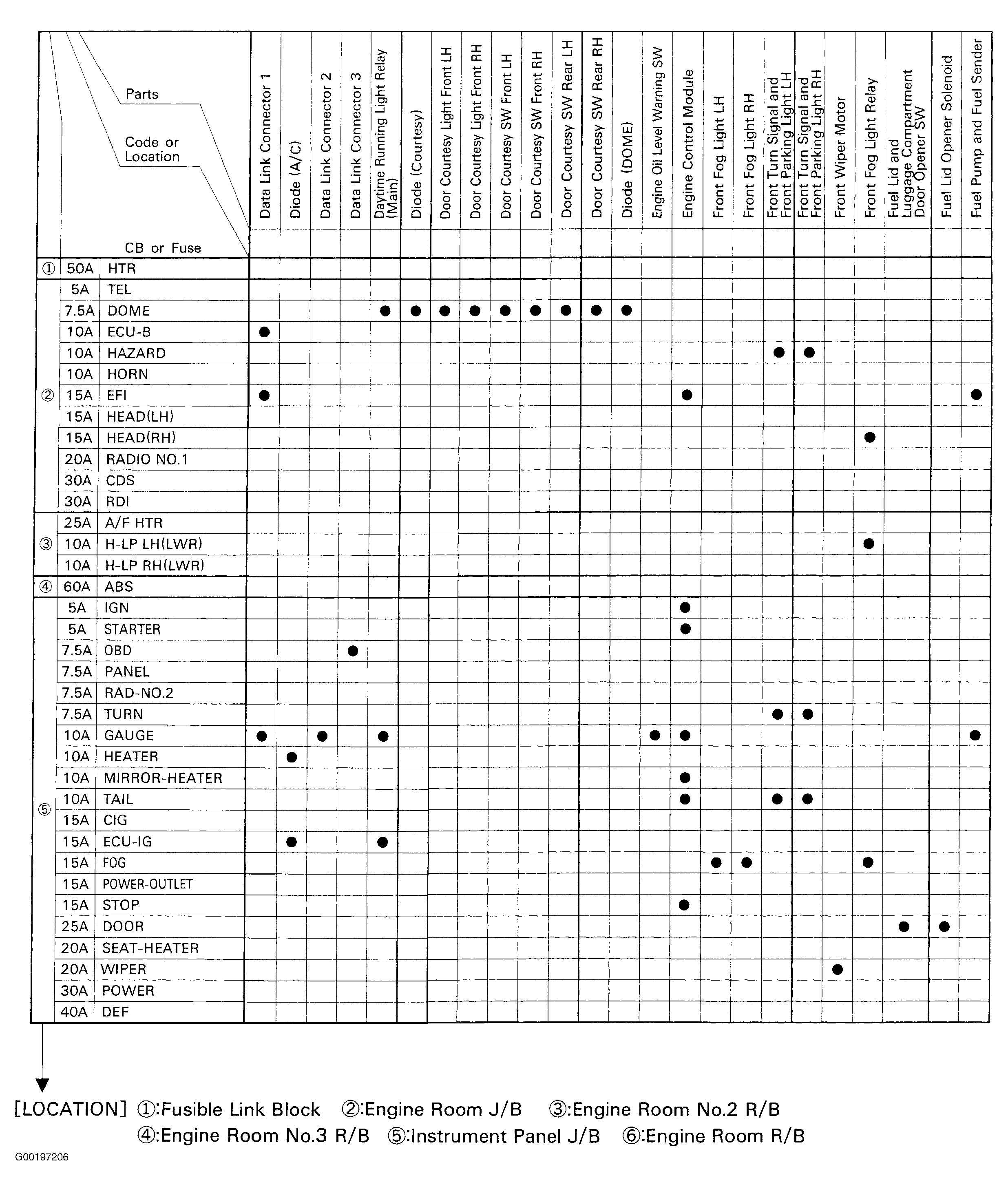

Fig 3: Power Source Legend (3 Of 9)
G00197206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

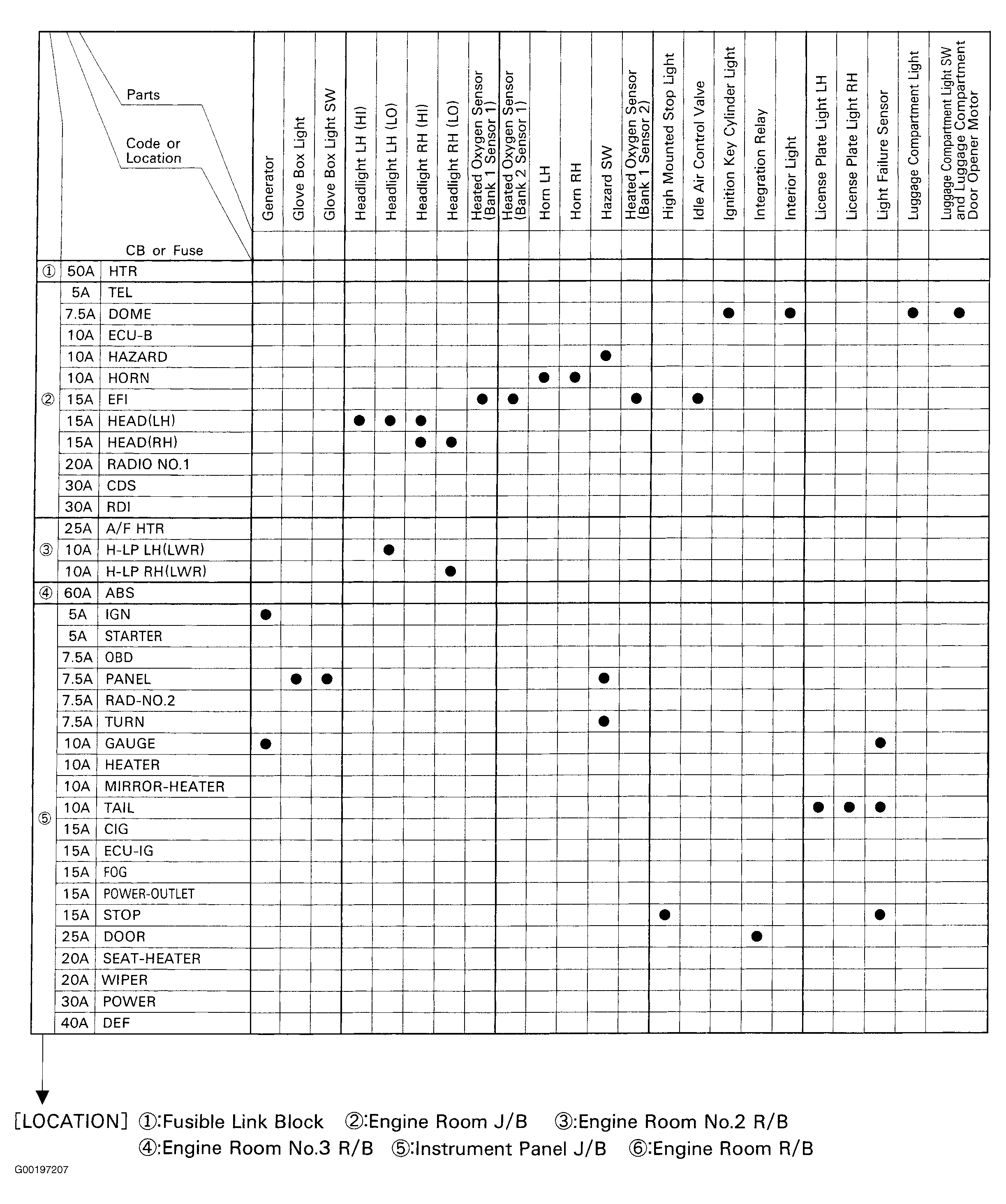

Fig 4: Power Source Legend (4 Of 9)
G00197207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

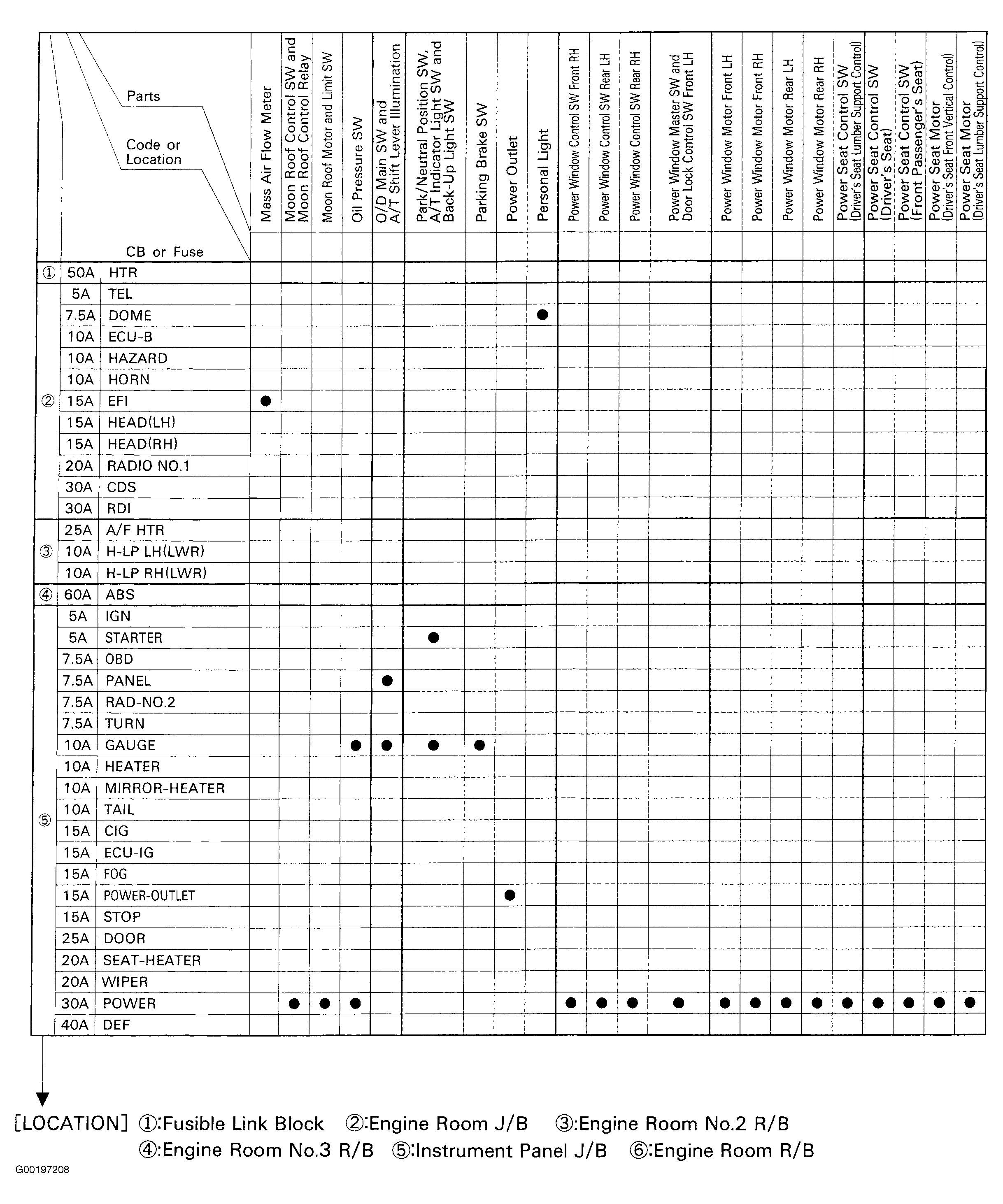

Fig 5: Power Source Legend (5 Of 9)
G00197208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

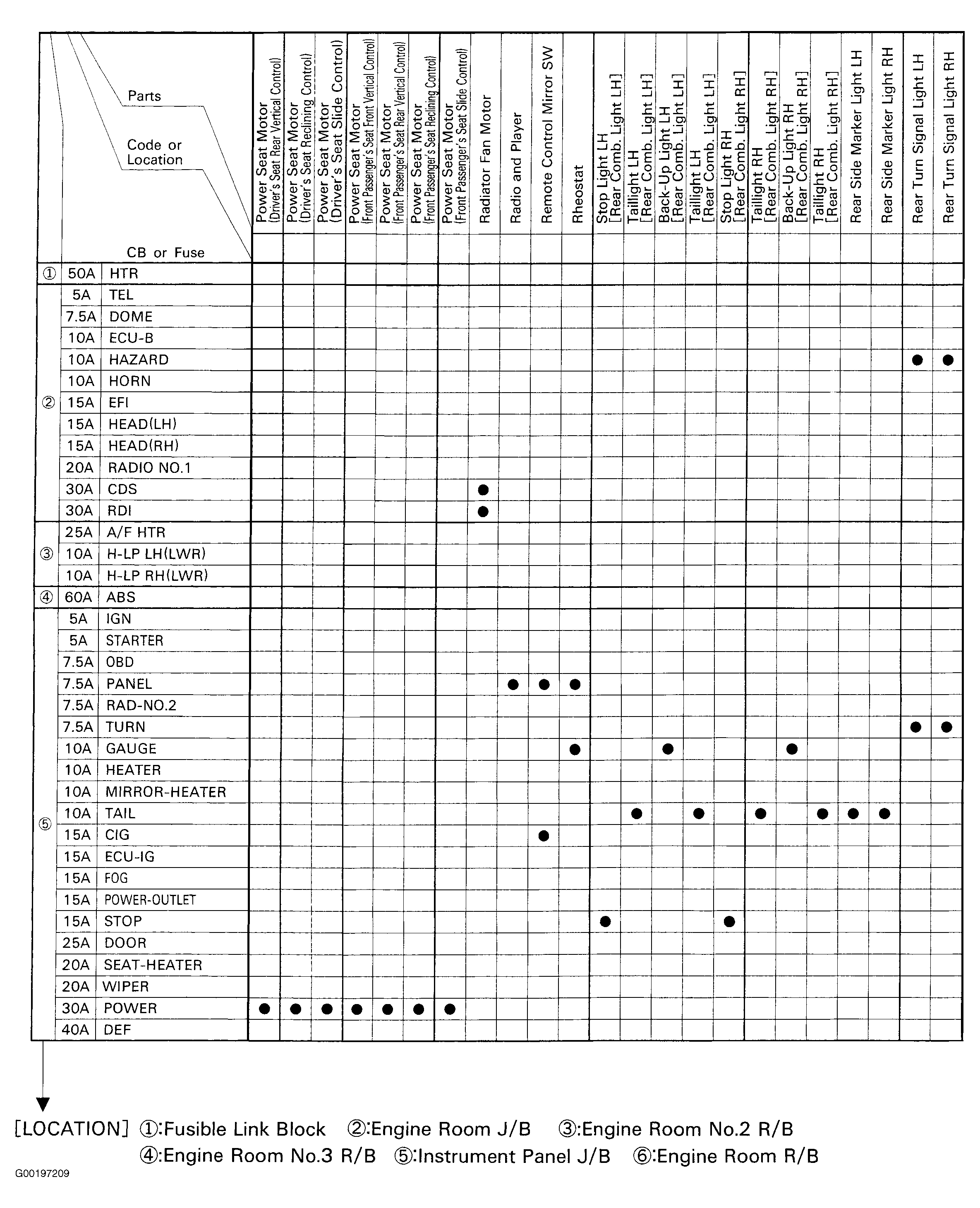

Fig 6: Power Source Legend (6 Of 9)
G00197209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

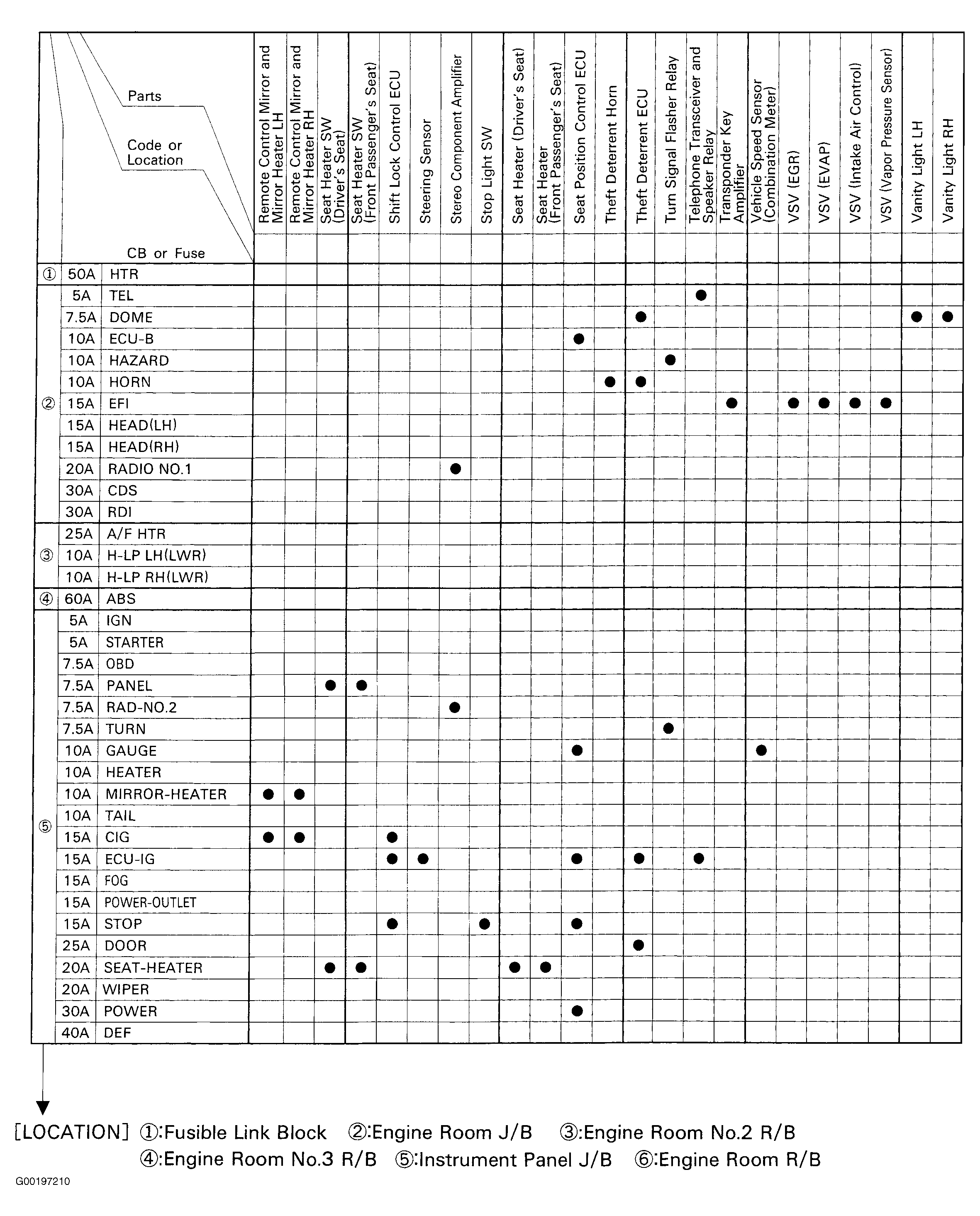

Fig 7: Power Source Legend (7 Of 9)
G00197210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

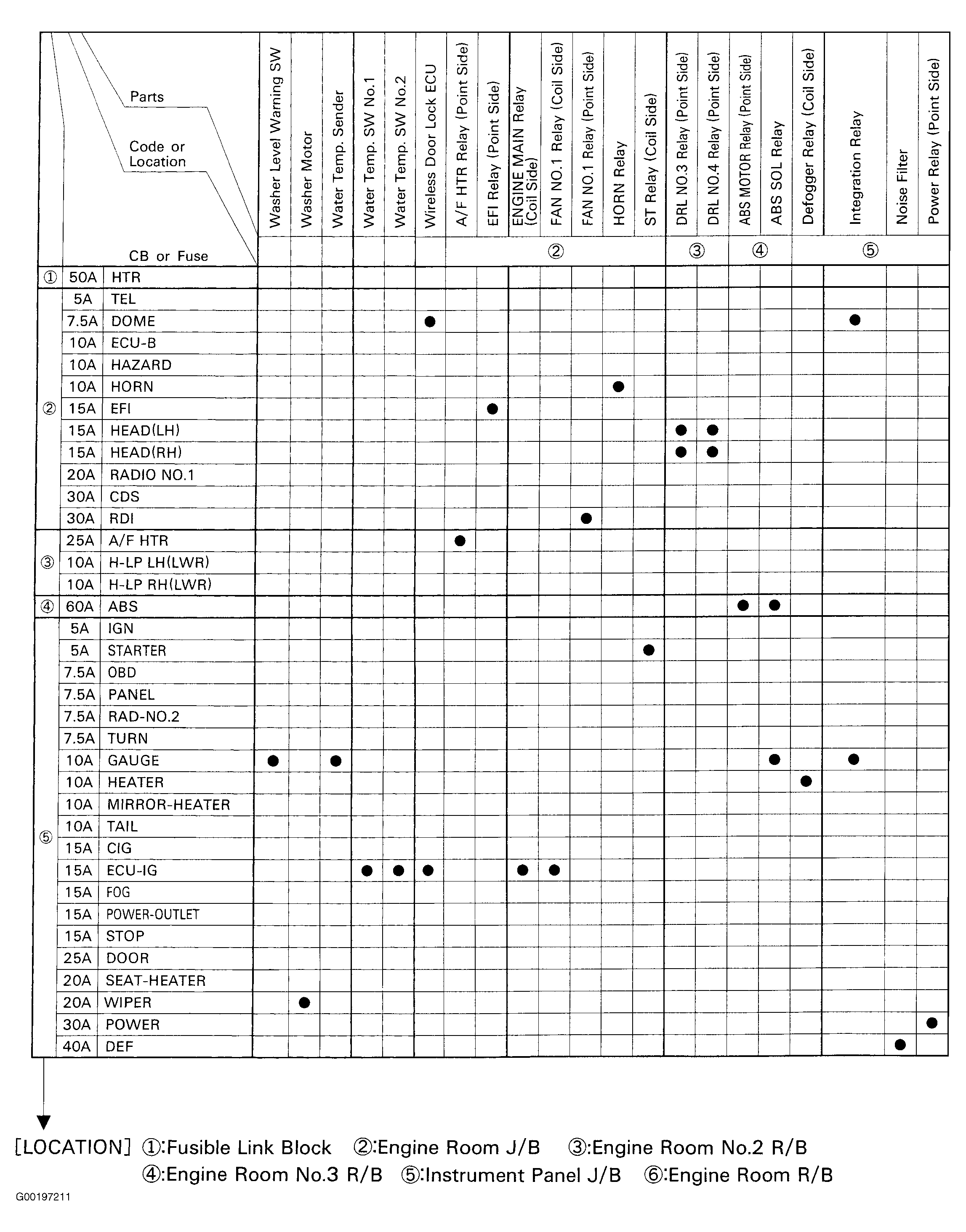

Fig 8: Power Source Legend (8 Of 9)
G00197211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

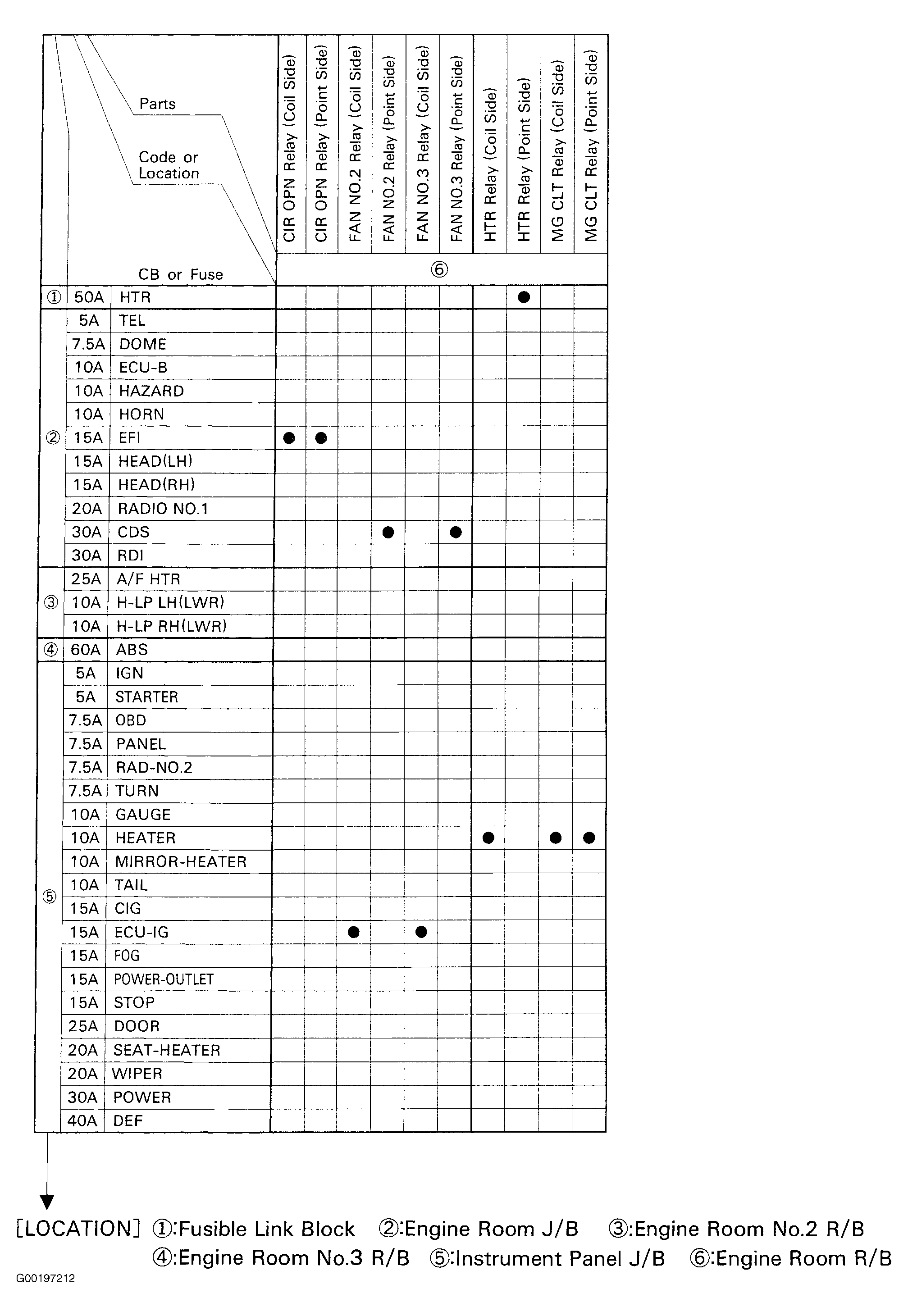

Fig 9: Power Source Legend (9 Of 9)
G00197212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
