Bulb Check Relay

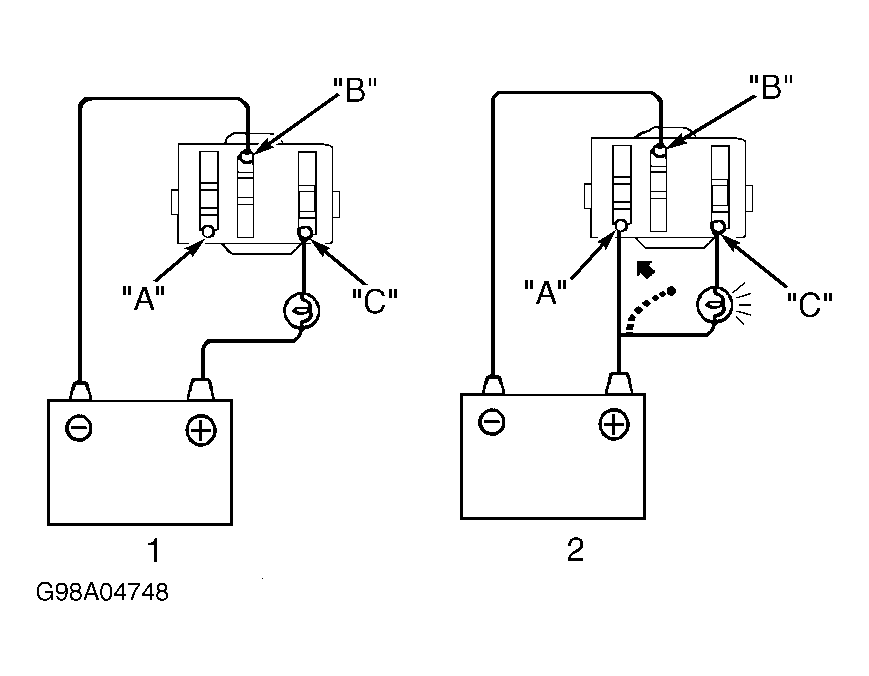

- Remove bulb check relay from instrument cluster. Connect battery positive lead to relay terminal "C" through a 1.4-watt test bulb. See Fig 1. Connect battery negative lead to relay terminal "B". Test bulb should not light.
- Connect another battery positive lead to terminal "A". Test bulb connected to terminal "C" should light. If relay does not operate as specified, replace relay.
