Knock Sensor: Installation
WARNING: This page is about a different car, the 1997 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

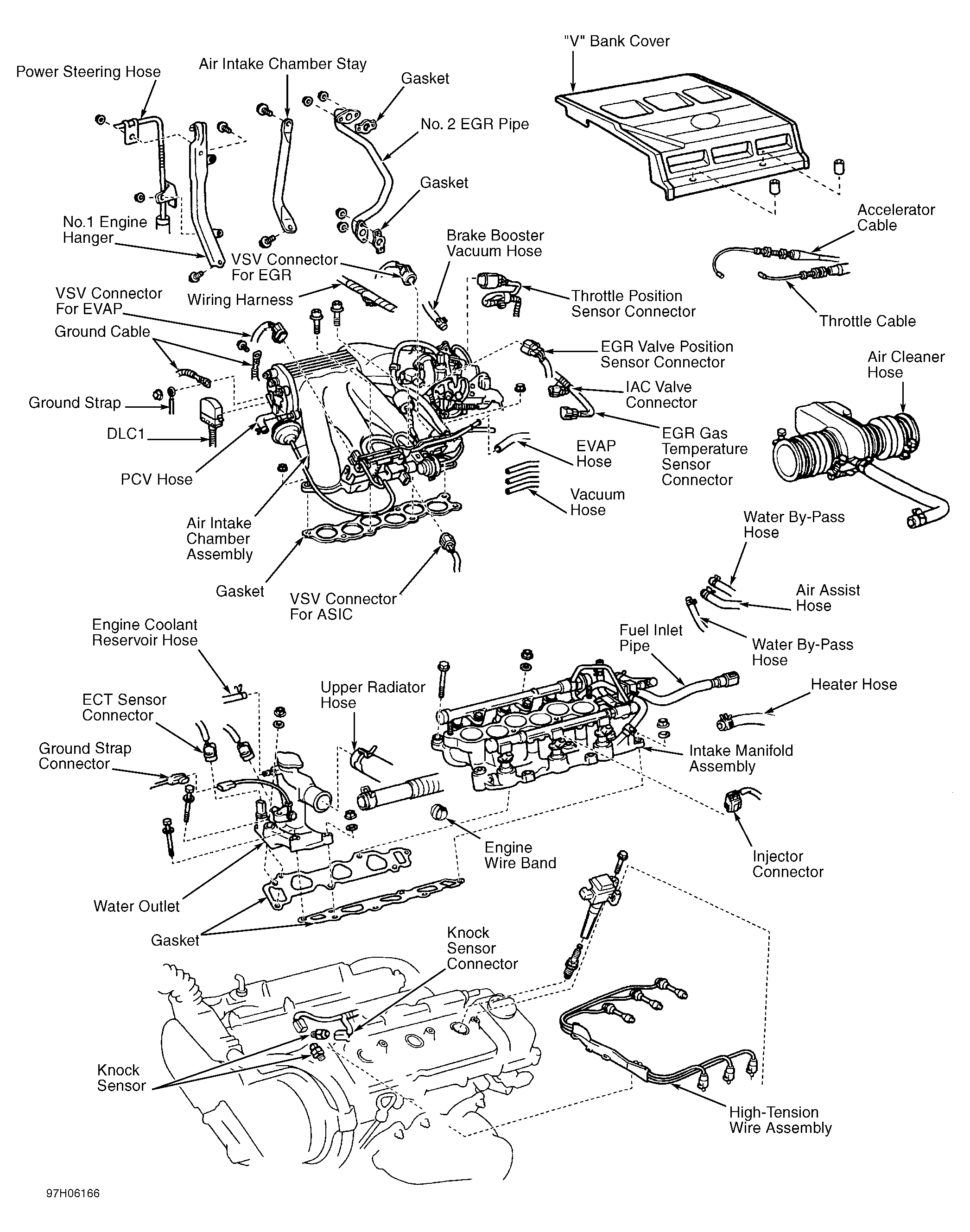

To install, reverse removal procedure. Tighten intake manifold in sequence and to specification. See Fig 2. See TORQUE SPECIFICATIONS. Tighten air intake chamber assembly bolt/nuts evenly in steps and to specification. Fill and bleed cooling system.
