Driver Door, Up Operation

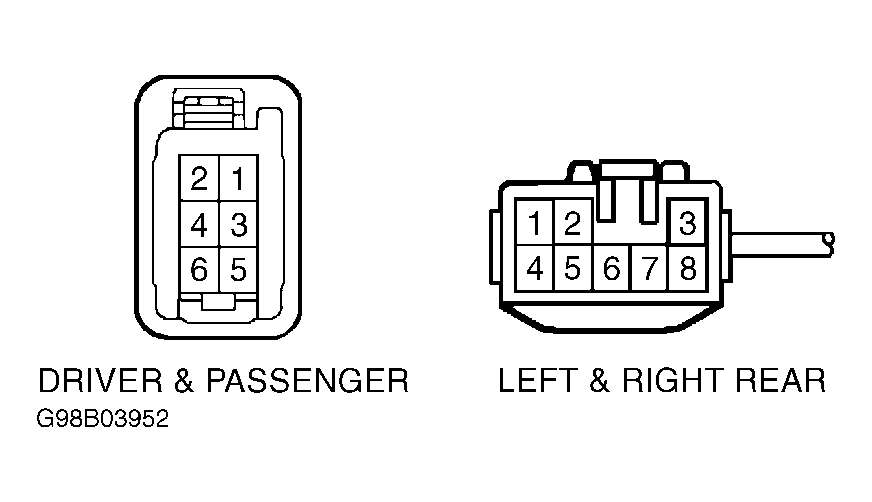

Disconnect window motor connector. Connect ohmmeter positive lead to window motor connector terminal No. 4 and negative ohmmeter lead to window motor connector terminal No. 5. Apply battery positive lead to motor connector terminal No. 1 and battery negative lead to motor connector terminal No. 2. See Figure. Continuity should exist when window goes up. Continuity should not exist when window is fully closed. If continuity is not as specified, replace window motor assembly.
