Master Switch Test

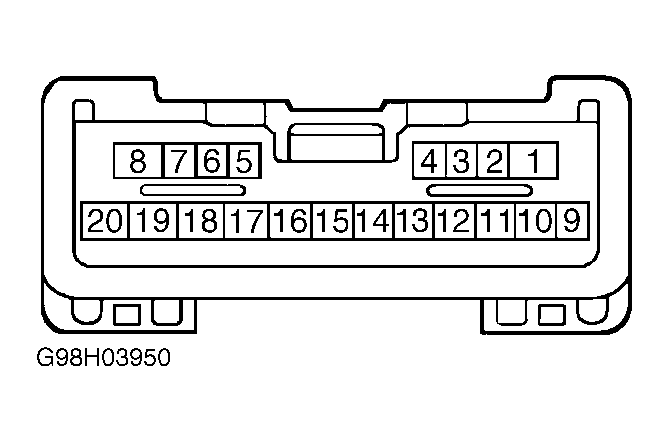

Remove master switch. Check for continuity between specified terminals of master switch. See Fig 1. See MASTER SWITCH CONTINUITY TEST table. If continuity is not as specified, replace master switch.
MASTER SWITCH CONTINUITY TEST
| Window Switch & Position | Terminals No. | |
|---|---|---|
| Driver's Switch | ||
| Off | No Continuity | |
| Up | 6 & 16 | |
| Down | 16 & 18 | |
| Auto | 7 & 16 | |
| Right Front Switch | ||
| Off | No Continuity | |
| Up | 3 & 12 | |
| Down | 3 & 4 | |
| Auto | 3 & 13 | |
| Left Rear Switch | ||
| Off | No Continuity | |
| Up | 12 & 14 | |
| Down | 4 & 14 | |
| Auto | 13 & 14 | |
| Right Rear Switch | ||
| Off | No Continuity | |
| Up | 11 & 12 | |
| Down | 4 & 11 | |
| Auto | 11 & 13 | |
