Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location

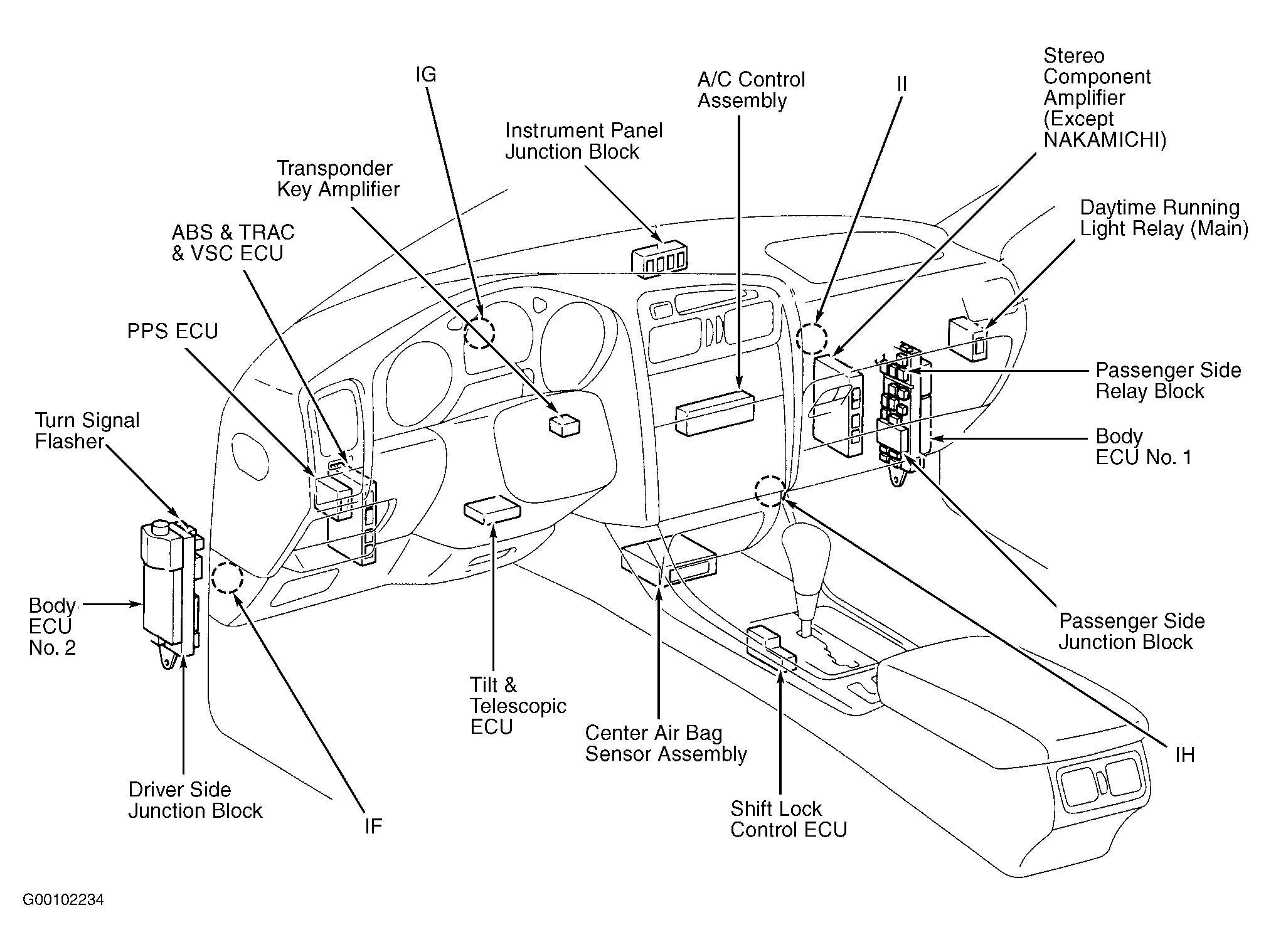

Driver Side Junction Block Behind lower left end of dash. See Figure.

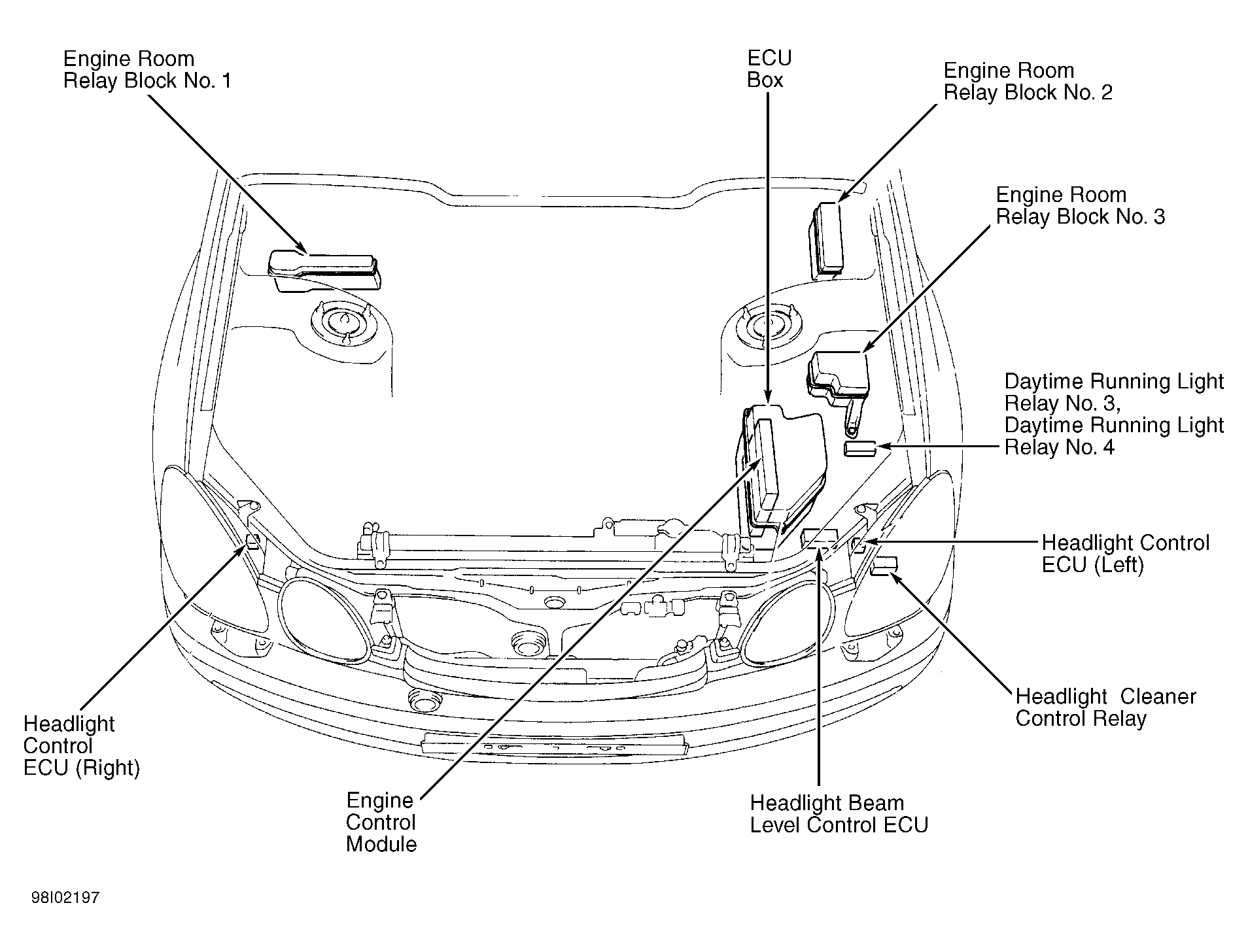

ECU Box At left front corner of engine compartment. See Figure.
Engine Room Relay Block No. 1 On right side of engine compartment, behind strut tower. See Figure.
Engine Room Relay Block No. 2 On left side of engine compartment, behind strut tower. See Figure.
Engine Room Relay Block No. 3 On left side of engine compartment, front of strut tower. See Figure.
Instrument Panel Junction Block Behind upper center of dash. See Figure.
Passenger Side Junction Block Behind lower right end of dash. See Figure.
Passenger Side Relay Block Behind lower right end of dash. See Figure.
