ECU Power Source Circuit
ECU Power Source Circuit

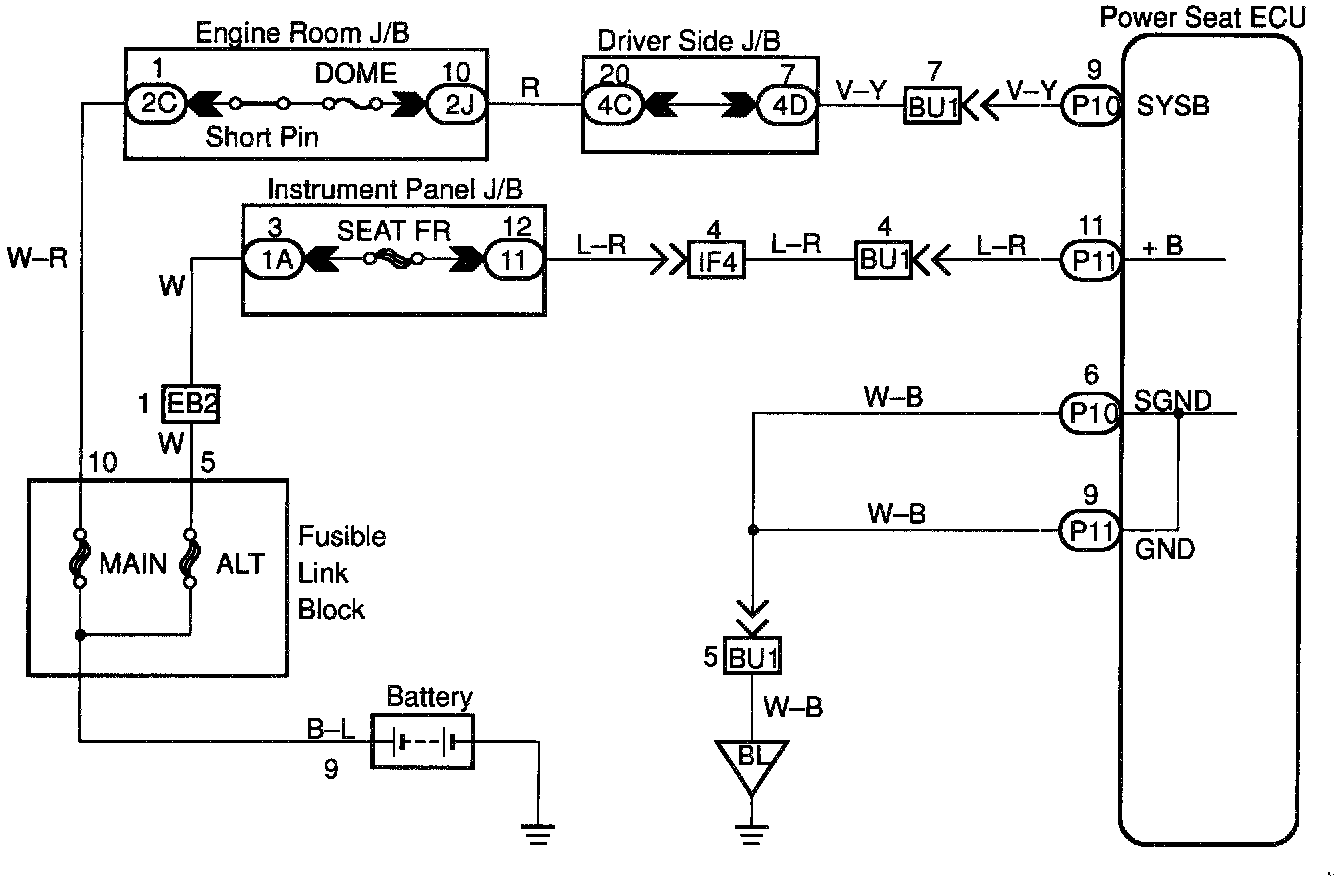

WIRING DIAGRAM

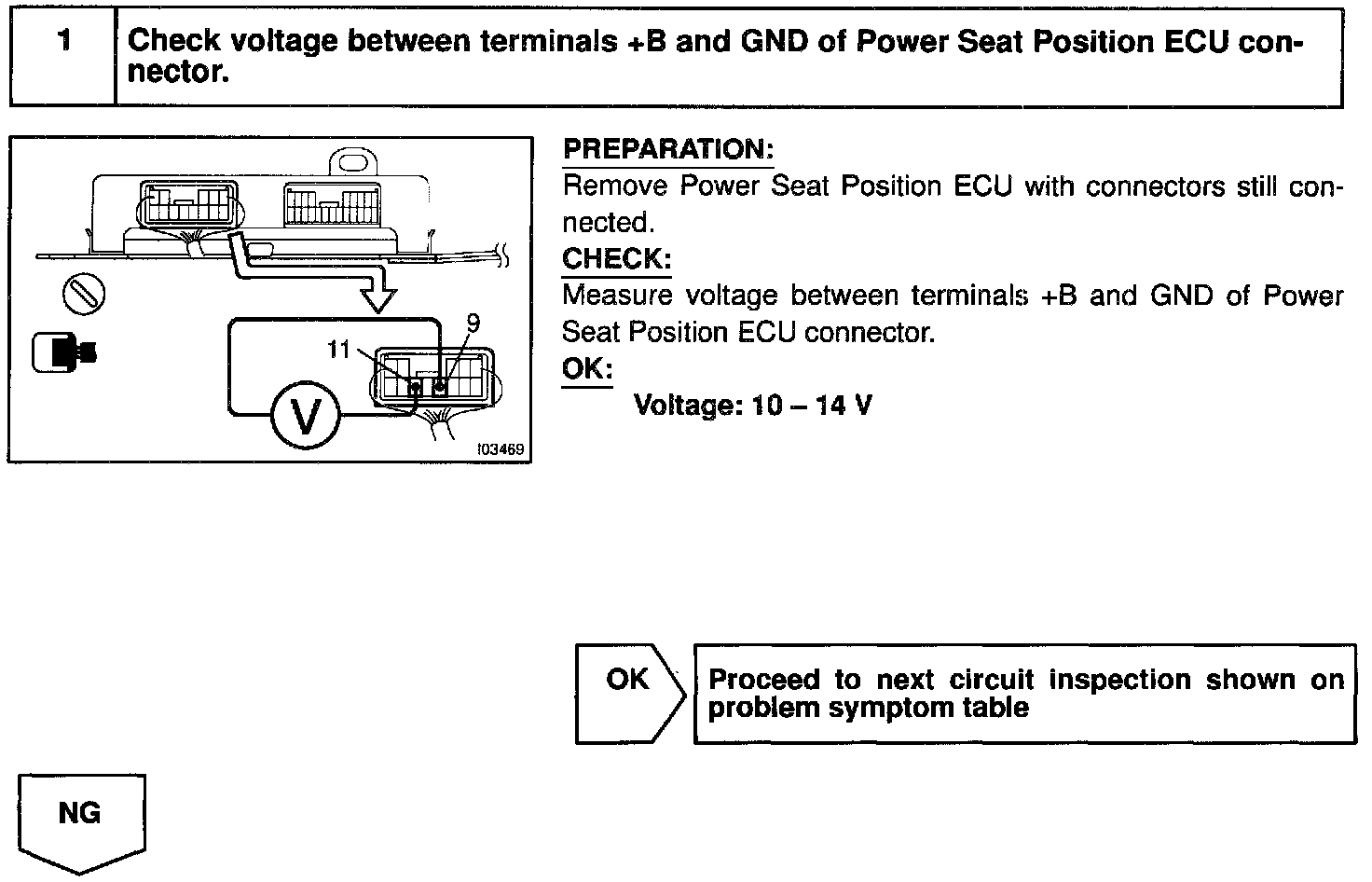

Step 1:

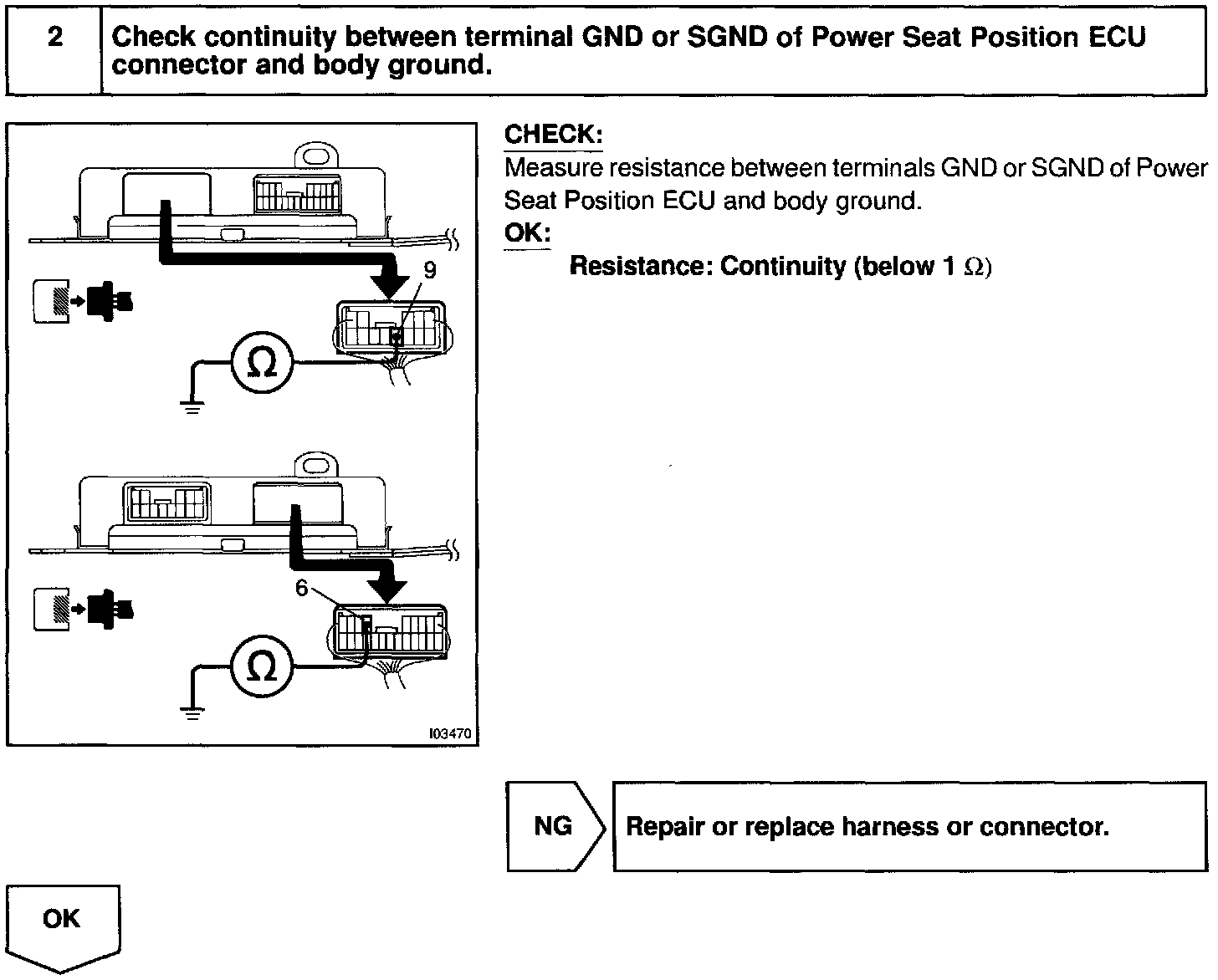

Step 2:

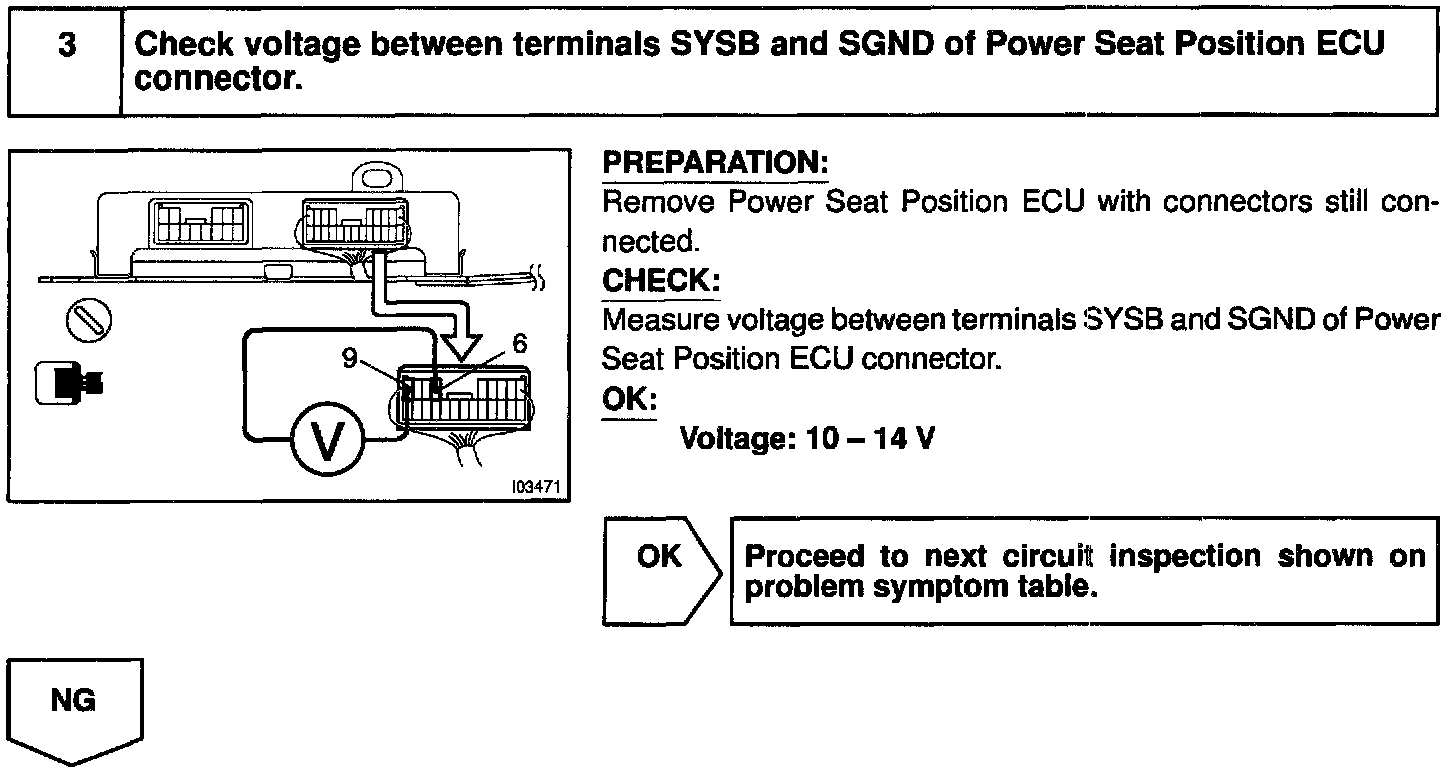

Step 3:

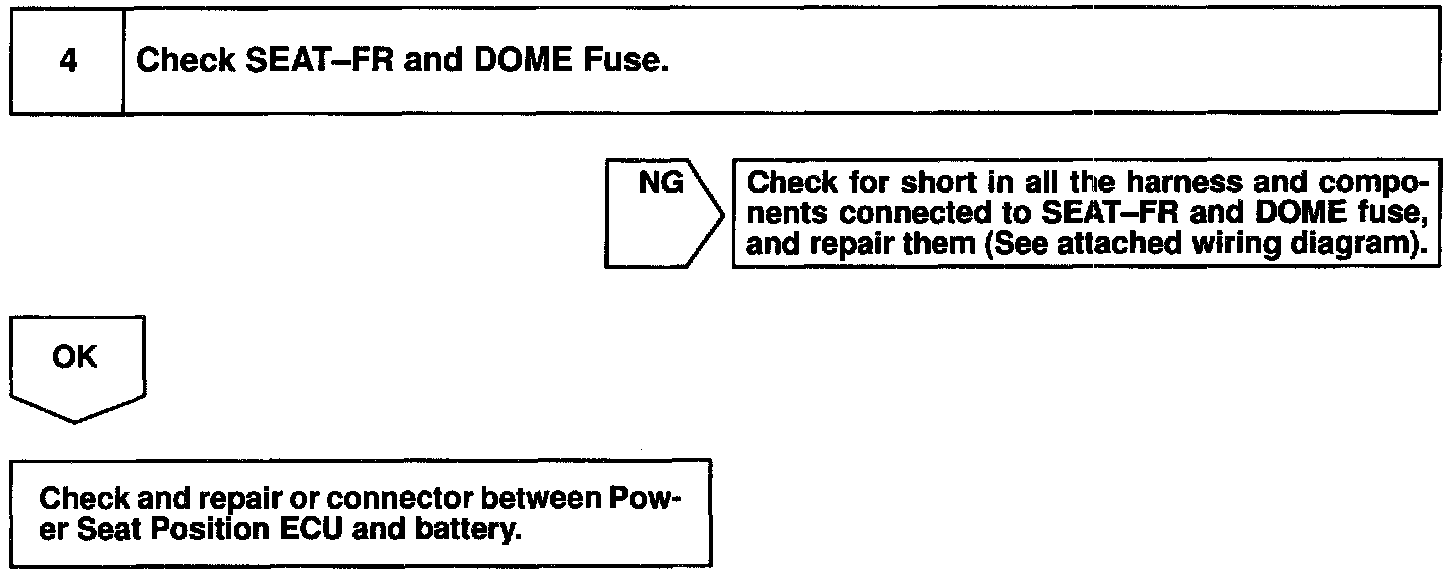

Step 4:
INSPECTION PROCEDURE
