System Diagram

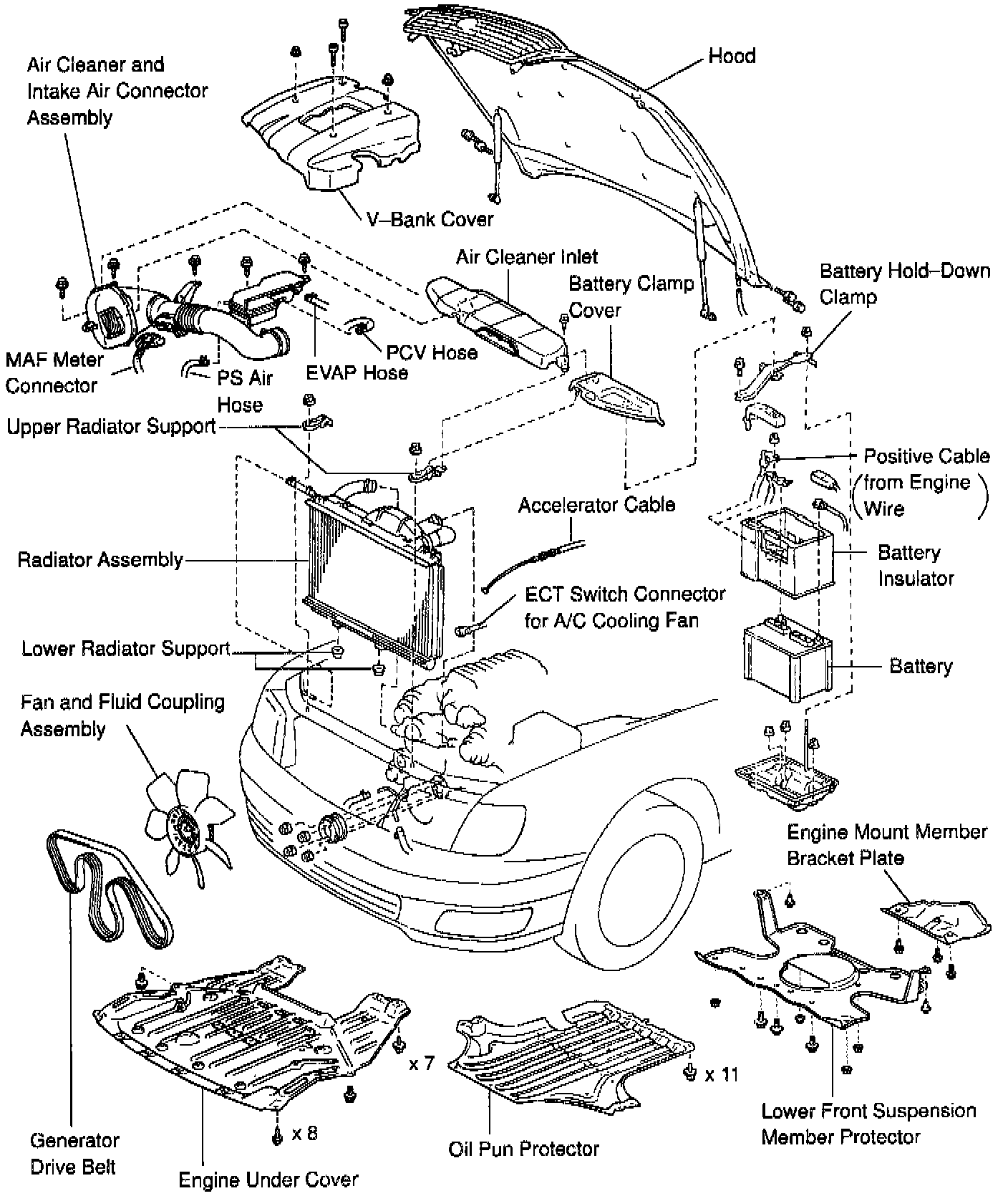

UNDERHOOD VIEW

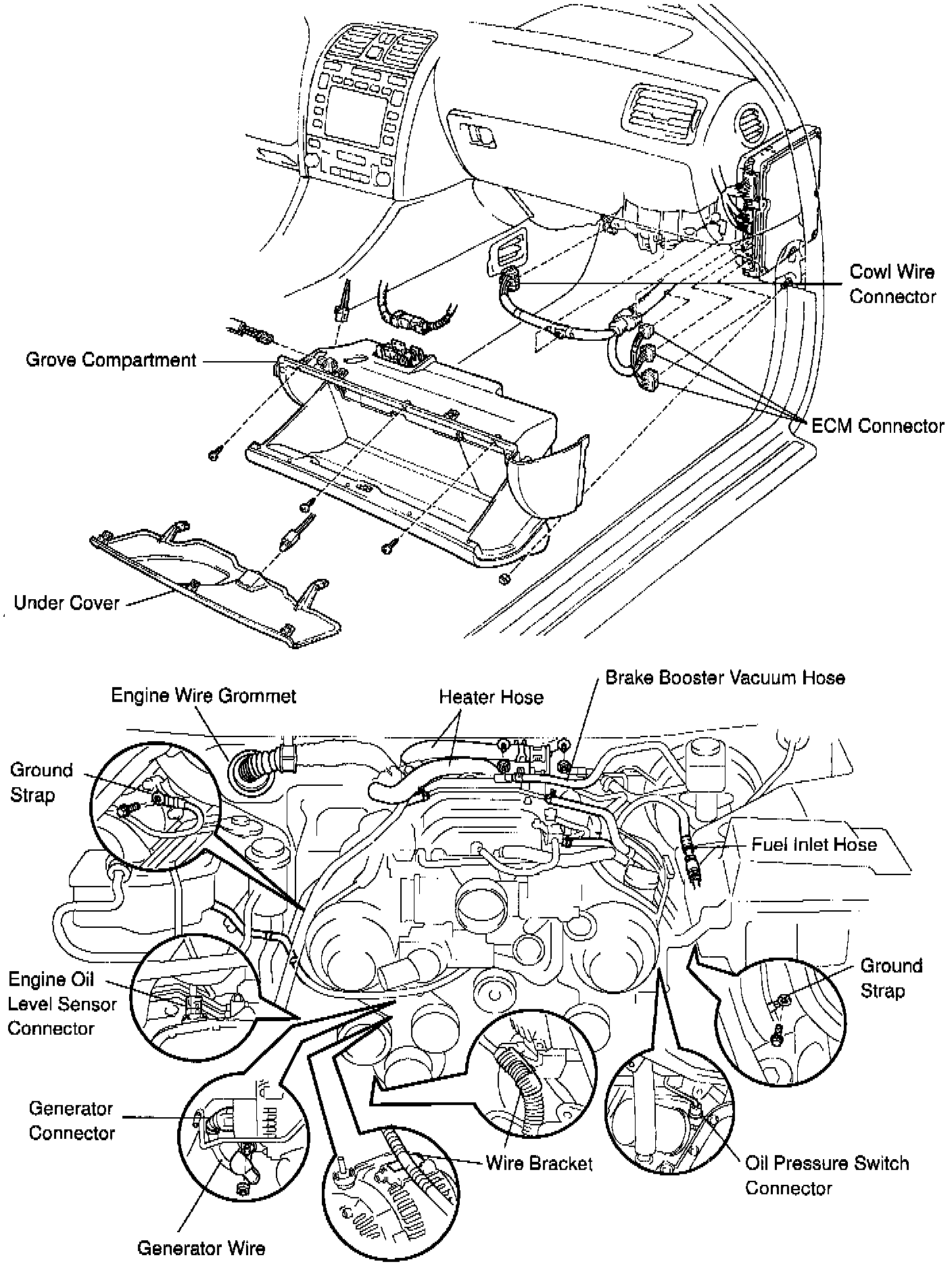

GLOVE COMPARTMENT DOOR AND ECM

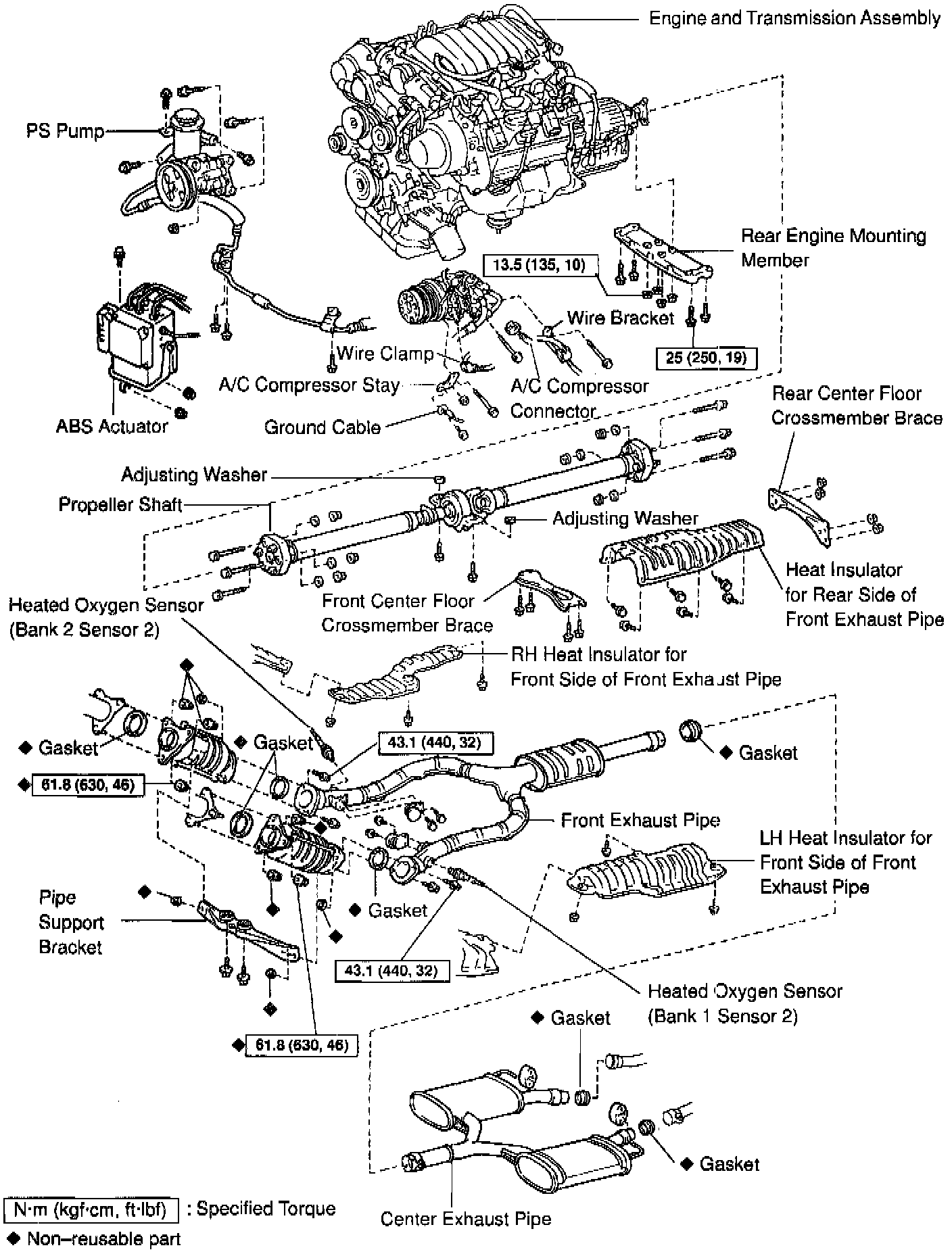

ENGINE, FRONT EXHAUST PIPES AND CROSSMEMBER

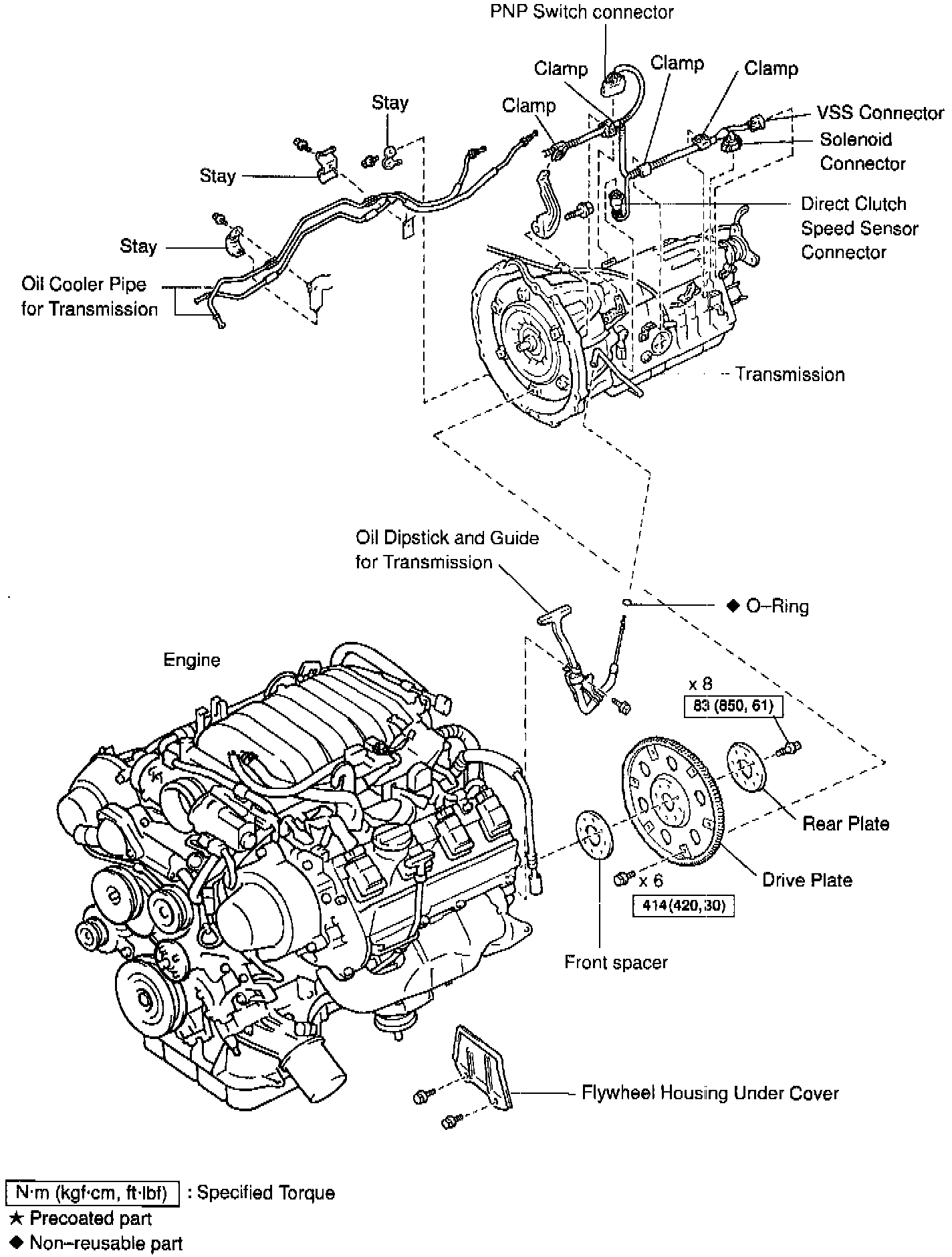

ENGINE AND TRANSMISSION ASSEMBLY
