Dash Fuse Panel Identification: Notes

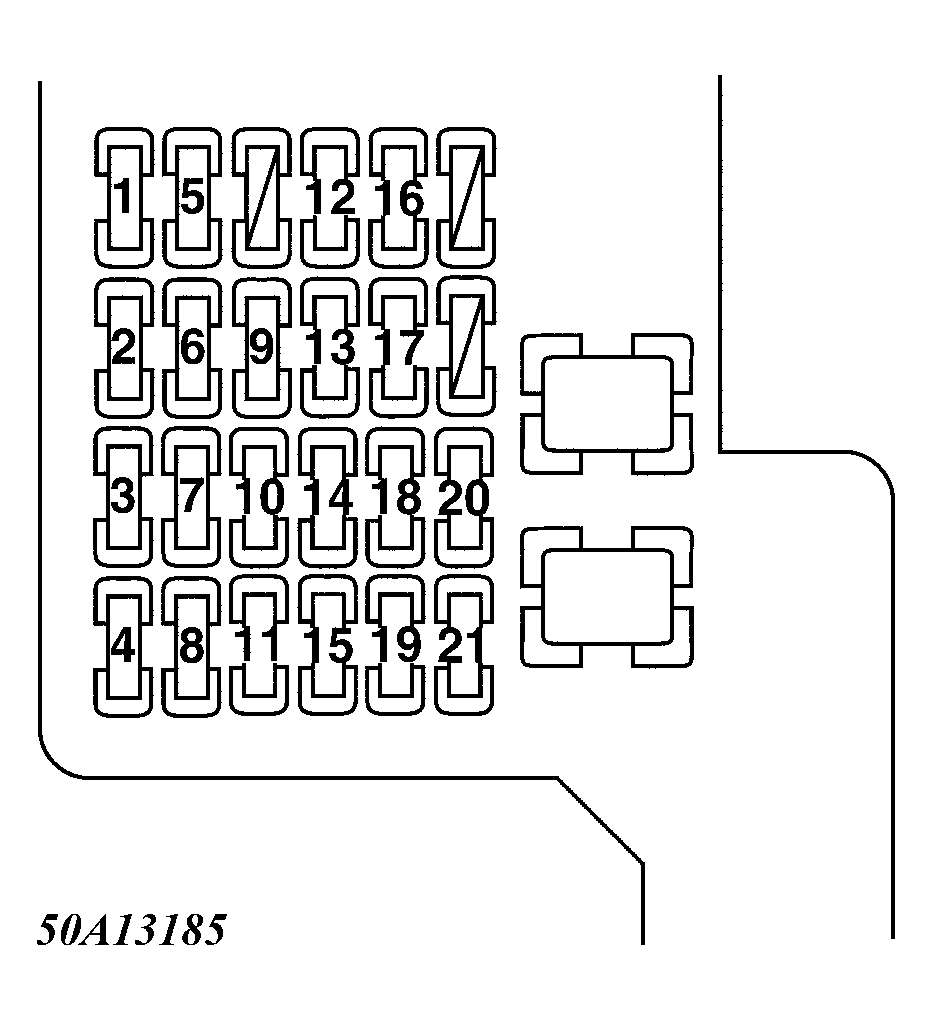

Fig 1: Dash Fuse Panel Identification
G50A13185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

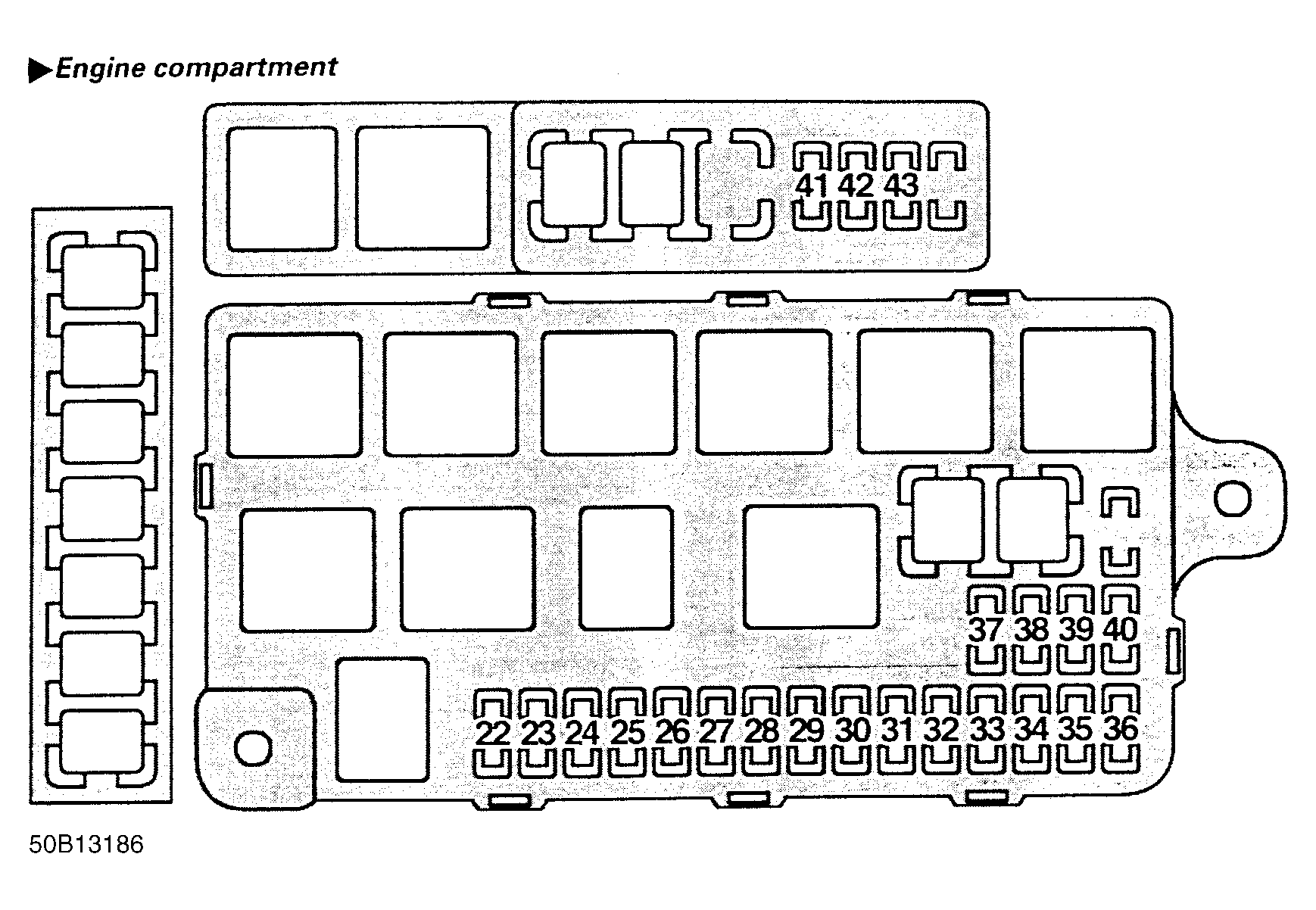

Fig 2: Main Junction Block Identification
G50B13186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
WARNING: Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.
