Customize Program Card 1.1 (SS002-97)

Publication date: 1999-04-09
Reference number: SS002-97
Supersedes refnos: SS001-99

CUSTOMIZE PROGRAM CARD 1.1

TECHNICAL SERVICE BULLETIN

Reference Number(s): SS001-99, Date of Issue: April 9, 1999

LEXUS:	1998-1999 LS400, GS 300/400; 1999 RX 300
GROUP:	Special Service Tools
COPYRIGHT:	© 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002

Superceded Bulletin(s): SS002-97, Date of Issue: October 31, 1997

NOTE: The Information contained In this TSIB updates SS002-97 dated October 31, 1997.

DESCRIPTION

CUSTOMIZE PROGRAM CARD 1.1

The Customize Program Card for the Lexus Diagnostic Tester allows Lexus Dealers to customize many of the electrical functions on LS 400, GS 300/400, and RX 300 vehicles to match individual customer desires. This bulletin will provide you with a comprehensive list of available features for customization.

BULLETIN CONTENT

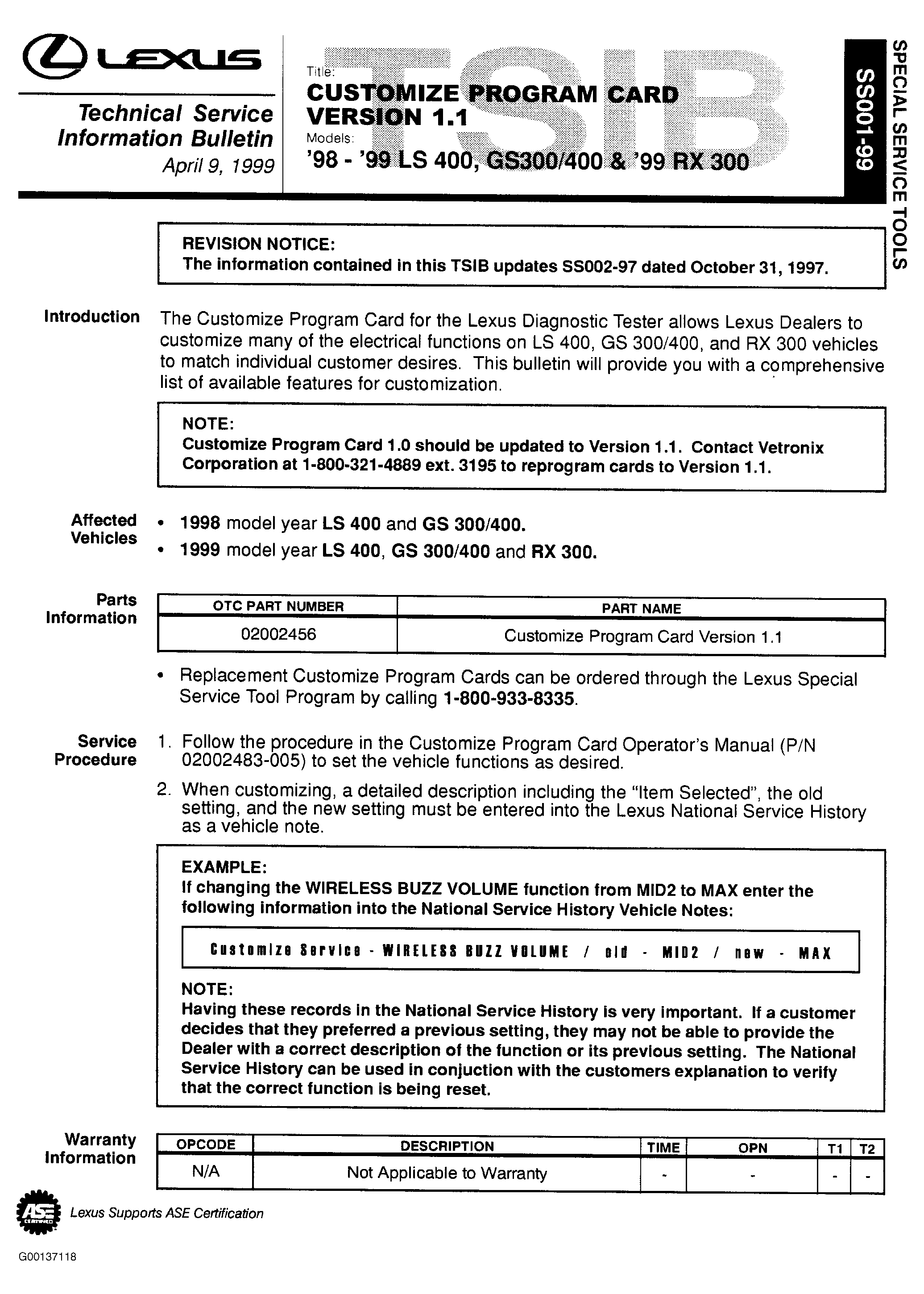

Fig 1: Page 1 of Bulletin

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

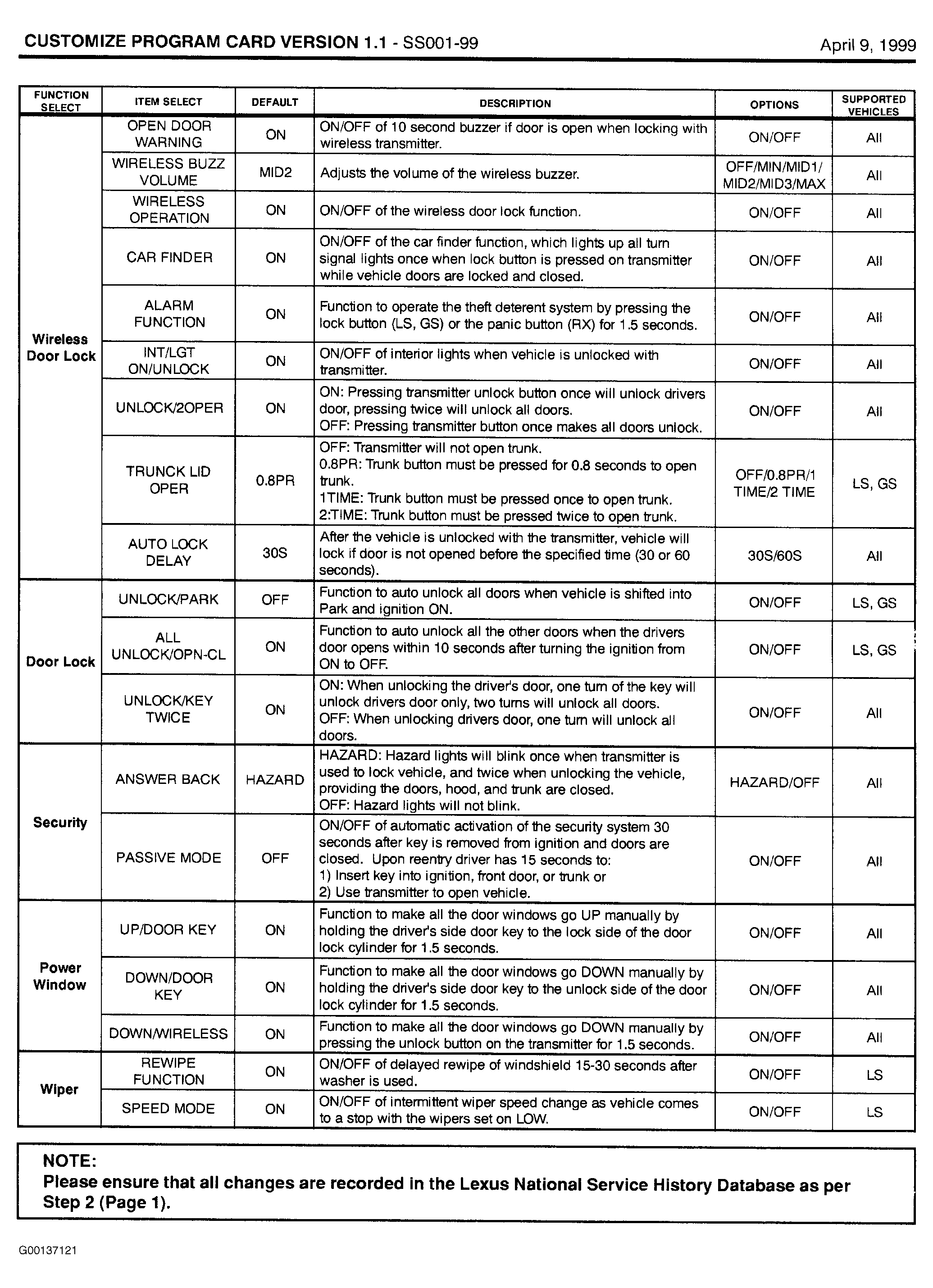

Fig 2: Page 2 of Bulletin

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

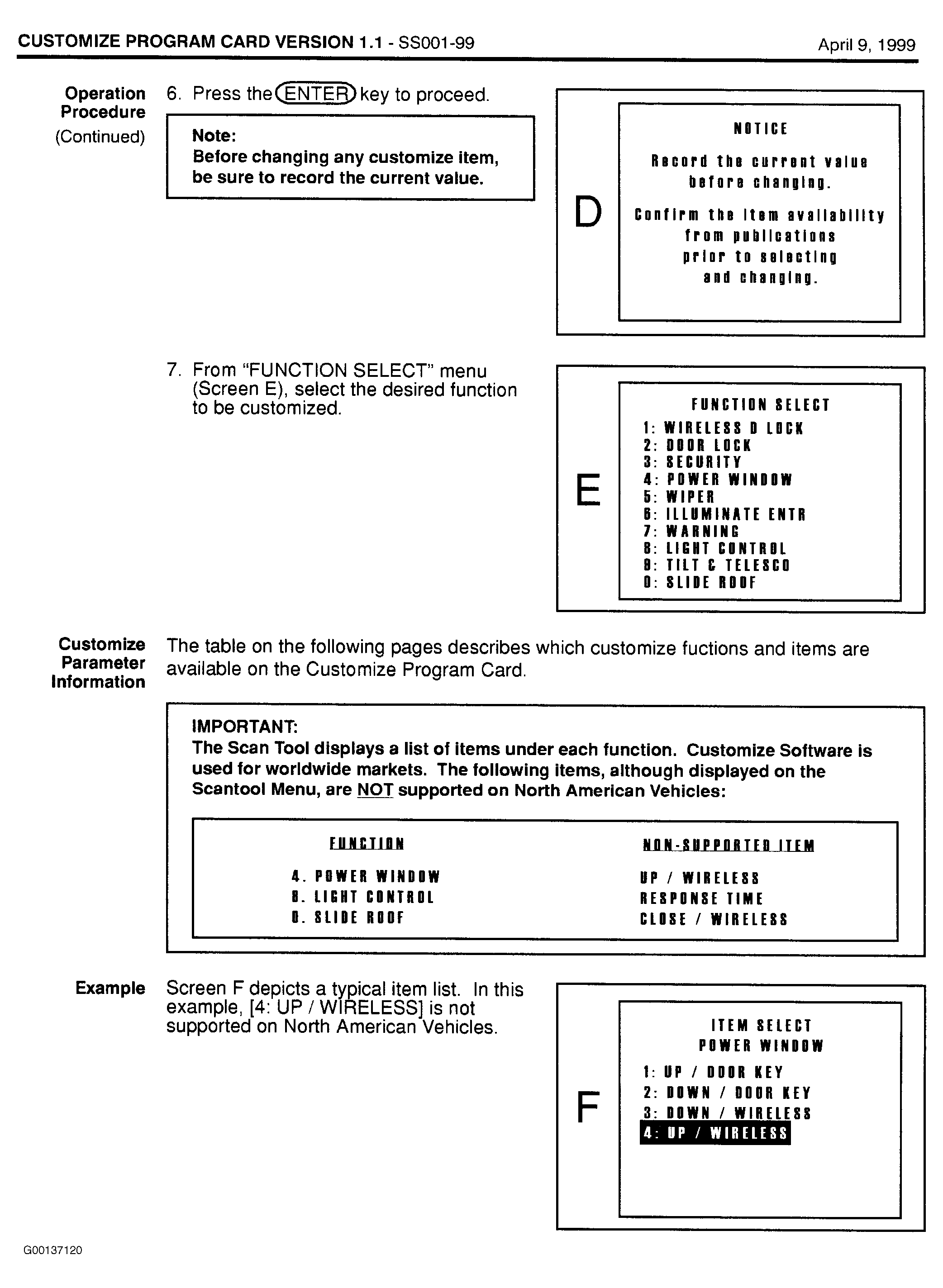

Fig 3: Page 3 of Bulletin

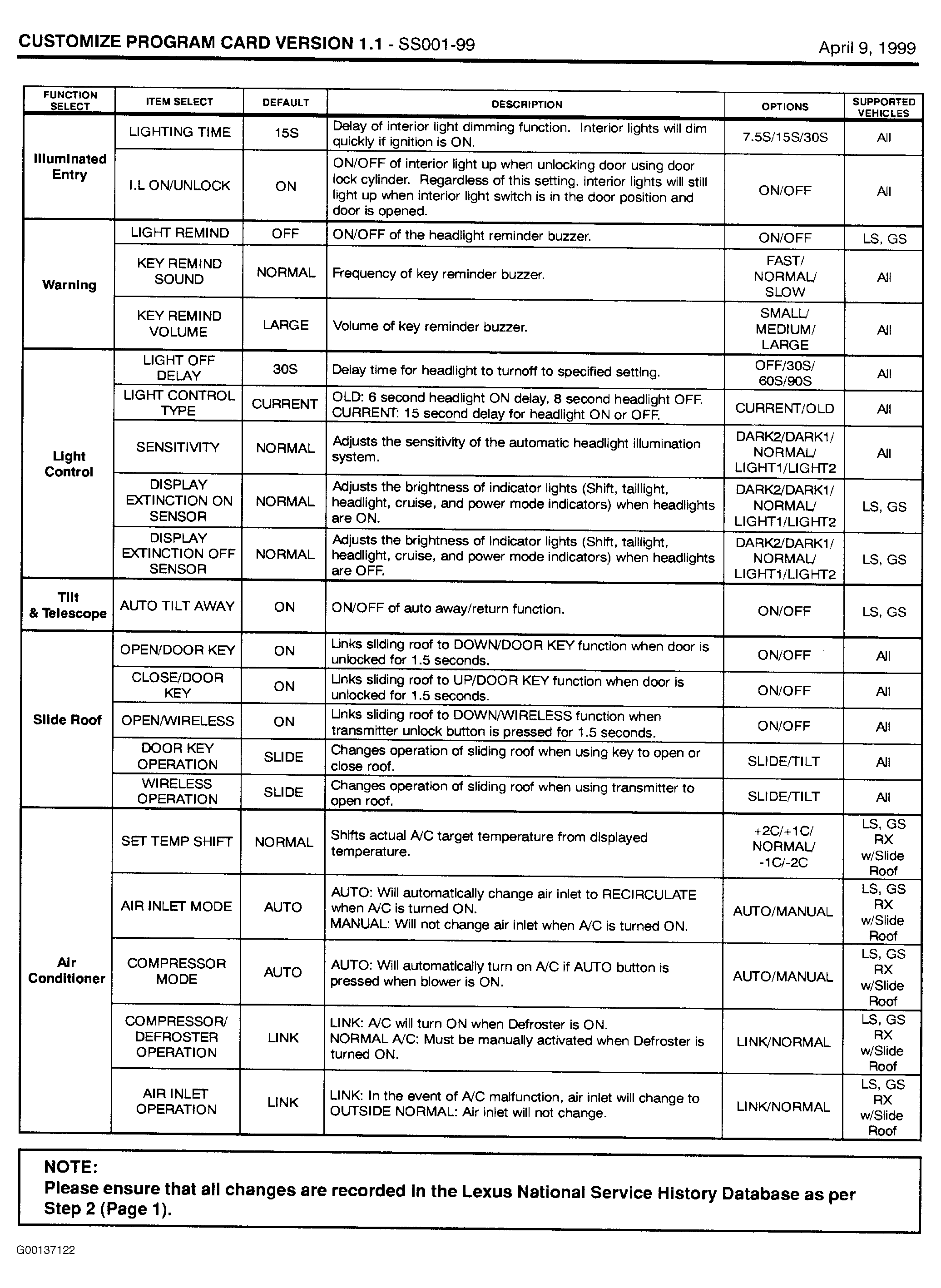

Fig 4: Page 4 of Bulletin

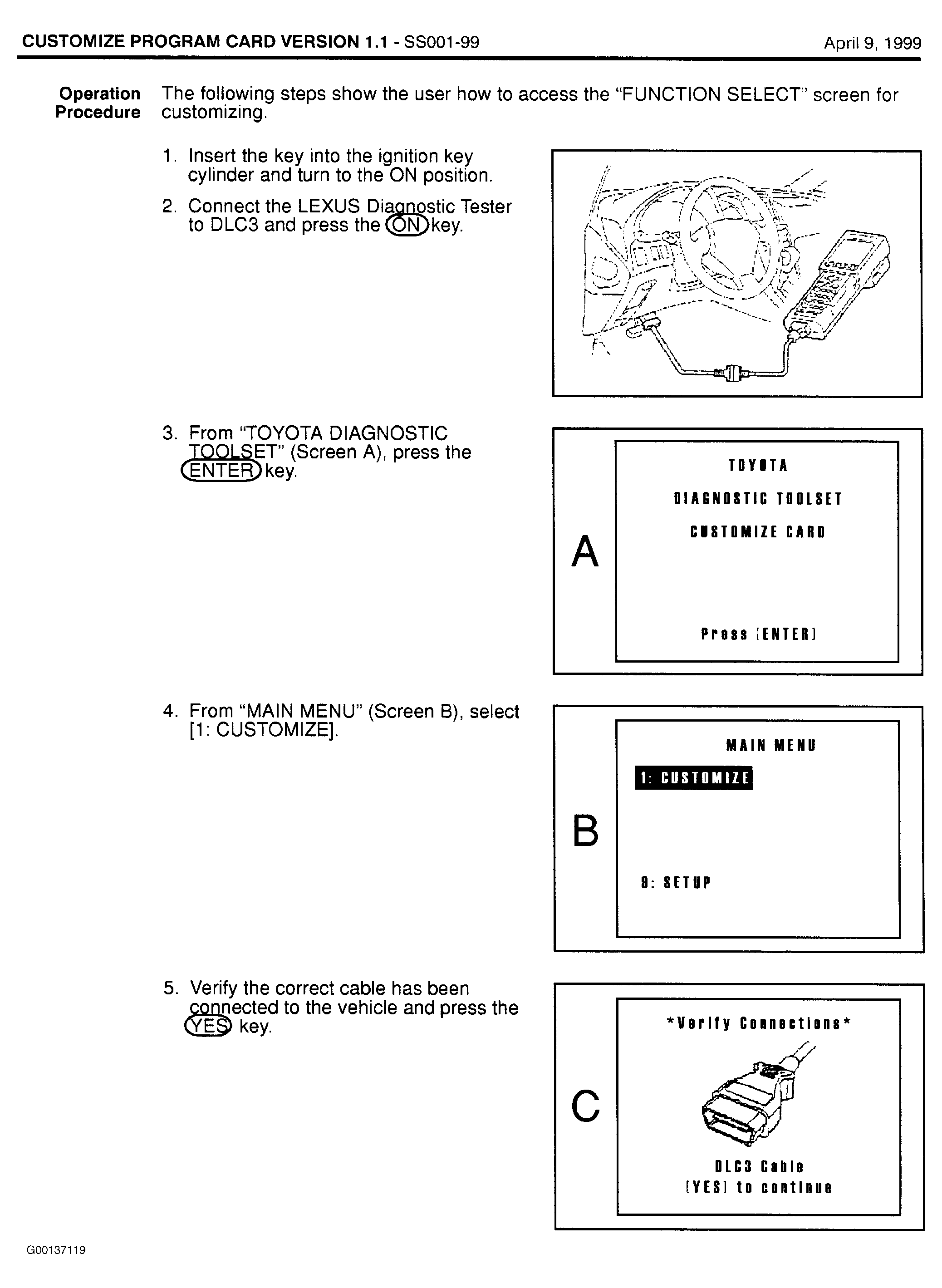

Fig 5: Page 5 of Bulletin
