Engine Control System

Engine control system is a computerized emission, ignition and fuel injection control system. Engine control system lowers exhaust emissions while maintaining good fuel economy and driveability. Engine control system consists of various sensors, switches and control units. See Fig 1-23. An Engine Control Module (ECM) controls engine control system based on input signals received from various input devices. The ECM contains preprogrammed data to maintain optimum engine performance under all operating conditions.

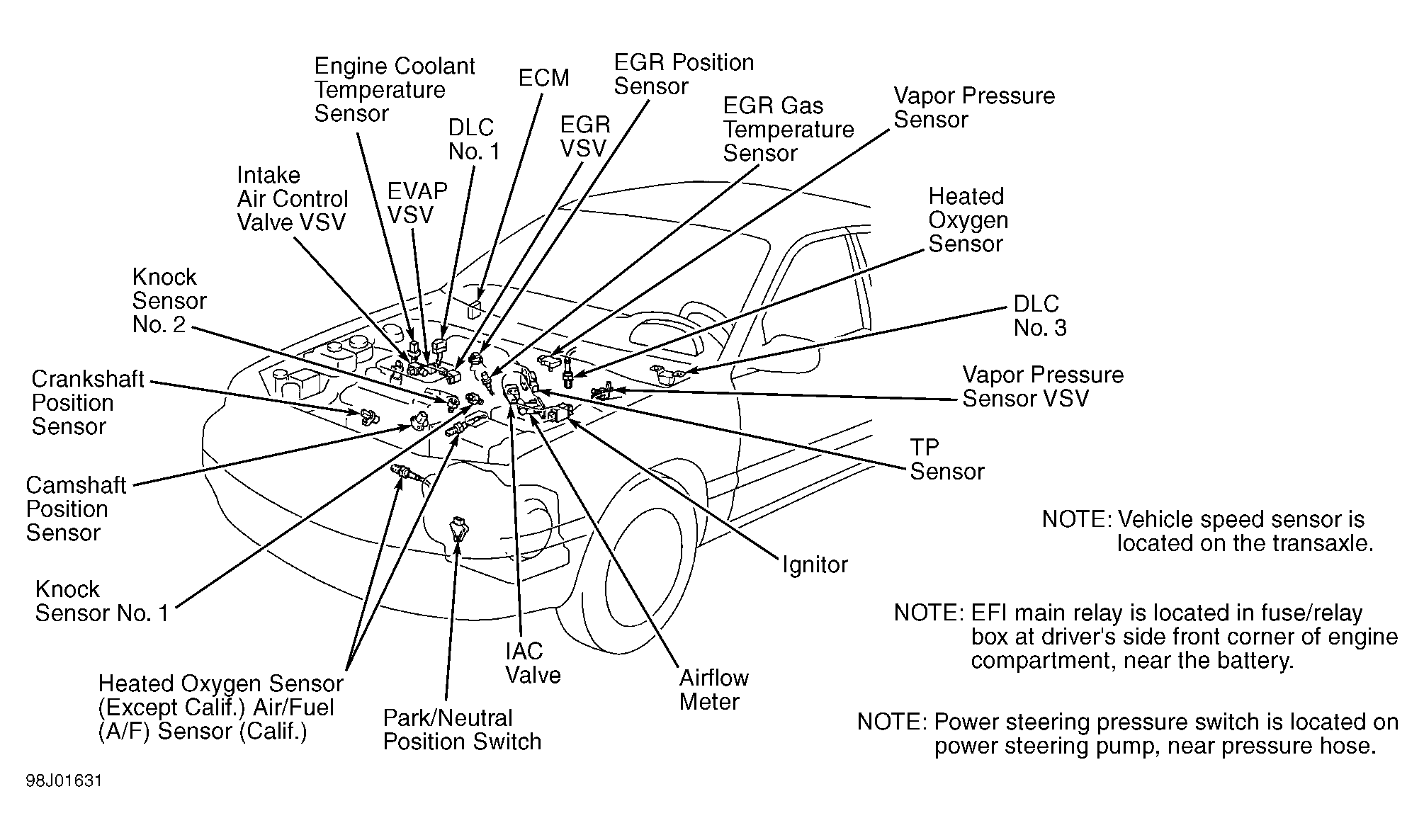

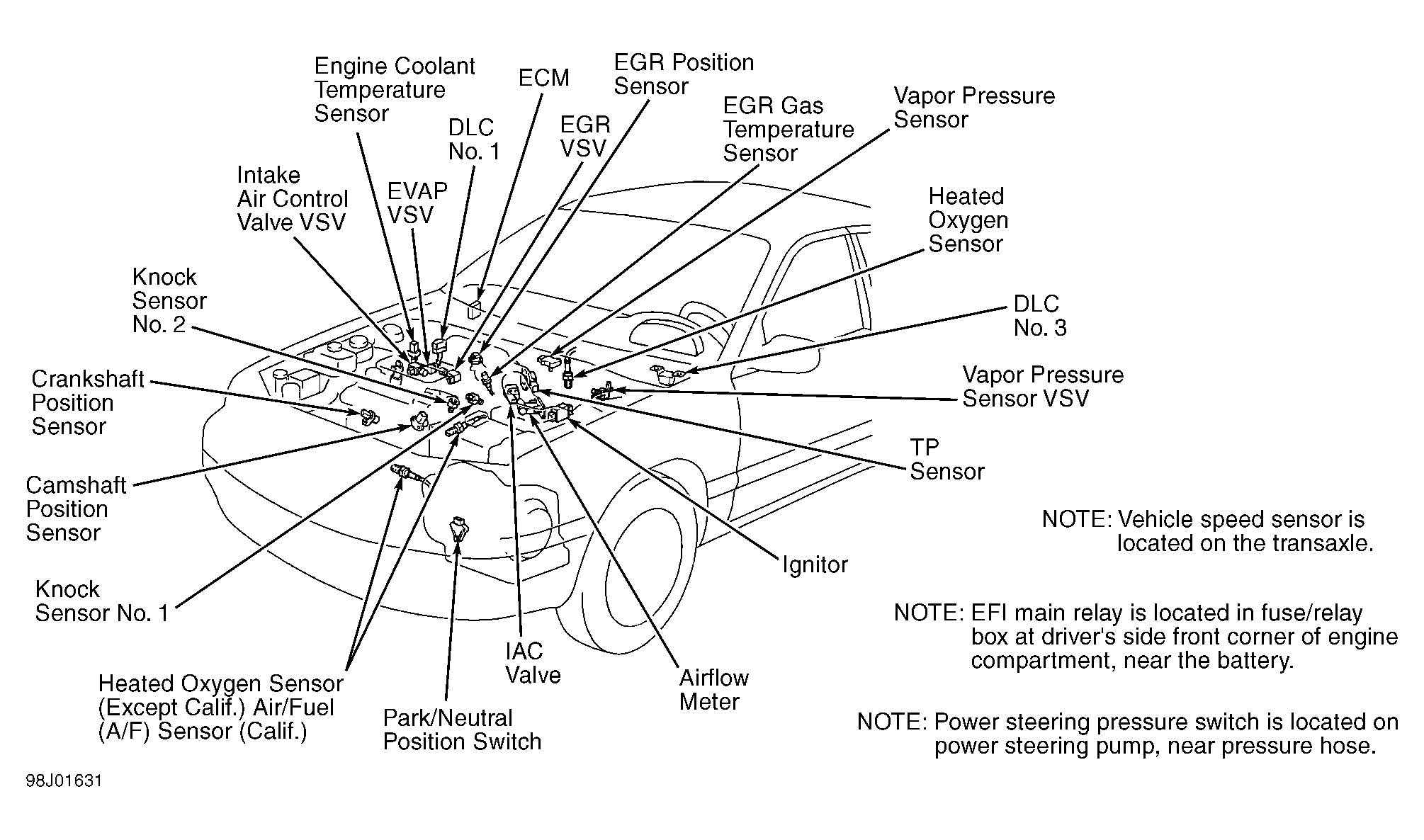

Fig 1: Locating Engine Control System Components (Avalon)

G98J01631

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

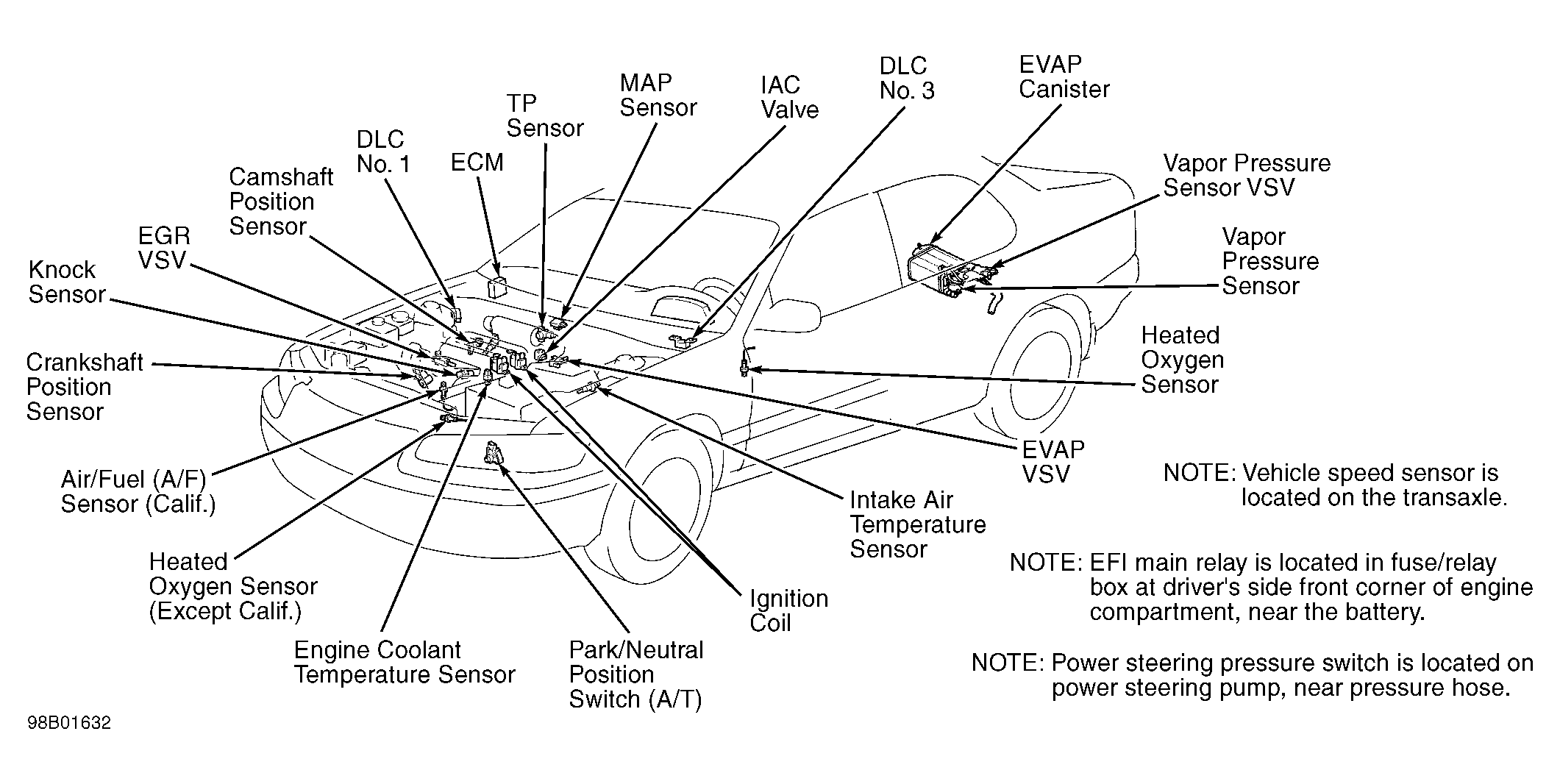

Fig 2: Locating Engine Control System Components (Camry 2.2L 4-Cyl.)

G98B01632

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

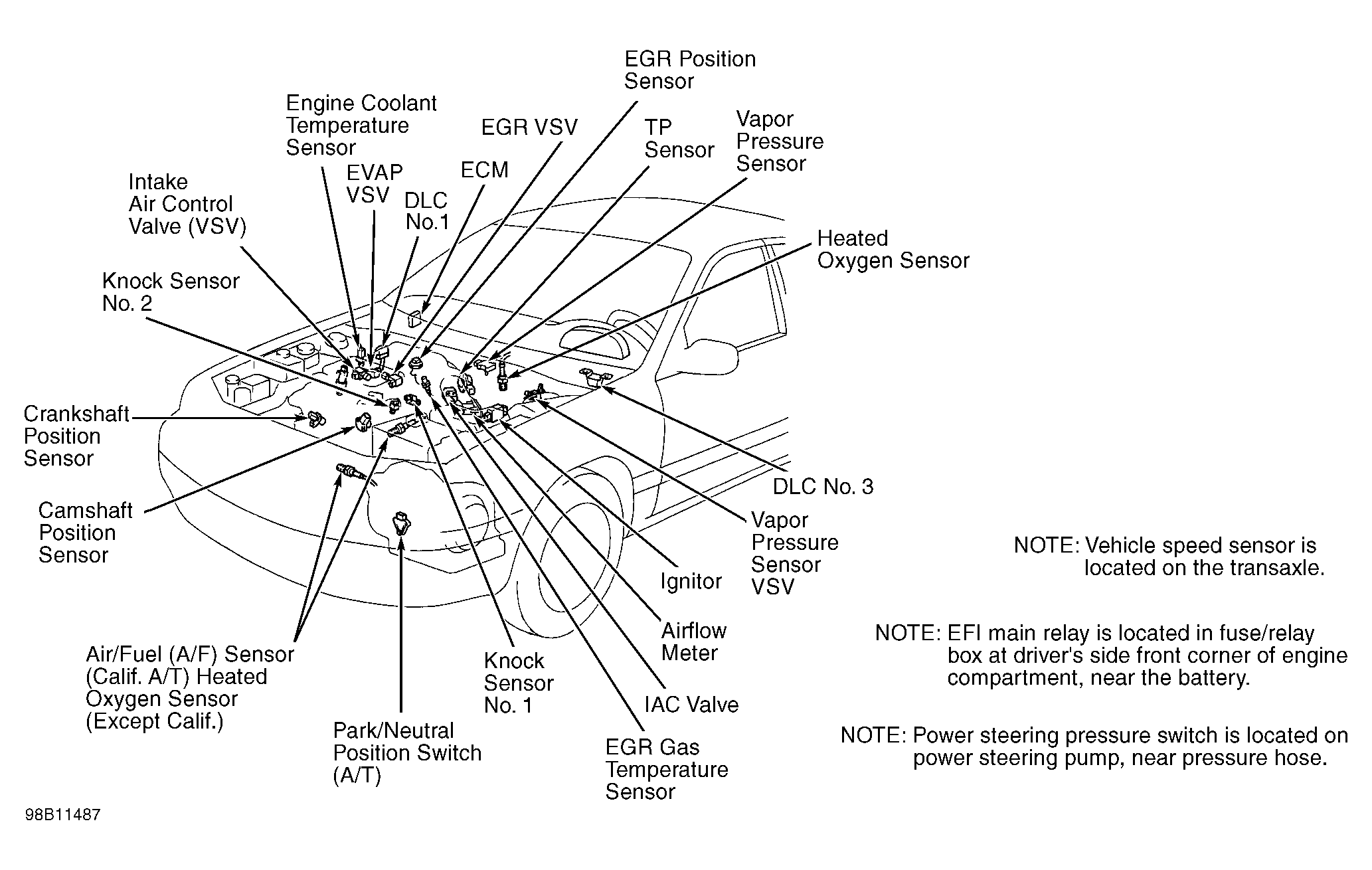

Fig 3: Locating Engine Control System Components (Camry 3.0L V6)

G98B11487

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

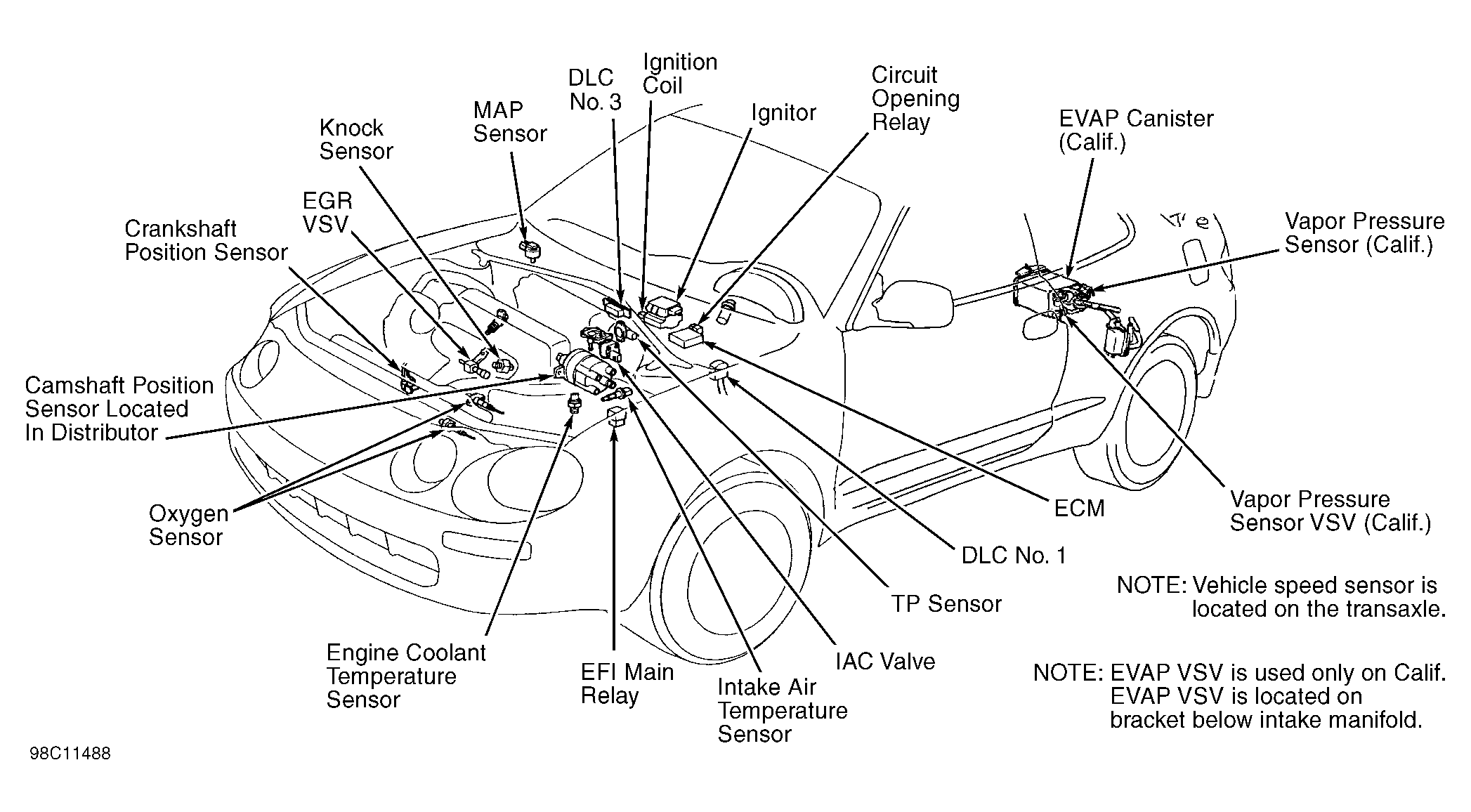

Fig 4: Locating Engine Control System Components (Celica)

G98C11488

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

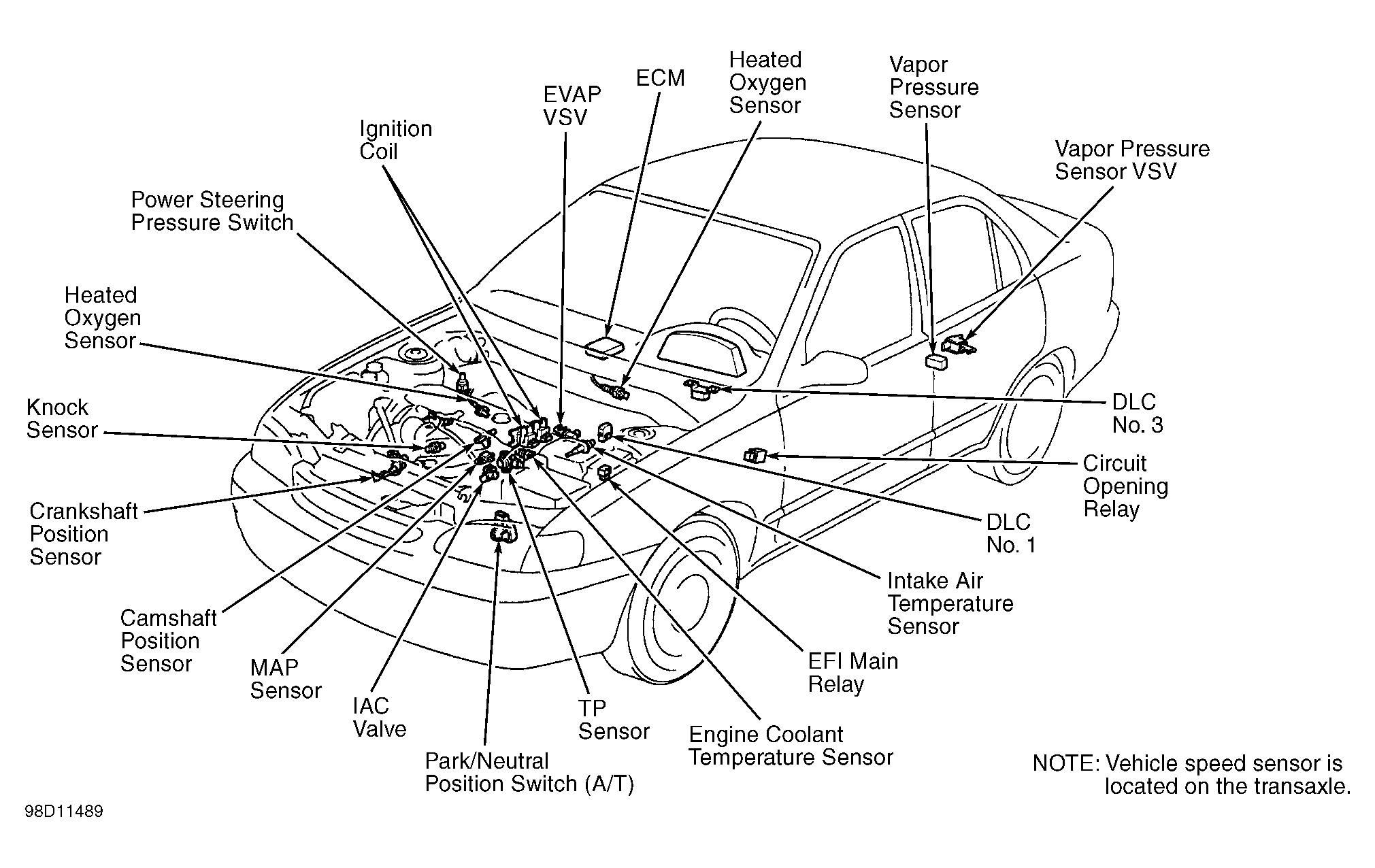

Fig 5: Locating Engine Control System Components (Corolla)

G98D11489

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

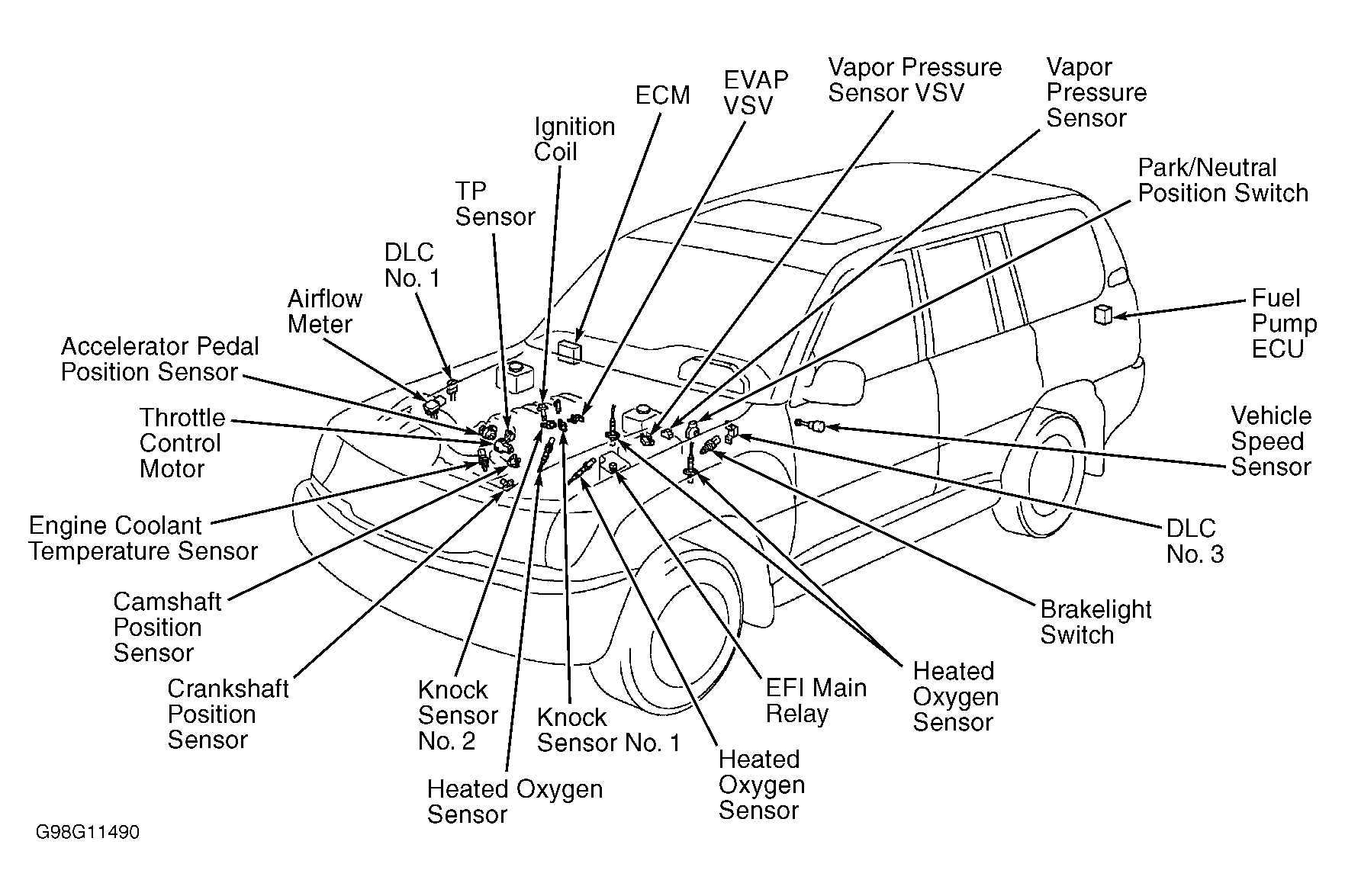

Fig 6: Locating Engine Control System Components (Land Cruiser & LX470)

G98G11490

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

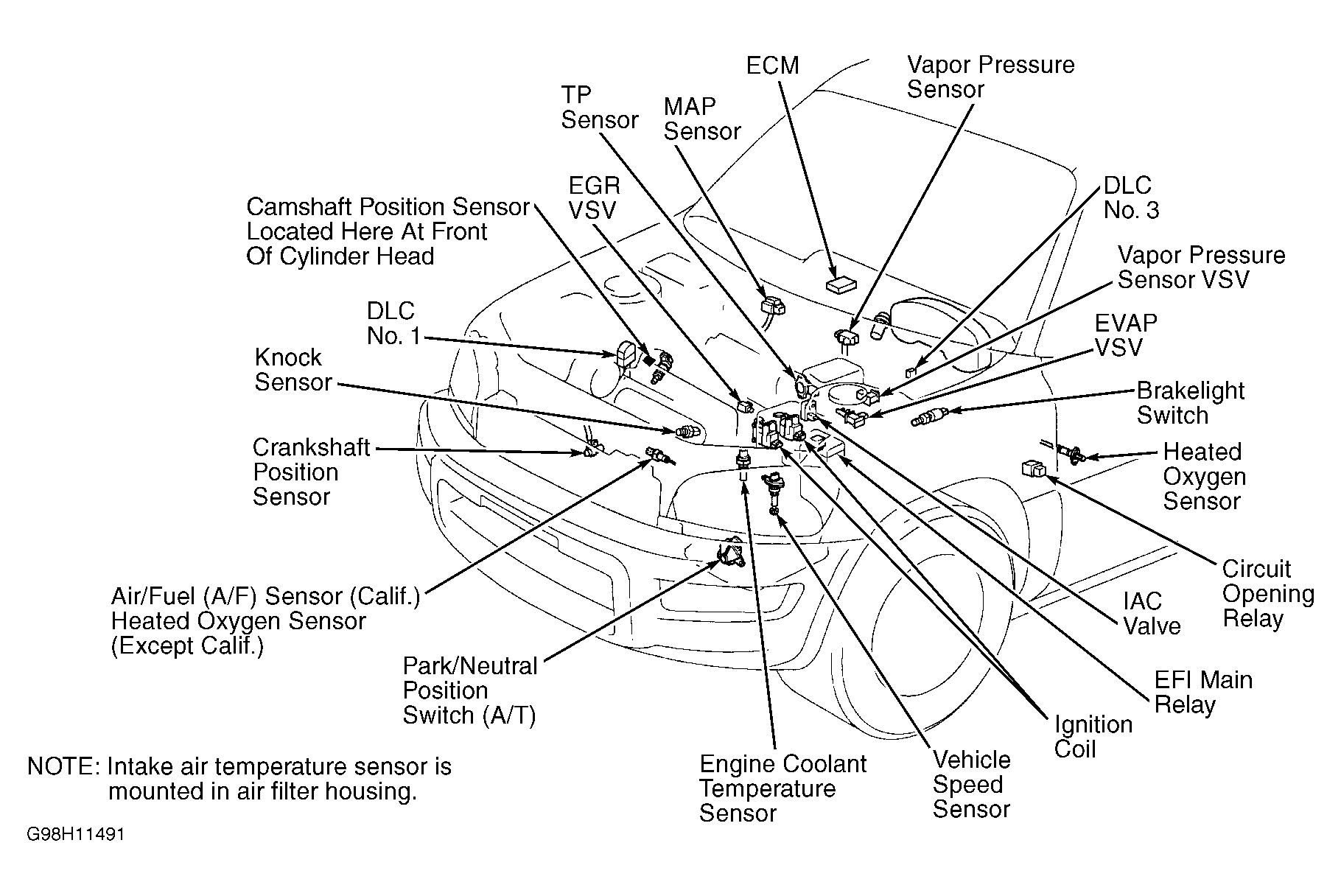

Fig 7: Locating Engine Control System Components (RAV4)

G98H11491

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

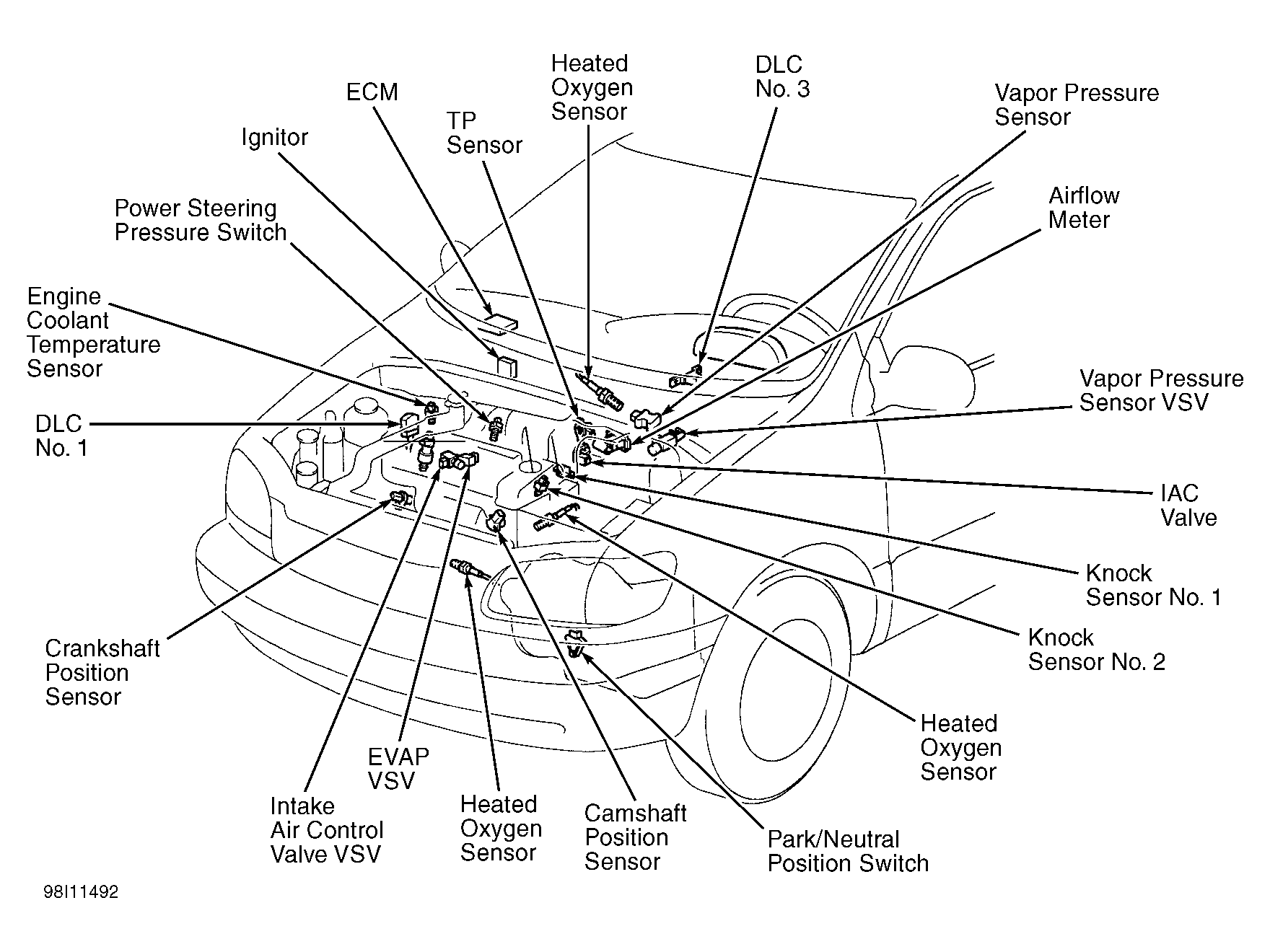

Fig 8: Locating Engine Control System Components (Sienna)

G98I11492

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

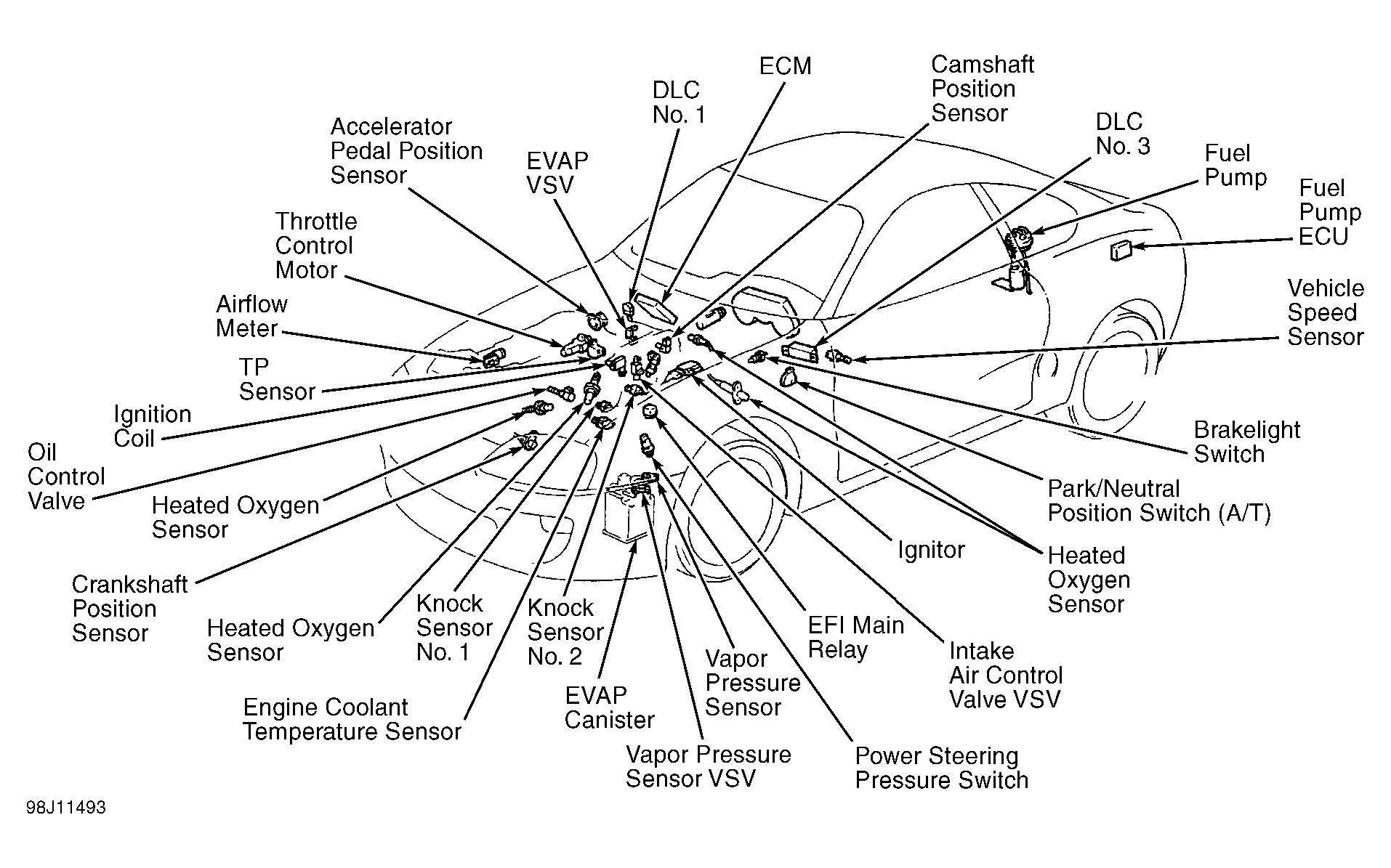

Fig 9: Locating Engine Control System Components (Supra Non-Turbo)

G98J11493

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

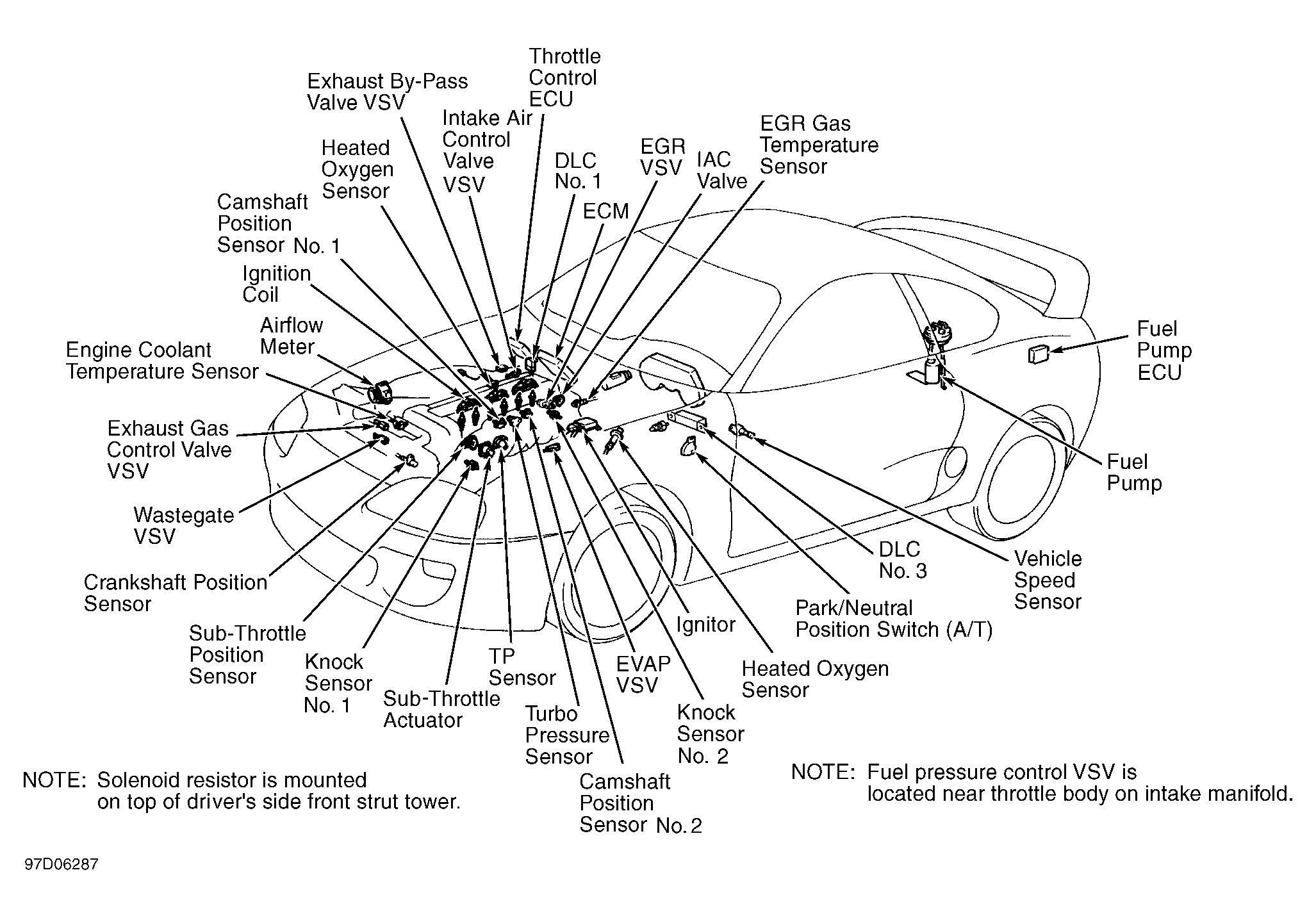

Fig 10: Locating Engine Control System Components (Supra Turbo)

G97D06287

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Locating Engine Control System Components (Tacoma 2.4L 4 Cyl. & 2.7L 4-Cyl.)

G98A11494

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Locating Engine Control System Components (Tacoma 3.4L V6)

G98F01634

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

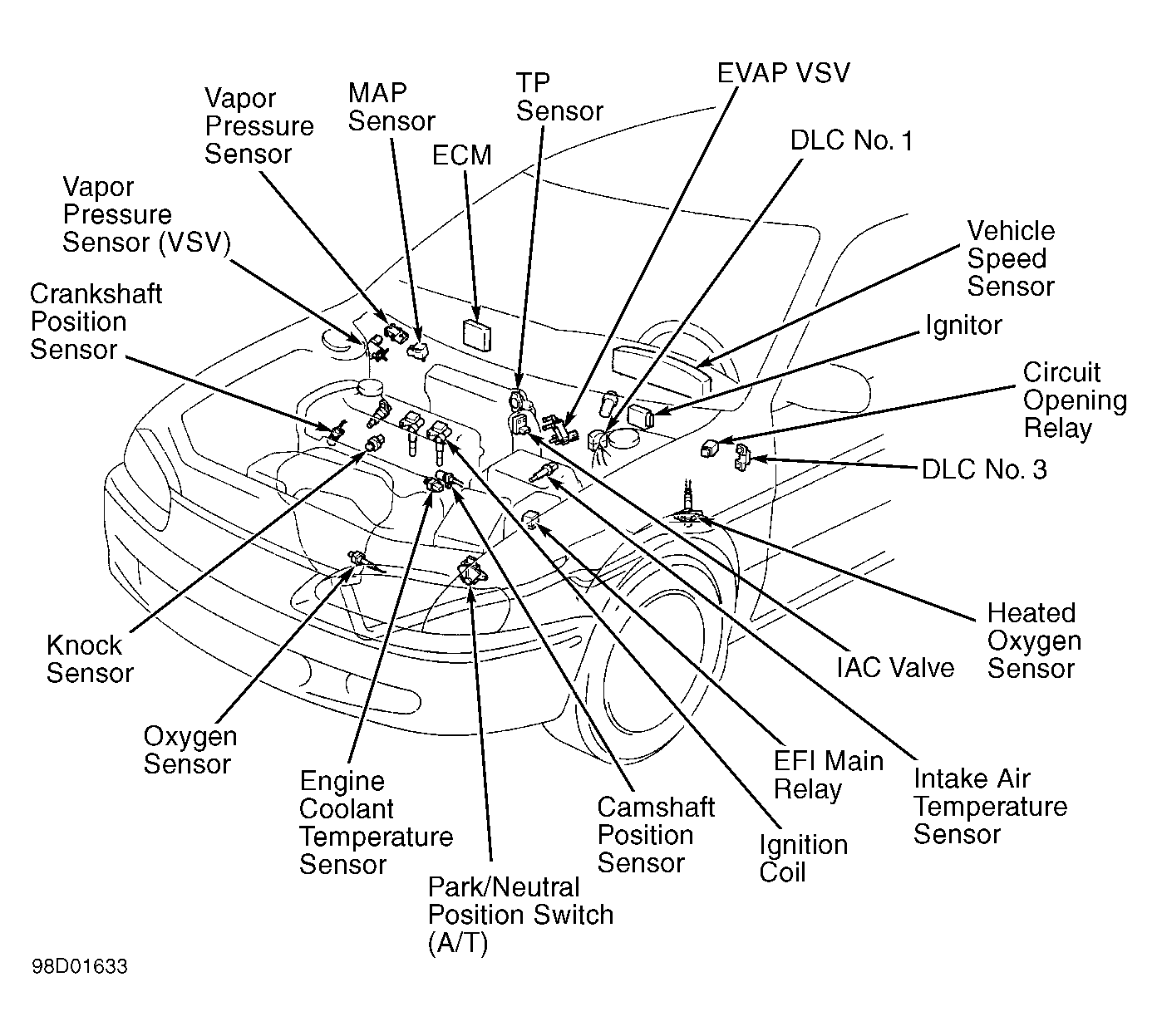

Fig 13: Locating Engine Control System Components (Tercel)

G98D01633

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

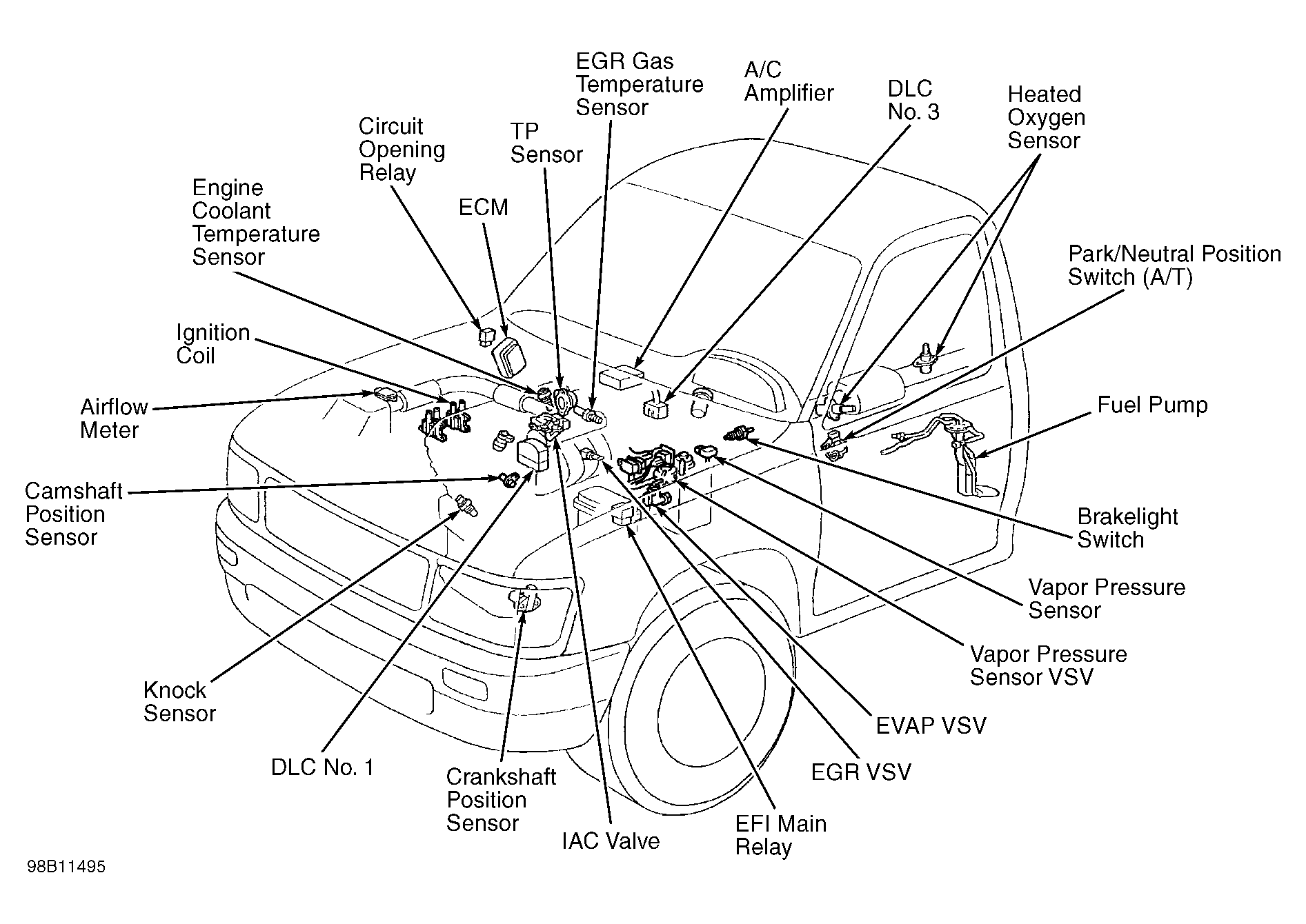

Fig 14: Locating Engine Control System Components (T100 2.7L 4-Cyl.)

G98B11495

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

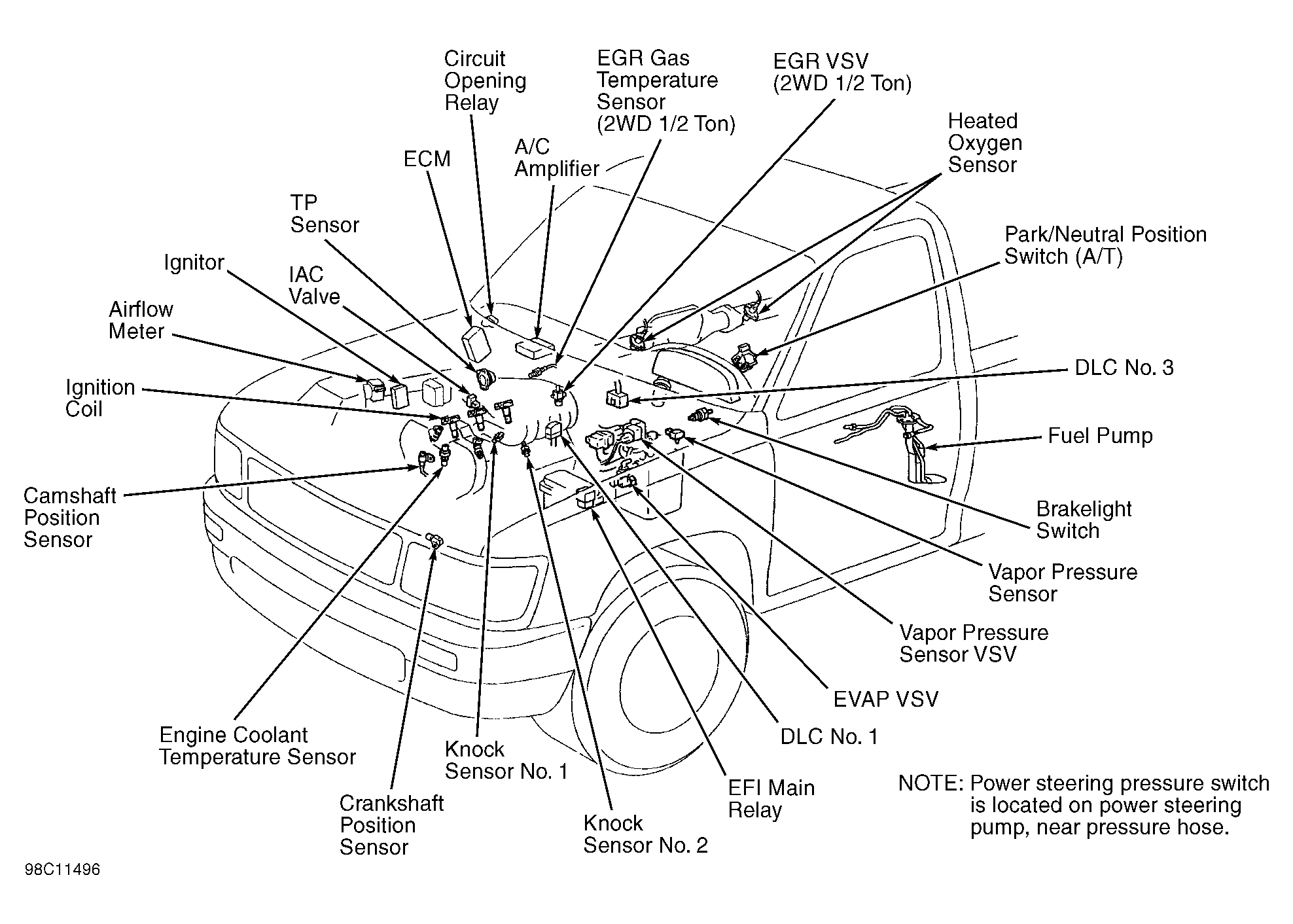

Fig 15: Locating Engine Control System Components (T100 3.4L V6)

G98C11496

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

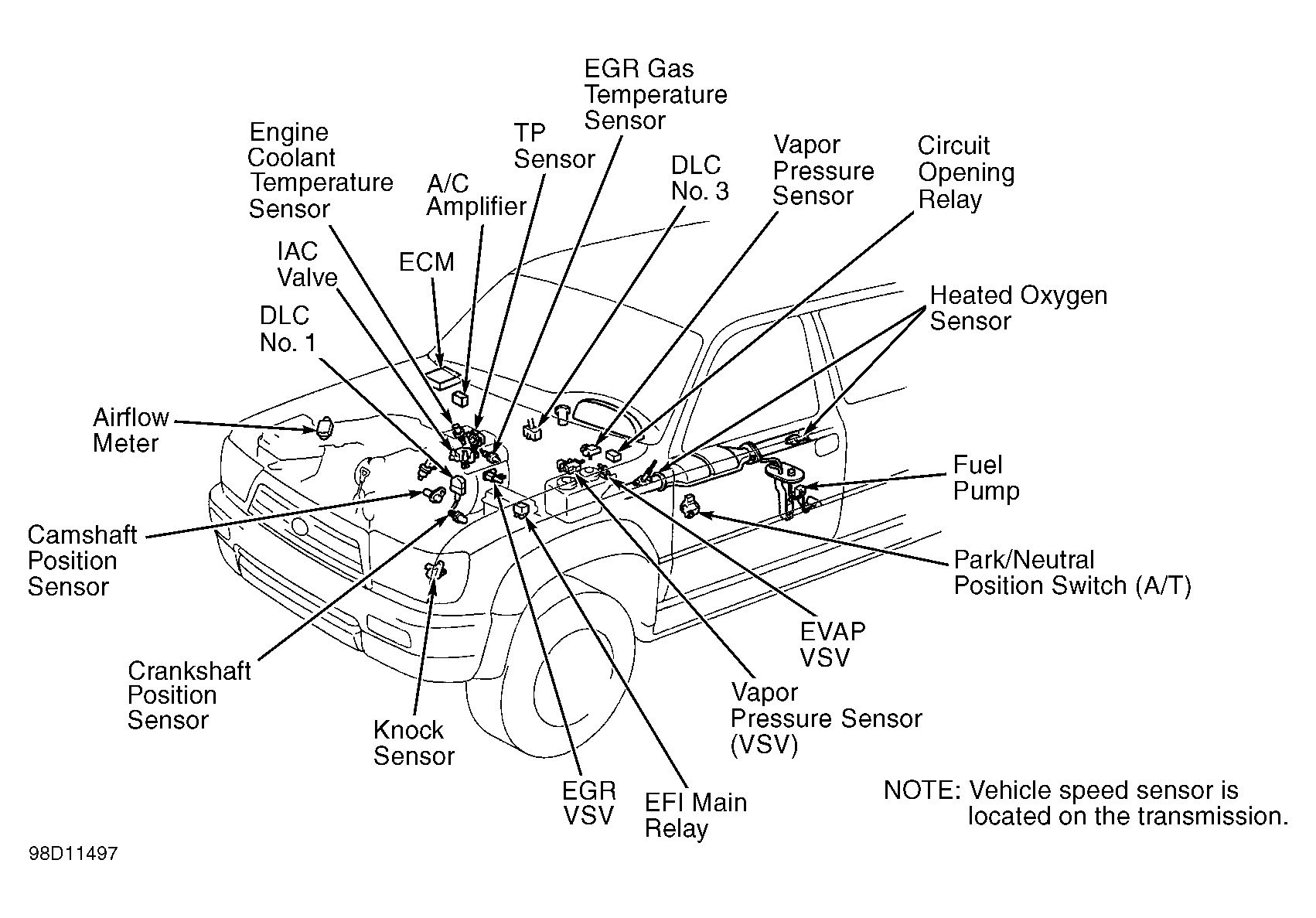

Fig 16: Locating Engine Control System Components (4Runner 2.7L 4 Cyl.)

G98D11497

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

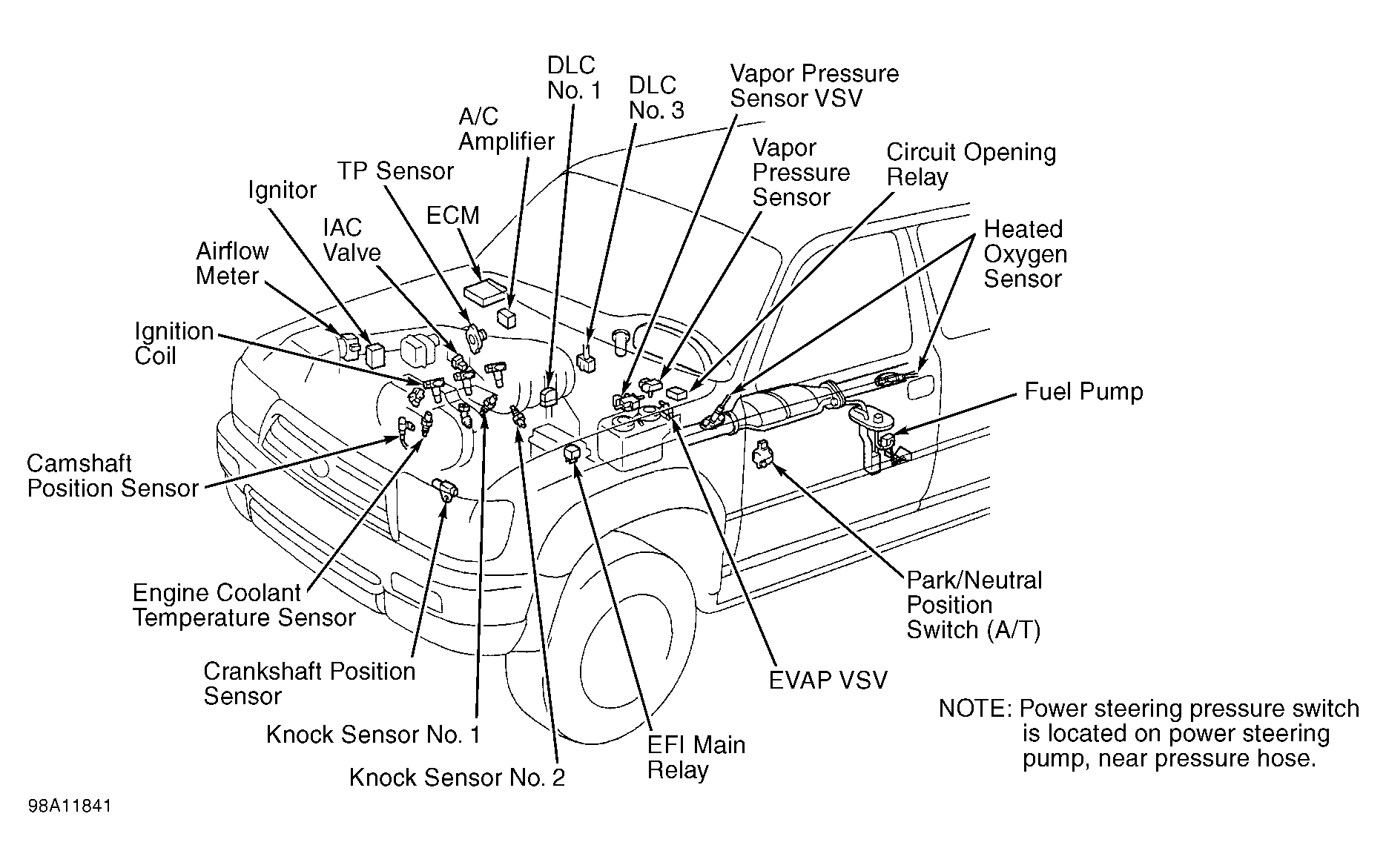

Fig 17: Locating Engine Control System Components (4Runner 3.4L V6)

G98A11841

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
