Headlight Relay
NOTE:
Headlight relay may also be referred to as headlight control relay.

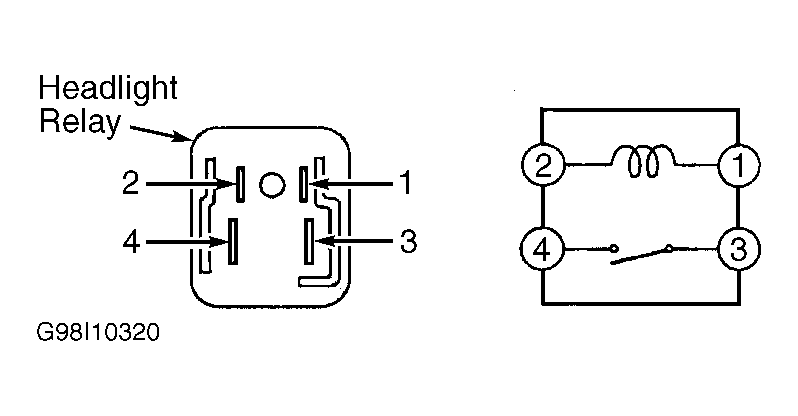

- Remove headlight relay from engine compartment fuse/relay box. Engine compartment fuse/relay box is located just behind the battery, next to driver's side fender. Note terminal identification on headlight relay. See Fig 1.
- Using ohmmeter, check that continuity exists between terminals No. 1 and 2 on headlight relay. Apply battery voltage and ground to terminals No. 1 and 2 on headlight relay. Using ohmmeter, check that continuity exists between terminals No. 3 and 4 on headlight relay. Replace headlight relay if defective.
