Power Window Switch Continuity Test (Driver's Switch)

Using an ohmmeter, check continuity between specified terminals with driver's power window switch in specified position. See appropriate DRIVER'S POWER WINDOW SWITCH CONTINUITY TEST table. See Fig 1 or Fig 2 . If continuity does not exist at specified terminals, replace power window switch.

DRIVER'S POWER WINDOW SWITCH CONTINUITY TEST (LAND CRUISER & LX470)

Application & Position (1) Terminals No.
Driver's Switch
Locked & Unlocked
UP 1 & 3; 2, 4 & 5
OFF 1, 2, 4 & 5
DOWN 1, 4 & 5; 2 & 3
Passenger's Switch
Locked
UP 7 & 10
OFF 7 & 8
DOWN 8 & 10
Unlocked
UP 4, 5, 8; 7 & 10
OFF 4, 5, 7 & 8
DOWN 4, 5, 7; 8 & 10
Left Rear Switch
Locked
UP 9 & 10
OFF 9 & 11
DOWN 10 & 11
Unlocked
UP 4, 5 & 11; 9 & 10
OFF 4, 5, 9 & 11
DOWN 4, 5 & 9; 7, 10 & 11
Right Rear Switch
Locked
UP 10 & 13
OFF 13 & 14
DOWN 10 & 14
Unlocked
UP 4, 5 & 14; 10 & 13
OFF 4, 5, 13 & 14
DOWN 4, 5 & 13; 10 & 14
(1) See Fig 1.
DRIVER'S POWER WINDOW SWITCH CONTINUITY TEST (RAV4)

Application & Position (1) Terminals No.
2-Door
Driver's Switch
Locked & Unlocked
UP 3 & 5; 4 & 6
OFF 3, 4 & 5
DOWN 3 & 4; 5 & 6
Passenger's Switch
Locked
UP 12 & 13
OFF 12 & 14
DOWN 13 & 14
Unlocked
UP 3 & 14; 12 & 13
OFF 3, 12 & 14
DOWN 3 & 12; 13 & 14
4-Door
Driver's Switch
Locked & Unlocked
UP 1 & 3; 2 & 5
OFF 1, 2 & 5
DOWN 2 & 3; 1 & 5
Passenger's Switch
Locked
UP 7 & 10
OFF 7 & 8
DOWN 8 & 10
Unlocked
UP 5 & 8; 7 & 10
OFF 5, 7 & 8
DOWN 5 & 7; 8 & 10
Left Rear Switch
Locked
UP 9 & 10
OFF 9 & 11
DOWN 10 & 11
Unlocked
UP 5 & 11; 9 & 10
OFF 5, 9 & 10
DOWN 5 & 9; 10 & 11
Right Rear Switch
Locked
UP 10 & 13
OFF 13 & 14
DOWN 10 & 14
Unlocked
UP 5 & 14; 7, 10 & 13
OFF 5, 13 & 14
DOWN 5 & 13; 10 & 14
(1) See Fig 1.
DRIVER'S POWER WINDOW SWITCH CONTINUITY TEST (SIENNA)

Application & Position (1) Terminals No.
Driver's Switch
Locked & Unlocked
UP 1 & 4; 3 & 9
OFF 1, 3 & 4
DOWN 1 & 3; 4 & 9
Passenger's Switch
Locked
UP 8 & 9
OFF 8 & 10
DOWN 9 & 10
Unlocked
UP 1 & 10; 8 & 9
OFF 1, 8 & 10
DOWN 1 & 8; 9 & 10
(1) See Fig 2.
DRIVER'S POWER WINDOW SWITCH CONTINUITY TEST (TACOMA & T100)

Application & Position (1) Terminals No.
Driver's Switch
Locked & Unlocked
UP 3 & 9; 4 & 6
OFF 3, 4 & 6
DOWN 3 & 6; 4 & 9
Passenger's Switch
Locked
UP 9 & 10
OFF 7 & 10
DOWN 7 & 9
Unlocked
UP 6 & 7; 9 & 10
OFF 6, 7 & 10
DOWN 6 & 10; 7 & 9
(1) See Fig 2.
DRIVER'S POWER WINDOW SWITCH CONTINUITY TEST (4RUNNER)

Application & Position (1) Terminals No.
Driver's Switch
Locked & Unlocked
UP 3 & 10; 3 & 5
OFF 1, 3 & 5
DOWN 1 & 3; 5 & 10
Passenger's Switch
Locked
UP 10 & 14
OFF 6 & 14
DOWN 6 & 10
Unlocked
UP 3 & 6; 10 & 14
OFF 3, 6 & 14
DOWN 3 & 14; 6 & 10
Left Rear Switch
Locked
UP 9 & 10
OFF 9 & 12
DOWN 10 & 12
Unlocked
UP 1, 3 & 12; 9 & 10
OFF 3, 9 & 12
DOWN 3 & 9; 10 & 12
Right Rear Switch
Locked
UP 8 & 10
OFF 8 & 13
DOWN 10 & 13
Unlocked
UP 3 & 13; 8 & 10
OFF 3, 8 & 13
DOWN 3 & 8; 10 & 13
(1) See Fig 1.
Fig 1: Identifying Driver's Master Power Window Switch Connector Terminals (Land Cruiser, Lexus LX470, RAV4 & 4Runner)
G96F06863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

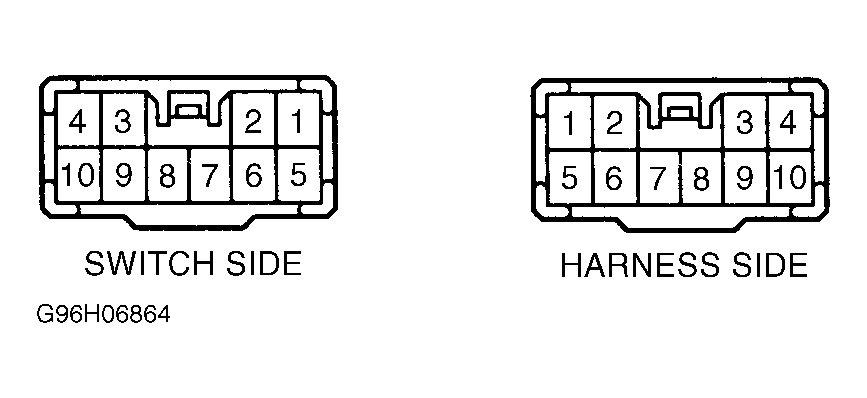

Fig 2: Identifying Driver's Master Power Window Switch Connector Terminals (Sienna, Tacoma & T100)
G96H06864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
