Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

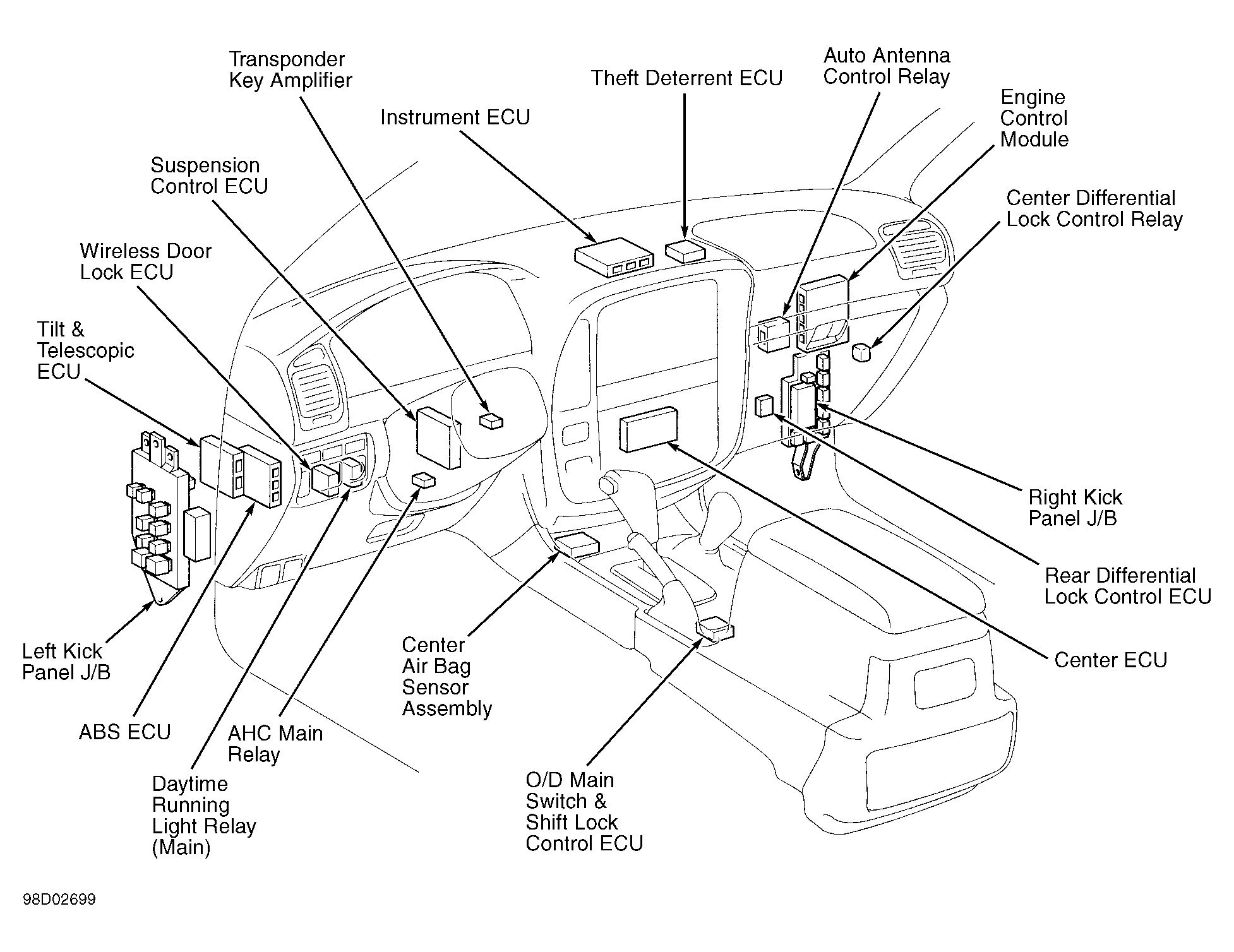

| ABS ECU | On left kick panel. See Figure. |

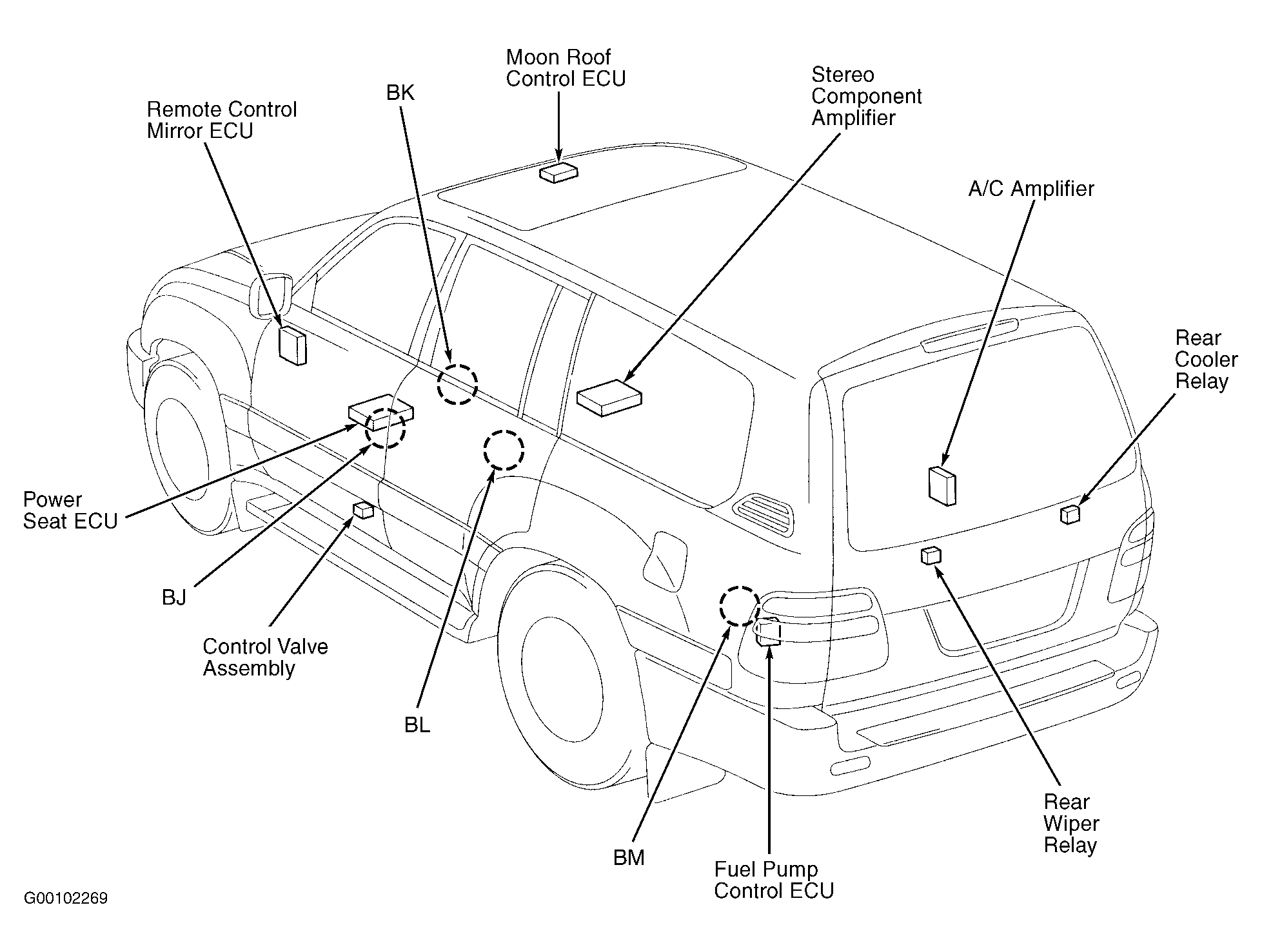

| A/C Amplifier | On right side of cargo area. See Figure. |
| Blower Motor Controller | Behind lower right side of dash. |
| Center Air Bag Sensor Assembly | Under front of center console. See Figure. |
| Center ECU | Behind center of dash. See Figure. |
| Engine Control Module | Behind right side of dash. See Figure. |
| Fuel Pump Control ECU | On left rear of cargo area. See Figure. |
| Instrument ECU | Behind center of dash. See Figure. |
| Moon Roof Control ECU | On roof, in front of moon roof. See Figure. |
| O/D Main Switch & Shift Lock Control ECU | Below center console. See Figure. |
| Power Seat ECU | On Below driver's seat. See Figure. |
| Rear Differential Lock Control ECU | On right kick panel. See Figure. |
| Remote Control Mirror ECU | On left kick panel. See Figure. |
| Suspension Control ECU | Behind center of dash. See Figure. |
| Theft Deterrent ECU | Behind center of dash. See Figure. |
| Tilt & Telescopic ECU | On left kick panel. See Figure. |
| Transponder Key Amplifier | In steering column. See Figure. |
| Stereo Component Amplifier | Under right front seat. See Figure. |
| Wireless Door Lock ECU | Behind left of dash. See Figure. |
