All Others

Locate and remove starter relay. Starter relay is marked "ST". See STARTER RELAY LOCATION table. Using ohmmeter, verify continuity between relay terminals No. 1 and 2. See Fig 2. Continuity should not exist between terminals No. 3 and 5. If continuity is not as specified, replace relay.
Check relay operation by applying battery voltage through terminals No. 1 and 2. See Fig 2. Continuity should now exist between terminals No. 3 and 5. If relay does not test as indicated, replace relay.

STARTER RELAY LOCATION

Application

Location

Avalon & Corolla

In Engine Compartment Junction Block

Camry & Sienna

In Engine Compartment Junction Block No. 2

Celica

In Engine Compartment Junction/Relay Block No. 2

Land Cruiser

In Engine Compartment Junction Block

RAV4, Tercel & 4Runner

In Engine Compartment Relay Block

Supra

In Engine Compartment Junction Block

Tacoma

In Engine Compartment Relay Block No. 2

T100 ⁽¹⁾

Driver Side Kick Panel Junction Block No. 1

⁽¹⁾	On USA models without power windows, relay is on side of relay box above horn relay. On Canadian and USA models with power windows, relay is on side of relay above back-up light relay.

Fig 1: Testing Starter Relay (Land Cruiser)

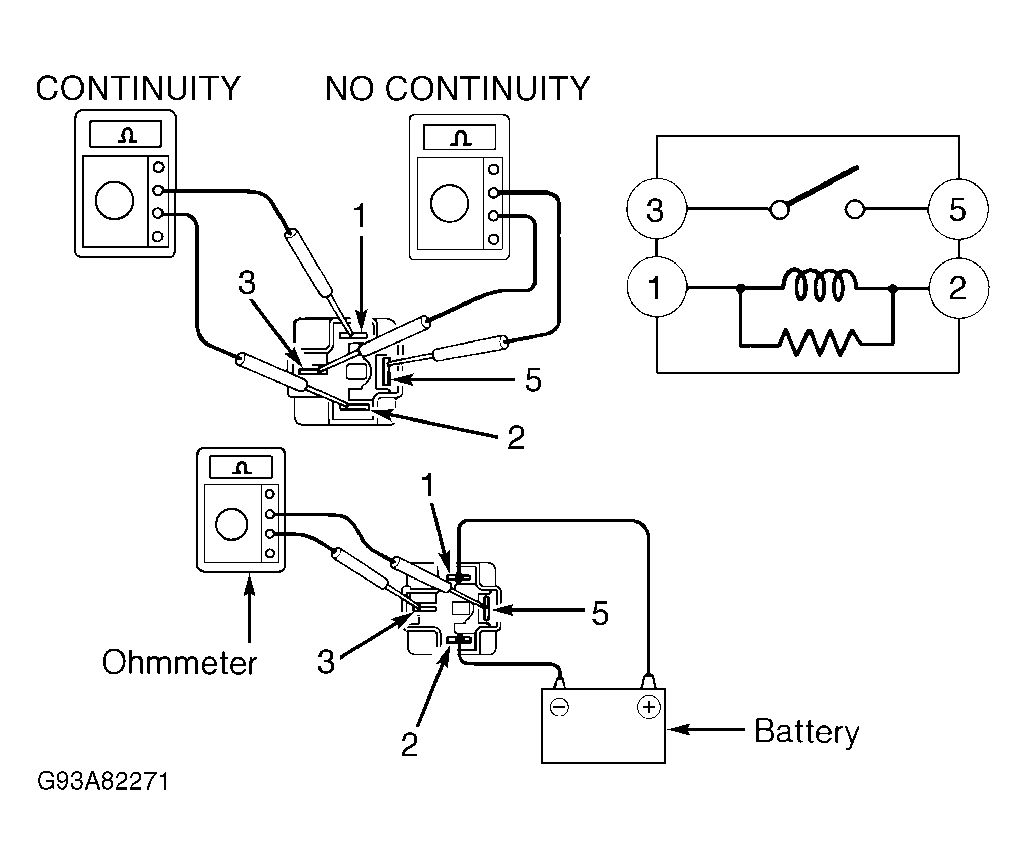

Fig 2: Testing Starter Relay (All Others)
