Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

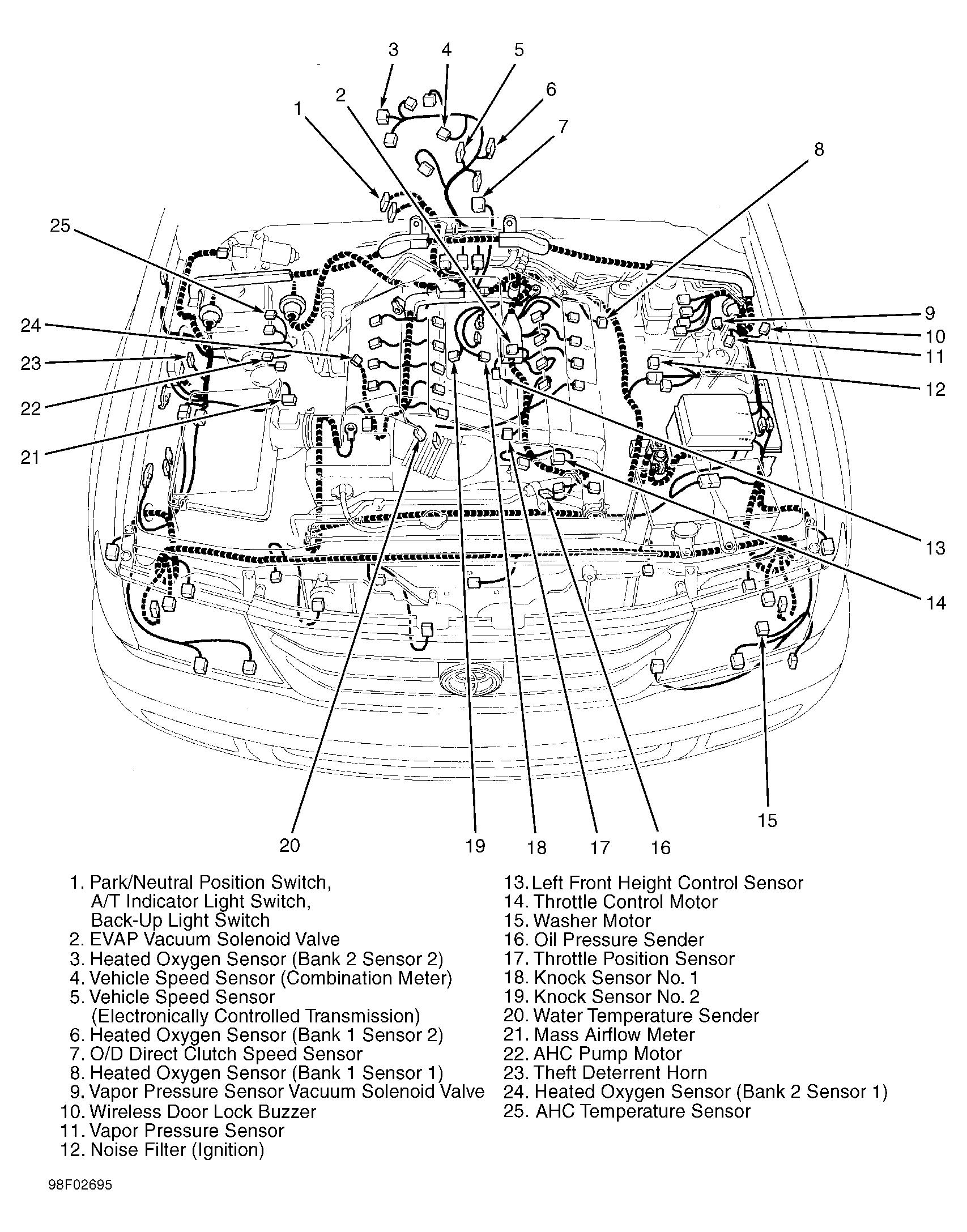

Fig 1: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

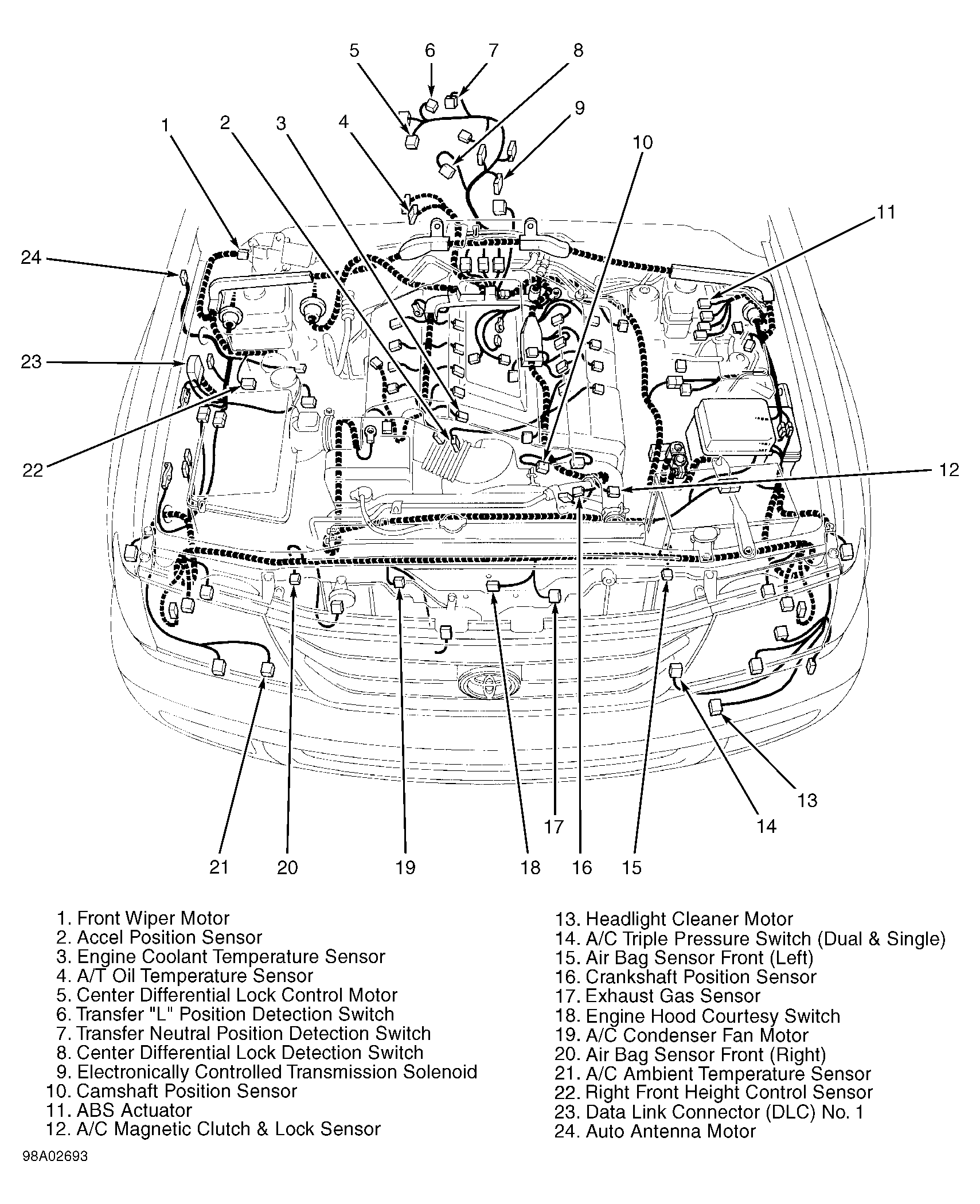

Fig 2: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

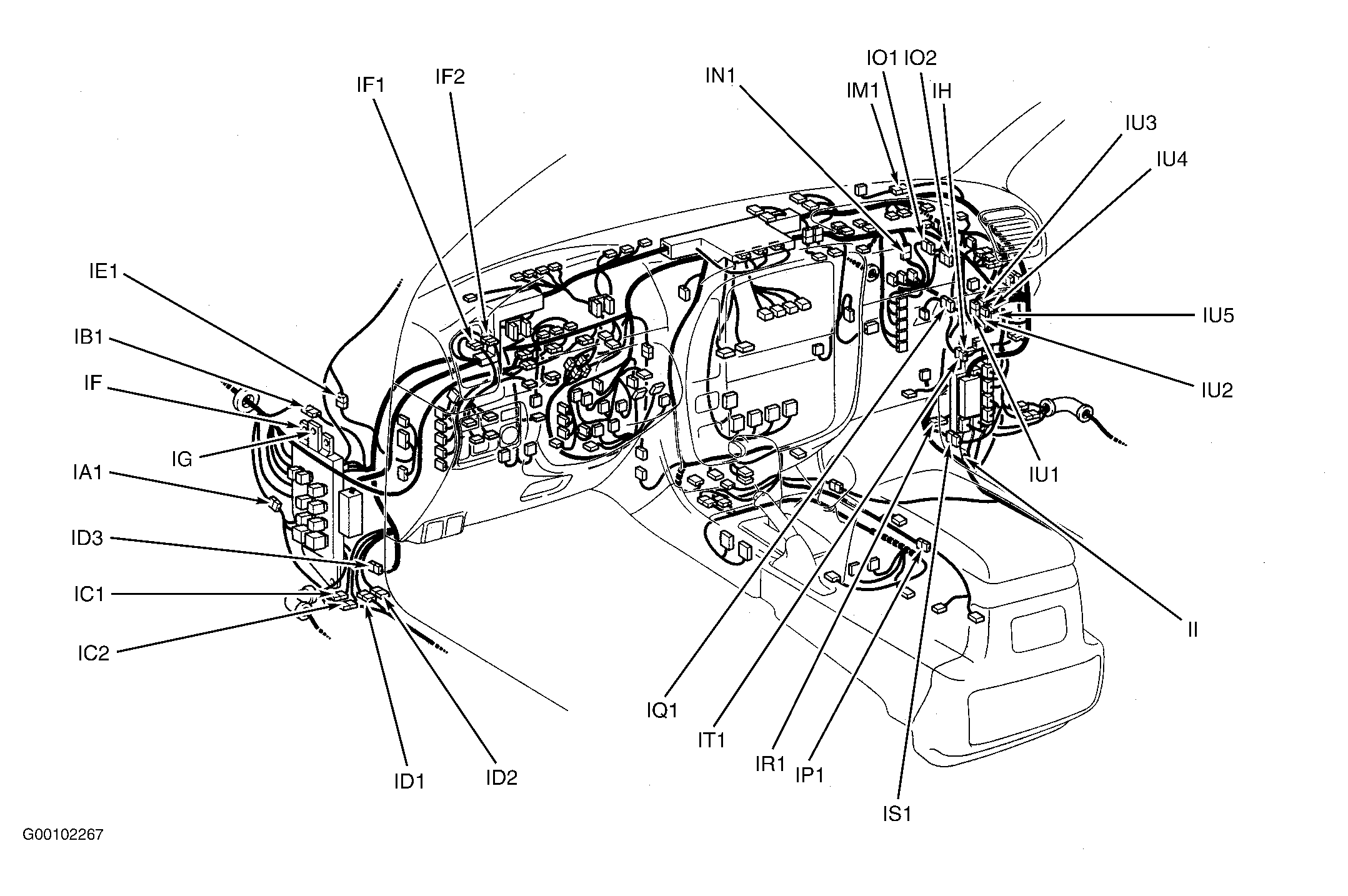

Fig 4: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Left Side of Vehicle

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

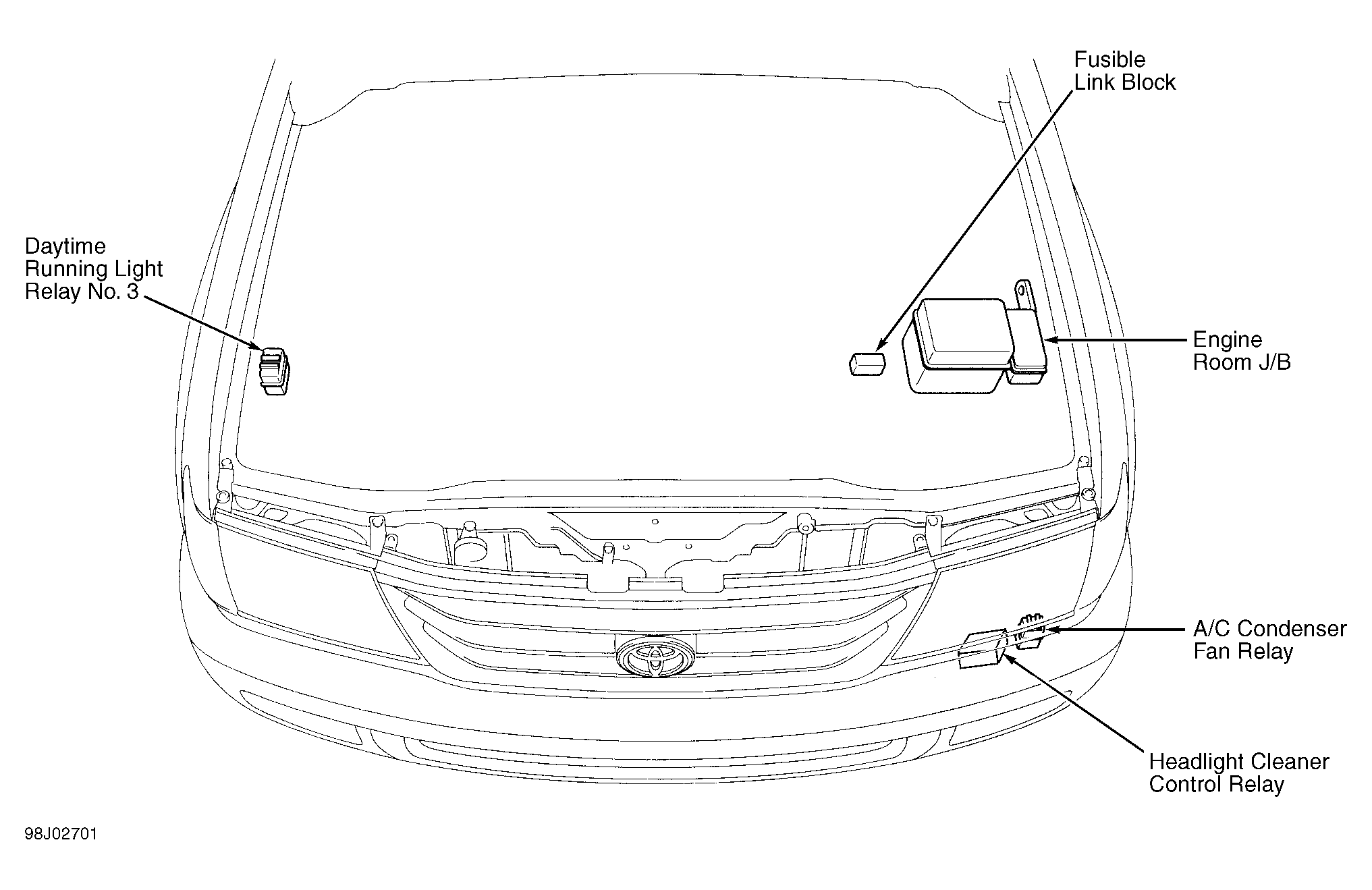

Fig 6: Engine Compartment

Fig 7: Dash

Fig 8: Dash
