Electrical Component Locator: Miscellaneous
MISCELLANEOUS
| Component | Component Location |
|---|---|
| A/C Amplifier (Rear) | On right side of cargo area. |

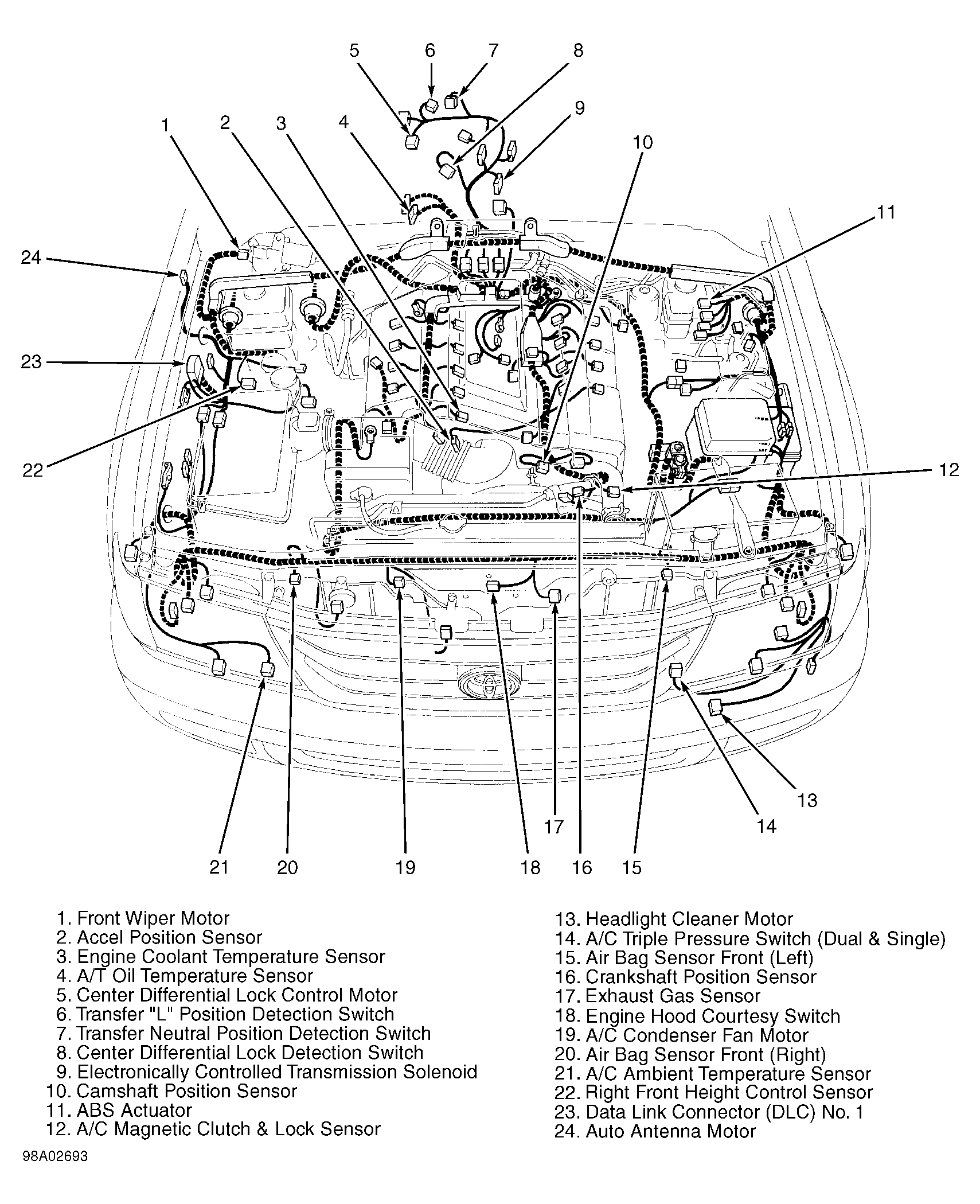

| Data Link Connector (DLC) No. 1 | On right inner fender panel See Figure. |
| Data Link Connector (DLC) No. 3 | Behind left side of dash, right of steering column. |
| Diode (Idle-Up) | On left kick panel J/B. |
| Ignition Coil & Ignitor (8) | On top of engine, above each respective cylinder. |
| Junction Connectors (2) | Behind lower left side of dash, taped to harness. |
| Junction Connectors (2) | Behind left rear wheelwell. |
| Junction Connectors (5) | Behind upper center of dash, taped to harness. |
| Junction Connector | Below driver's seat. |
| Junction Connectors (4) | Above left rear wheelwell. |
| Junction Connectors (10) | Behind glove box, taped to harness. |
| Junction Connectors (3) | Behind right rear wheelwell. |
| Junction Connectors (13) | Behind upper left side of dash, taped to harness. |

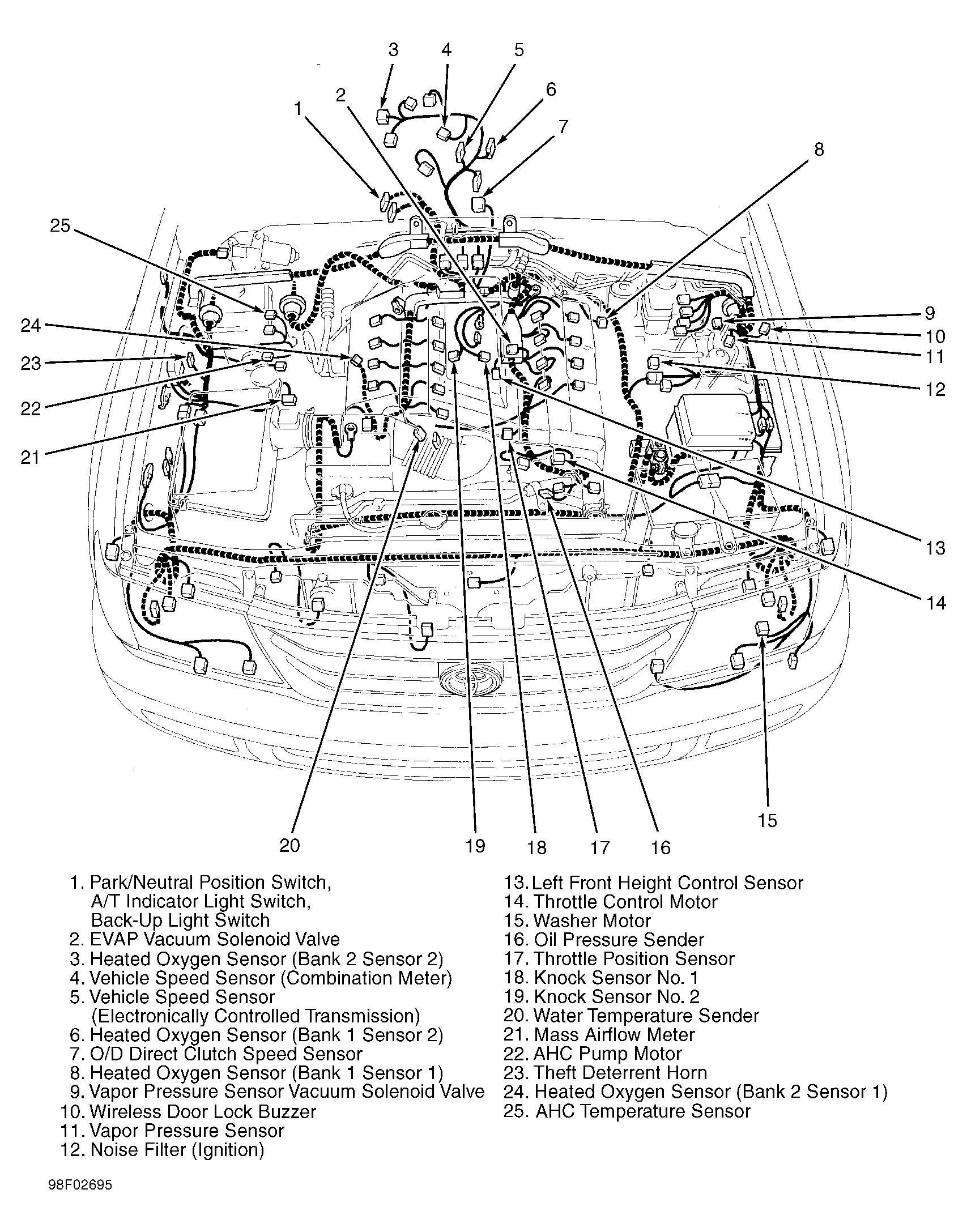

| Noise Filter (Ignition) | On upper left side of engine. See Figure. |
| Pretensioner (2) | At bottom of respective "B" pillars. |
| Rear Cooler Power Transistor | In rear heater-A/C unit. |
| Rear Heater Power Transistor | In rear heater-A/C unit. |
| Theft Deterrent Horn | On right side inner fender panel. See Figure. |
