Power Door Lock Control Module: Testing and Inspection

ECU Power Source Circuit

CIRCUIT DESCRIPTION
This circuit provides power to operate the theft deterrent and door lock ECU.

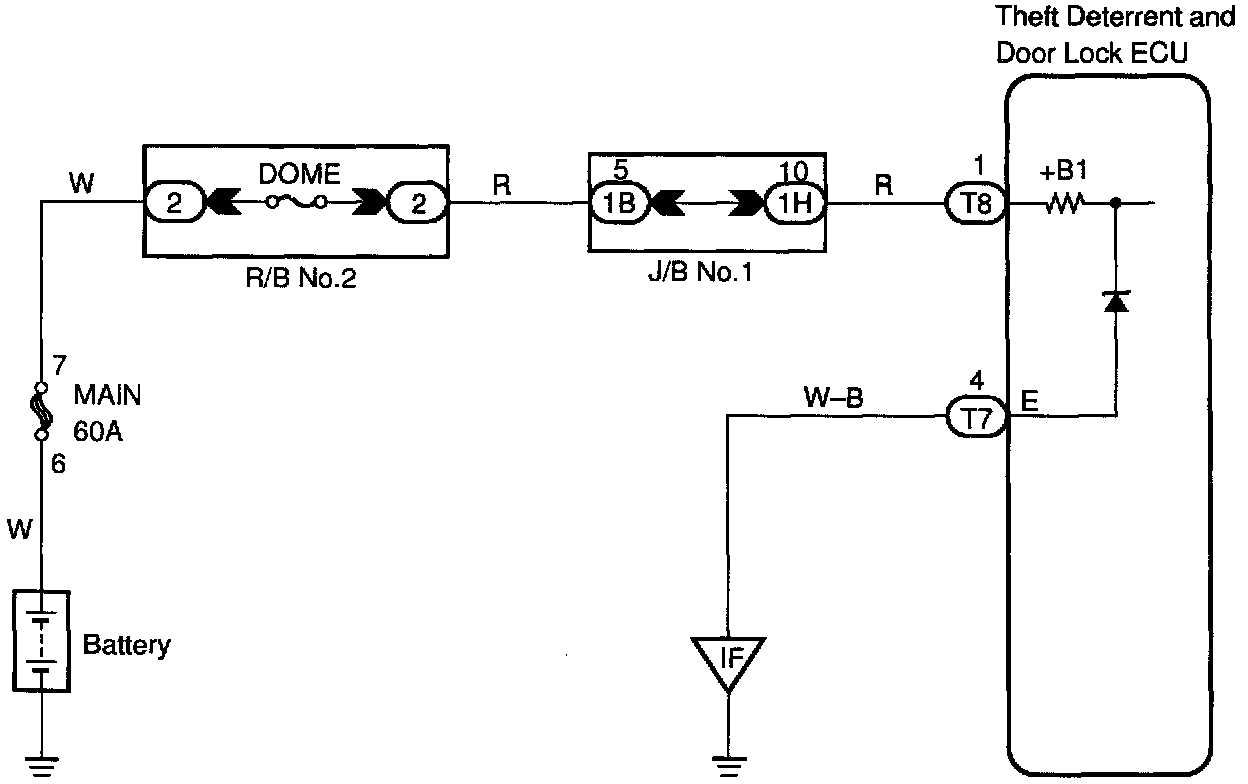

WIRING DIAGRAM

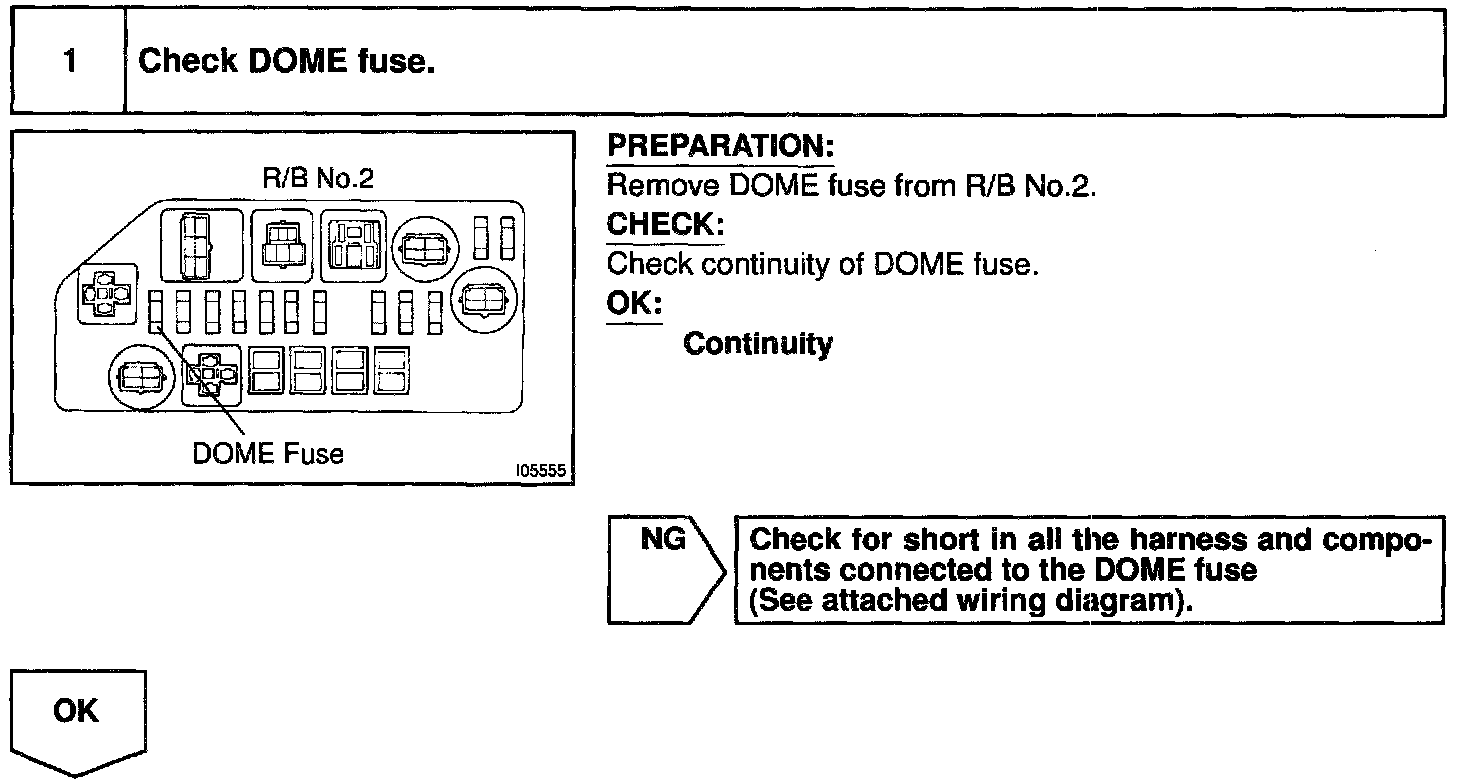

Step 1:

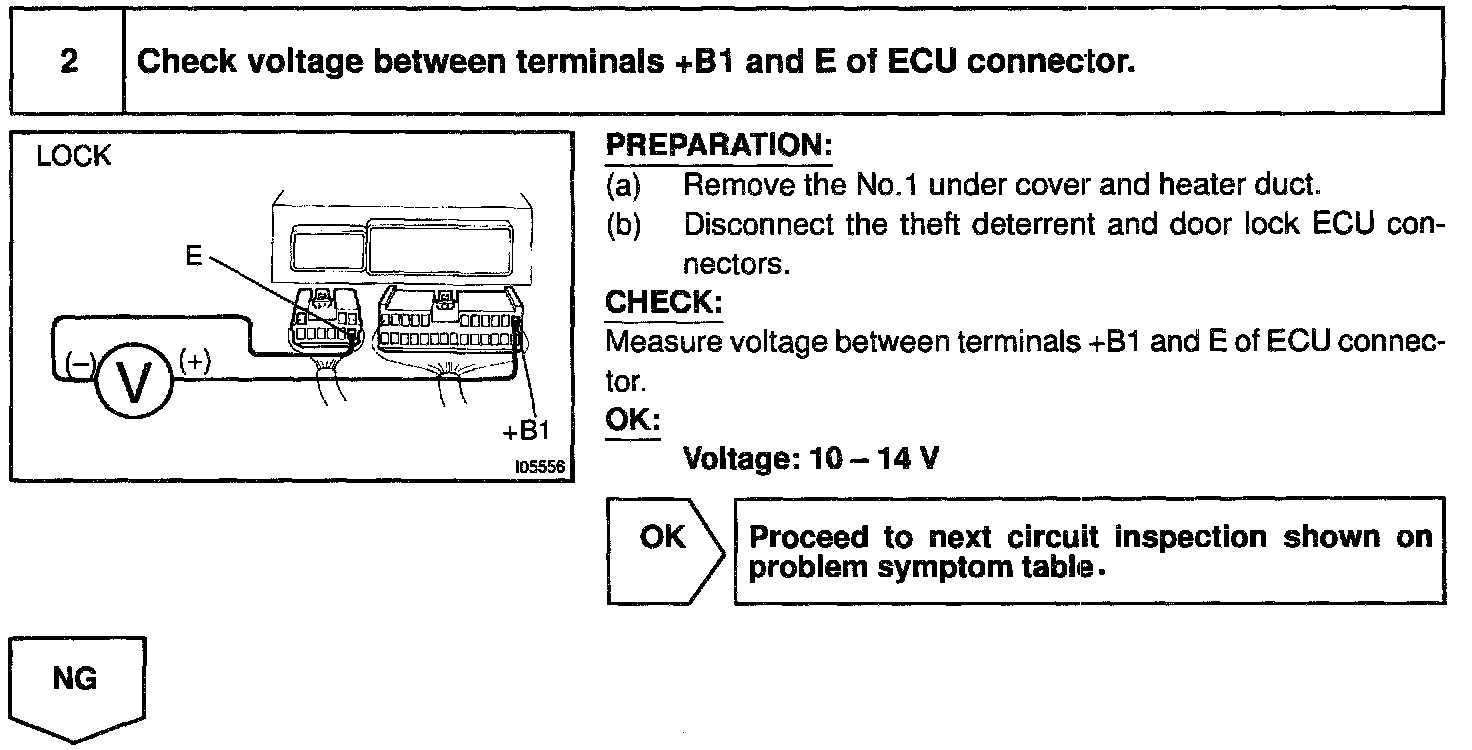

Step 2:

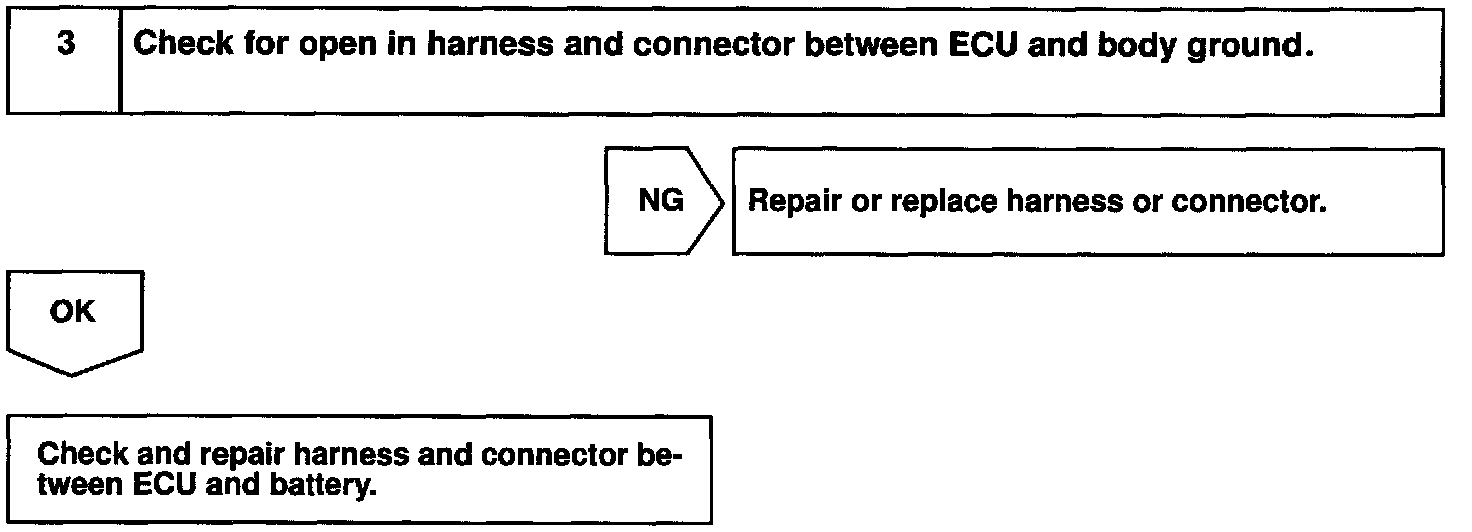

Step 3:

INSPECTION PROCEDURE
