Connector Locations

Junction Block and Wire Harness Connector:

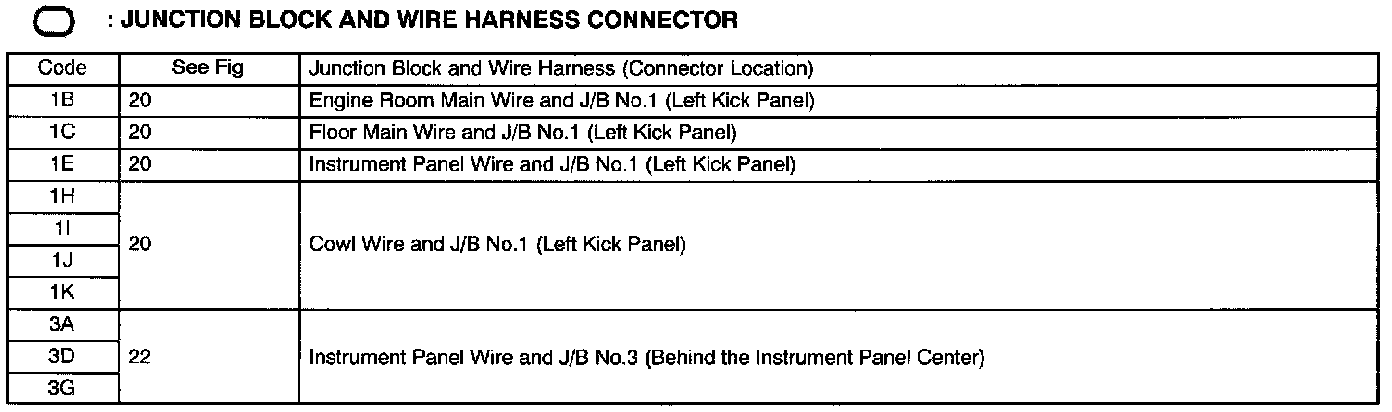

JUNCTION BLOCK AND WIRE HARNESS CONNECTOR

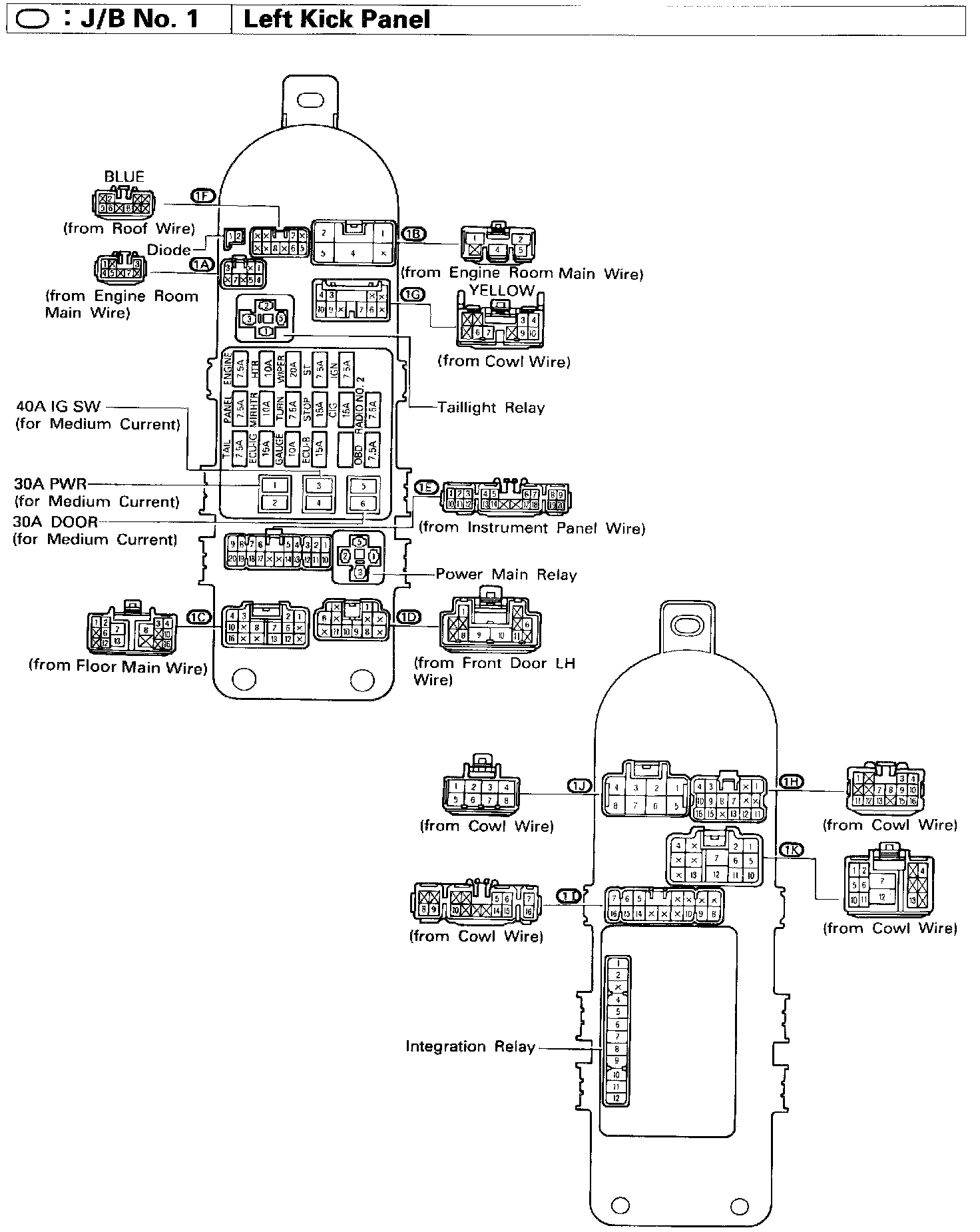

J/B No.1 - Left Kick Panel (Fig 20):

FIG 20

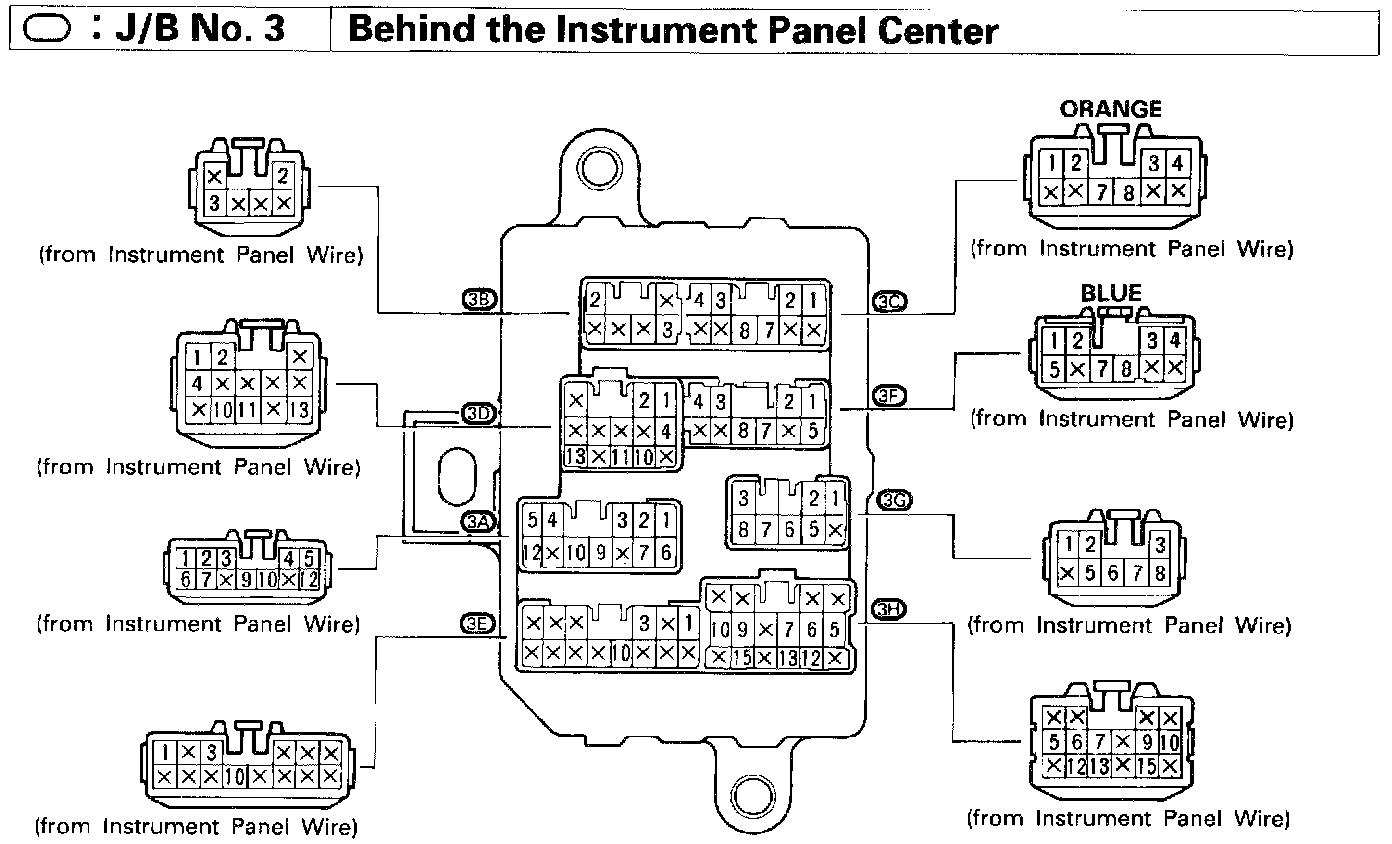

J/B No.3 - Behind The Instrument Panel Center (Fig 22):

FIG 22
