Throttle Position Sensor: Testing and Inspection

INSPECTION

INSPECT THROTTLE POSITION SENSOR
(a) Disconnect the throttle position sensor connector.

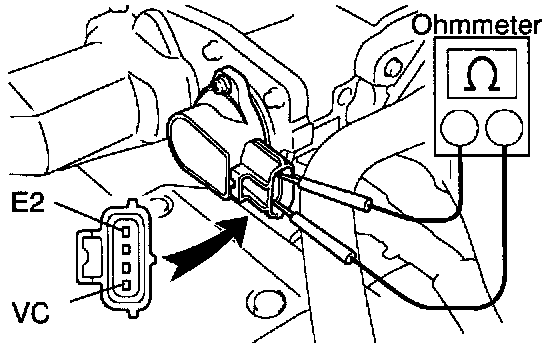

(b) Using an ohmmeter, measure the resistance between terminals VC and E2.

Resistance: 1.2 - 3.2 k Ohms at 20°C (68°F)

If the resistance is not as specified, replace the throttle position sensor.

(c) Reconnect the throttle position sensor connector.
