Differential Technical Data

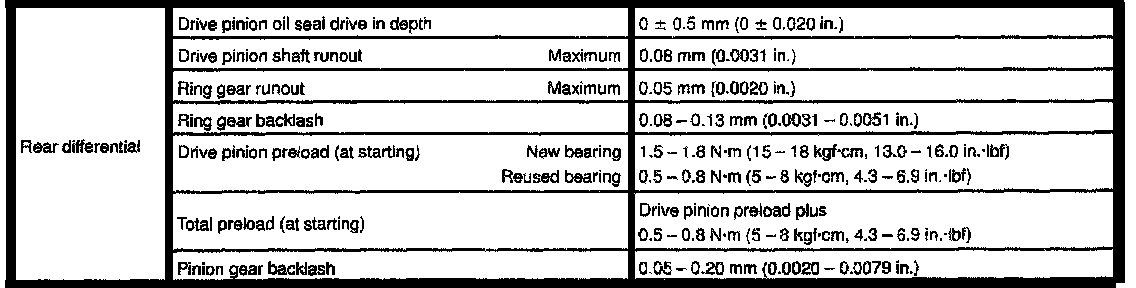

Rear Wheel Drive, Differential Clearances:

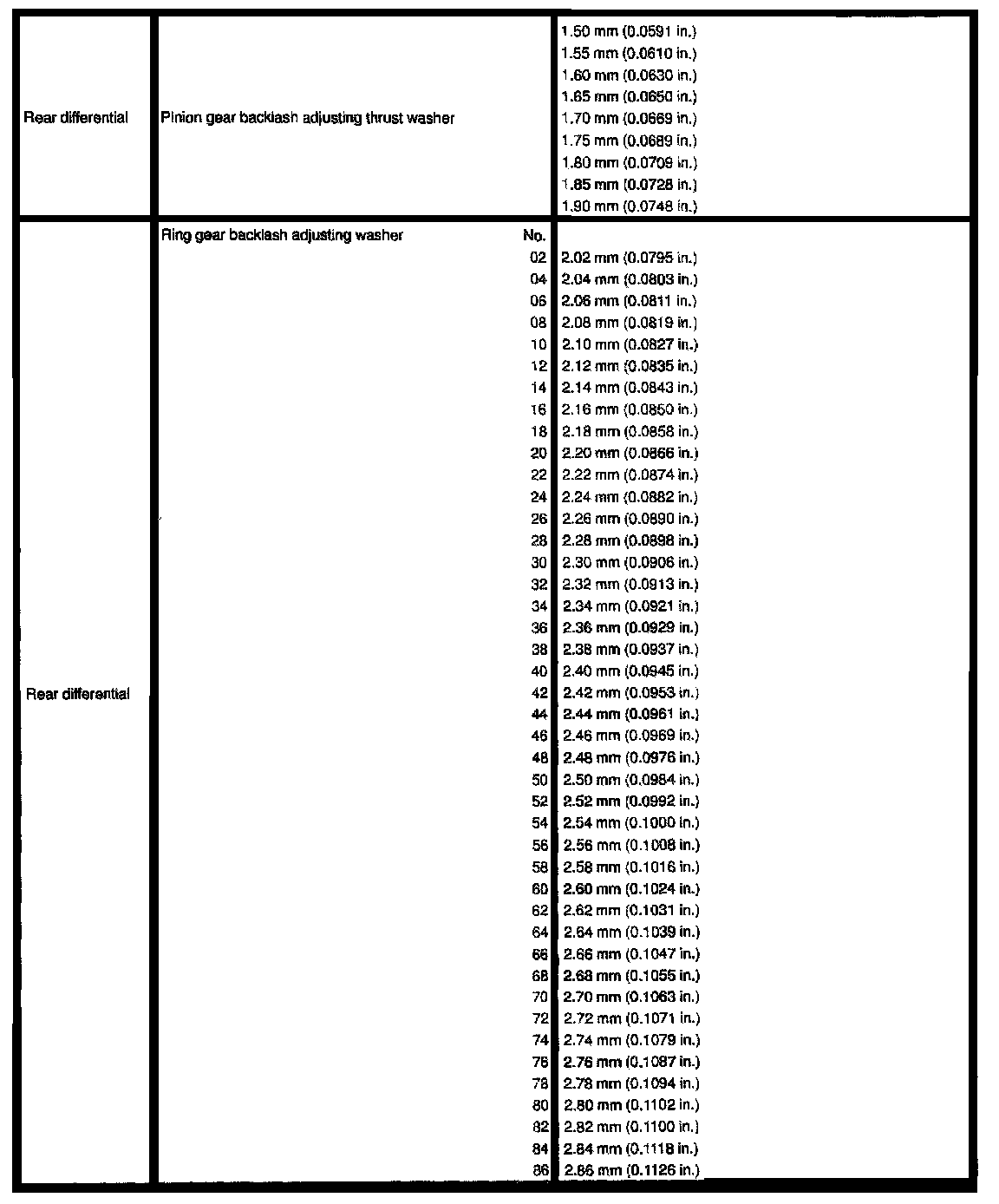

Rear Wheel Drive, Differential Ring Gear / Pinion Backlash:

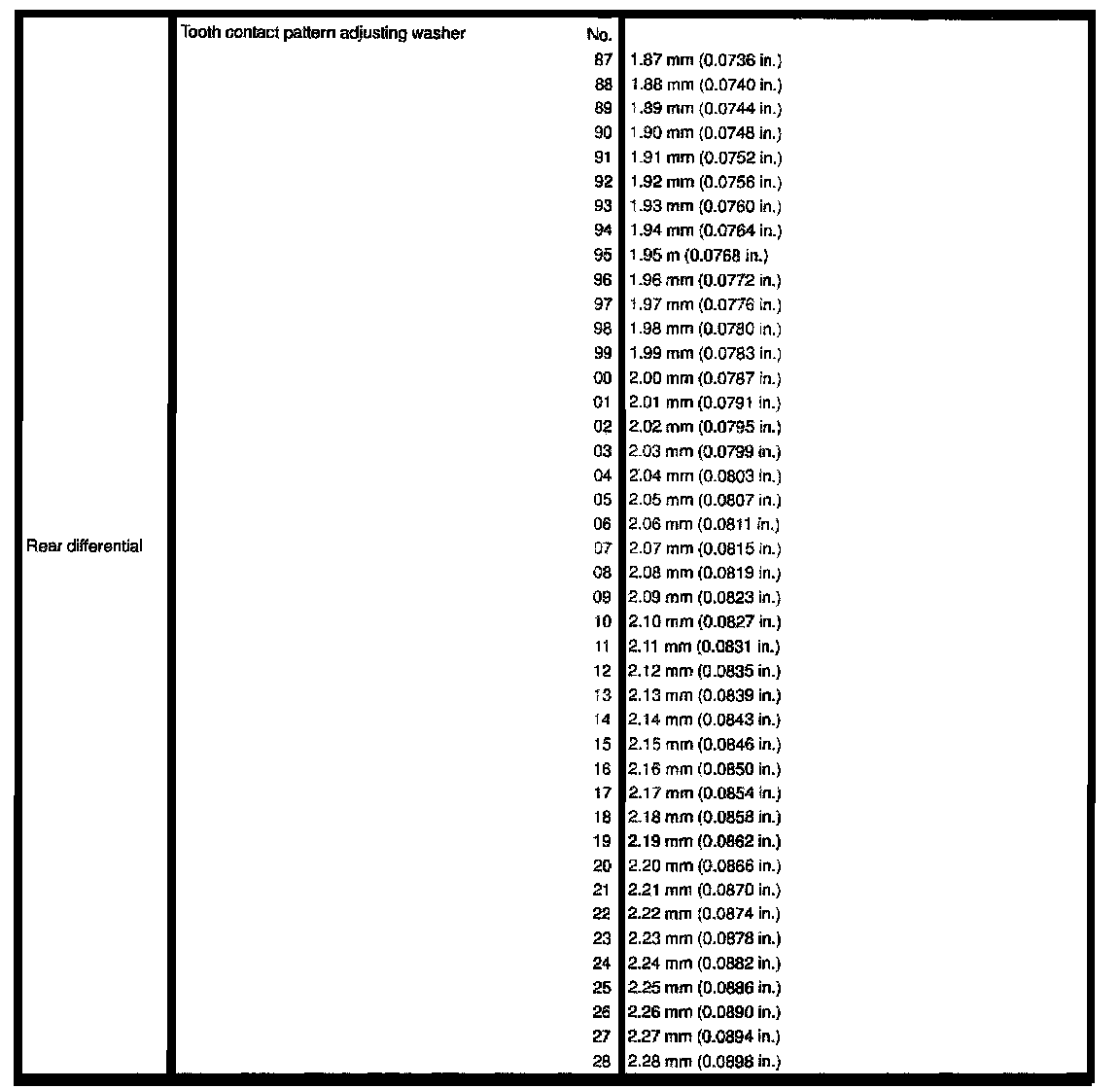

Rear Wheel Drive, Differential Tooth Contact Pattern:
