Wireless Door Lock Control Programming (EL004-98)

Publication date: 1998-04-10
Reference number: EL004-98

WIRELESS DOOR LOCK CONTROL PROGRAMMING

WIRELESS DOOR LOCK CONTROL PROGRAMMING

TECHNICAL SERVICE BULLETIN

Reference Number(s): EL004-98, Date of Issue:  April 10, 1998
LEXUS: 1998 LS 400, GS 300/400, SC 300/400
GROUP: Electrical
COPYRIGHT: © 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002

DESCRIPTION

WIRELESS DOOR LOCK CONTROL PROGRAMMING

The Wireless Door Lock Control programming procedure has changed for the '98 MY LS 400, GS 400/300, SC 400/300. The Wireless Door Lock Control transmitters are incorporated within the key.

BULLETIN CONTENT

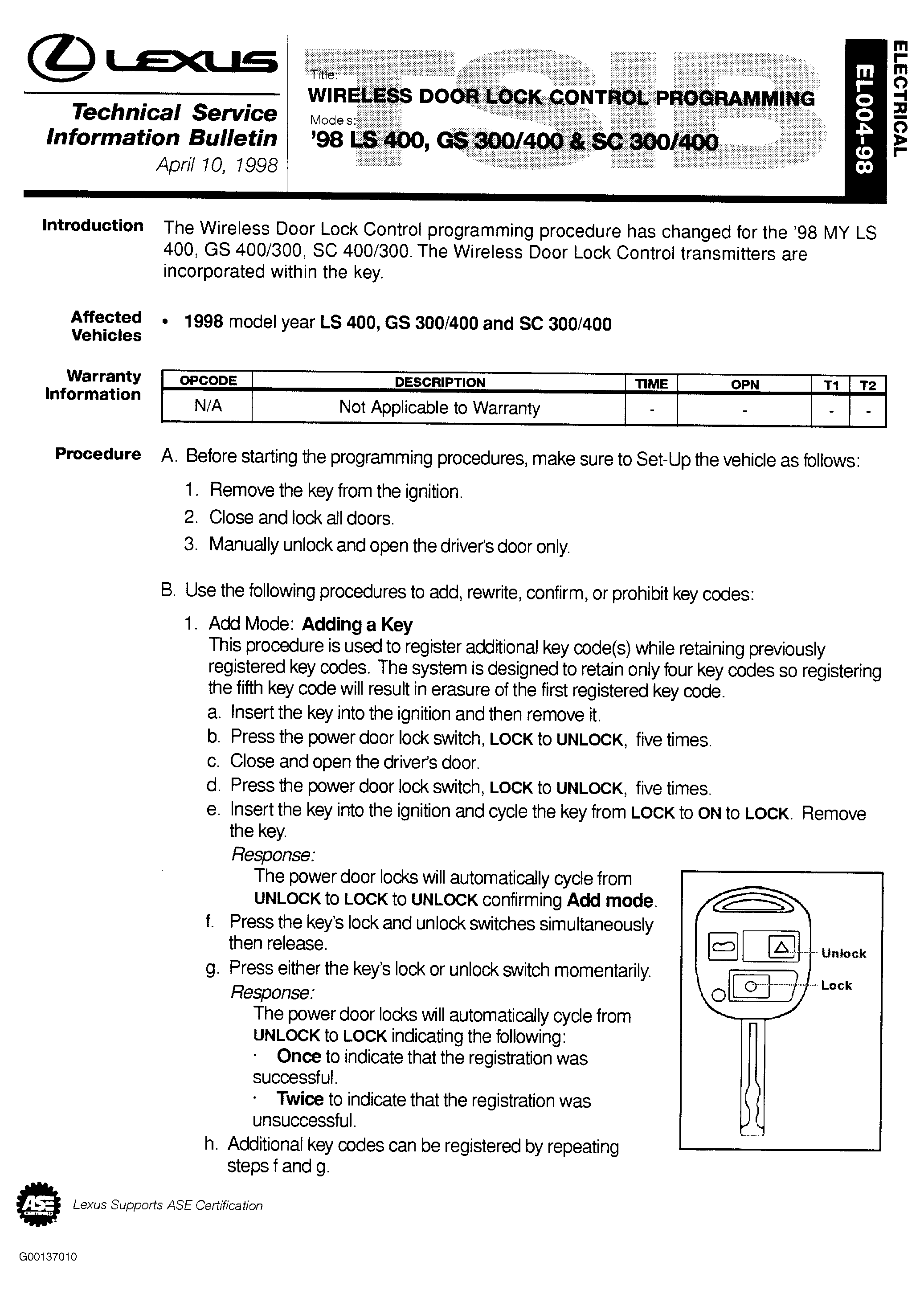

Fig 1: Page 1 of Bulletin
G00137010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

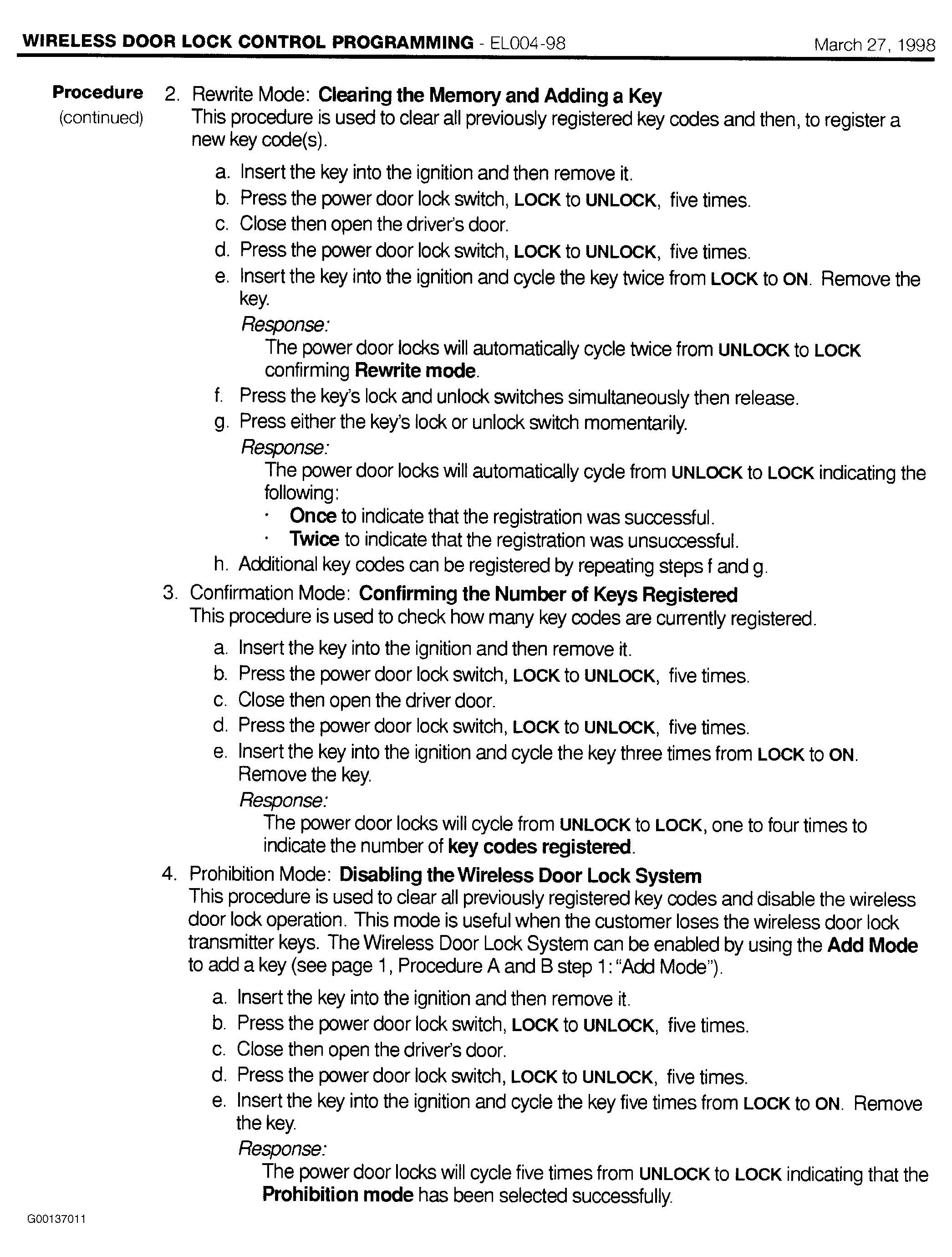

Fig 2: Page 2 of Bulletin
G00137011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
