Oil Pump, Engine

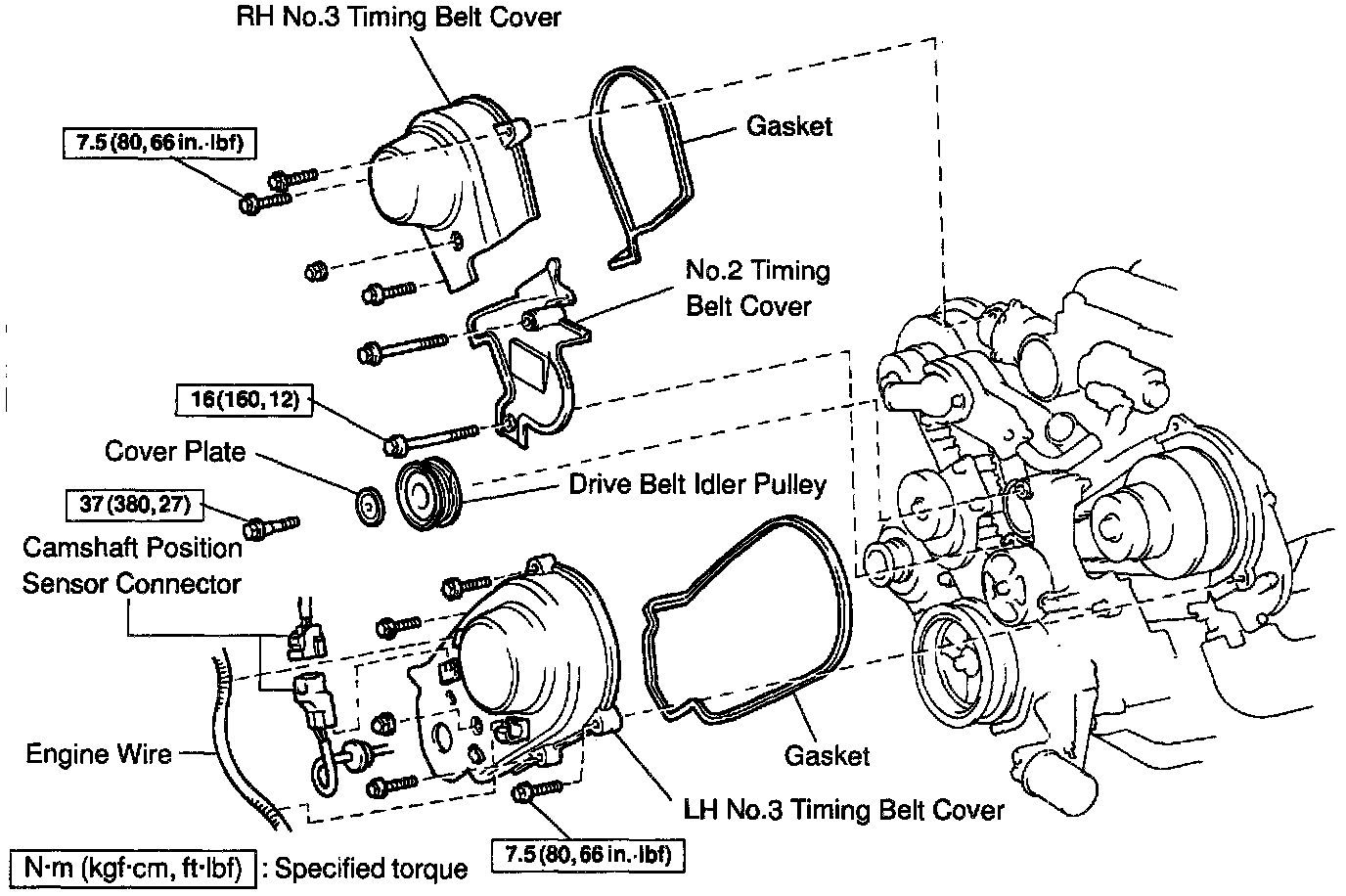

TIMING BELT COVER

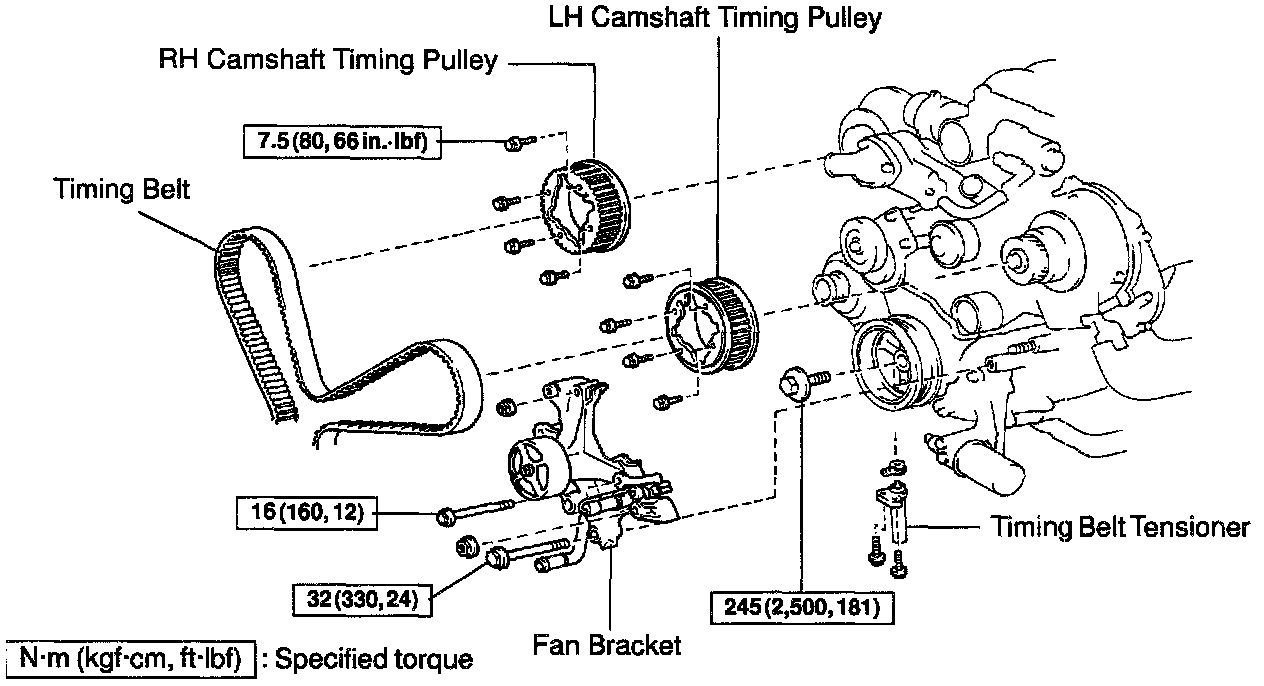

CAMSHAFT TIMING PULLEYS

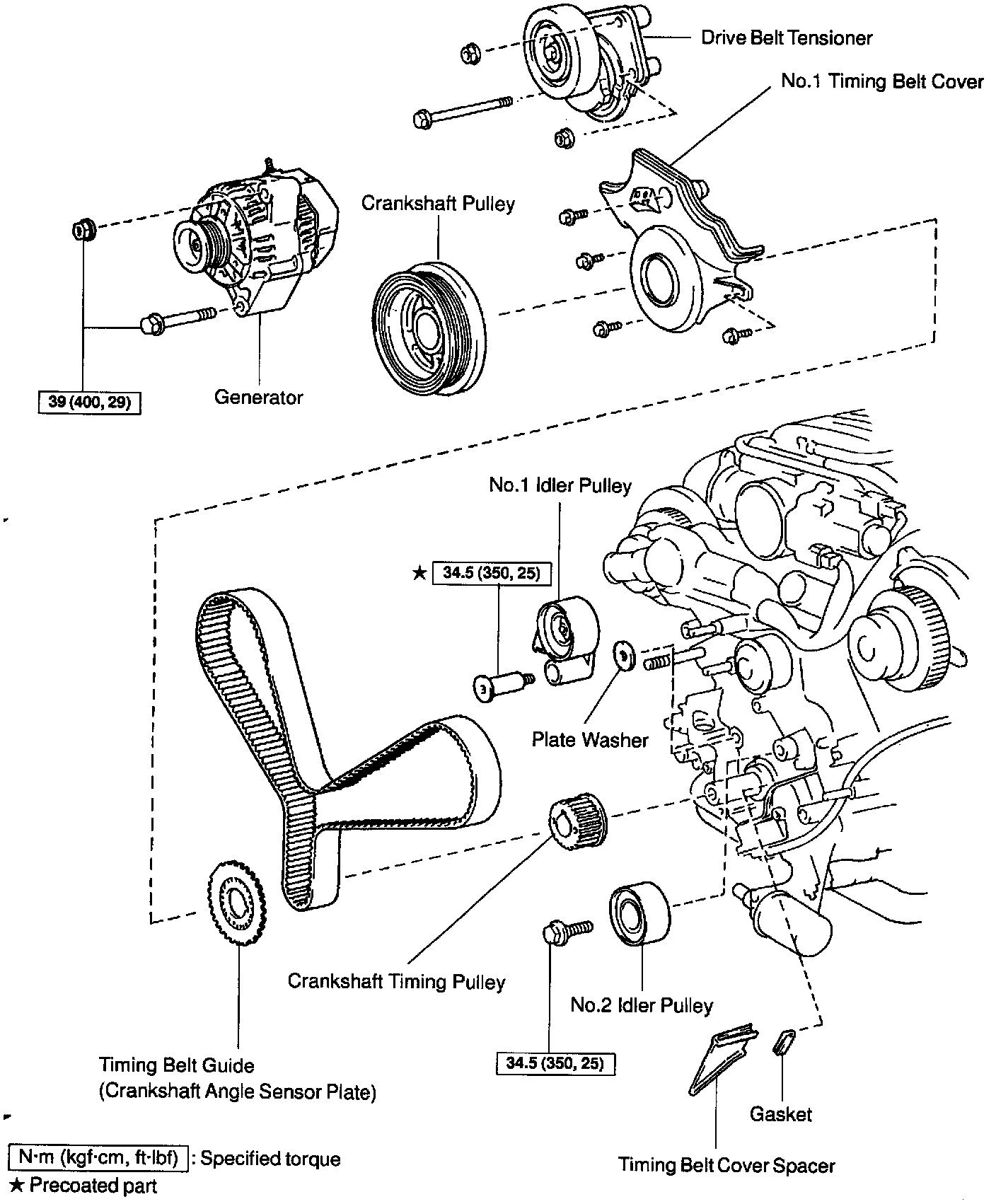

TIMING BELT AND RELATED COMPONENTS

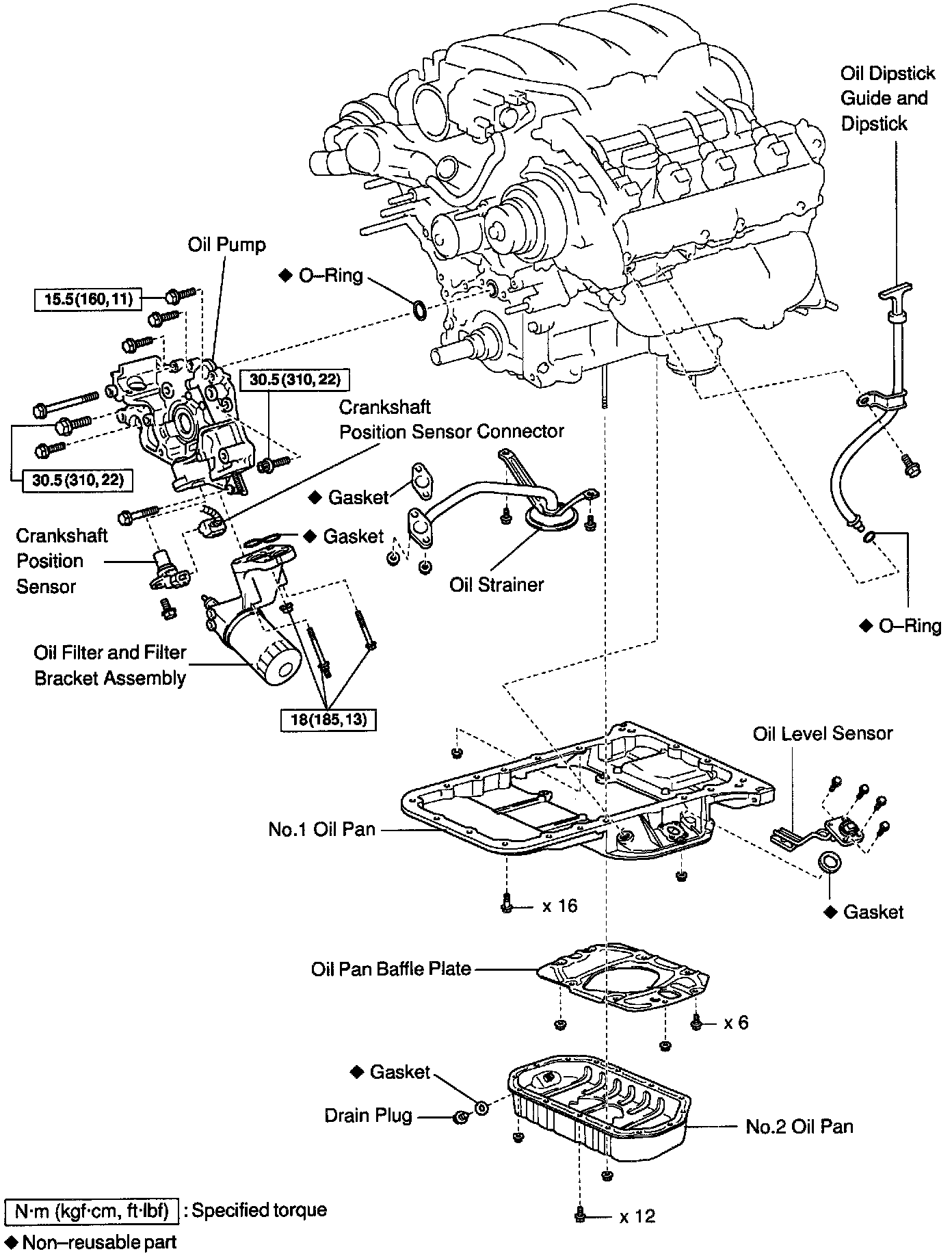

OIL PUMP AND RELATED COMPONENTS

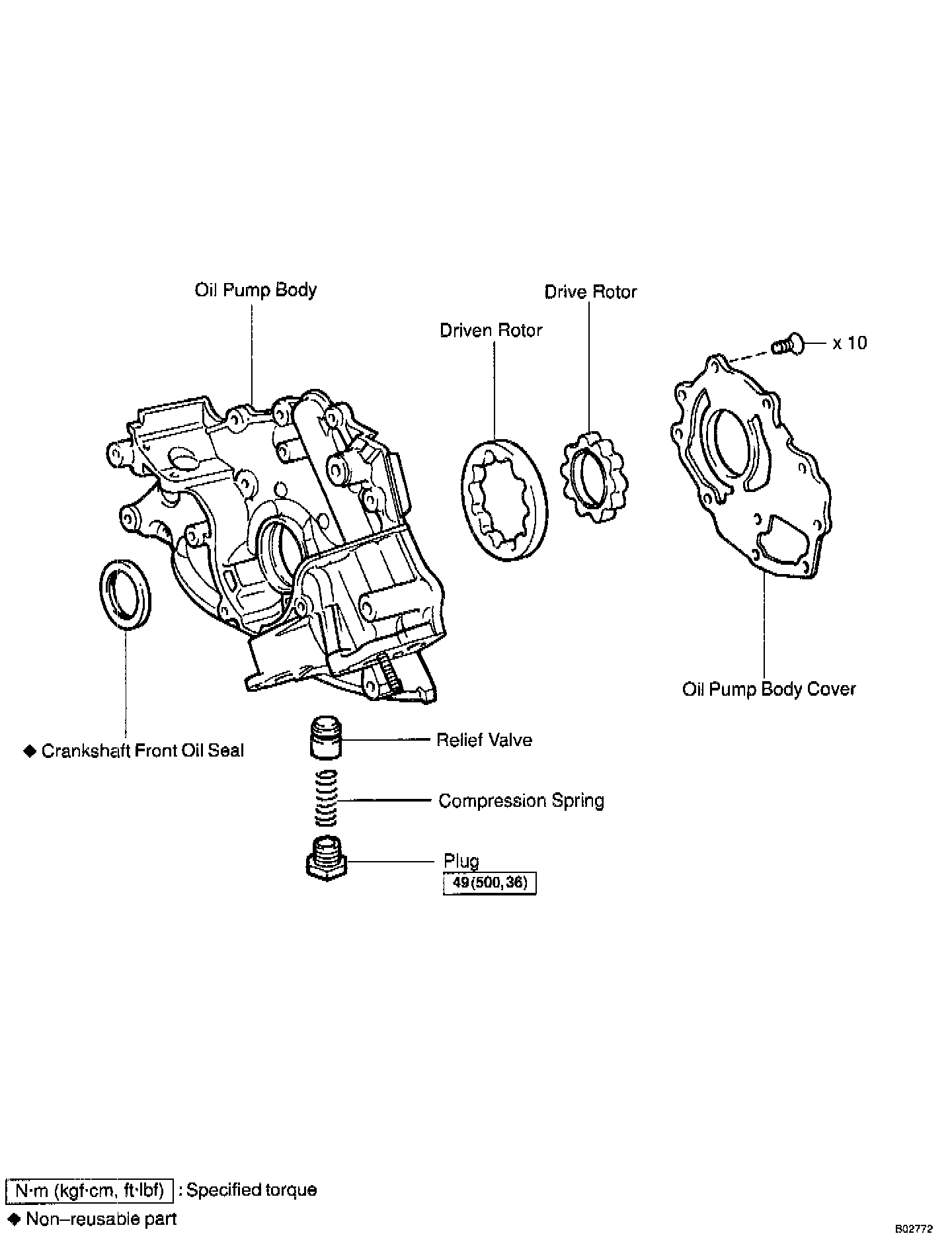

OIL PUMP
