Component Locations

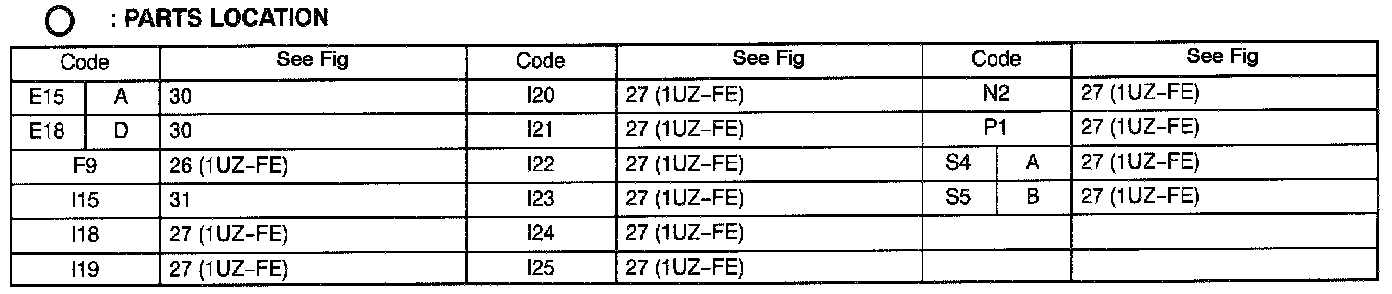

Parts Location:

PARTS LOCATION

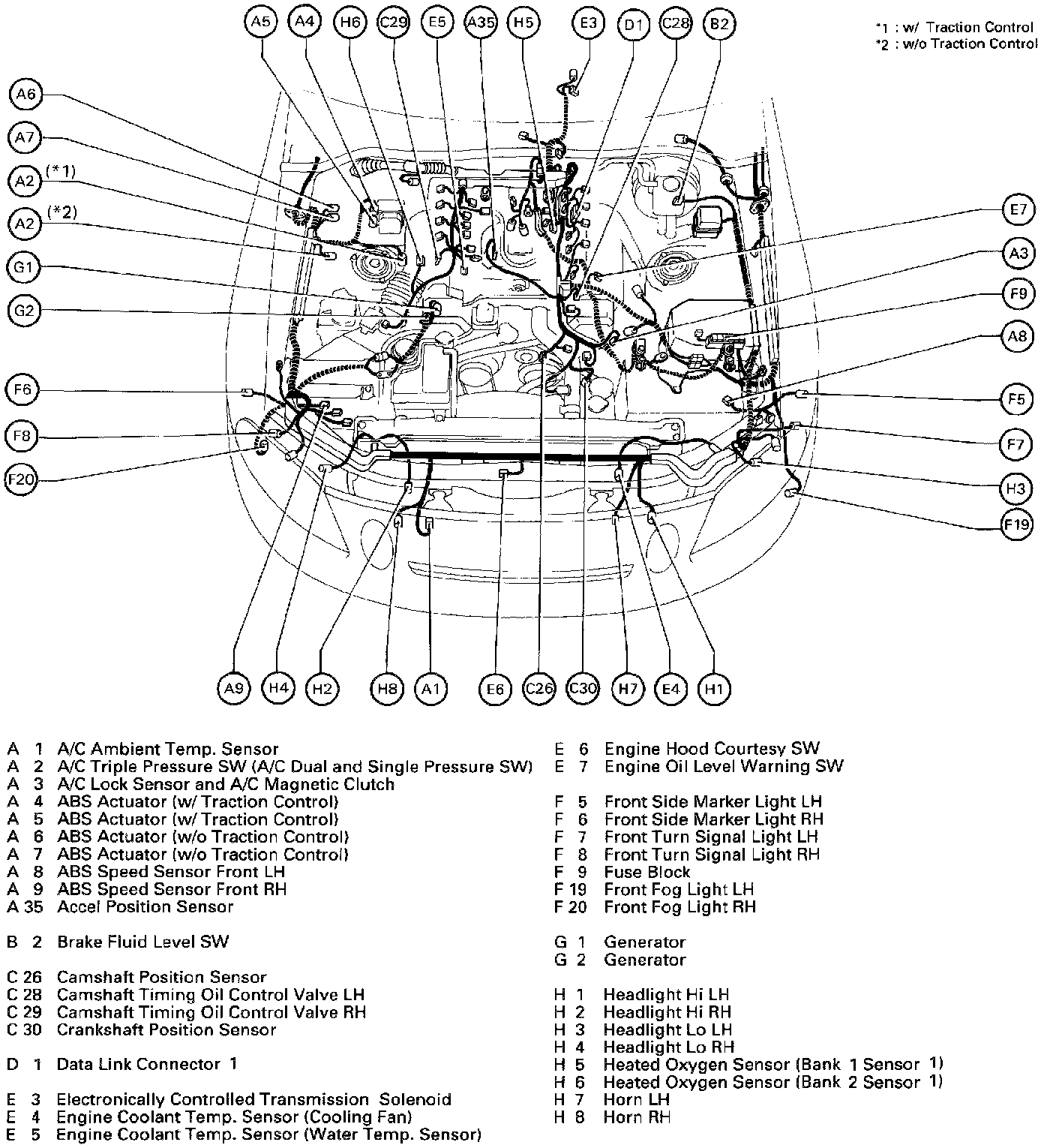

Position Of Parts In Engine Compartment (Part 1 Of 2) (Fig 26):

FIG 26

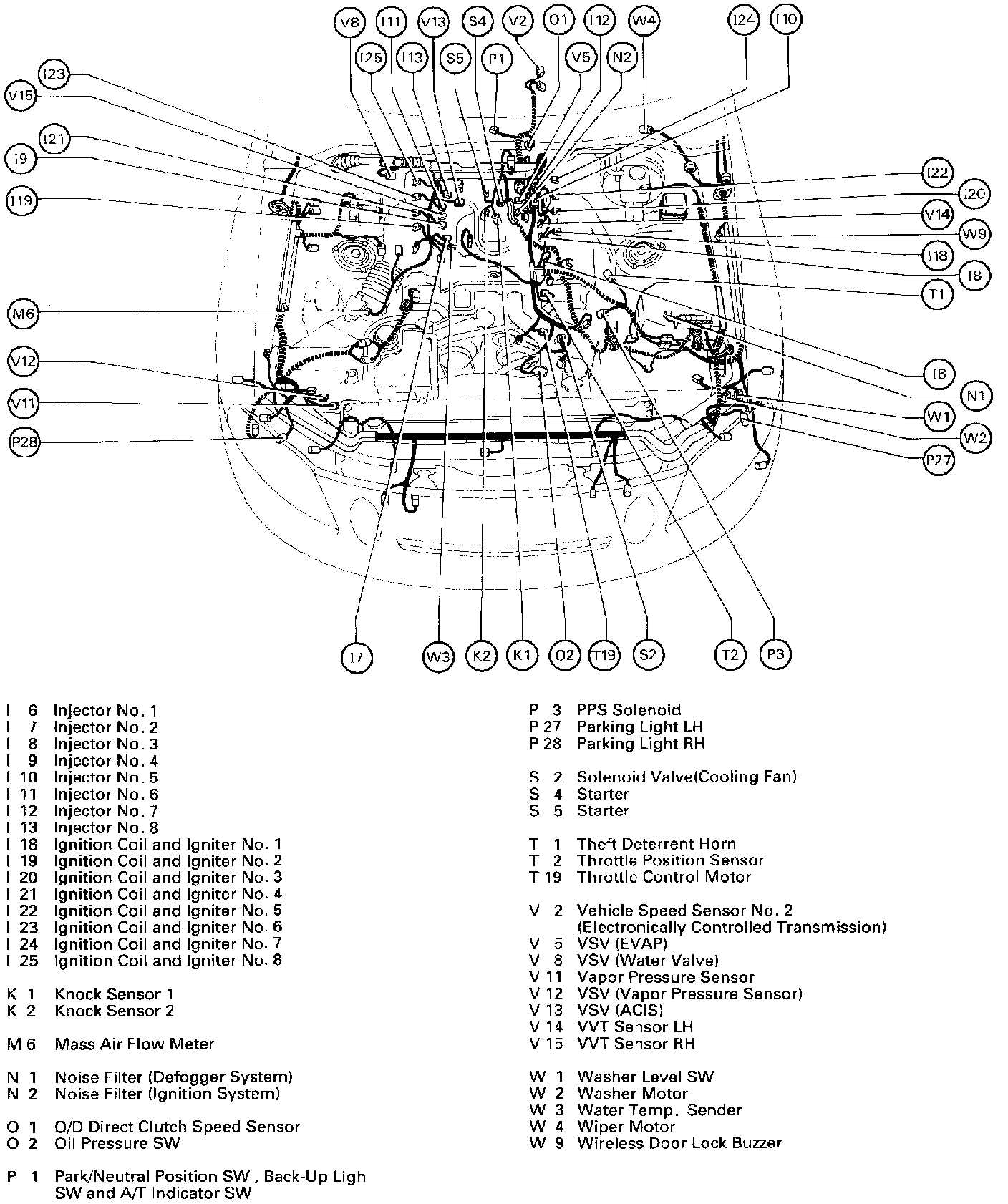

Position Of Parts In Engine Compartment (Part 2 Of 2) (Fig 27):

FIG 27

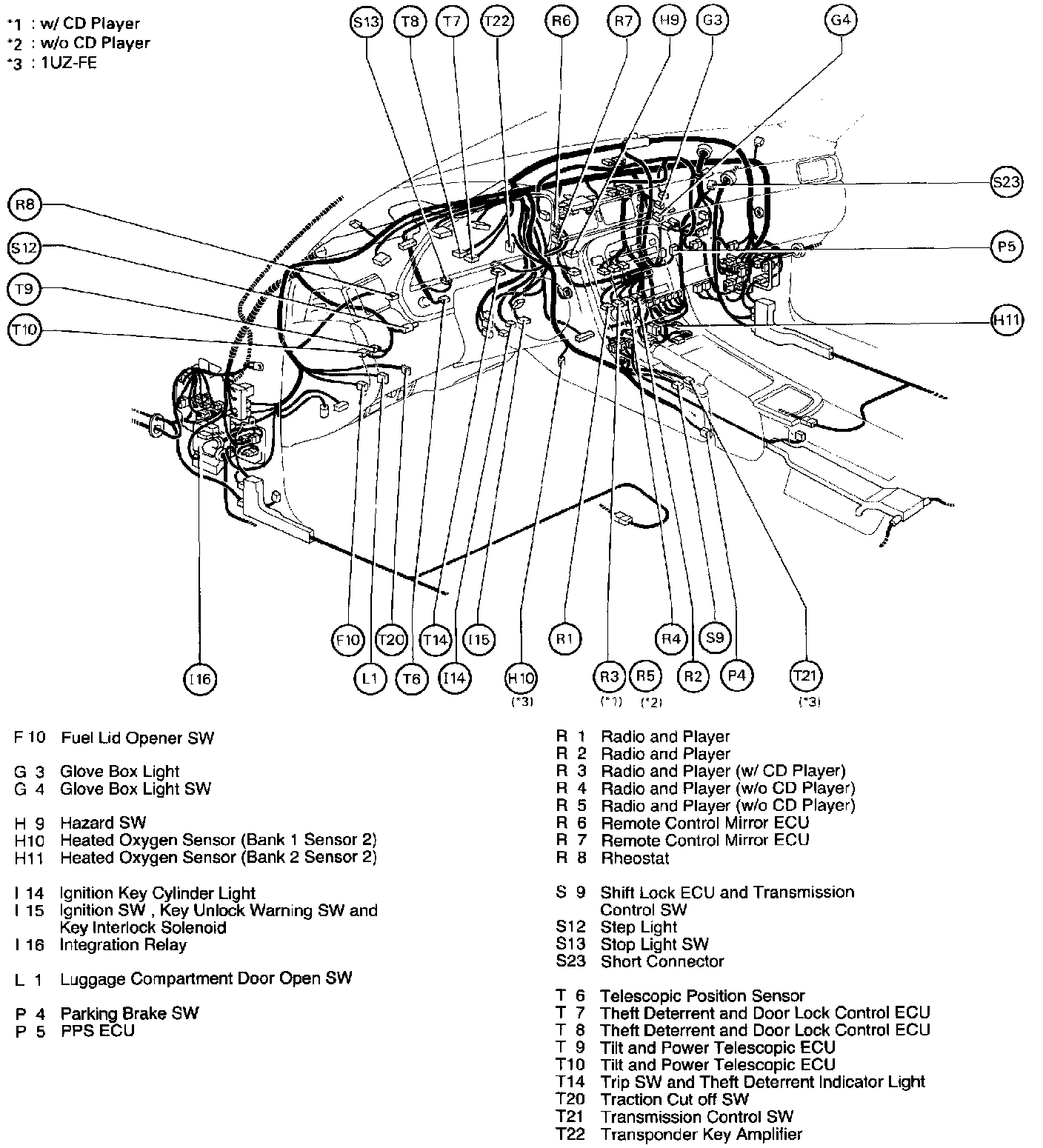

Position Of Parts In Instrument Panel (Part 1 Of 2) (Fig 30):

FIG 30

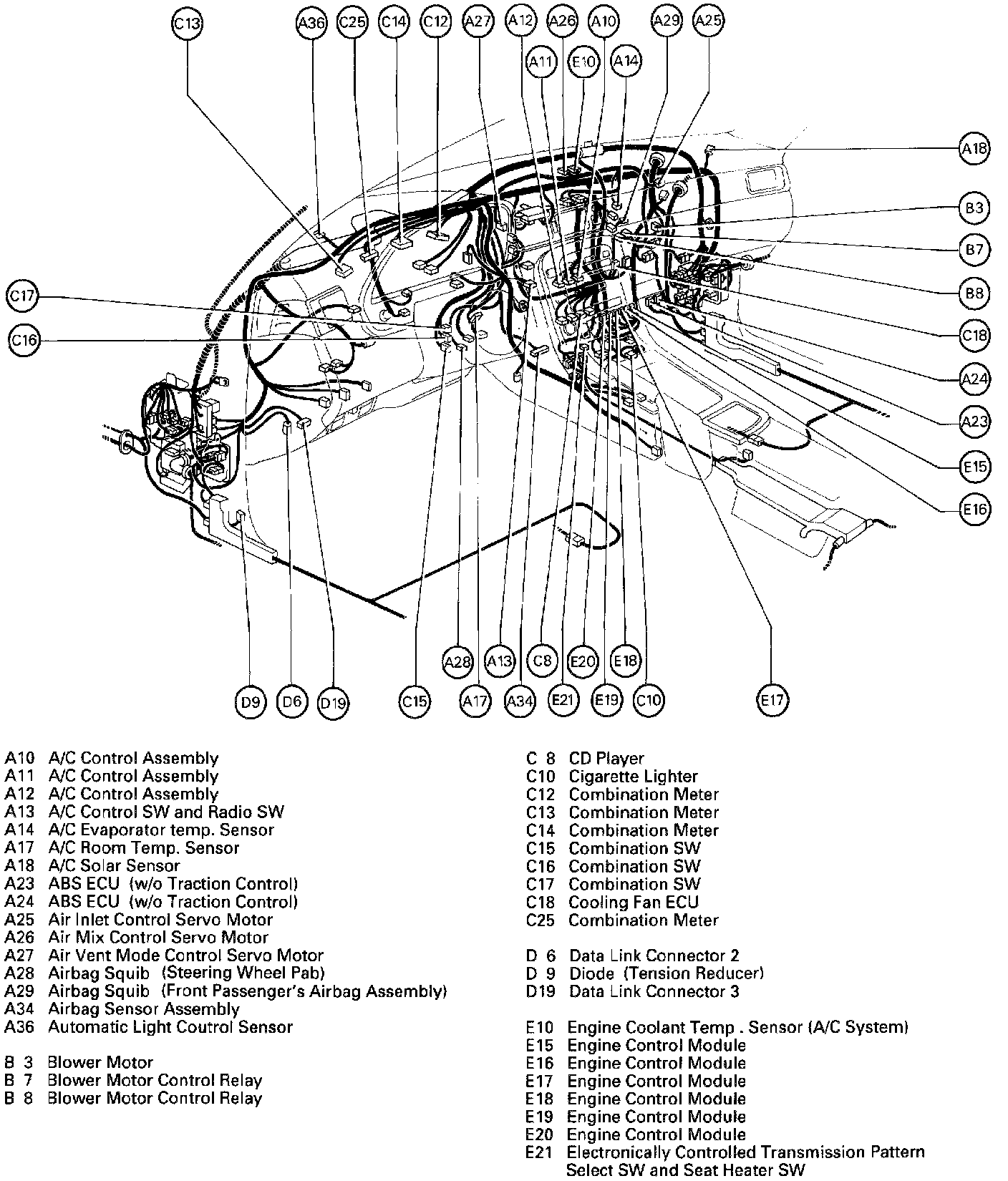

Position Of Parts In Instrument Panel (Part 2 Of 2) (Fig 31):

FIG 31
