Installation (GS300 & SC300)

To install, reverse removal procedure. Install coil wires and wire holders as illustrated. See Fig 2. Tighten all bolts and nuts to specification. See TORQUE SPECIFICATIONS .

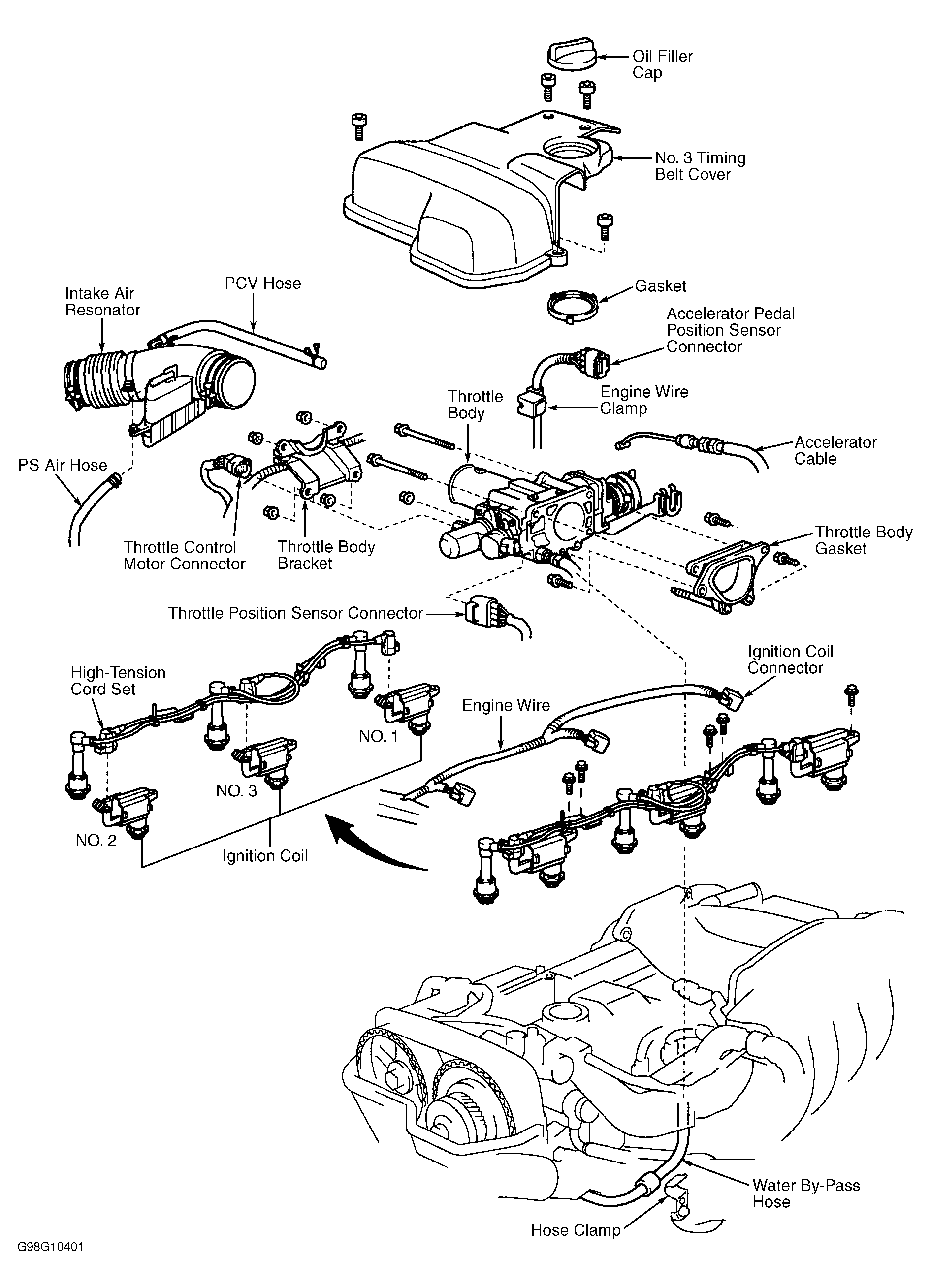

Fig 1: Removing Ignition Coils (GS300 & SC300)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Installing Coil Wire Holder

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
