Preliminary Information

Remove relay from engine compartment fuse/relay box. Determine which one of the following test procedures to perform. See appropriate RELAY TYPE & TEST PROCEDURE NUMBER table under RELAYS . See Fig 1. Replace relay if it does not test as specified.

Test Procedure No. 1

• Continuity should exist between terminals No. 1 and 2.
• Continuity should not exist between terminals No. 3 and 5.
• Apply battery voltage across terminals No. 1 and 2. Continuity should exist between terminals No. 3 and 5.

Test Procedure No. 2

• Continuity should exist between terminals No. 1 and 3.
• Continuity should not exist between terminals No. 2 and 4.
• Apply battery voltage across terminals No. 1 and 3. Continuity should exist between terminals No. 2 and 4.

Test Procedure No. 3

• Continuity should exist between terminals No. 1 and 2.
• Continuity should not exist between terminals No. 3 and 4.
• Apply battery voltage across terminals No. 1 and 2. Continuity should exist between terminals No. 3 and 4.

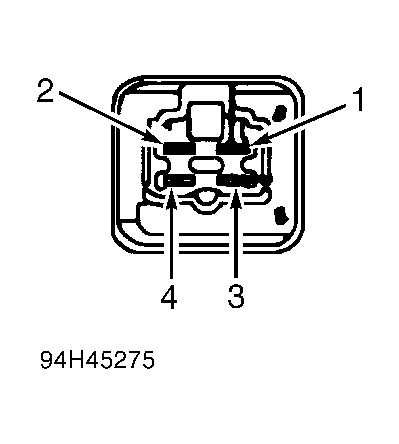

Fig 1: Identifying Relay Terminals (Type 1)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

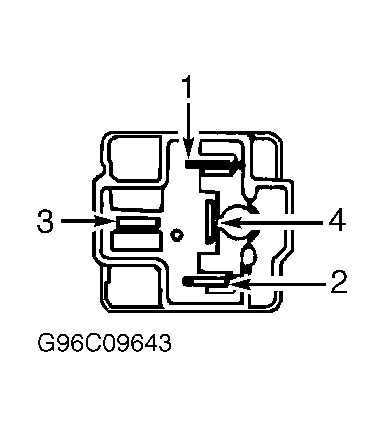

Fig 2: Identifying Relay Terminals (Type 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

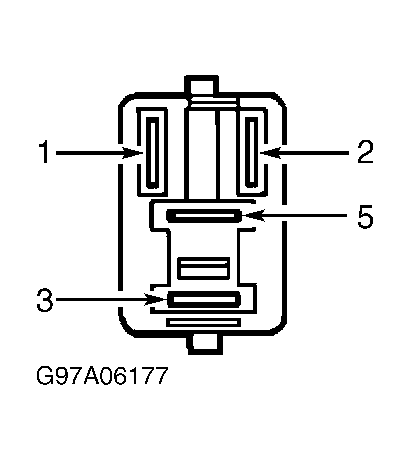

Fig 3: Identifying Relay Terminals (Type 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Relay Terminals (Type 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Relay Terminals (Type 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
