Control Module HVAC: Service and Repair

REMOVAL

1. REMOVE THESE PARTS:
a. No. 1 instrument lower panel
b. Instrument lower panel LH

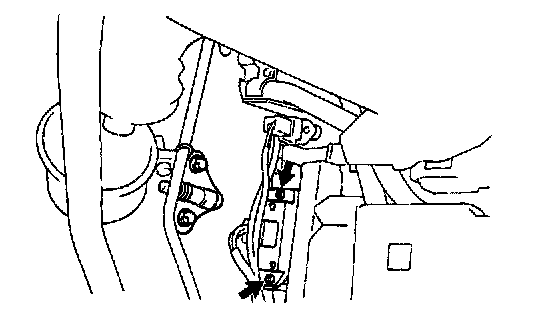

2. REMOVE BLOWER MOTOR LINEAR CONTROLLER
a. Disconnect the connector.
b. Remove the 2 screws and controller.

INSTALLATION
Installation is in the reverse order of removal.
