Air Flow Meter/Sensor: Service and Repair

REMOVAL

REMOVE MAF METER
a. Disconnect the MAF meter connector.

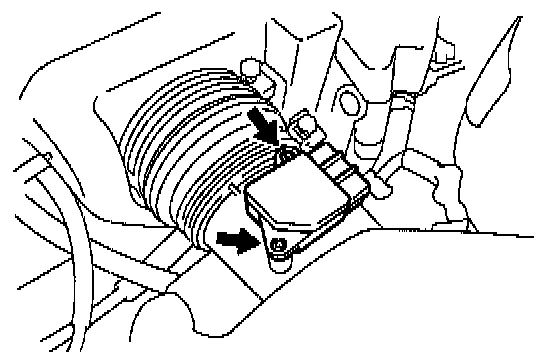

b. Remove the 2 screws, MAF meter and O-ring.

HINT: At the time of installation, please refer to the following items. Install a new O-ring to the MAF meter.

INSTALLATION
Installation is in the reverse order of removal.
