Normal Scan Data Values

ENGINE OPERATING CONDITION

NOTE: The values given for "Normal Condition" are representative values, so a vehicle may still be normal even if its value varies from those listed here. So do not decide whether a part is faulty or not solely according to the "Normal Condition" here.

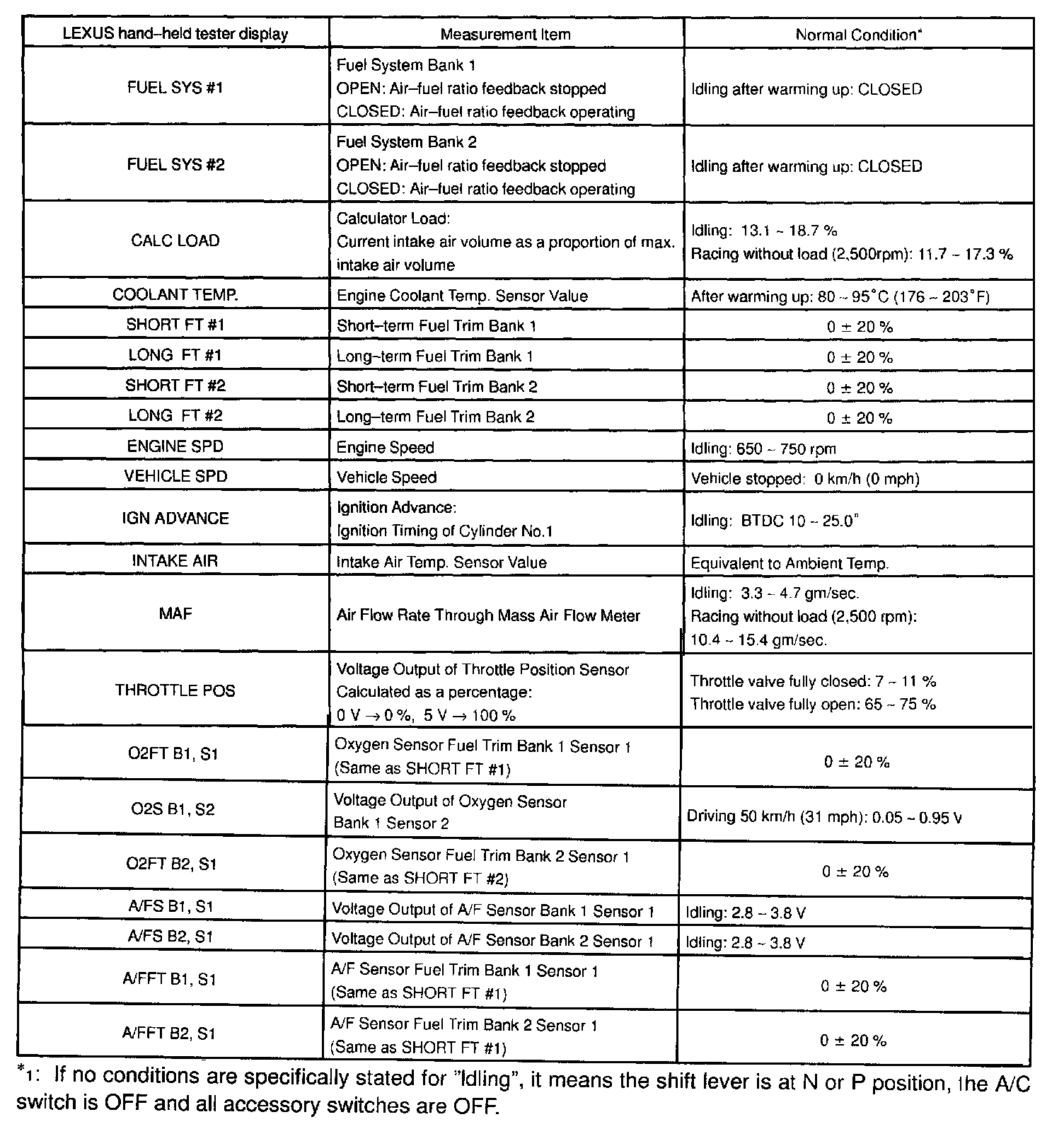

a. CARB mandated signals.

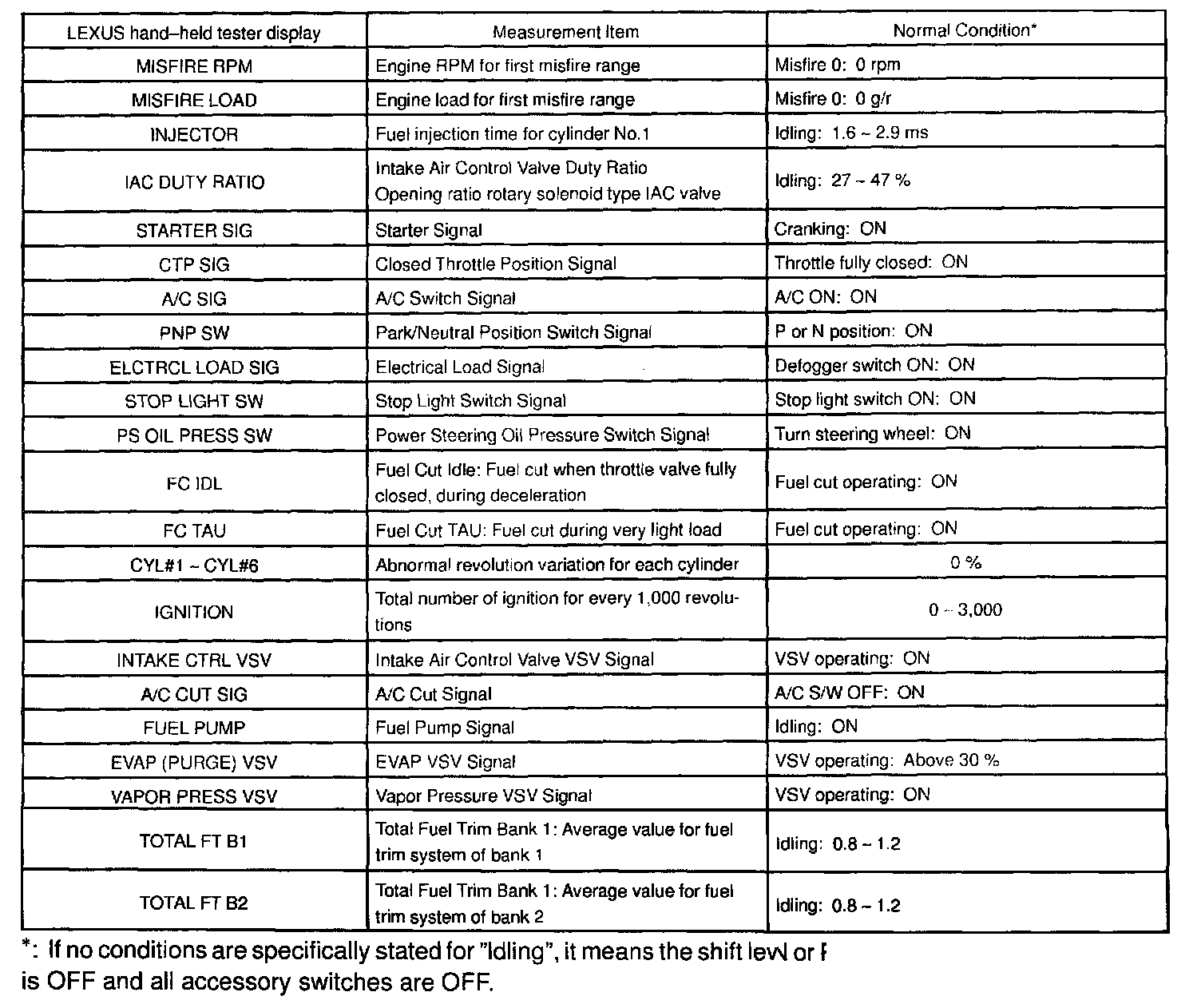

b. LEXUS Enhanced Signals.
