Compressor Lock Sensor

Unplug compressor lock sensor connector, located at compressor. Measure resistance between sensor terminals No. 1 and 2 at temperature specified. See Fig 1. Replace sensor if resistance is not 65-125 ohms at 68°F (20°C).

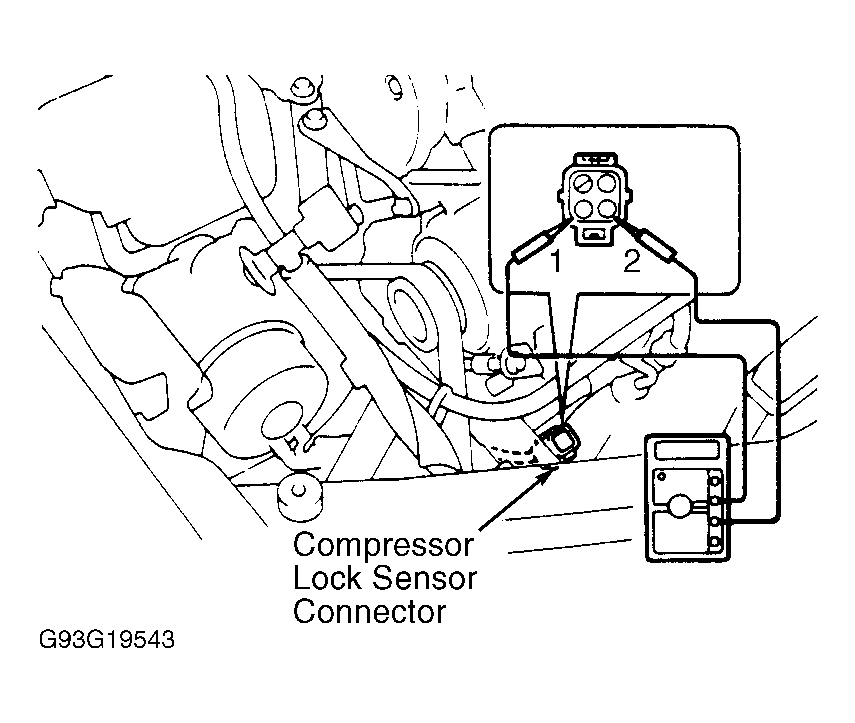

Fig 1: Identifying Compressor Lock Sensor Terminals
G93G19543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
