Power Window Motor Circuit

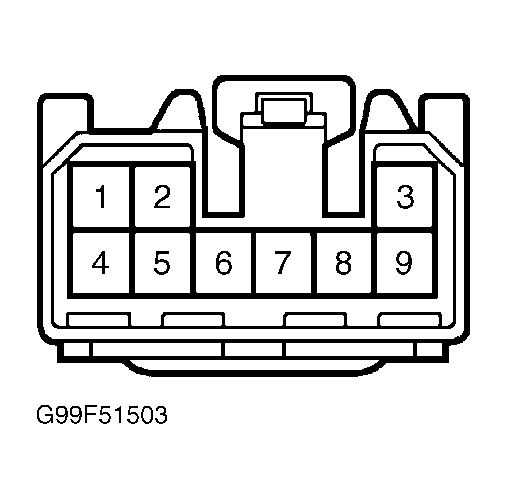

Disconnect power window motor harness connector. Using DVOM, check circuit values at power window motor harness connector. See Fig 1. Ensure circuit values are as specified. See POWER WINDOW MOTOR CIRCUIT VALUES table. If circuit values are not as specified, repair as necessary. See WIRING DIAGRAMS .
POWER WINDOW MOTOR CIRCUIT VALUES
| Tester Connection | Condition | Circuit Value |
|---|---|---|
| 1 & Ground | Constant | Continuity |
| 2 & Ground | Ignition Switch In ON Position | Battery Voltage |
| 2 & Ground | Ignition Switch in OFF Position; Door Courtesy Switch OFF | Less Than 1.5 Volts |
| 3 & Ground | Constant | Battery Voltage |
| 4 & Ground | Using Key, Door Key Cylinder In OFF Position | No Voltage |
| 4 & Ground | Using Key, Door Key Cylinder In LOCK Position | Battery Voltage |
| 5 & Ground | Using Key, Door Key Cylinder In OFF Position | No Voltage |
| 5 & Ground | Using Key, Door Key Cylinder In UNLOCK Position | Battery Voltage |
| 6 & Ground | Ignition Switch In ON Position; Master Switch OFF | No Voltage |
| 6 & Ground | Ignition Switch In ON Position; Master Switch UP | Battery Voltage |
| 7 & Ground | Ignition Switch In ON Position; Master Switch OFF | No Voltage |
| 7 & Ground | Ignition Switch In ON Position; Master Switch DOWN | Battery Voltage |
| 8 & Ground | Ignition Switch In LOCK Or ACC Position | No Voltage |
| 8 & Ground | Ignition Switch In ON Position | Battery Voltage |
| 9 & Ground | Ignition Switch In ON Position; Master Switch DOWN Or UP | No Voltage |
| 9 & Ground | Ignition Switch In ON Position; Master Switch AUTO DOWN Or AUTO UP | Battery Voltage |
