Light Control Switch Circuit

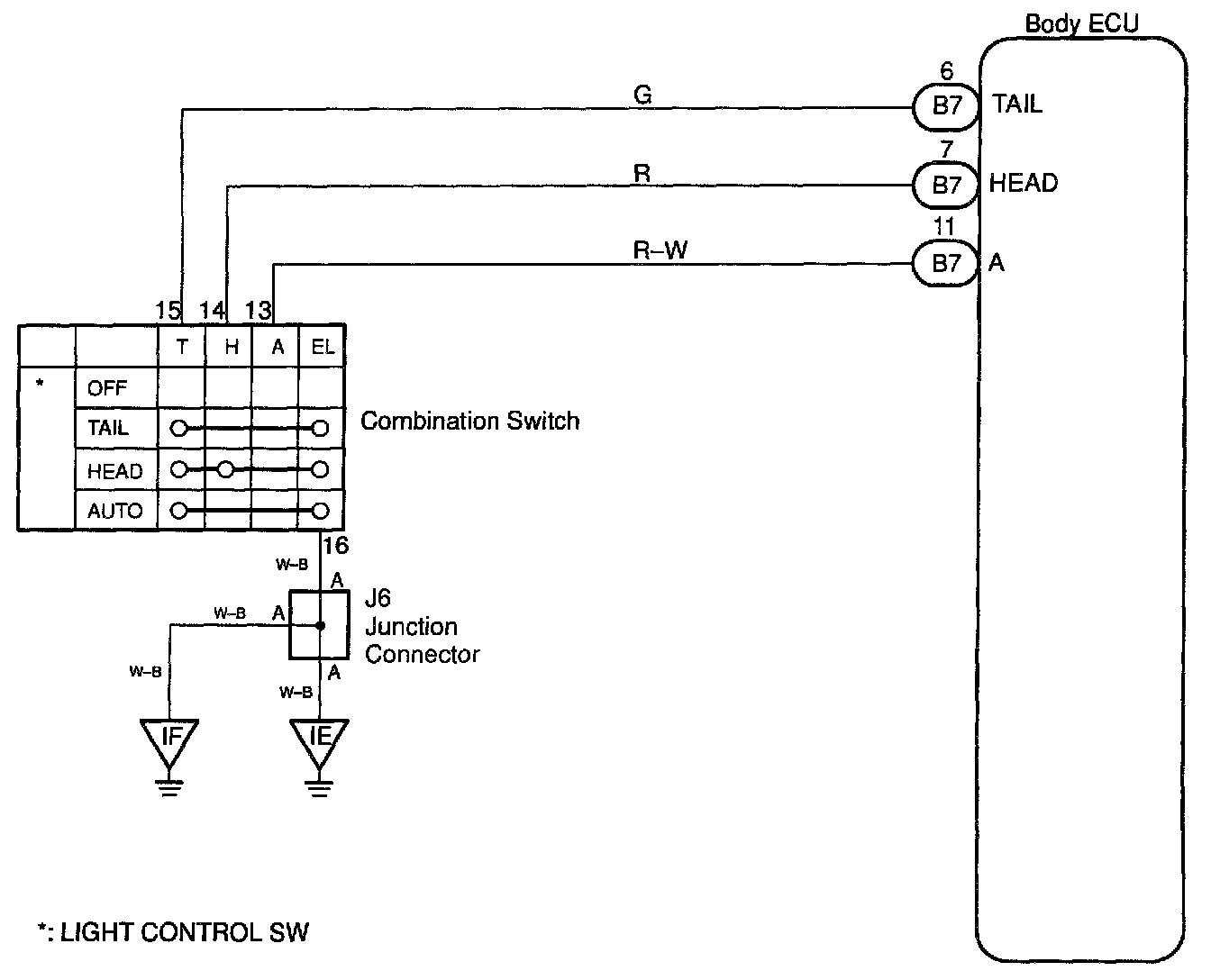

WIRING DIAGRAM

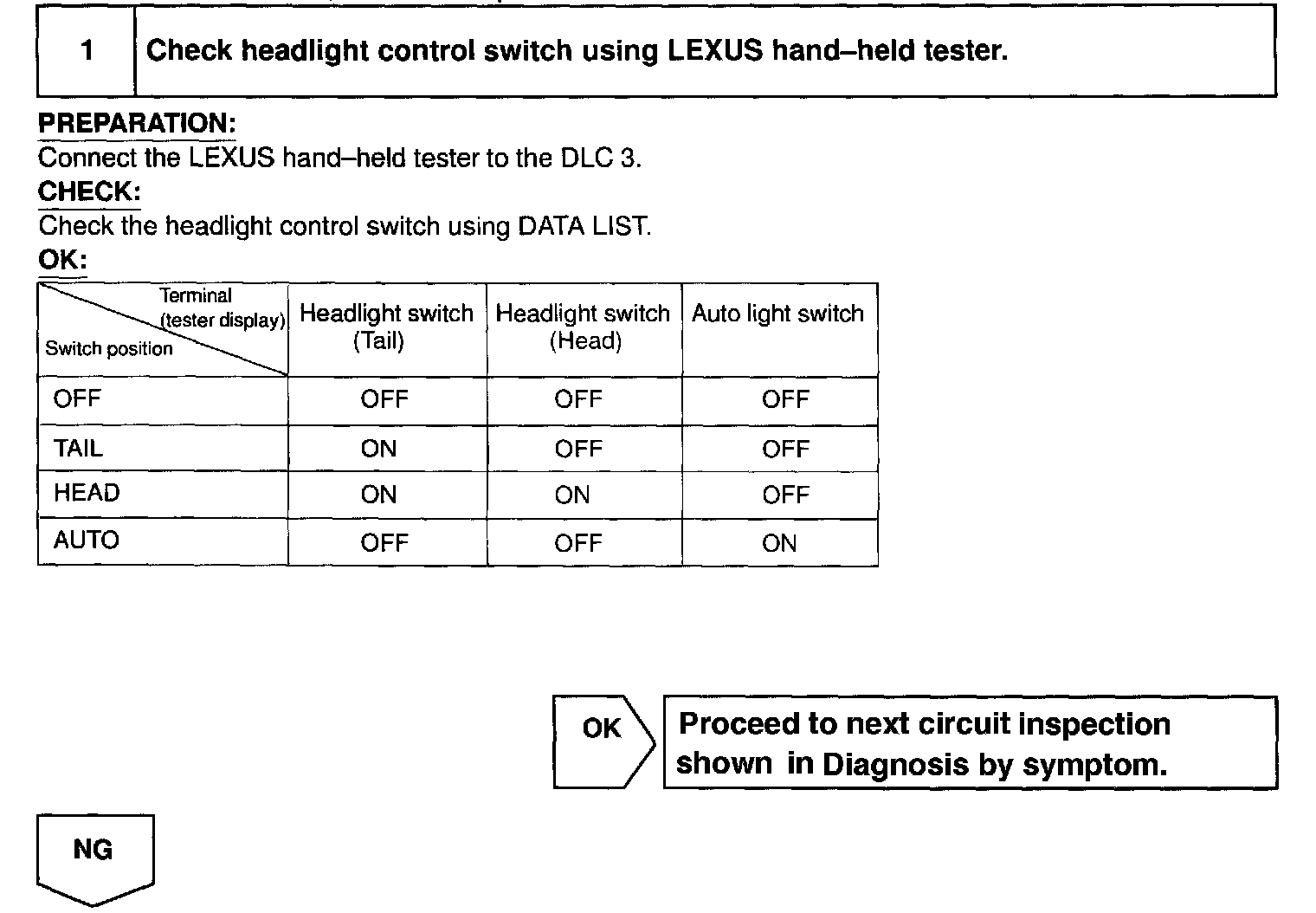

Step 1:

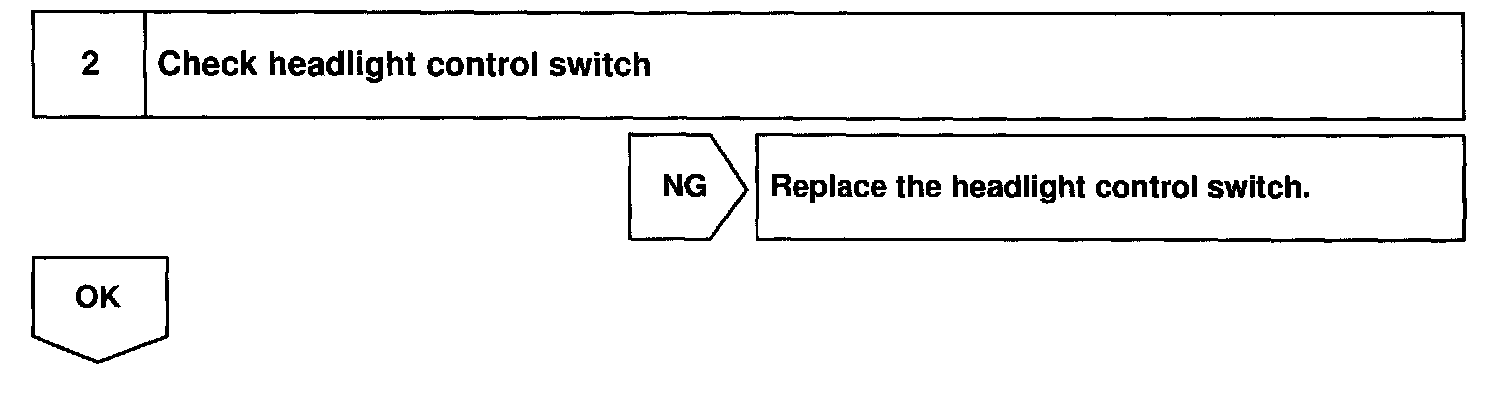

STEP 2:

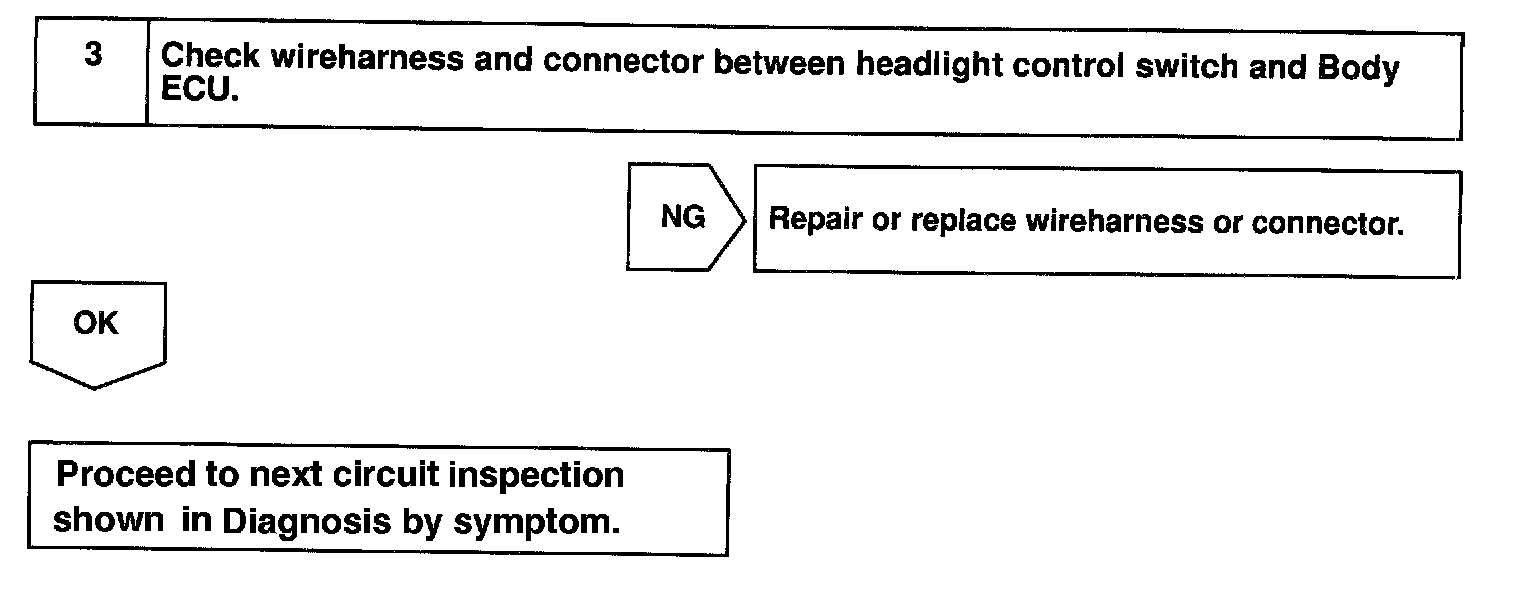

STEP 3:

INSPECTION PROCEDURE

HINT: In case of using the LEXUS hand-held tester, start the inspection from step 1 and in case of not using the LEXUS hand-held tester, start from step 2.
