Power Source Circuit

CIRCUIT DESCRIPTION
This circuit provides power to operate the Body ECU.




WIRING DIAGRAM

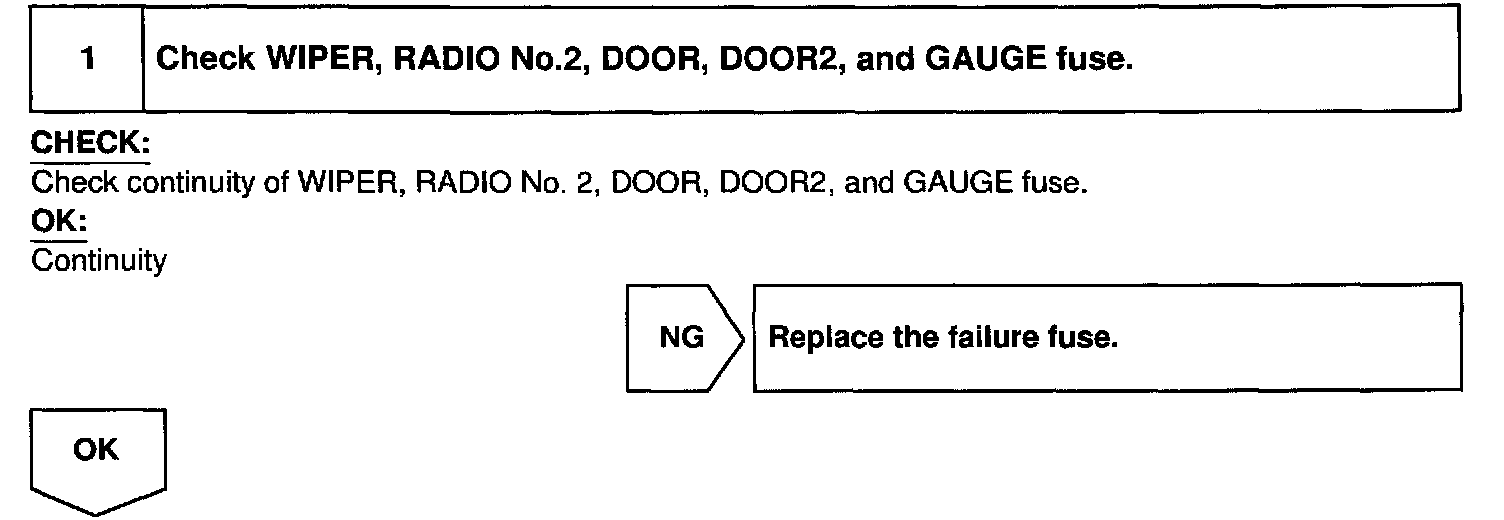

Step 1:

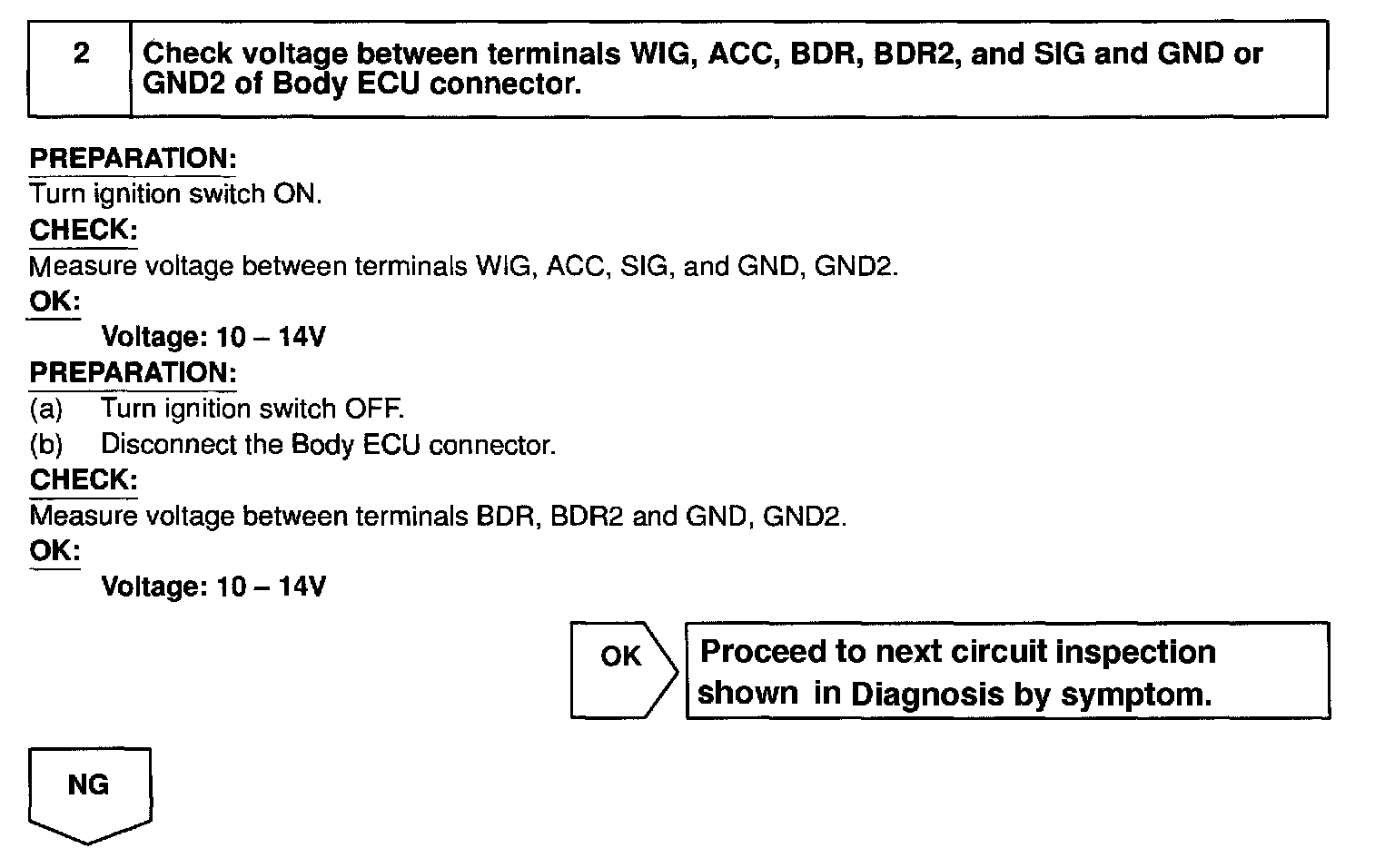

Step 2:

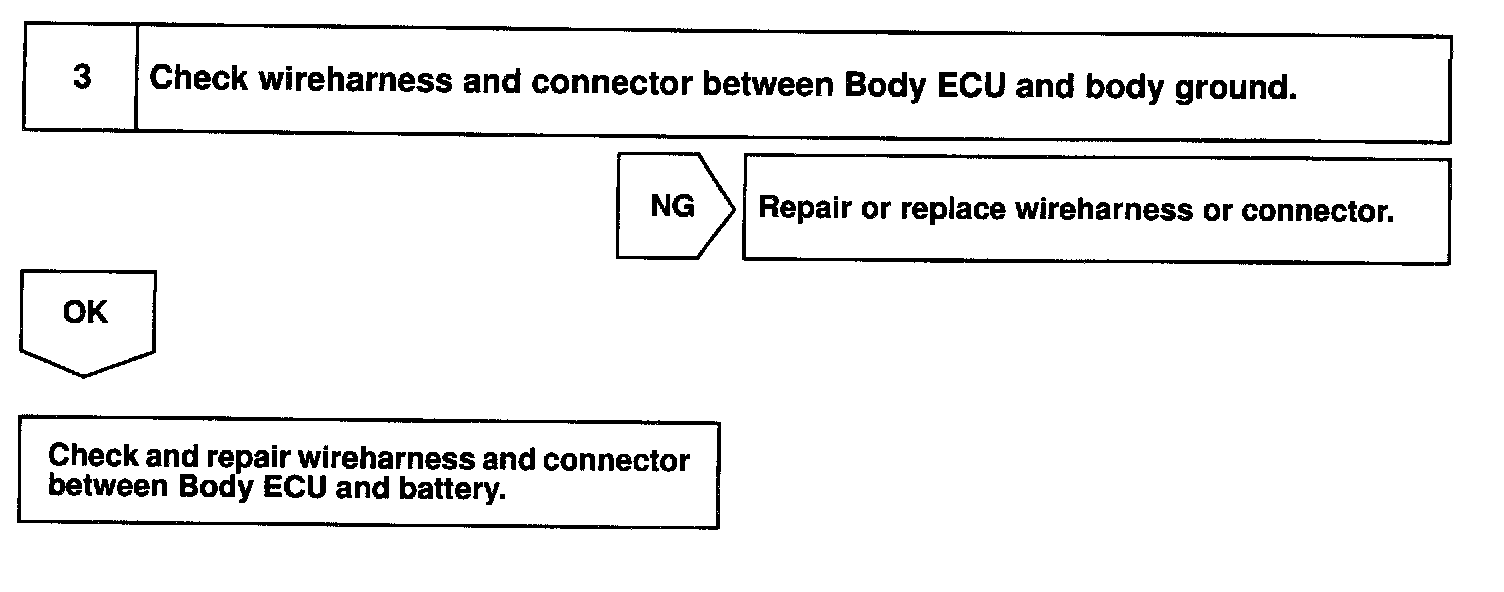

Step 3:




INSPECTION PROCEDURE
