Hazard Switch Circuit

CIRCUIT DESCRIPTION
Body ECU activates the flasher relay during warning of the theft deterrent system and flashers the hazard.




WIRING DIAGRAM

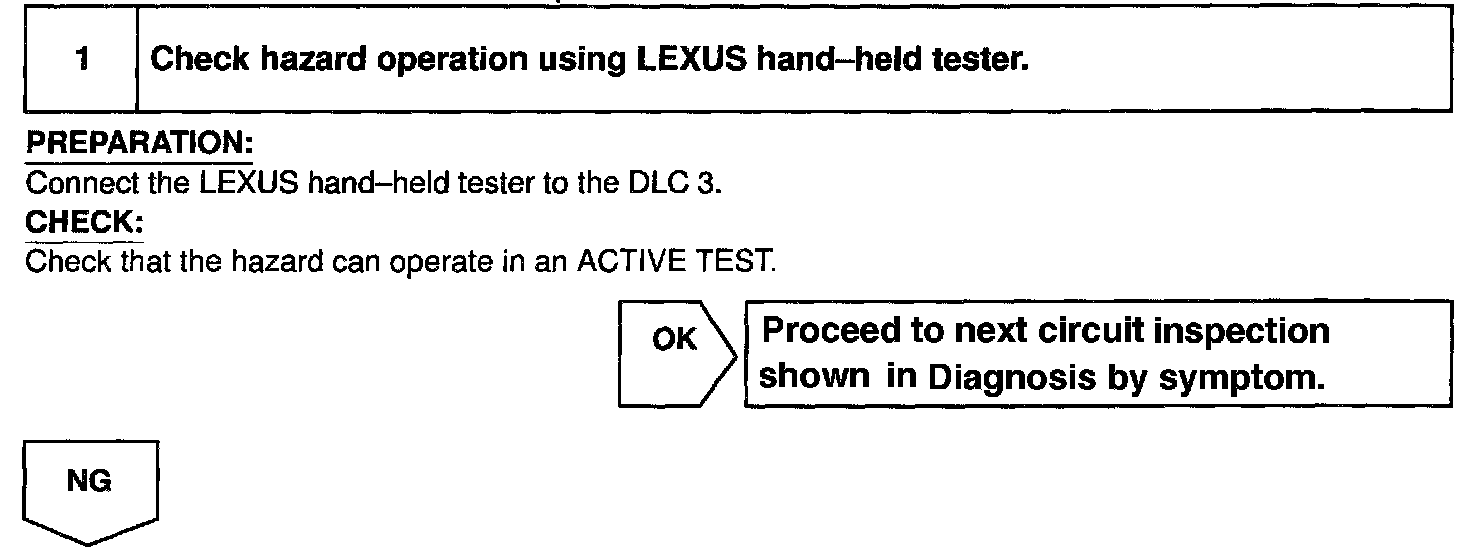

STEP 1:

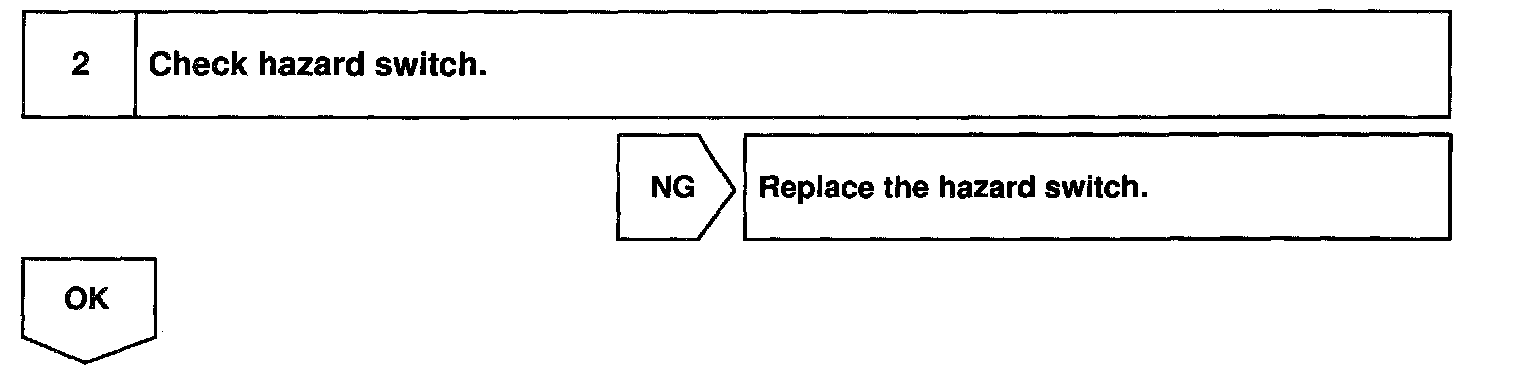

STEP 2:

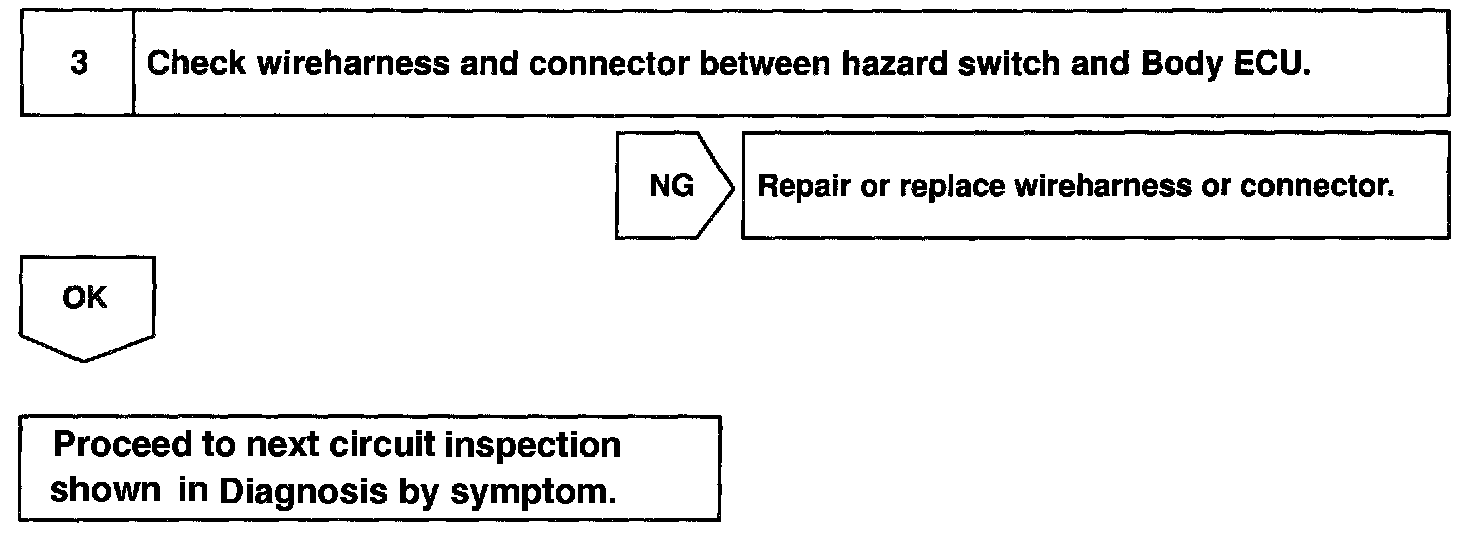

STEP 3:




INSPECTION PROCEDURE

HINT: In case of using the LEXUS hand-held tester, start the inspection from step 1 and in case of not using the LEXUS hand-held tester, start from step 2.
