Service Data

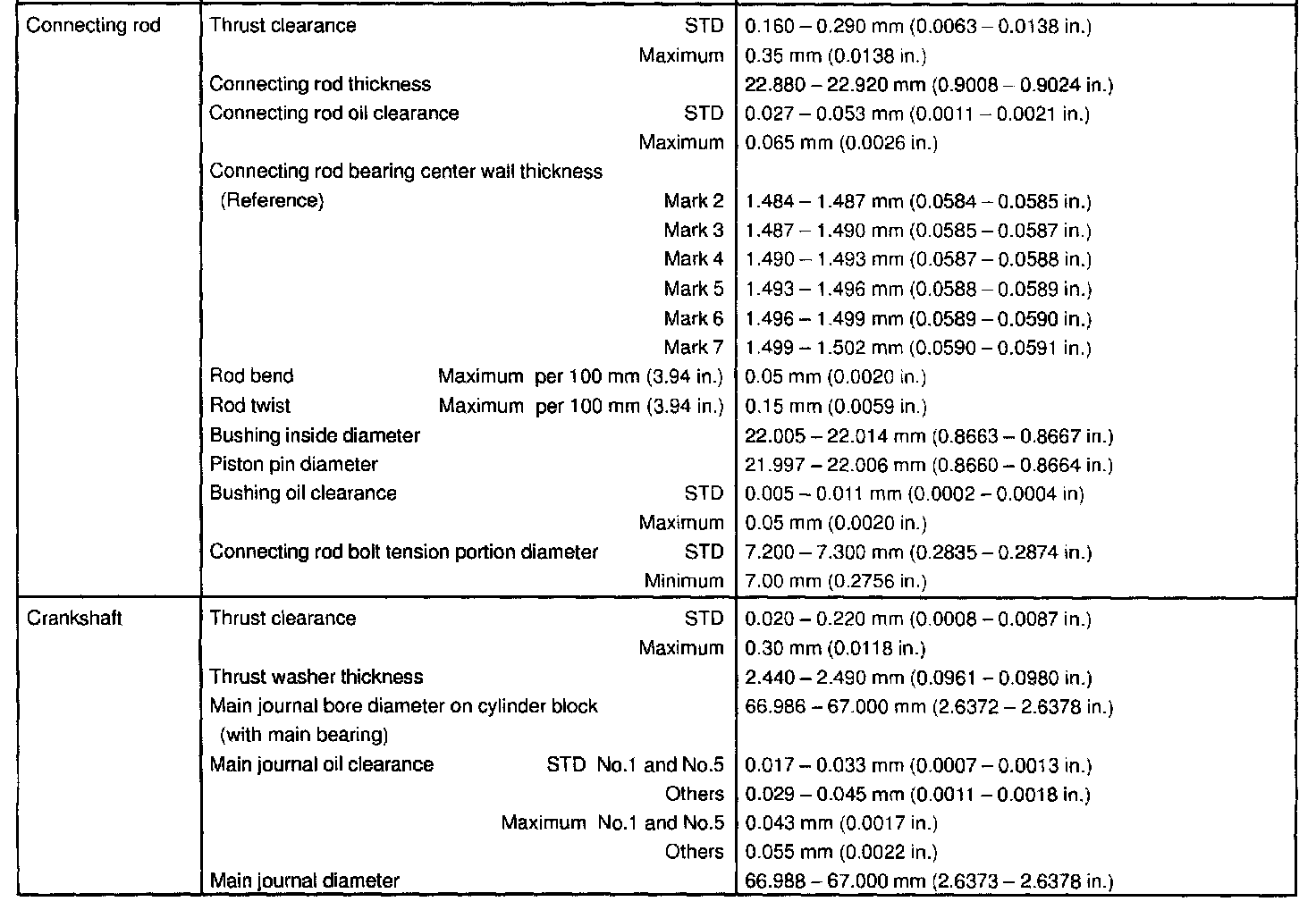

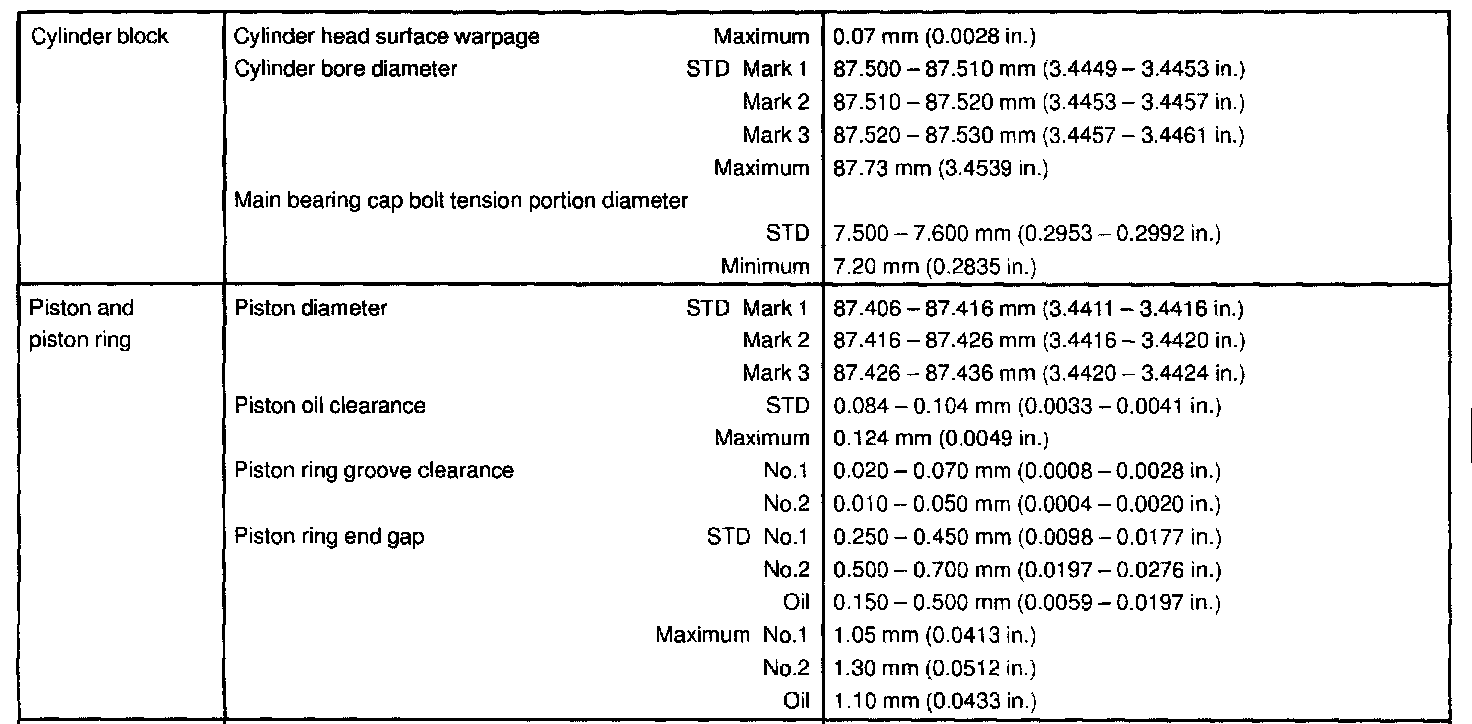

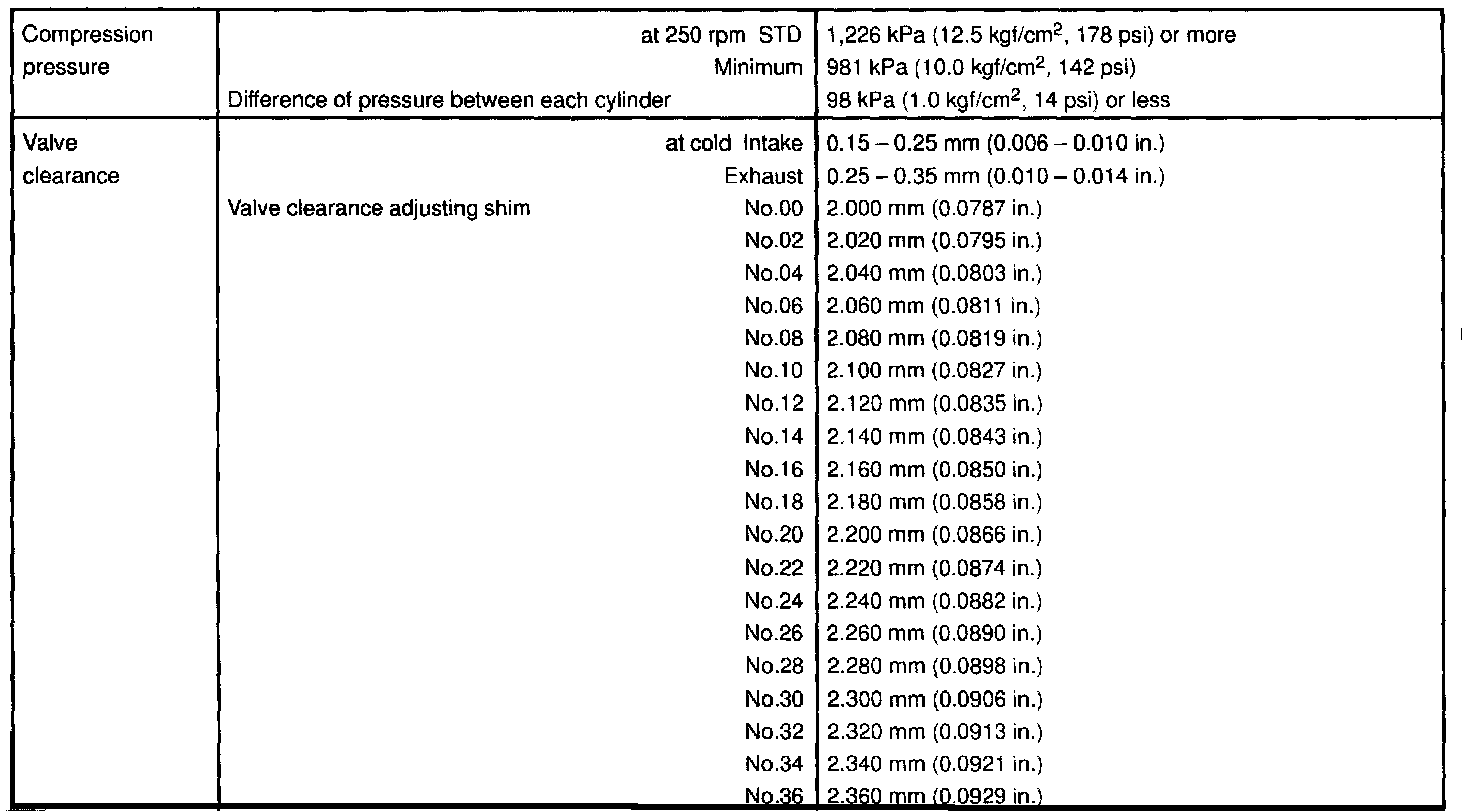

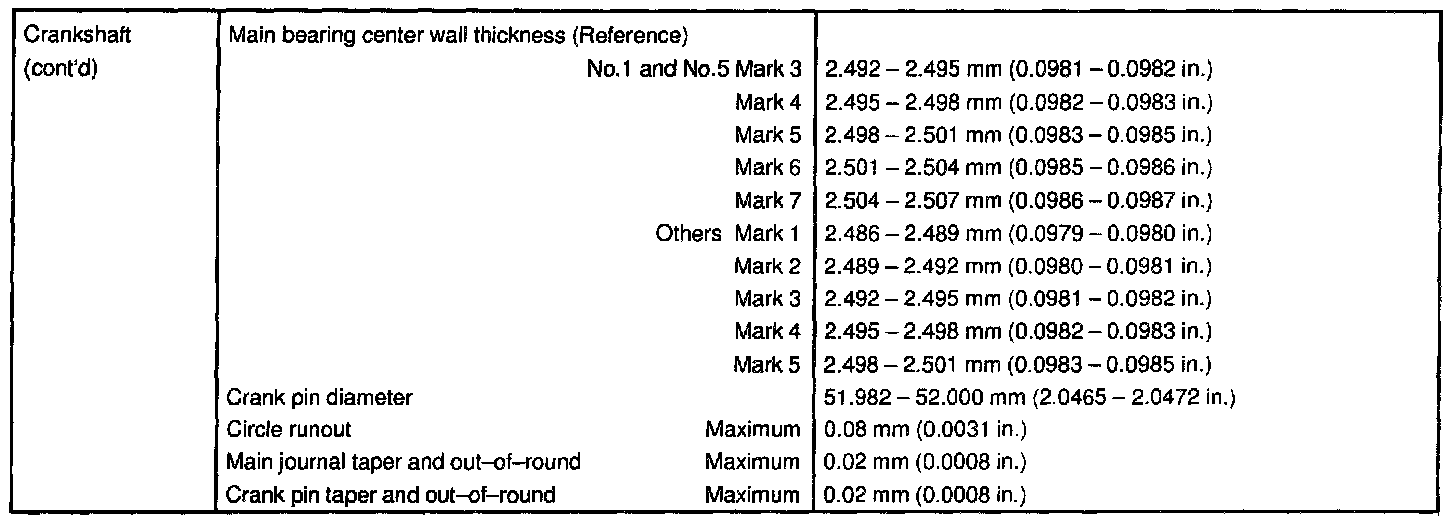

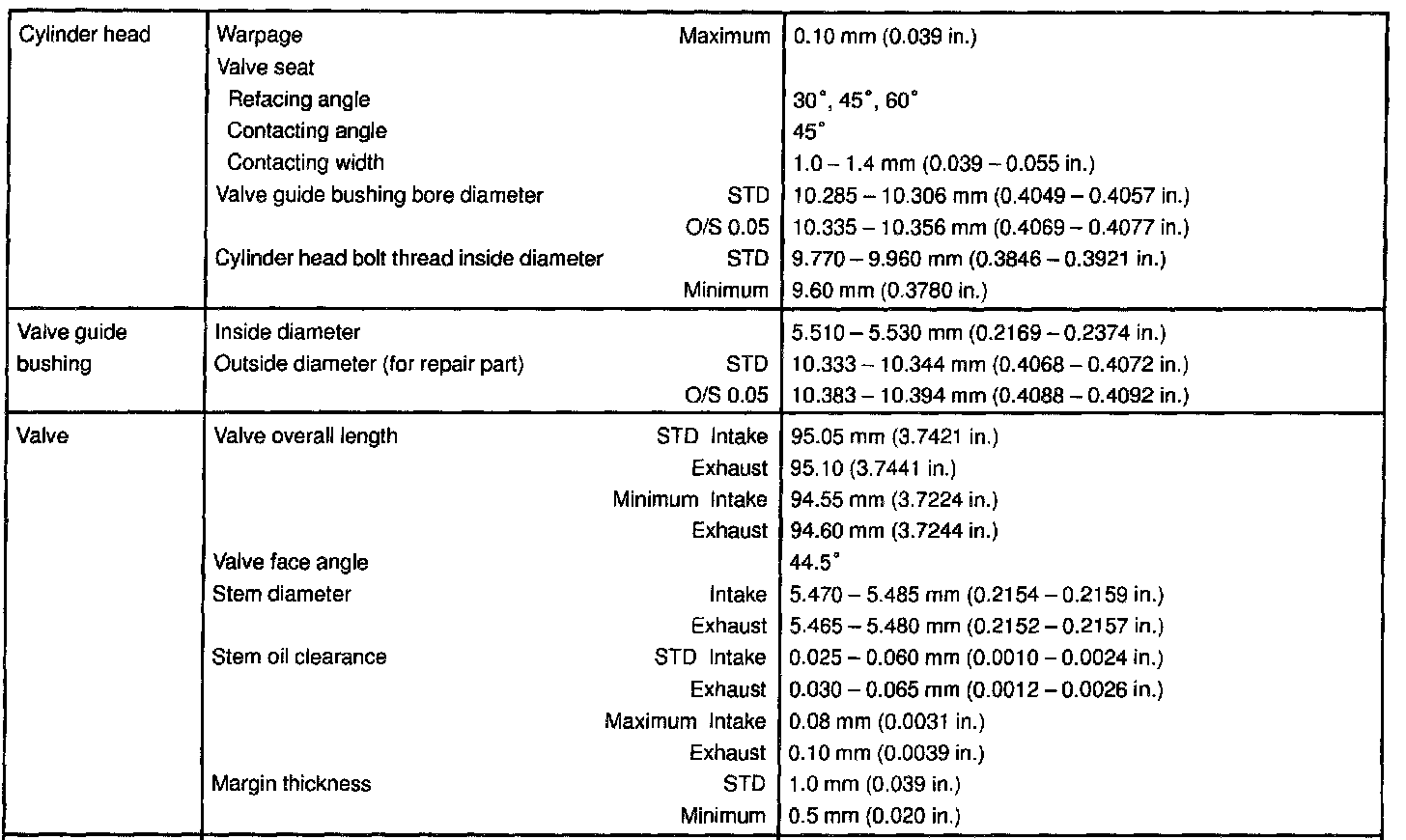

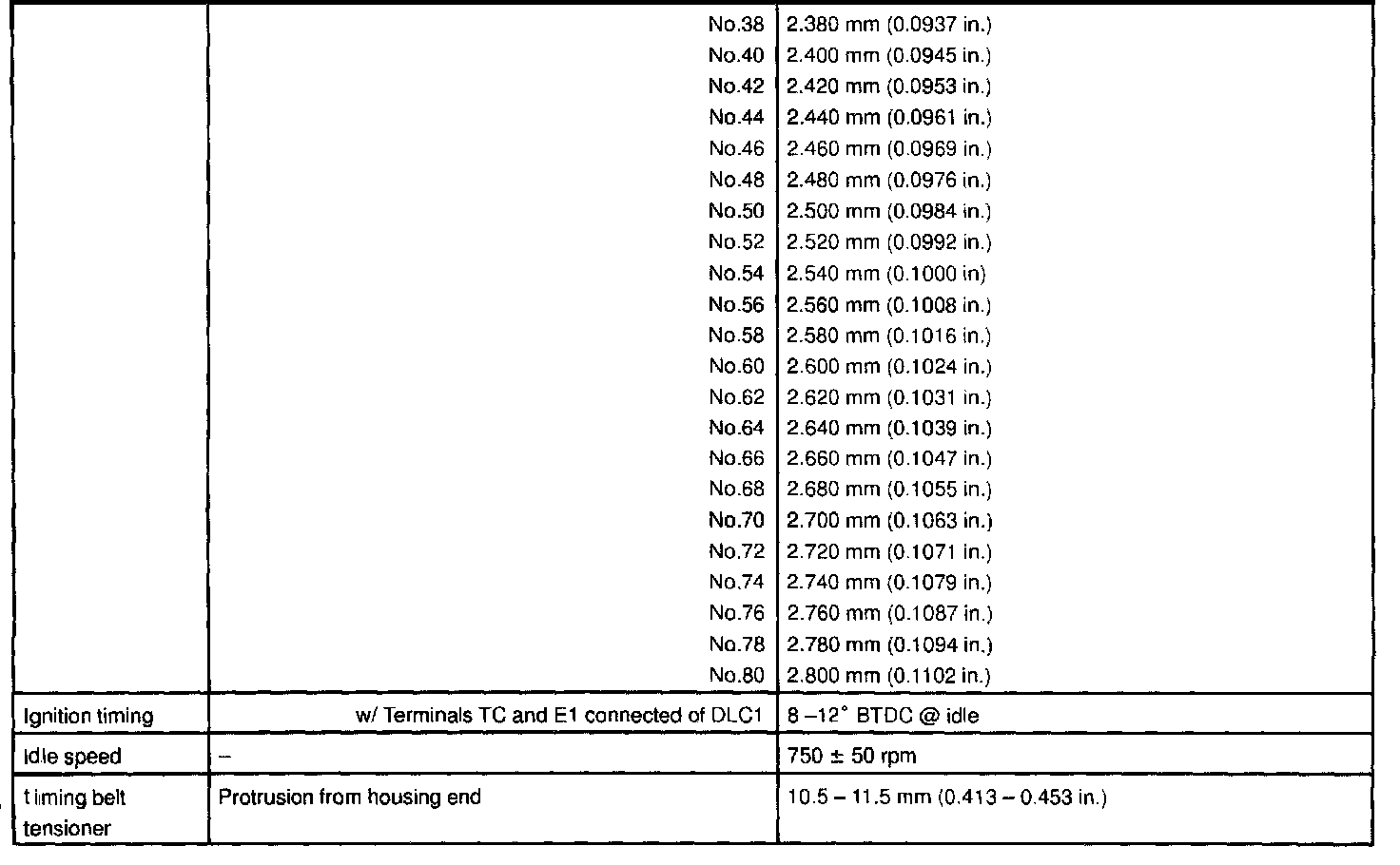

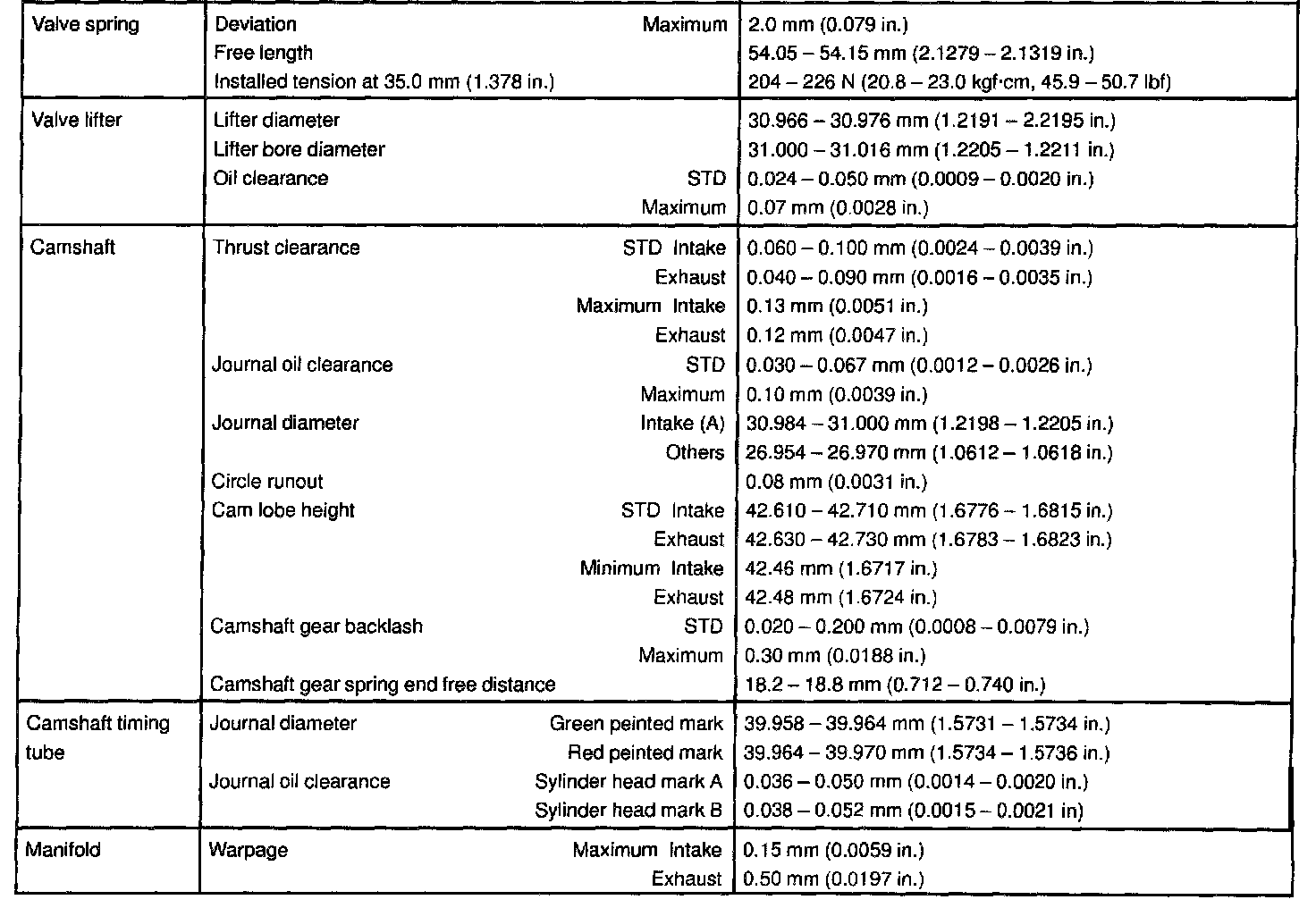

4.0L Engine Mechanical Data:




4.0L Engine Mechanical Cont.:





4.0L Engine Mechanical Cont.:




4.0L Engine Mechanical Cont.:





4.0L Engine Mechanical Cont.:




4.0L Engine Mechanical Cont.:





4.0L Engine Mechanical Cont.:
